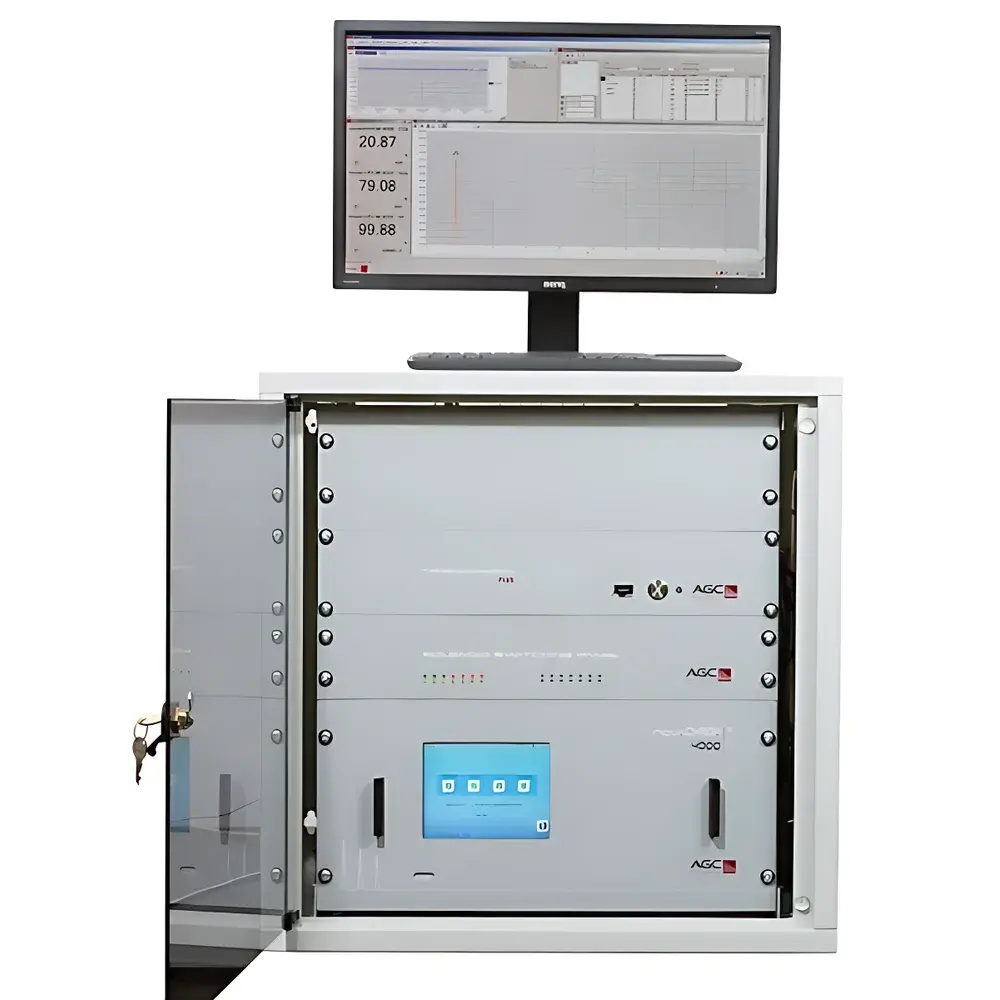

AGC NovaCHROM1000 Helium Ionization Gas Chromatograph (DID)

Overview

The AGC NovaCHROM1000 Helium Ionization Gas Chromatograph is a purpose-built online analytical system engineered for ultra-trace impurity profiling in high-purity industrial and electronic-grade gases. It employs a helium-based discharge ionization detector (DID), operating on the principle of vacuum ultraviolet (VUV) photoionization—where 24.8 eV photons generated by helium plasma directly ionize analyte molecules or first excite He atoms to metastable states (He*), which subsequently transfer energy via Penning ionization. This mechanism enables universal, sub-ppb detection of permanent gases (e.g., H₂, O₂, N₂, CO, CO₂, CH₄, Ne, Kr, Xe), halogenated compounds (HCl, BF₃, NF₃, Cl₂), hydrides (PH₃, SiH₄, NH₃), and hydrocarbons without discrimination—making it uniquely suited for compliance-driven analysis in semiconductor, photovoltaic, and specialty gas manufacturing environments.

Key Features

• Helium Ionization Detector (DID) with verified detection limits ≤100 ppt for key impurities (e.g., H₂O, O₂, N₂, CO, CH₄) under optimized conditions
• Full electronic pressure and flow control (EPC/EFC) across all pneumatic modules, ensuring reproducible retention times and quantitative precision
• Dual independent temperature zones: oven (4–450°C, stability <±0.05°C/h post-equilibration) and separately heated injector (up to 300°C)
• 6.5-inch color capacitive touchscreen interface with guided workflow navigation—designed for operator independence and minimal training overhead
• Modular 19-inch rack-mount chassis with downward-access front panel for field serviceability and rapid column/maintenance module replacement
• Integrated diagnostics engine with real-time status monitoring of detector voltage, filament health, pressure transducer calibration, and column flow integrity
• Electropolished stainless-steel fluidic path throughout—minimizing surface adsorption and memory effects for reactive and low-concentration species
• Onboard alarm system with configurable thresholds for pressure deviation, temperature drift, detector signal loss, and carrier gas depletion

Sample Compatibility & Compliance

The NovaCHROM1000 meets stringent regulatory and industry requirements for high-purity gas certification. Its validated methodology supports full conformance with ISO 8573-1 (compressed air purity classes), ASTM D7613 (trace hydrocarbon analysis in hydrogen), and multiple Chinese national standards including GB/T 8979-2008 (high-purity nitrogen), GB/T 14599-2008 (high-purity oxygen), GB/T 16942–16945 (electronic-grade He, N₂, Ar, O₂), and GB/T 21287-2007 (NF₃). When operated within GLP/GMP frameworks, the system supports 21 CFR Part 11-compliant audit trails via Trend-Vision software—including user authentication, electronic signatures, and immutable method/version logging. All hardware components are CE-marked and RoHS-compliant.

Software & Data Management

Trend-Vision workstation software provides centralized control of up to four AGC chromatographs simultaneously. It delivers automated sequence execution, retention time locking, peak integration using iterative baseline modeling, and customizable reporting templates aligned with ISO/IEC 17025 documentation requirements. Raw data files (.agc) are stored with embedded metadata (instrument ID, method version, operator ID, calibration history). The software supports direct export to LIMS via ASTM E1394 or OPC UA protocols. Optional modules include predictive maintenance alerts based on detector response decay trends and spectral deconvolution for co-eluting peaks in complex matrices such as multi-component etchant blends.

Applications

• Residual impurity verification in bulk electronic gases (He, Ne, Ar, Kr, Xe, H₂, N₂, O₂, CF₄, SF₆) per SEMI F20/F21 specifications
• Monitoring of ppb-level contaminants in hydrogen fuel cell feedstock (CO, H₂O, S-compounds)
• Quality assurance of medical-grade gases (USP , EP 2.2.47)
• Leak detection and outgassing studies in vacuum systems using tracer gases (e.g., He leak testing validation)
• Process gas stream surveillance in ammonia synthesis, chlor-alkali, and fluoropolymer production lines
• Validation of carrier gas purity downstream of AGC 75-802 regenerative purifiers (capable of upgrading 5.0N to ≥7.5N He/Ar)

FAQ

What makes the DID more sensitive than TCD or FID for noble gas impurity analysis?
DID achieves universal ionization efficiency across all elements—including noble gases like Ne and He—due to its 24.8 eV photon energy exceeding the ionization potentials of even the most stable species. In contrast, TCD lacks selectivity and suffers from poor sensitivity for light gases; FID is insensitive to permanent gases and halocarbons.
Can the NovaCHROM1000 operate unattended for extended periods in an online configuration?
Yes. With integrated CGDP-01 dual-cylinder carrier gas switching, automatic valve sequencing for backflush/cut-and-vent, and remote diagnostics via Ethernet, the system supports >30-day continuous operation with scheduled auto-calibration and report generation.
Is method transfer possible between NovaCHROM1000 and other AGC platforms (e.g., NovaCHROM 2000 with ADD)?
Method parameters (oven ramp, valve events, detector settings) are platform-agnostic within the Trend-Vision environment. However, detector-specific response factors and linear dynamic ranges require re-validation when switching between DID, ADD, or FID configurations.
Does the system support EPA Method TO-15 or ASTM D5502 for ambient air VOC analysis?
No. The NovaCHROM1000 is optimized for high-purity gas matrices and lacks cryogenic focusing or thermal desorption capabilities required for trace VOCs in ambient air. It is not intended for environmental air monitoring applications.
How is carrier gas purity maintained during long-term operation?
The AGC 75-802 regenerative purifier—optionally integrated upstream—removes H₂O, O₂, CO, CO₂, and hydrocarbons to <10 ppt levels using layered metal oxide and getter media, with end-of-life indicators synchronized to the Trend-Vision dashboard.
