Agilent 1260 Infinity III High-Capacity Column Oven (MCT)

Overview

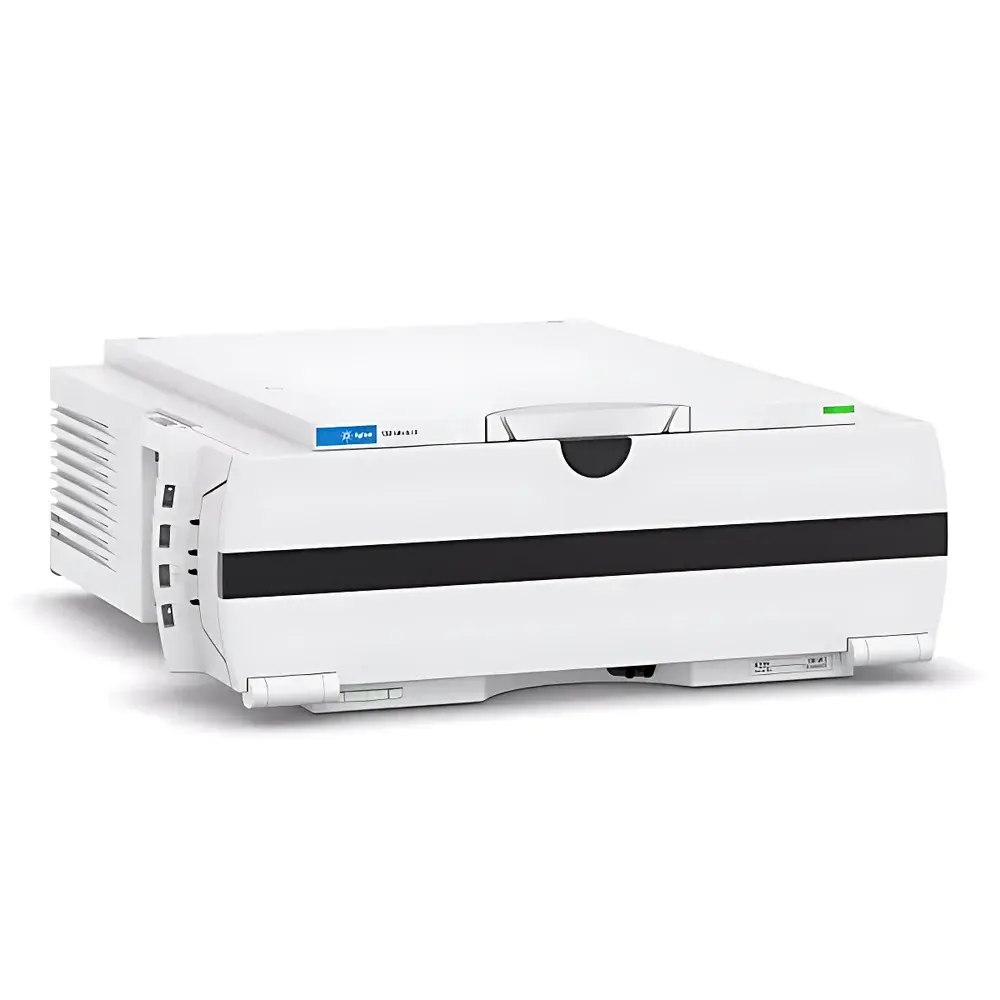

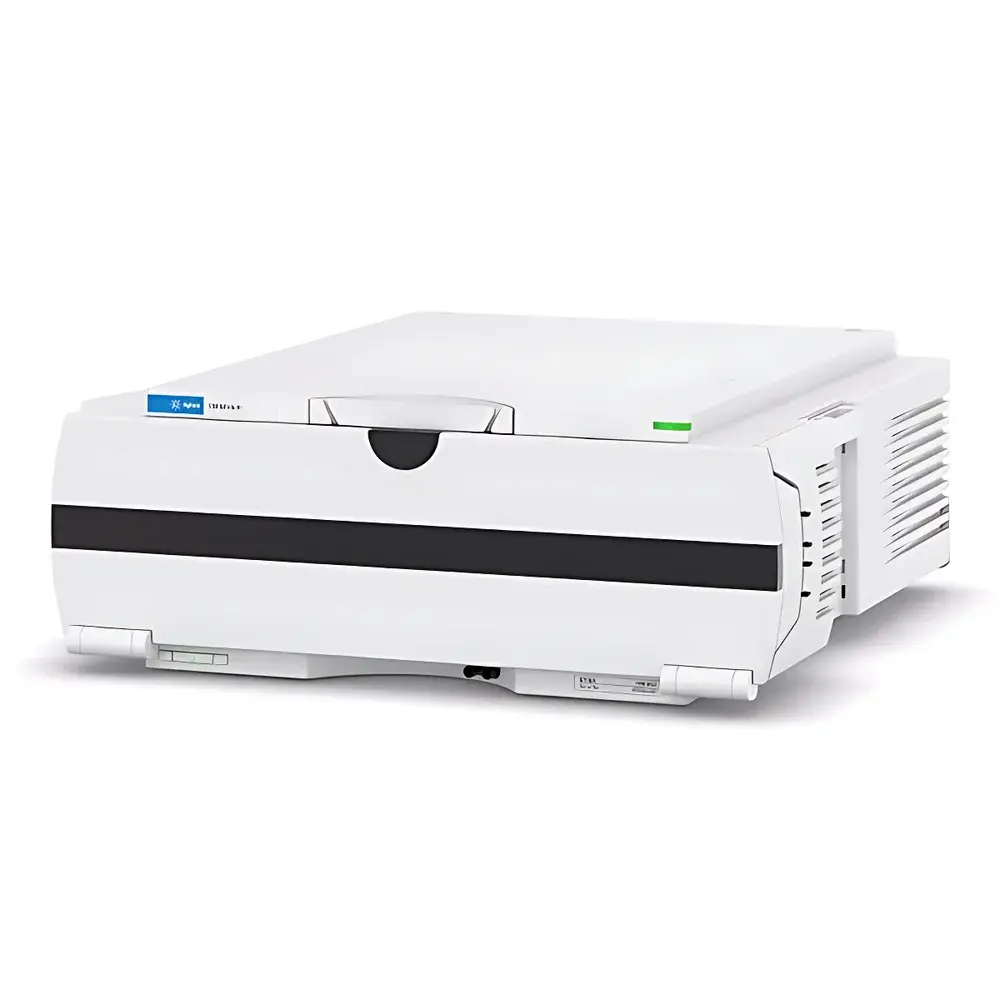

The Agilent 1260 Infinity III High-Capacity Column Oven (MCT) is a precision-engineered thermal management module designed for high-performance liquid chromatography (HPLC) and ultra-high-performance liquid chromatography (UHPLC) systems. It operates on solid-state Peltier thermoelectric technology, enabling active cooling up to 10 °C below ambient temperature and precise heating up to 85 °C—critical for method robustness, retention time stability, and peak shape reproducibility across diverse analyte classes. Unlike passive ovens, the MCT’s dual independent temperature zones allow simultaneous but differentiated thermal conditioning of column segments or multiple columns, supporting advanced workflows such as column switching, heart-cutting 2D-LC, or parallel column regeneration. Its mechanical architecture integrates seamlessly with the Agilent InfinityLab platform—including 1260 Infinity II, 1290 Infinity II, and newer Infinity III series modules—while maintaining backward compatibility with legacy 1260 and 1290 Infinity system components via standardized electrical and fluidic interfaces.

Key Features

• Dual-zone Peltier temperature control with ±0.1 °C stability and ≤0.2 °C uniformity across the column chamber, verified per ASTM E2758-18 calibration guidelines.
• High-capacity column compartment accommodating up to four 30 cm columns with standard 1/16″ tubing, including configurations with guard columns or in-line filters.
• InfinityLab Quick Connect thermal exchanger ensures consistent pre-column solvent heating, minimizing thermal mismatch between mobile phase and stationary phase—particularly beneficial for gradient methods and low-temperature separations.
• RFID-enabled column tracking system records column identity, manufacturer, dimensions, packing chemistry, maximum pressure, and cumulative injection count—supporting GLP/GMP-compliant audit trails and lifecycle management.
• Modular valve integration: Supports user-replaceable InfinityLab Quick Change valve heads rated to 800 bar, compatible with automated column selection, sample cleanup, and online matrix removal protocols.
• Ergonomic design with dual-axis door articulation (90° or 180° swing) and full-door removal capability for unobstructed column loading, tubing routing, and maintenance access.
• Biocompatible option available with electropolished stainless steel and PEEK-wetted surfaces, inert heat exchanger, and valve head—validated for intact mAbs, peptides, and oligonucleotides under USP <665> and ISO 10993-1 requirements.

Sample Compatibility & Compliance

The MCT is engineered for broad chemical and biological compatibility. Its standard configuration meets IEC 61010-1 safety standards for laboratory equipment and complies with CE marking requirements for electromagnetic compatibility (EMC) and low-voltage directives. When equipped with biocompatible wetted materials, it satisfies extractables and leachables criteria outlined in USP <1058> Analytical Instrument Qualification and supports data integrity frameworks aligned with FDA 21 CFR Part 11 and EU Annex 11. Temperature calibration certificates traceable to NIST standards are available upon request. The oven’s pressure-rated valve interface enables integration into regulated QC environments where method transfer, revalidation, and change control documentation are mandatory.

Software & Data Management

Control and monitoring are fully integrated via OpenLab CDS (ChemStation Edition or EZChrom Edition), enabling remote temperature setpoint adjustment, real-time chamber temperature logging, and synchronized valve actuation scripting. Column metadata—including RFID-read parameters—is automatically embedded into acquisition method files and raw data headers, ensuring full traceability from injection to report. Audit trail functionality records all temperature changes, valve position switches, and column identification events with user ID, timestamp, and reason-for-change fields—meeting ALCOA+ principles for data reliability. Optional Lab Advisor software provides predictive diagnostics, including thermal drift trending and Peltier element health assessment.

Applications

• Method development requiring precise thermal optimization for small-molecule pharmaceuticals (e.g., polymorph separation, chiral resolution at sub-ambient temperatures).
• Biopharmaceutical analysis involving temperature-sensitive biomolecules, where column cooling mitigates aggregation and adsorption artifacts.
• Automated multidimensional LC workflows using sequential or parallel column configurations for comprehensive metabolite profiling.
• High-throughput QC labs performing column-switching assays for plasma protein binding or phospholipid removal prior to MS detection.
• Environmental and food safety testing where reproducible retention times across seasonal ambient fluctuations are essential for regulatory compliance (e.g., EPA Method 8330B, ISO 17025-accredited labs).

FAQ

Does the MCT support both heating and cooling simultaneously across its dual zones?
Yes—the two independently controlled thermal zones can be set to different temperatures (e.g., −5 °C and +60 °C), enabling differential conditioning of serially coupled columns or distinct analytical and guard column segments.
Is column RFID functionality enabled by default or requires optional hardware?
RFID reader circuitry is built-in; no additional module is required. Compatible InfinityLab columns with embedded RFID tags are automatically recognized and logged during installation.
Can the MCT be operated standalone without connection to an Agilent LC system?
It must be powered and controlled via an InfinityLab-compatible controller (e.g., 1260 Infinity III LC pump or module manager); it does not feature autonomous operation or local HMI.
What validation documentation is provided for GxP environments?
Factory-installed IQ/OQ protocols compliant with ASTM E2500-13 and vendor-specific PQ templates are supplied. Full 21 CFR Part 11 configuration packages—including electronic signature and audit trail enablement—are available under separate license.
Is the biocompatible version suitable for monoclonal antibody analysis under ICH Q5E guidelines?
Yes—when specified with inert flow path components and validated cleaning procedures, the biocompatible MCT supports conformationally sensitive mAb separations per ICH Q5E recommendations for higher-order structure preservation.
