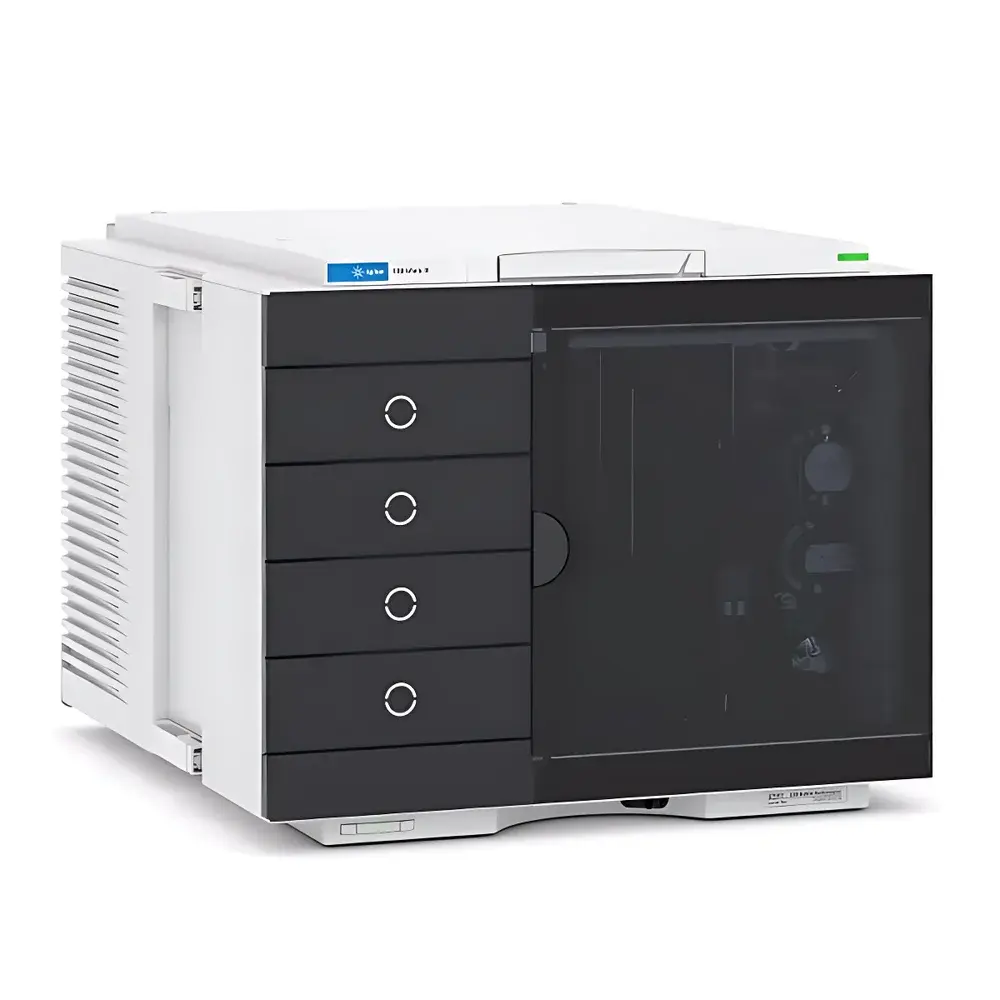

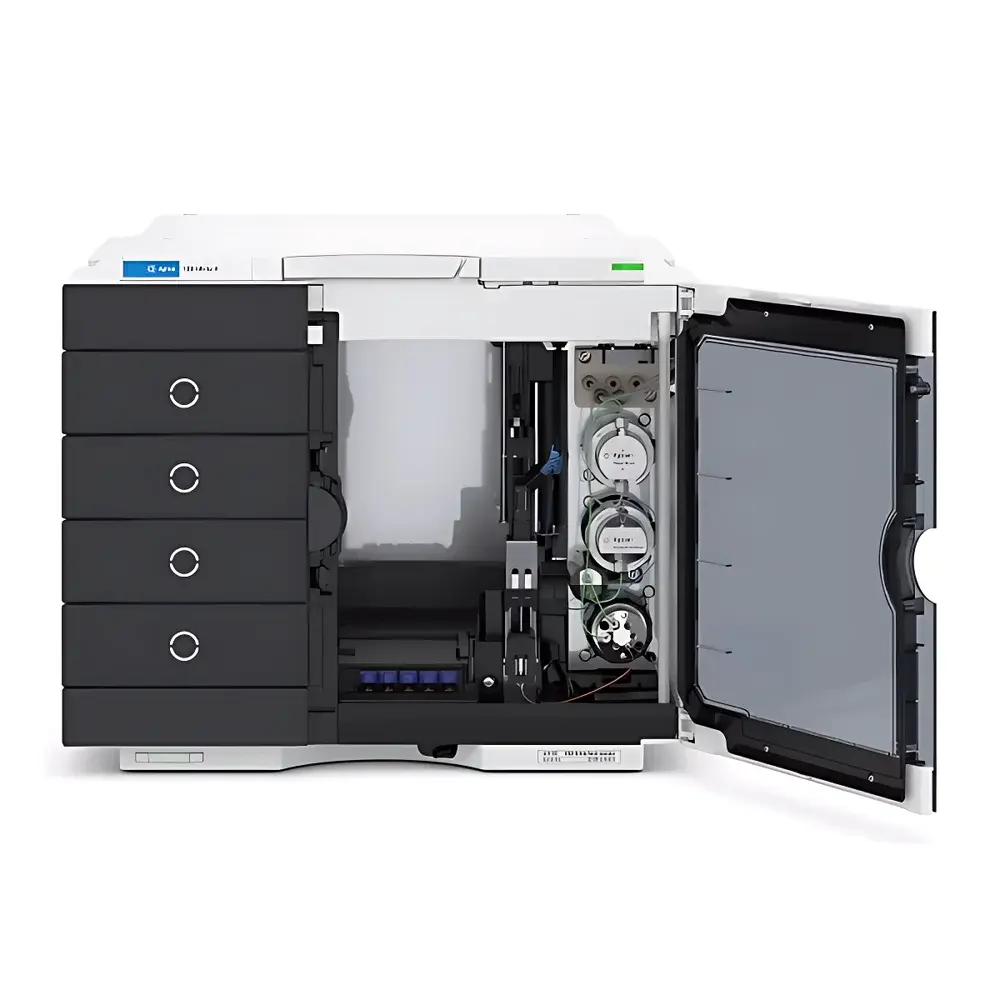

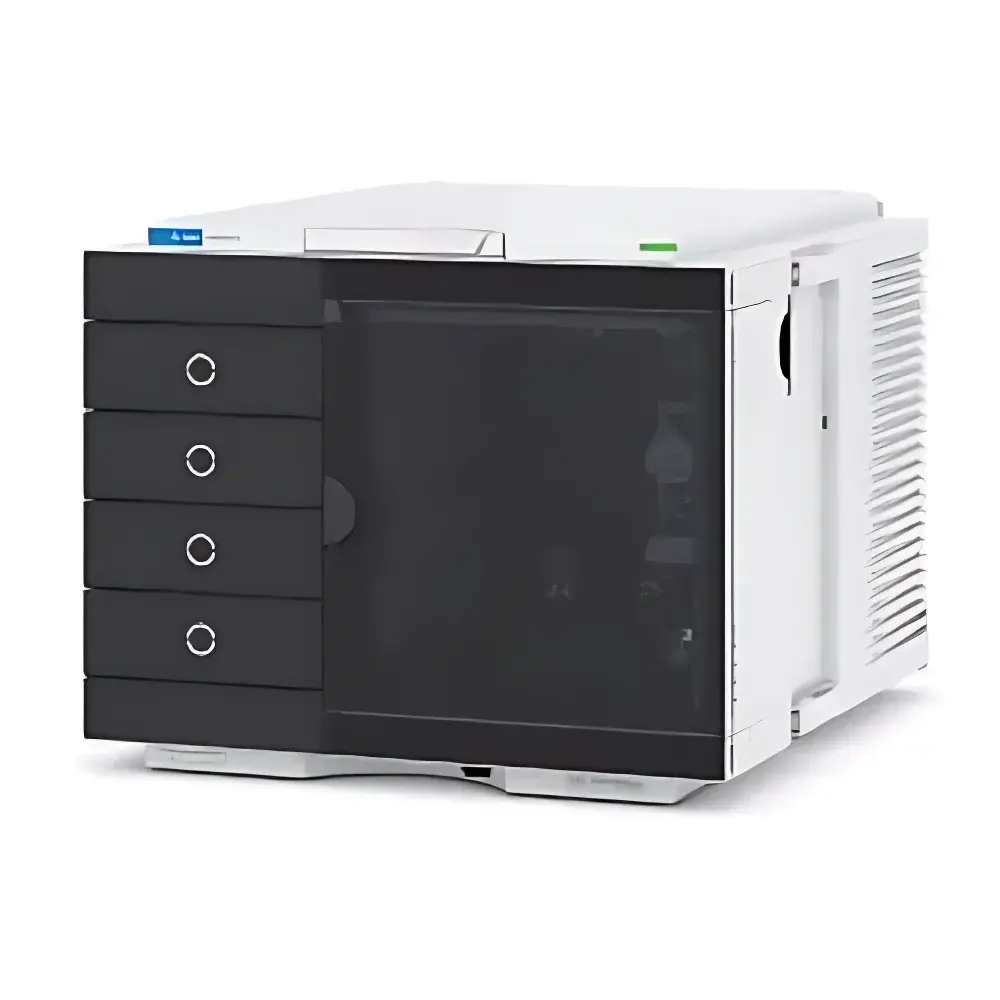

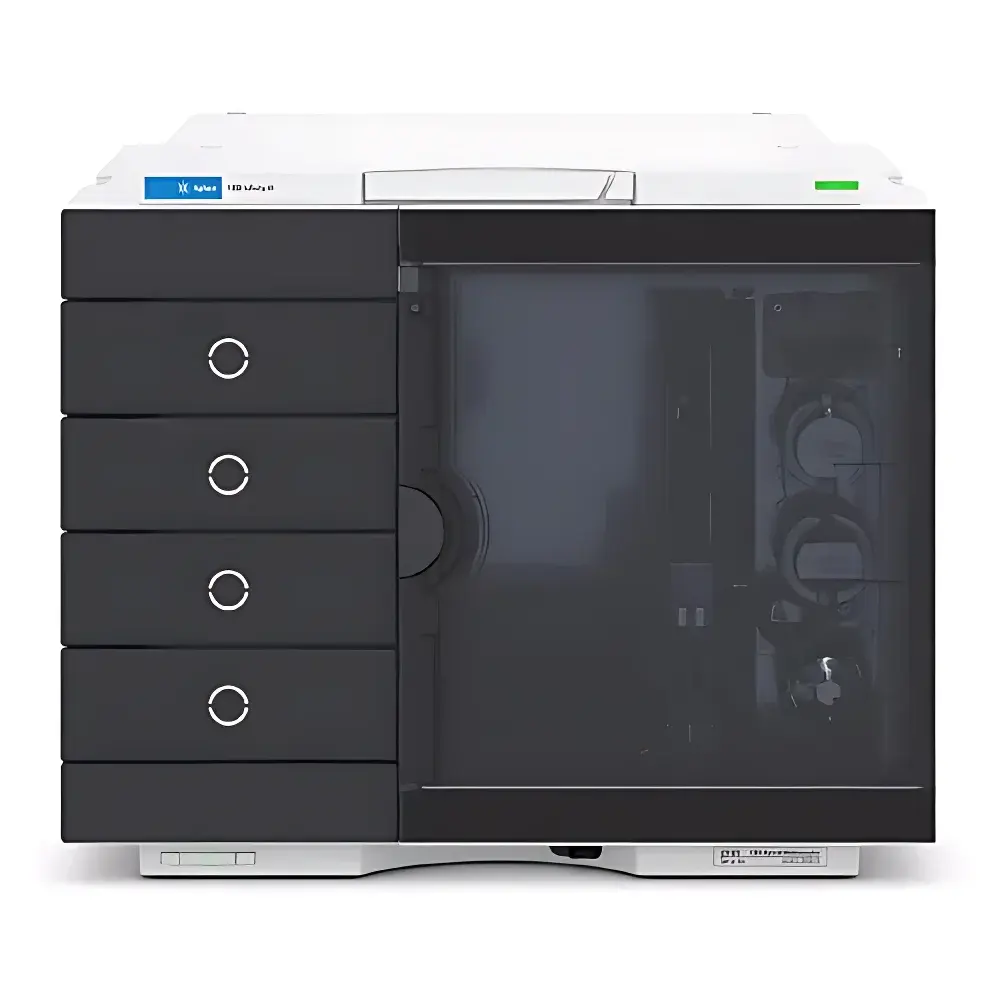

Agilent 1260 Infinity III Hybrid Multisampler

Overview

The Agilent 1260 Infinity III Hybrid Multisampler is a high-capacity, dual-mode HPLC autosampler engineered for method robustness, analytical flexibility, and unattended operation in regulated and research-intensive laboratories. It integrates two distinct injection principles—classical flow-through sampling and Agilent’s proprietary Flow-Enhanced Elution Dynamics (FEED)—within a single platform. Unlike conventional autosamplers relying solely on loop-based or needle-wash injection schemes, the Hybrid Multisampler enables dynamic solvent compatibility management at the point of injection. In flow-through mode, the sample is loaded into a fixed-volume loop and transferred via carrier mobile phase—ensuring full method transfer compatibility with legacy Agilent 1200/1260 systems. In FEED mode, the sampler introduces the sample directly into the continuously flowing mobile phase stream using precise syringe-driven metering, enabling real-time dilution and homogenization prior to column entry. This architecture mitigates solvent mismatch effects—particularly critical when injecting samples dissolved in strong solvents (e.g., acetonitrile-rich extracts from QuEChERS workflows), thereby eliminating peak distortion, fronting, and retention time drift commonly observed in reversed-phase HPLC.

Key Features

• Dual-injection architecture supporting both flow-through and FEED modes for seamless method migration and advanced solvent effect compensation
• Scalable sample storage: up to 16 standard microtiter plates (96- or 384-well) per drawer; total capacity of 6144 samples across four independently accessible drawers
• Intelligent robotic arm with precision XYZ motion control for reliable plate handling, vial indexing, and needle positioning under varying ambient conditions
• Triple-stage cleaning system: programmable internal needle wash, external needle rinse, and seat wash—each configurable with up to three independent solvents to minimize carryover
• Integrated temperature-controlled sample compartment (optional upgrade): maintains samples between 4 °C and 40 °C with ±0.5 °C stability and low thermal gradient across plate rows
• Drawer-status LED indicators provide real-time visual feedback on loading status, active operation, and error conditions without software dependency

Sample Compatibility & Compliance

The Hybrid Multisampler accommodates a broad range of container formats—including 1.5 mL and 2 mL screw-thread vials, 96-well and 384-well microplates (ANSI/SBS-compliant), and custom deep-well plates—without mechanical adaptation. Its fluidic path is constructed from chemically inert materials (e.g., PEEK, sapphire, and stainless steel with electropolished finish) suitable for aggressive organic solvents and aqueous buffers across pH 1–14. The system complies with ICH Q2(R2) guidelines for autosampler performance verification and supports audit-trail-enabled operation per FDA 21 CFR Part 11 when deployed with OpenLab CDS or MassHunter software. Routine qualification includes linearity testing (5–100 µL), precision assessment (RSD ≤ 0.3% for 10 µL injections), and carryover evaluation (< 0.005%) per ASTM E2656-22.

Software & Data Management

Control and method configuration are managed through Agilent OpenLab CDS (ChemStation Edition or EZChrom Edition), offering intuitive sequence building, event-triggered injection logic, and multi-user permission tiers. All hardware events—including drawer open/close, plate insertion, injection start/stop, and cleaning cycles—are timestamped and logged with operator ID and instrument state metadata. Raw data files include embedded instrument parameters, calibration history, and environmental logs (e.g., sample tray temperature, ambient humidity). For GLP/GMP environments, optional electronic signature modules enforce role-based access control and generate compliant PDF reports containing full audit trails, deviation flags, and electronic signatures per ALCOA+ principles.

Applications

This multisampler is routinely deployed in pharmaceutical QC labs for stability-indicating assays requiring >1000-sample batches (e.g., forced degradation studies), in food safety laboratories performing multiresidue pesticide screening by LC-MS/MS, and in biopharma settings for monoclonal antibody purity profiling using SEC-HPLC. Its FEED capability significantly improves quantitation accuracy for high-solvent-strength extracts from complex matrices such as infant formula, olive oil, and herbal supplements. The large-format microplate support also facilitates high-throughput screening in early-stage drug discovery and biomarker validation workflows.

FAQ

Can the Hybrid Multisampler be retrofitted onto an existing Agilent 1260 Infinity II system?
Yes—it is mechanically and electronically compatible with all 1260 Infinity II LC modules via standard LAN and RS-232 interfaces.
Is FEED mode supported in gradient elution methods?
Yes—FEED operates synchronously with pump gradient profiles and is validated for use with linear, stepped, and nonlinear gradients up to 2 mL/min flow rates.
What is the maximum allowable sample viscosity for reliable FEED injection?
The system has been verified for samples up to 15 cP at 25 °C using standard 0.5 mm ID capillary paths; higher viscosities require optional low-flow FEED kits.
Does the integrated sample cooler support rapid temperature ramping?
No—the temperature module is optimized for stable setpoint maintenance, not dynamic ramping; ramp rates are limited to ≤ 1 °C/min to preserve sample integrity.
How is cross-contamination monitored during routine PQ?
Carryover is assessed using a worst-case test solution (e.g., 100 µg/mL caffeine in ACN/H₂O), followed by five blank injections; acceptance criterion is signal ≤ 0.05% of the initial peak area.
