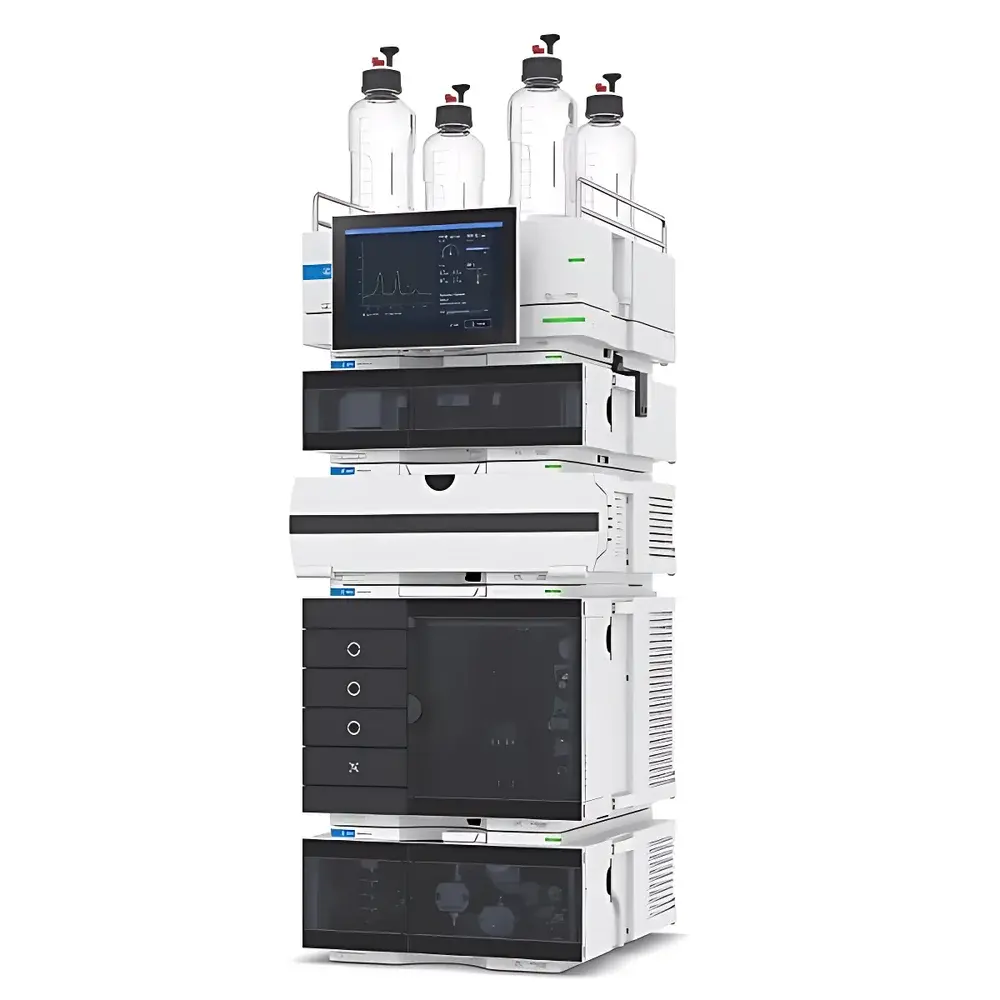

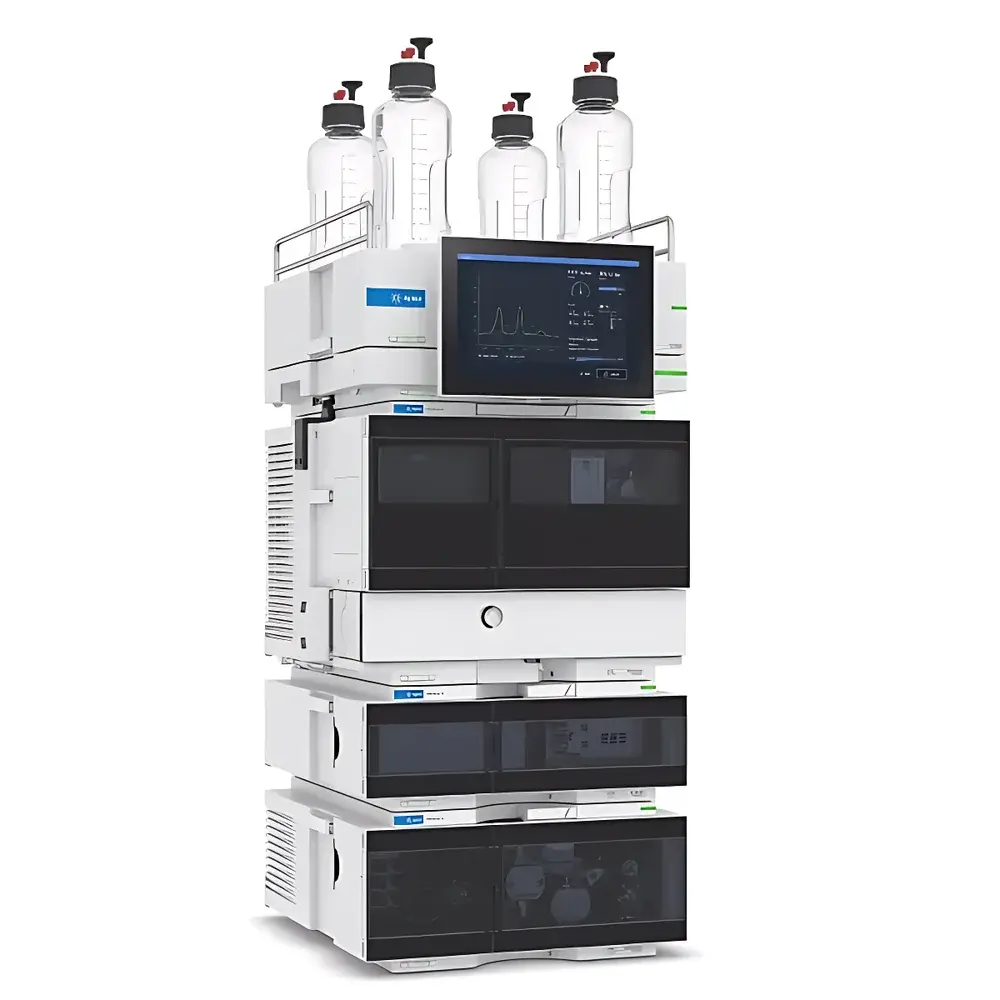

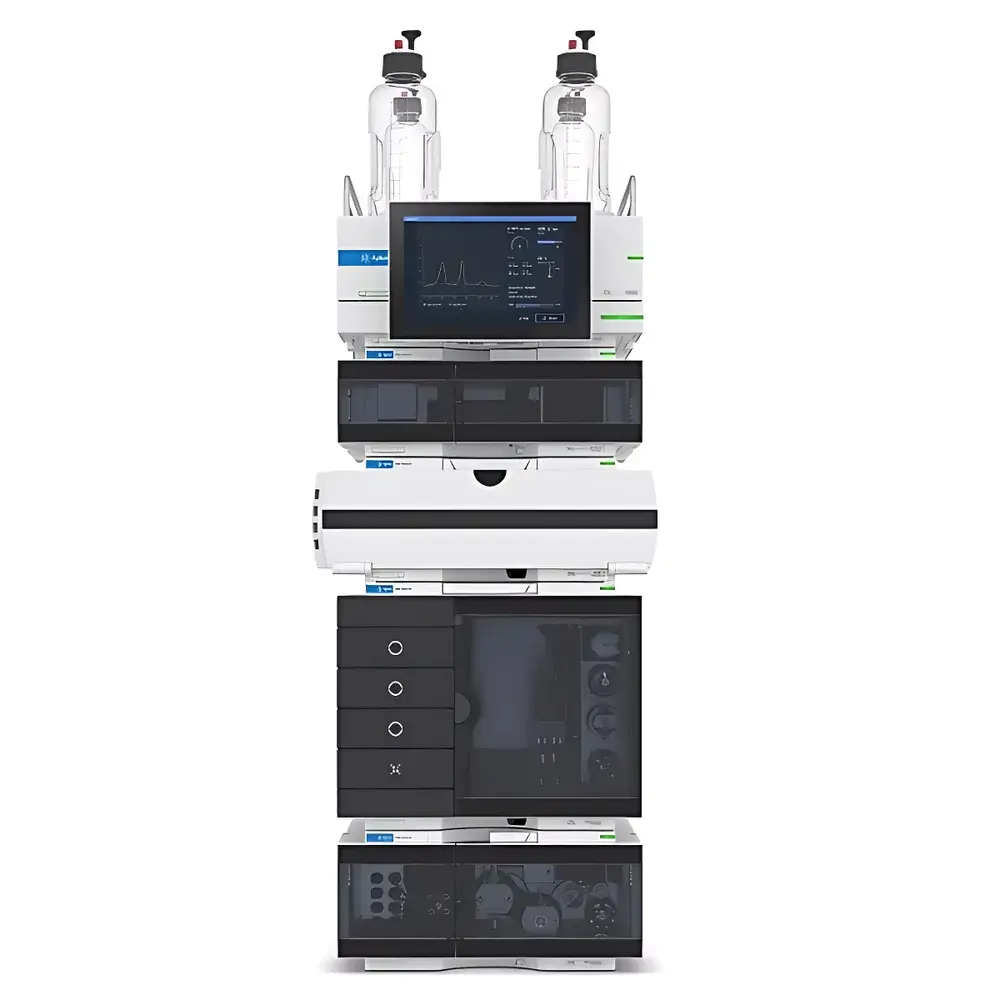

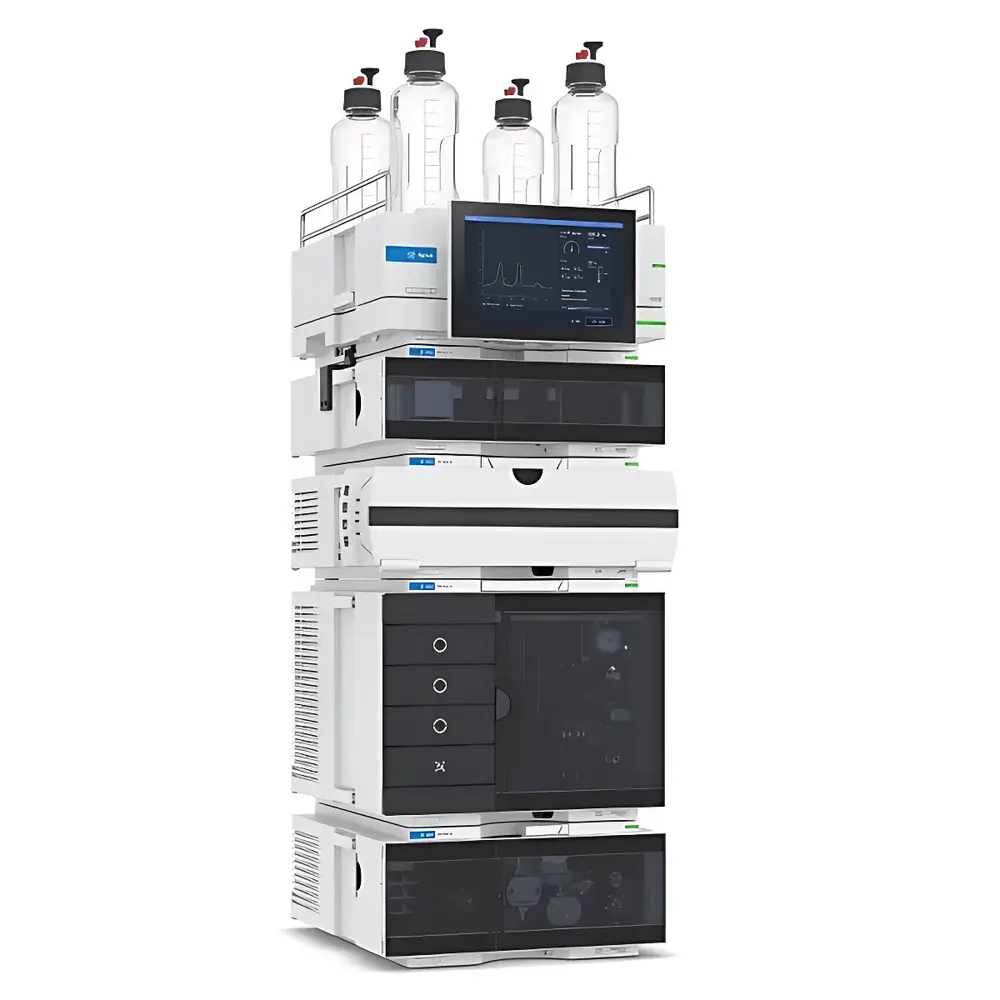

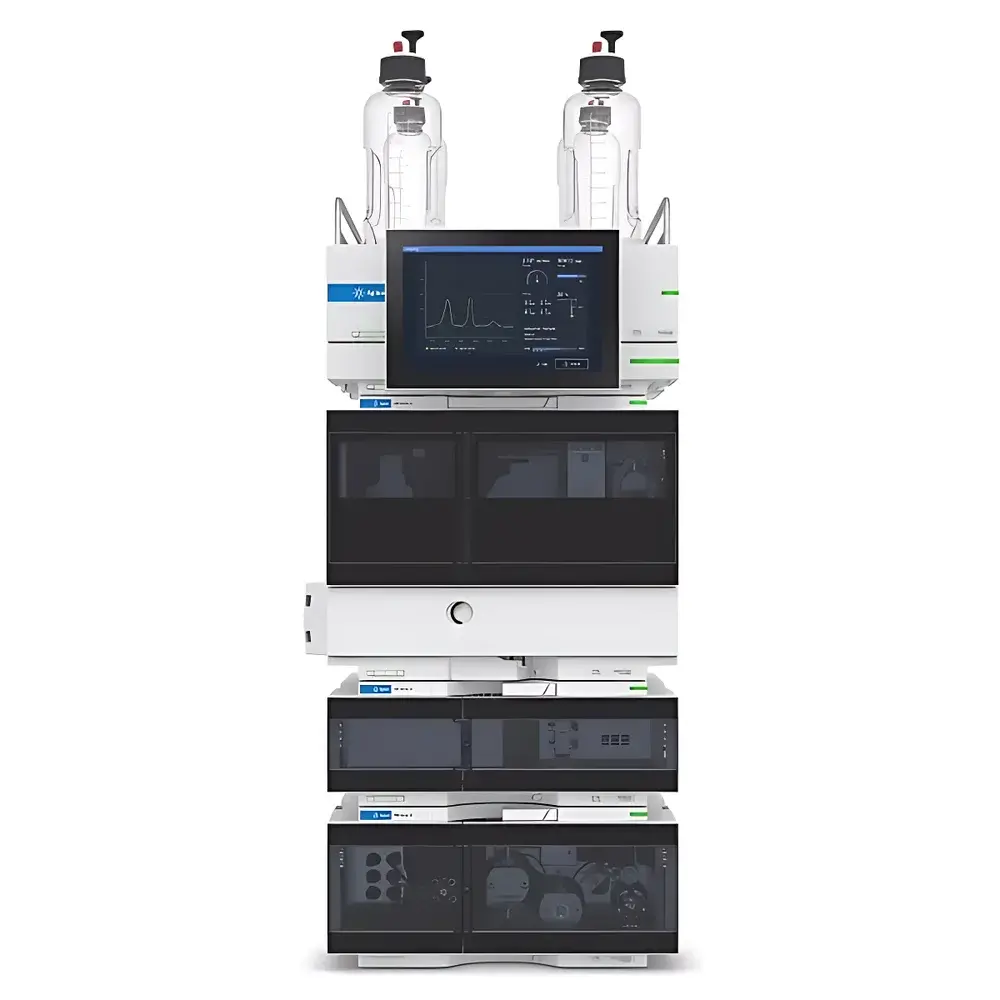

Agilent 1260 Infinity III Prime HPLC System

Overview

The Agilent 1260 Infinity III Prime HPLC System is a high-performance, quaternary ultra-high performance liquid chromatograph engineered for robust routine analysis and seamless method transfer across diverse laboratory environments. Based on quaternary low-dead-volume solvent delivery architecture, it employs positive-displacement piston pumping and active solvent compressibility compensation to deliver precise gradient formation at pressures up to 800 bar and flow rates up to 5 mL/min. Its hydraulic design minimizes dwell volume (≤350 µL), enabling rapid gradient equilibration and reproducible retention time control—critical for regulatory-compliant LC methods. As a fully integrated UHPLC platform, it supports sub-2 µm particle-packed columns while maintaining compatibility with conventional 3–5 µm HPLC columns, making it suitable both as a standalone analytical workhorse and as an optimized front-end for LC/MS coupling. The system adheres to fundamental chromatographic principles of isocratic and gradient elution, leveraging thermodynamically stable mobile phase mixing and pressure-stabilized flow control to ensure high inter-instrument reproducibility.

Key Features

• Quaternary UHPLC pump with ≤350 µL dwell volume, delivering accurate gradient profiles across 0.01–5 mL/min at pressures up to 800 bar
• Hybrid Multisampler featuring dual injection modes: classic flow-through loop loading and Agilent FEED (Flow-Enhanced Elution Dynamics) for high-solvent-strength sample introduction without peak distortion
• InfinityLab Multisampler with deep-well microplate drawer supporting up to 16 microplates (6144 samples), equipped with needle seat backflush using three solvents to achieve cross-contamination <10 ppm
• Smart system emulation technology (ISET) enabling direct method transfer from Agilent and non-Agilent HPLC/UHPLC platforms without re-optimization
• BlendAssist software—pump-driven automated mobile phase blending for precise buffer/additive preparation, reducing manual preparation errors and accelerating method development
• InfinityLab Assist software suite providing remote instrument status monitoring, predictive solvent level alerts, and automatic sample ID recognition via integrated barcode reader
• High-capacity column compartment supporting up to four columns simultaneously with InfinityLab Quick Change valve technology—enabling column switching without flow interruption or tubing disconnection

Sample Compatibility & Compliance

The 1260 Infinity III Prime accommodates a broad range of sample matrices—including pharmaceutical actives, battery electrolytes, genotoxic nitrosamine impurities, and organic degradation products—without compromising resolution or sensitivity. Its FEED injection mode mitigates strong solvent effects commonly observed in high-strength sample diluents (e.g., >80% acetonitrile), preserving peak shape integrity. The system complies with key international regulatory frameworks: its audit trail functionality, electronic signature support, and user access controls align with FDA 21 CFR Part 11 requirements; data integrity features meet ALCOA+ principles; and method validation workflows conform to ICH Q2(R2) and USP guidelines for chromatographic method transfer and parameter adjustment. Column oven temperature control (–10 °C to +85 °C) ensures thermal stability for method ruggedness under GLP/GMP conditions.

Software & Data Management

Controlled via OpenLab CDS or MassHunter software, the system supports full instrument configuration, sequence definition, real-time monitoring, and post-run data review. All critical parameters—including pump pressure, flow rate, detector signal, column temperature, and autosampler status—are logged with time-stamped, immutable records. Audit trails capture operator actions, method changes, and calibration events in accordance with 21 CFR Part 11 requirements. BlendAssist and ISET modules operate within the same software environment, allowing traceable execution of automated mobile phase preparation and cross-platform method migration. Data export conforms to AIA/ANDI standards for interoperability with third-party processing tools and LIMS integration.

Applications

• Pharmaceutical QC: Transfer and optimization of USP monograph methods onto UHPLC conditions—demonstrated reduction in analysis time by >50% and solvent consumption by ~70% for paracetamol organic impurity profiling
• Battery electrolyte analysis: LC/MS quantification of carbonate solvents and decomposition products (e.g., HF, CO₂-derived adducts) with LODs <30 ppm for major components and <5 ppb for trace degradants
• Nitrosamine screening: Sensitive detection and quantitation of N-nitrosodimethylamine (NDMA), N-nitrosodiethylamine (NDEA), and related alkyl nitrosamines in APIs at ng/mL levels, meeting ICH M7 thresholds
• Method development acceleration: Rapid scouting of gradient slopes, column chemistries, and temperature gradients enabled by consistent retention time reproducibility (<0.02 min RSD) and automated solvent blending

FAQ

Is the 1260 Infinity III Prime compatible with mass spectrometry interfaces?
Yes—the system’s low dwell volume, high-pressure capability, and stable flow delivery make it well-suited as an LC front-end for electrospray ionization (ESI) and atmospheric pressure chemical ionization (APCI) sources.
Can legacy HPLC methods be transferred directly to this system?
Yes—via ISET, which emulates the dwell volume, gradient delay, and mixing behavior of other vendor systems (e.g., Waters, Shimadzu, Thermo), minimizing revalidation effort.
What is the maximum number of columns supported in the column oven?
Up to four columns can be installed and switched automatically using the high-pressure Quick Change valve, supporting multi-dimensional LC and online sample cleanup applications.
Does the system support unattended operation over extended periods?
Yes—InfinityLab Assist provides predictive solvent-level monitoring, automatic error recovery protocols, and remote alerting via email or network notification to prevent sequence interruption.
How does the Hybrid Multisampler reduce carryover in high-concentration sample analysis?
Through programmable triple-solvent needle seat backflush, combined with wash-port rinsing and flow-path purging, achieving carryover <10 ppm even after injecting 1000× concentrated standards.
