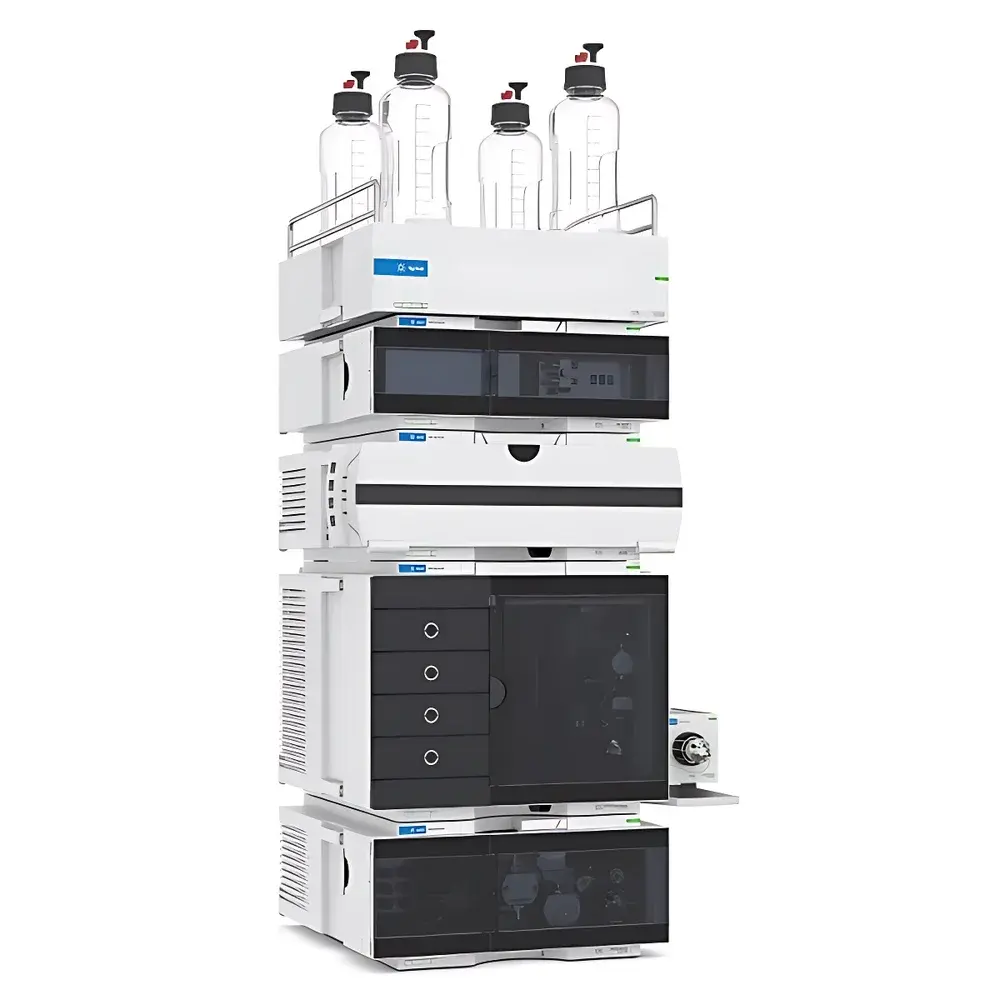

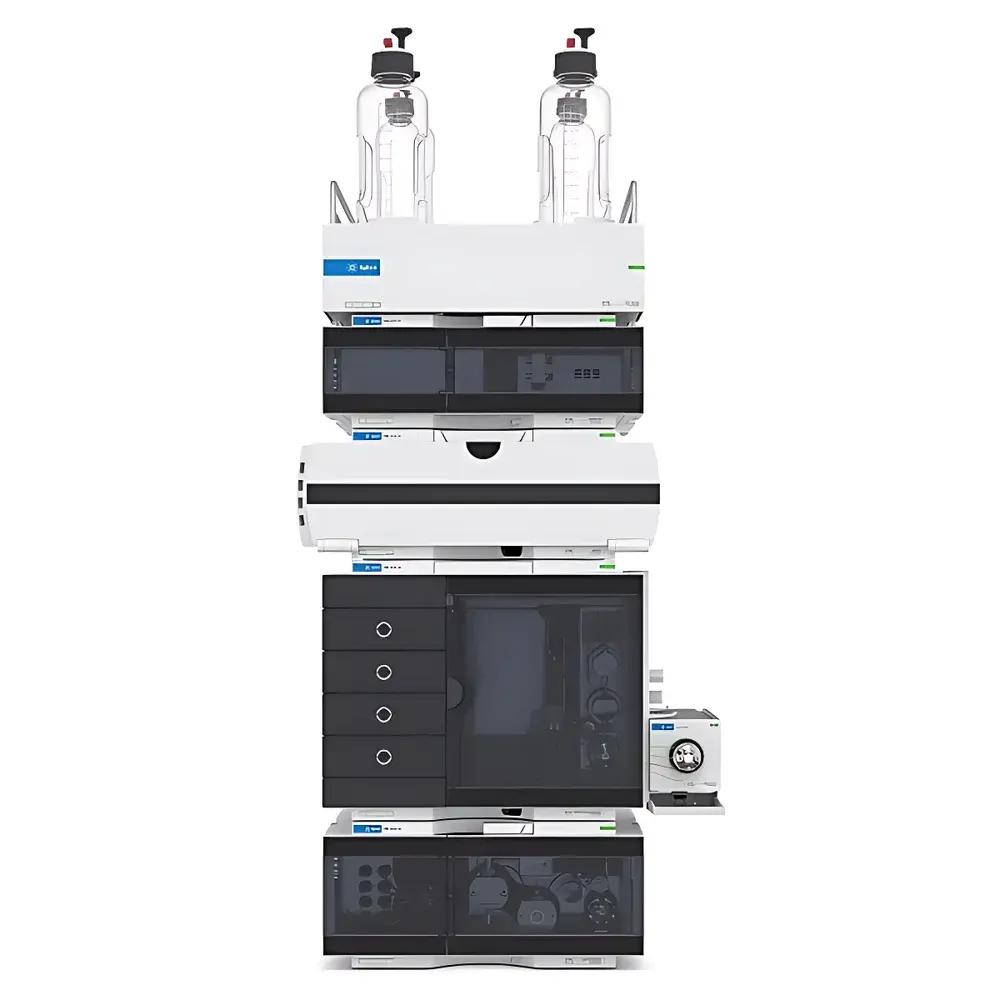

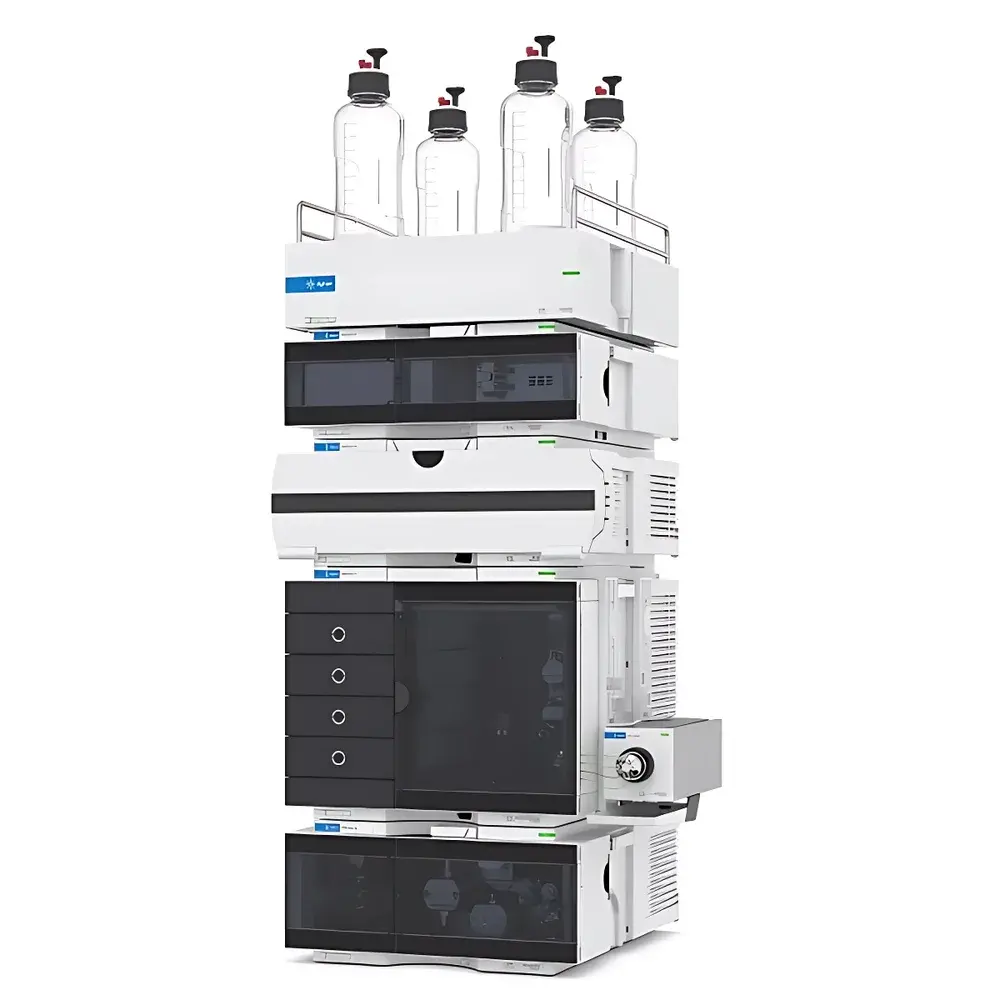

Agilent 1260 Infinity III Prime Online Liquid Chromatograph

Overview

The Agilent 1260 Infinity III Prime Online Liquid Chromatograph is a purpose-engineered process analytical technology (PAT) platform designed for real-time, automated monitoring of pharmaceutical and biopharmaceutical manufacturing processes. Built upon ultra-high performance liquid chromatography (UHPLC) principles, it delivers high-resolution, reproducible separations under elevated pressure conditions—up to 800 bar—with flow rates scalable to 5 mL/min. Unlike conventional offline HPLC systems, this instrument integrates directly into production environments via robust process interfaces, enabling continuous sampling, injection, separation, and detection without manual intervention. Its architecture supports direct in-line or at-line sampling from reactors, bioreactors, or purification skids, facilitating measurement of critical quality attributes (CQAs) such as assay, impurity profile, degradation products, and residual solvents—all aligned with ICH Q5, Q6, and Q7 guidance. The system operates under cGMP-compliant workflows and is validated for use in regulated environments where data integrity, auditability, and traceability are mandatory.

Key Features

• Integrated PAT-ready design with hardware and software optimized for continuous process monitoring and real-time release testing (RtRT)
• Dual-injection capability: supports both classical flow-through injection and Agilent FEED (Fast, Efficient, Enhanced Dilution) autosampling—enabling solvent effect compensation, reaction quenching, and precise dilution control
• Modular UHPLC architecture featuring the G7104C high-pressure binary pump, capable of stable gradient delivery up to 800 bar and flow rates from 0.01 to 5.0 mL/min
• Sample hold function for temporary storage of process samples—supporting offline QC verification, multi-method analysis, automated sample prep (e.g., dilution, filtration), and archival for stability studies
• Ruggedized fluidic path with chemically resistant materials (e.g., titanium, PEEK, sapphire) suitable for aggressive solvents and biological matrices
• Pre-configured electrical and pneumatic interfaces compliant with ISA-88/ISA-95 standards for seamless integration into DCS/SCADA and MES systems

Sample Compatibility & Compliance

The system accommodates a broad range of sample types—including aqueous, organic, and mixed-phase solutions—as well as clarified cell culture harvests, fermentation broths, and purified protein fractions. It complies with key regulatory frameworks governing analytical instrumentation in pharmaceutical manufacturing: FDA 21 CFR Part 11 (electronic records/signatures), EU Annex 11, and ISO/IEC 17025 requirements for method validation. All hardware components meet IP54 environmental protection ratings for operation in controlled manufacturing areas. Software execution adheres to ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available), ensuring full audit trail generation for all acquisition, processing, and reporting events.

Software & Data Management

The Agilent Online LC Monitoring Software provides centralized orchestration of sampling schedules, valve actuation, injection timing, and data acquisition—fully synchronized with OpenLab CDS 2. It supports intuitive graphical configuration of sampling events (e.g., time-triggered, event-driven, or concentration-threshold-based), automatic calibration curve application, and real-time trend visualization of peak area, retention time, and purity metrics. All raw and processed data are stored in secure, timestamped, immutable formats compliant with long-term archiving policies. Integration with LIMS and ELN systems is achieved via standardized APIs and ASTM E2500-compliant metadata tagging. Electronic signatures, role-based access control, and configurable review/approval workflows ensure alignment with GLP and GMP documentation practices.

Applications

• Real-time monitoring of bioreactor titers and metabolite profiles during upstream processing
• In-process control of purification steps (e.g., affinity, ion exchange, size exclusion chromatography)
• Continuous quality verification of final drug substance and product batches
• Stability-indicating assays for accelerated and real-time stability programs
• Reaction kinetics profiling in continuous flow synthesis and catalytic chemistry
• Support for Quality by Design (QbD) initiatives through multivariate data correlation between CPPs and CQAs

FAQ

Is the 1260 Infinity III Prime Online LC compatible with existing Agilent OpenLab CDS 2 installations?
Yes—it is fully certified for integration with OpenLab CDS 2.12 or later, including support for electronic signature workflows and audit trail export.
Can the system perform automated dilution and quenching prior to injection?
Yes, the Agilent FEED autosampler enables programmable on-the-fly dilution, buffer exchange, and chemical quenching—critical for stabilizing labile compounds and mitigating matrix effects.
What level of validation support is provided for GMP environments?
Agilent supplies IQ/OQ documentation templates, risk assessments (per ICH Q9), and URS-aligned test protocols. Installation and operational qualification services are available through Agilent Validation Services.
Does the system support unattended multi-day operation?
Yes—the modular design includes redundant power supplies, temperature-stabilized column compartments, and self-diagnostic routines that trigger alerts for pressure anomalies, leak detection, or detector lamp degradation.
How is data integrity ensured during networked operation?
All communications use TLS 1.2 encryption; local data caching ensures continuity during temporary network outages, and checksum-verified file transfers prevent corruption during archival or LIMS upload.
