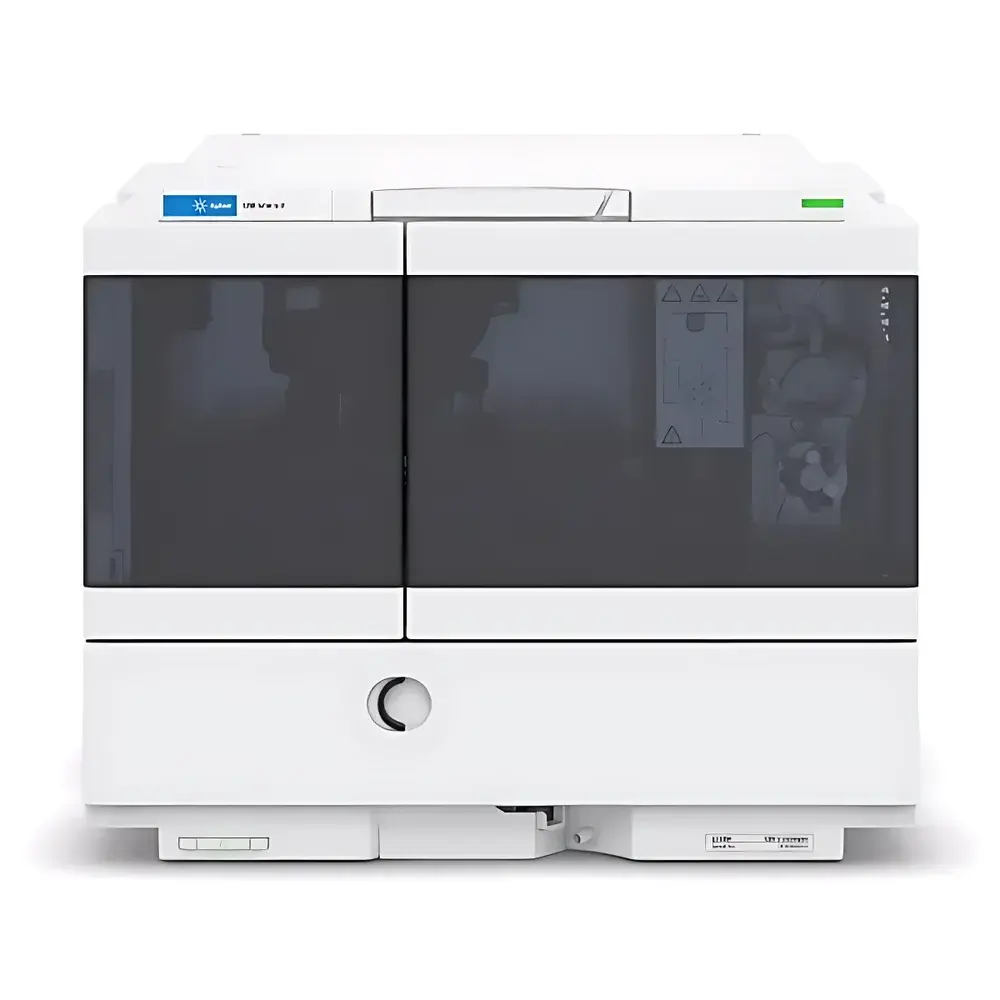

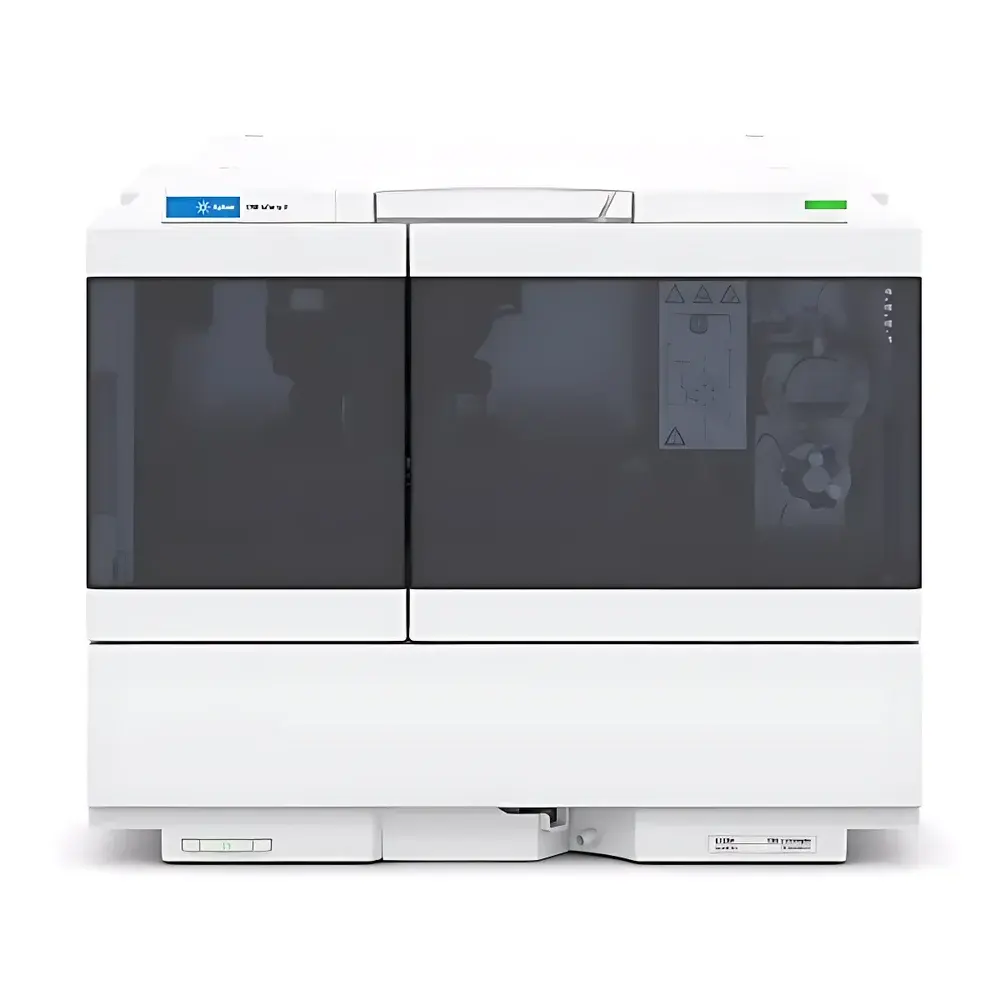

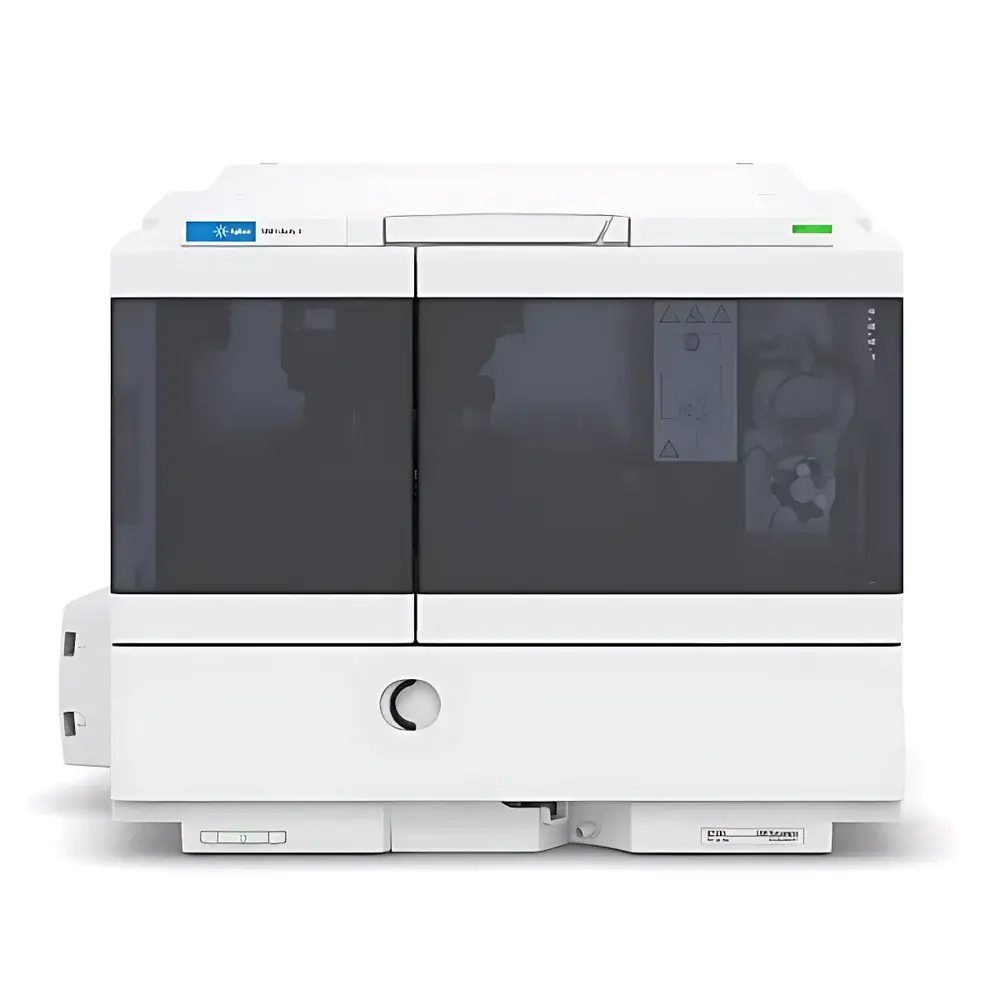

Agilent 1260 Infinity III Sample Tray Autosampler

Overview

The Agilent 1260 Infinity III Sample Tray Autosampler is a high-performance, modular autosampling system engineered for integration into Agilent’s 1260 Infinity III Liquid Chromatography platform. It operates on precise syringe-driven positive displacement injection principles, delivering robust reproducibility and low carryover across diverse analytical workflows. Unlike legacy rack-based systems, this autosampler unifies sample handling, column thermal management, and fluidic path optimization within a single compact module—reducing system dwell volume, minimizing gradient delay, and enhancing retention time stability. Designed for method transfer compliance and long-term operational reliability, it supports both routine QC environments and method development laboratories requiring flexibility in injection volume, pressure tolerance, and thermal control.

Key Features

• High-capacity sample handling: Supports up to 132 positions for standard 2 mL vials or 36 positions for 6 mL vials, enabling unattended overnight and multi-day batch analysis.
• Ultra-high-pressure compatibility: Available in two configurations—G7129A rated to 600 bar and G7129C rated to 800 bar—ensuring seamless operation with UHPLC and advanced core-shell column technologies.
• Wide injection volume range: Standard 0.1–100 µL with optional extension to 1500 µL (G7129C) or 1800 µL (G7129A), supporting microbore, analytical, and semi-preparative LC applications without hardware reconfiguration.
• Dual-surface needle wash: Integrated external needle rinse port removes residual analyte from the needle exterior, significantly reducing cross-contamination—critical for trace-level quantitation and high-sensitivity bioanalysis.
• Minimal internal volume architecture: Optimized flow path geometry and optional “bypass” mode reduce system dispersion and extra-column band broadening, preserving chromatographic resolution especially at low flow rates (<0.2 mL/min).
• Overlapping injection cycles: Concurrent sample aspiration, needle wash, and column equilibration maximize instrument uptime and throughput without compromising precision.

Sample Compatibility & Compliance

The autosampler accepts industry-standard screw-thread and crimp-top vials (12 × 32 mm and 18 × 60 mm formats) and is compatible with Agilent’s full portfolio of HPLC and UHPLC columns, including Poroshell, ZORBAX, and AdvanceBio series. Its mechanical design conforms to ISO 9001-certified manufacturing processes, and its firmware complies with FDA 21 CFR Part 11 requirements when operated with OpenLab CDS software—including electronic signatures, audit trail logging, and user access controls. The system supports GLP/GMP-aligned workflows through configurable sequence validation, run-time error logging, and automated calibration verification reports.

Software & Data Management

Controlled via Agilent OpenLab CDS (ChemStation Edition or OpenLab ECM), the autosampler enables full method parameterization—including custom wash solvent selection, variable injection speed profiles, pre-injection dilution, and post-injection needle conditioning sequences. Sequence templates support conditional logic (e.g., skip injection on failed pressure check) and dynamic vial mapping for plate-based workflows. All operational events—including vial position, injection time, pressure feedback, and temperature logs—are timestamped and stored in a relational database with export capability to CSV, PDF, or LIMS-compatible XML formats. Audit trails are immutable and retain full traceability per ALCOA+ principles.

Applications

This autosampler is routinely deployed in pharmaceutical quality control (QC) labs for assay validation per USP , impurity profiling per ICH Q2(R2), and dissolution testing. In environmental laboratories, it supports EPA Method 8330B (PAHs) and 8082A (PCBs) with programmable large-volume injection and cold-trap compatibility. Biopharma users leverage its extended volume range for intact mAb analysis and peptide mapping workflows requiring 500–1500 µL injections onto wide-bore columns. Academic research groups utilize its integrated column oven and thermostat for method scouting across temperature gradients and retention modeling studies.

FAQ

What is the maximum operating pressure supported by the 1260 Infinity III Sample Tray Autosampler?
The G7129A variant supports up to 600 bar; the G7129C variant supports up to 800 bar.
Can the autosampler be used with non-Agilent LC systems?
It is designed exclusively for integration with Agilent 1260 Infinity III LC modules and requires Agilent-specific communication protocols and power interfaces.
Is the integrated column oven capable of cooling below ambient temperature?
No—the column oven provides heating only, from 5 °C above ambient to 80 °C. For sub-ambient column control, external Peltier-cooled ovens are recommended.
Does the system support 96-well or 384-well microplate formats?
No—this model is optimized for individual vial trays only. Microplate handling requires the separate Agilent 1260 Infinity III Microplate Sampler (G7167B).
How is carryover performance validated during installation qualification (IQ)?
Carryover is assessed using a defined test mixture (e.g., caffeine/acetaminophen) injected after a high-concentration standard, with acceptance criteria ≤0.05% as specified in Agilent IQ/OQ documentation.
