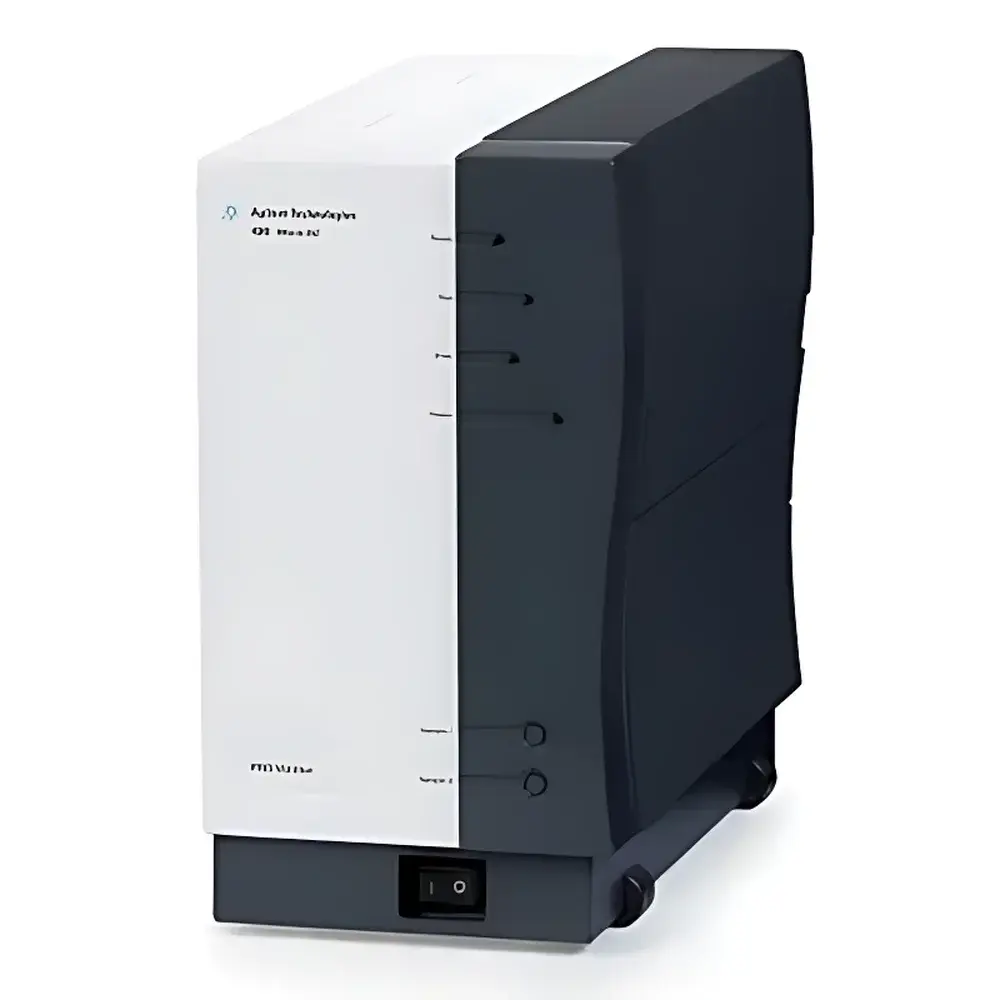

Agilent 490 Micro GC Portable Gas Chromatograph

Overview

The Agilent 490 Micro GC is a field-deployable, laboratory-grade portable gas chromatograph engineered for high-speed, high-reproducibility analysis of permanent gases and light hydrocarbons in real-world operational environments. Based on proven capillary and micro-packed column separation principles, the instrument employs temperature-programmed oven modules and micro-thermal conductivity (µTCD) or pulsed discharge helium ionization (PDD) detection to deliver quantitative results with sub-second retention time stability. Its compact, ruggedized chassis—designed to meet MIL-STD-810G shock/vibration specifications—enables reliable operation in mobile laboratories, offshore platforms, pipeline metering stations, refinery perimeters, and remote wellhead sites. Unlike benchtop GC systems requiring climate-controlled labs, the 490 Micro GC operates continuously across –20 °C to +50 °C ambient ranges with integrated power management for battery, vehicle DC, or AC operation.

Key Features

• Modular architecture supporting up to four independent GC channels—each with dedicated carrier gas control (electronic pressure control, EPC), sample introduction (valve-based or syringe injection), column oven, and detector—enabling simultaneous multi-stream monitoring or method-parallel analysis.
• Plug-and-play column modules pre-configured with narrow-bore fused-silica capillaries, porous-layer open-tubular (PLOT) columns, or micro-packed columns optimized for C₁–C₆ hydrocarbons, H₂, O₂, N₂, CO, CO₂, H₂S, and mercaptans.
• Micro-EPC system delivering ±0.001 psi pressure resolution and <0.02 psi drift over 24 hours, ensuring retention time repeatability better than 0.02% RSD across consecutive injections.
• Time-programmable backflush capability to remove heavy-end contaminants prior to detector, extending column lifetime and minimizing maintenance intervals in dirty gas streams.
• Pre-calibrated, factory-tested configurations shipped ready-for-use; field reconfiguration accomplished in under 5 minutes via user-installable channel modules without tools or service technician support.

Sample Compatibility & Compliance

The Agilent 490 Micro GC accommodates gaseous samples delivered via stainless-steel tubing, Swagelok fittings, or direct connection to process sampling systems (e.g., ASTM D1945, ISO 6974-1, GPA 2261 compliant interfaces). It supports both pressurized and ambient-pressure sampling, with optional heated sample lines for moisture-sensitive analytes. Regulatory alignment includes full traceability for GLP/GMP environments: audit trails, electronic signatures, and secure user access levels are enabled through software integration. The system complies with IEC 61000-6-2/6-3 (EMC), UL 61010-1, and ATEX/IECEx Zone 2 certification options for hazardous area deployment.

Software & Data Management

Control and data handling are managed via Agilent’s OL EZChrom software suite—compatible with Windows OS and supporting TCP/IP, Modbus TCP, and OPC UA industrial protocols for seamless integration into SCADA, DCS, or LIMS infrastructure. All acquisition parameters, calibration curves, and report templates are stored in encrypted project files with version history. Raw chromatograms and processed results adhere to ASTM E1783 and ISO/IEC 17025 data integrity requirements. Optional 21 CFR Part 11 compliance package provides role-based authentication, electronic signature workflows, and immutable audit logs for regulated pharmaceutical, environmental, or energy-sector applications.

Applications

• Natural gas composition analysis at custody transfer points per AGA Report No. 8 and ISO 6976.
• Hydrogen purity verification in PEM fuel cell feed streams (ISO 8573-1 Class 0).
• Leak detection and fugitive emission monitoring (EPA Method 21, LDAR programs).
• Biogas upgrading process control (CH₄/CO₂/H₂S ratios).
• Refinery flare gas characterization and combustion efficiency optimization.
• On-site QC of specialty gases used in semiconductor manufacturing (ASTM D7607).

FAQ

Can the Agilent 490 Micro GC operate unattended for extended periods?
Yes—configured with internal battery backup (up to 4 hours) and scheduled auto-calibration routines, it supports continuous 24/7 monitoring when integrated with external power and telemetry systems.
Is method transfer from benchtop Agilent GC systems possible?
Retention time indexing and peak identification logic are consistent across Agilent GC platforms; validated methods can be ported with minor retention time adjustment due to column geometry differences.
What maintenance is required for routine field operation?
No routine consumables beyond carrier gas cylinders; column replacement intervals typically exceed 12 months under normal natural gas analysis conditions.
Does the system support remote diagnostics and firmware updates?
Yes—via secure HTTPS web interface or Agilent Remote Support Portal, enabling real-time performance monitoring and over-the-air firmware upgrades without physical access.
How is data security ensured during wireless transmission?
All network communications use TLS 1.2+ encryption; local storage employs AES-256 encryption with FIPS 140-2 validated modules.
