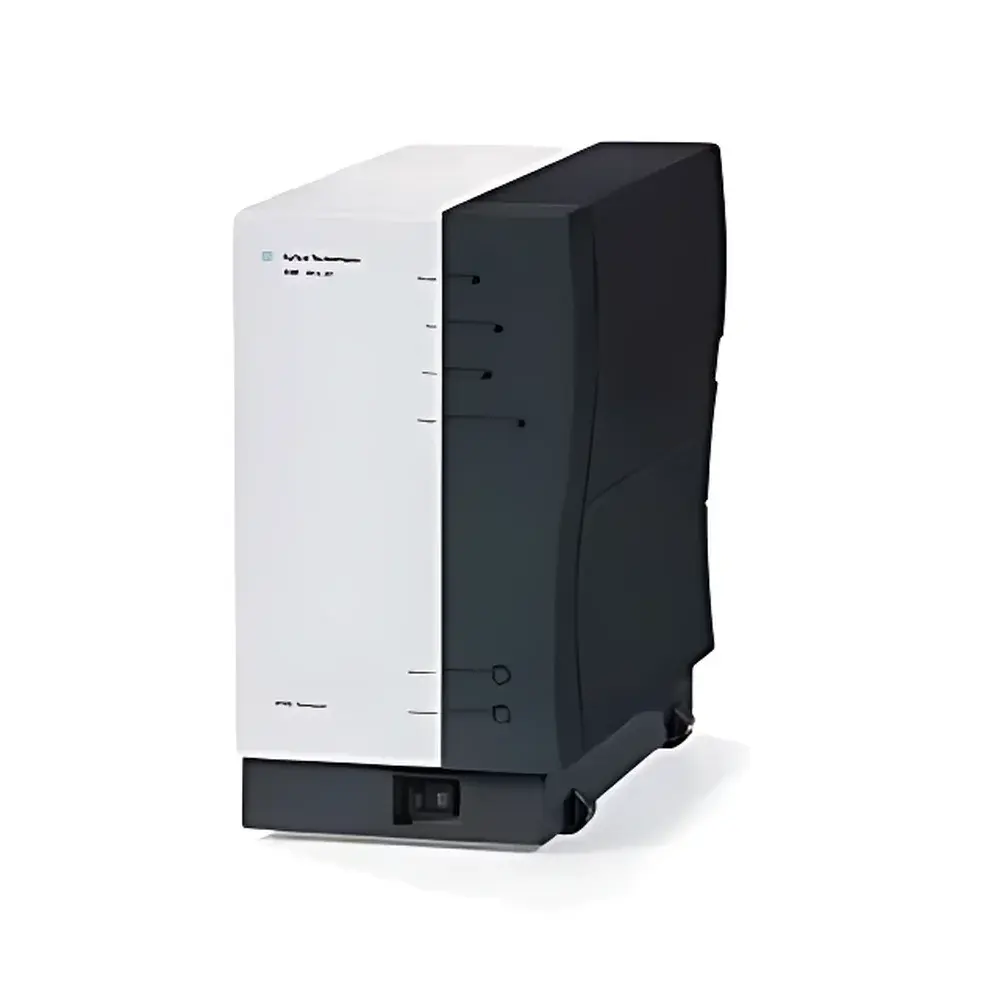

Agilent 490-PRO Micro Gas Chromatograph
| Brand | Agilent Technologies |
|---|---|
| Origin | USA |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Imported Instrument |
| Model | 490-PRO Micro GC |
| Pricing | Available Upon Request |
Overview
The Agilent 490-PRO Micro Gas Chromatograph is a field-deployable, modular process analytical instrument engineered for high-speed, high-reproducibility gas analysis in continuous industrial environments. Based on proven microfabricated gas chromatography architecture, it employs temperature-programmed separation on narrow-bore capillary, PLOT, or micro-packed columns coupled with thermal conductivity detection (TCD). Unlike conventional benchtop GC systems, the 490-PRO integrates miniaturized fluidic control, MEMS-based valves and detectors, and embedded real-time data processing — enabling sub-30-second analysis cycles for permanent gases and light hydrocarbons. Its design targets unattended operation in hazardous or remote locations, supporting mission-critical applications such as natural gas calorific value determination, biogas composition monitoring, refinery gas assays, and trace-level detection of H₂S, CO, CO₂, O₂, N₂, CH₄, C₂H₆, HCN, and halogenated compounds.
Key Features
- Up to four independent, fully configurable GC channels — each with dedicated carrier gas control, micro-injector, column oven, and TCD detector — enabling simultaneous multi-stream analysis or method redundancy.
- Micro-electromechanical systems (MEMS) flow controllers and solenoid valves ensure precise, drift-free gas routing and time-programmable backflush, extending column lifetime and minimizing maintenance intervals.
- No flammable carrier gases required; operates exclusively with inert carriers (e.g., He, H₂, Ar, N₂), meeting IEC 60079-0 and ATEX Zone 2/Class I Div 2 safety requirements for installation in classified areas.
- Plug-and-play column modules allow field reconfiguration in under five minutes — no tools, calibration recalibration, or software reinstallation needed.
- Embedded PROstation firmware handles full instrument control, peak integration, retention time locking, and quantitative reporting without external PC dependency after initial setup.
- Industrial-grade communication interfaces include Modbus RTU/TCP, RS-232/RS-485, Ethernet (TCP/IP), and FTP server — compliant with DCS/SCADA integration standards for seamless data handoff to MES or LIMS platforms.
Sample Compatibility & Compliance
The 490-PRO accepts gaseous samples within pressure ranges of 0–150 psig and temperatures up to 60 °C. It supports direct injection of raw process streams, conditioned via optional heated sample conditioning systems (e.g., moisture traps, particulate filters, pressure regulators). All hardware and firmware comply with ISO/IEC 17025:2017 principles for testing laboratories, and data integrity features align with FDA 21 CFR Part 11 requirements — including electronic signatures, audit trails, and user-access controls. Method validation protocols support ASTM D1945, D1946, D7896, ISO 6974-2, and EN 15403 for natural gas and biogas analysis.
Software & Data Management
PROstation software provides a Windows-based interface for method development, calibration curve generation (linear/non-linear), system suitability testing, and report customization (PDF/CSV export). Once deployed, the instrument transitions to autonomous operation: onboard memory stores >10,000 chromatograms with timestamps, operator IDs, and method metadata. All raw and processed data are timestamped, checksum-verified, and archived with configurable retention policies. Remote diagnostics, firmware updates, and secure configuration backups are supported via HTTPS-enabled web interface or encrypted FTP.
Applications
- Natural gas custody transfer and Wobbe index calculation
- Biogas quality monitoring (CH₄/CO₂ ratio, H₂S, NH₃, siloxanes)
- Refinery off-gas and flare stack composition analysis
- Fuel cell hydrogen purity verification (ISO 8573-7, SAE J2719)
- Trace sulfur compound detection (ppb-level H₂S, COS, mercaptans) in LNG and pipeline gas
- Real-time emissions monitoring of NOₓ, SO₂, and halocarbons from combustion sources
- On-site verification of specialty gas cylinder certifications (e.g., SEMI F57, ISO 8573-8)
FAQ
What column types are supported by the 490-PRO?
Capillary columns (e.g., HP-PLOT Al₂O₃, GS-GasPro), porous layer open tubular (PLOT) columns, and micro-packed columns (e.g., 5 Å molecular sieve, Porapak Q) — all pre-installed and factory-qualified.
Can the 490-PRO operate continuously for extended periods?
Yes — rated for 24/7 operation with mean time between failures (MTBF) exceeding 12,000 hours under typical industrial conditions.
Is method validation documentation provided?
Each unit ships with Factory Acceptance Test (FAT) reports, column performance certificates, and traceable calibration records aligned with NIST-traceable standards.
How is cybersecurity addressed in network-connected deployments?
The embedded Linux OS implements TLS 1.2 encryption, role-based access control, disabled default accounts, and configurable firewall rules — certified per IEC 62443-3-3 Level 1 requirements.
What maintenance is required for long-term reliability?
Annual verification of detector baseline stability, valve timing accuracy, and column performance; no routine consumables beyond carrier gas and optional desiccant cartridges.
