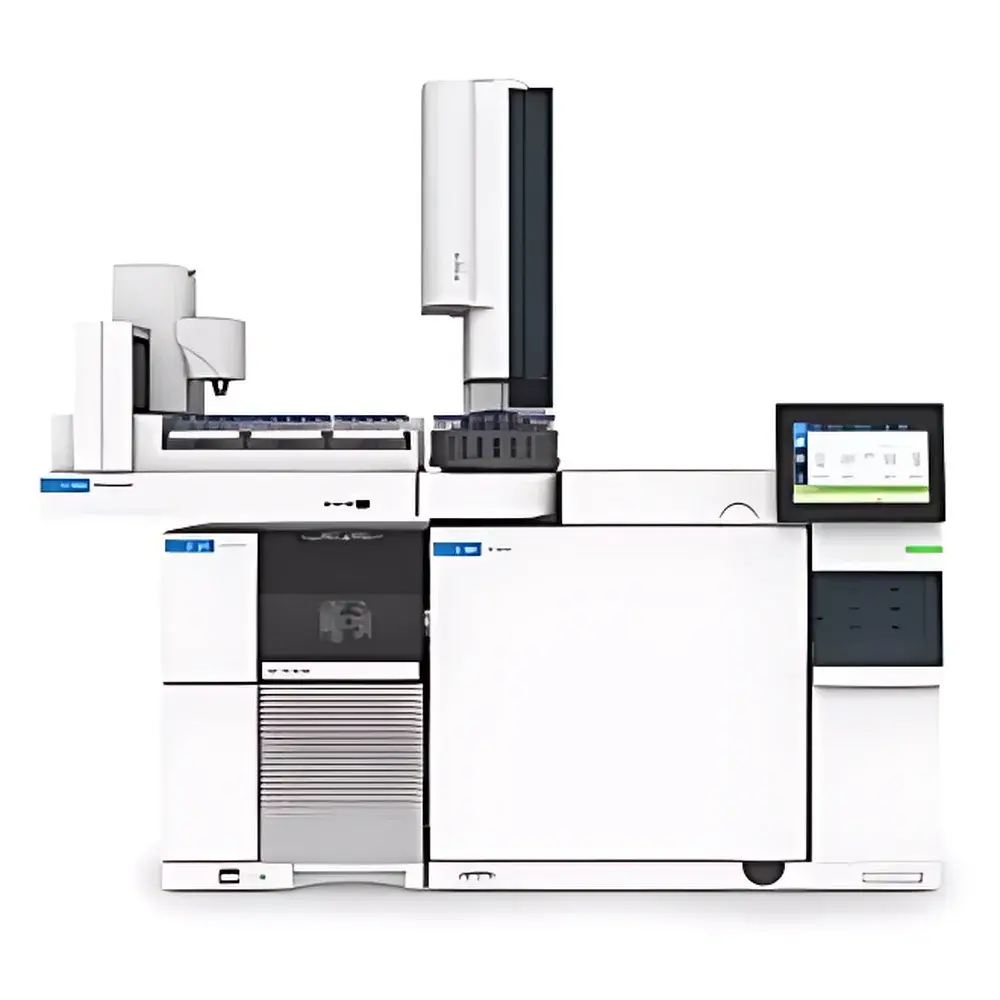

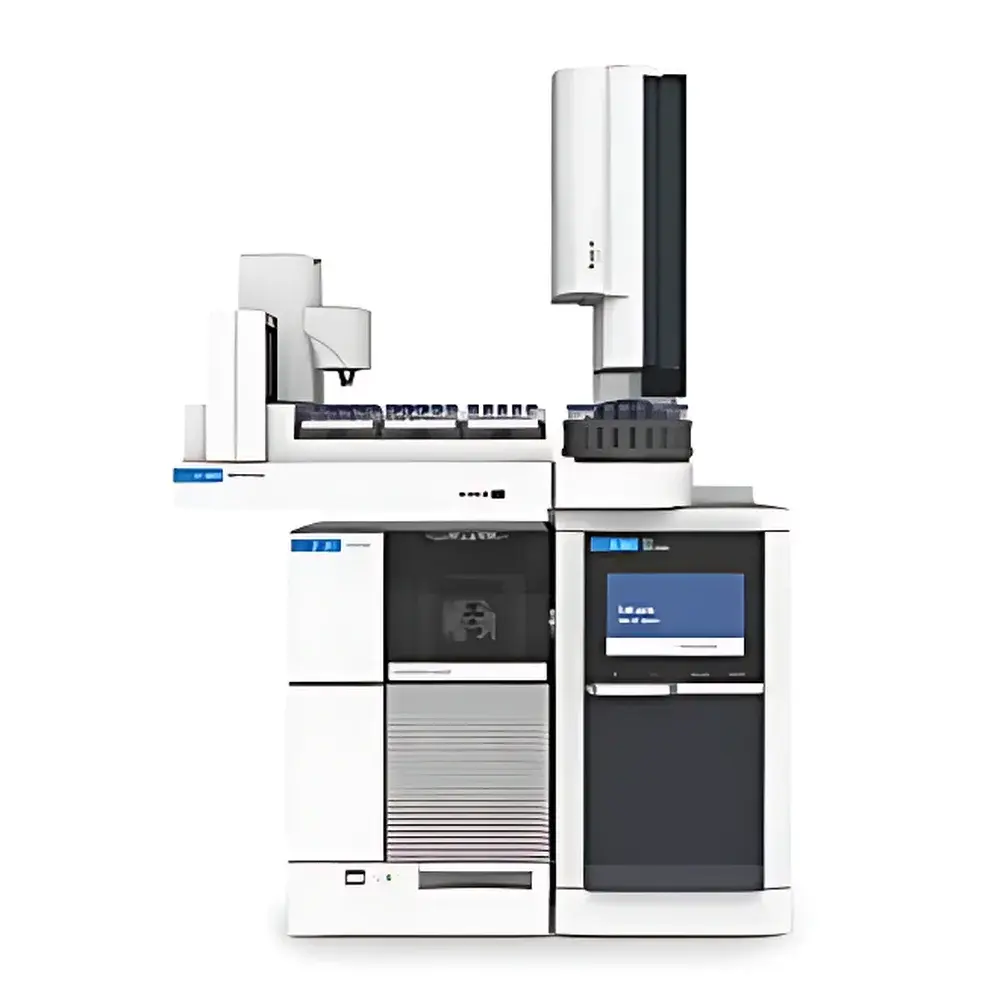

Agilent 5977C GC/MSD Single Quadrupole Gas Chromatography Mass Spectrometer

Overview

The Agilent 5977C GC/MSD is a high-performance single quadrupole gas chromatography mass spectrometer engineered for routine, high-throughput analysis in regulated and research laboratories. It integrates a robust, thermally stable quadrupole mass analyzer with a precision-controlled gas chromatograph—typically the Agilent 8890, 8860, or Intuvo 9000 GC platform—to deliver reproducible separation and detection of volatile and semi-volatile organic compounds. The system operates on electron ionization (EI) as standard, with optional chemical ionization (CI) capability, and employs a mass-selective detector based on RF/DC voltage scanning across the quadrupole rods to resolve ions by their mass-to-charge ratio (m/z). Its design emphasizes operational continuity under evolving regulatory and supply-chain constraints—most notably, the transition from helium to hydrogen as carrier gas—without compromising spectral fidelity, peak shape, or quantitative accuracy.

Key Features

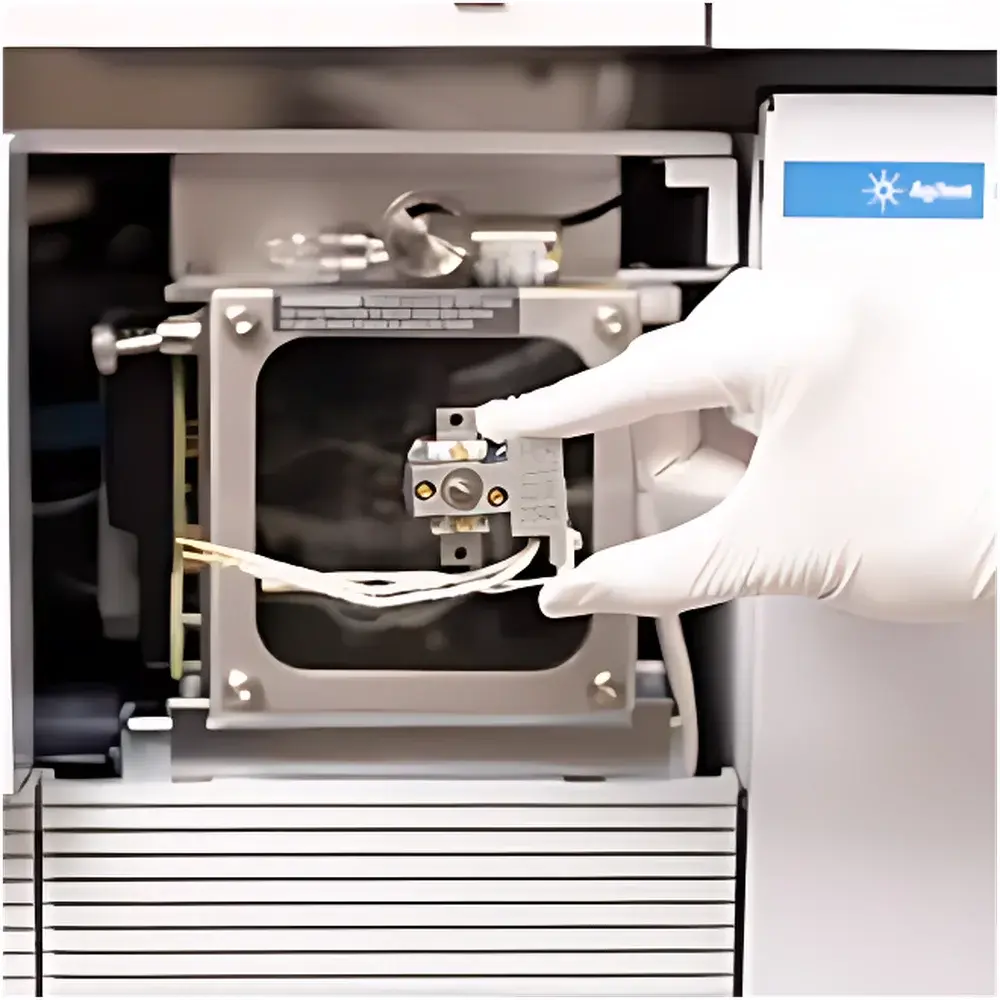

• Hydro Inert Ion Source: A chemically passivated, low-adsorption ion source specifically optimized for hydrogen carrier gas operation. Reduces in-source fragmentation, minimizes hydrogen-induced adduct formation (e.g., [M+H]⁺ artifacts), and maintains peak symmetry for high-boiling analytes such as polycyclic aromatic hydrocarbons (PAHs) and nitroaromatics.
• JetClean Smart Ion Source: Fully automated, plasma-based ion source cleaning that eliminates manual disassembly and solvent rinsing. Extends maintenance intervals and preserves calibration stability over extended run sequences.
• Intelligent System Monitoring: Embedded diagnostics via integrated touchscreen and browser-based UI enable real-time status visualization, fault prediction, and remote instrument health assessment.
• Inert Flow Path Components: Includes de-activated liners, ultra-inert columns (e.g., DB-5ms Ultra Inert), split plates, and fluoropolymer seals to minimize analyte adsorption, catalytic degradation, and memory effects—critical for trace-level analysis of reactive or labile compounds.
• Agilent CrossLab Smart Alerts: Cloud-connected software module delivering email notifications for consumable end-of-life, instrument downtime events, and scheduled preventive maintenance—supporting GLP/GMP-aligned laboratory workflow planning.
• MassHunter Software Suite: Provides method development, acquisition control, targeted quantitation (SIM/MRM), unknown compound identification (via retention time locking and custom spectral libraries), and automated data review workflows compliant with FDA 21 CFR Part 11 audit trail requirements.

Sample Compatibility & Compliance

The 5977C GC/MSD supports broad sample matrix compatibility—including aqueous extracts (EPA Methods 524, 525, 8270), food homogenates (AOAC 2007.01, EN 15662), polymer leachates, pharmaceutical residual solvents (ICH Q3C), and forensic toxicology specimens. Its hardware and software architecture are validated for use in environments requiring adherence to ISO/IEC 17025, USP <1225>, ASTM D7011, and EU Directive 2009/128/EC. All electronic records—including raw spectra, acquisition methods, and processing parameters—are timestamped, user-authenticated, and stored with immutable audit trails per FDA 21 CFR Part 11 and EU Annex 11 guidelines. The system’s inert flow path meets EPA Method 8260/8270 surface activity specifications for low-level SVOC analysis.

Software & Data Management

Data acquisition and processing are managed through Agilent MassHunter Workstation software (version B.09.00 or later), which supports both targeted and untargeted workflows. Key modules include Quantitative Analysis (for compliance-driven reporting), Qualitative Analysis (with spectral deconvolution and library search against NIST/EPA/WHO databases), and Unknowns Analysis (enabling retention time locking, custom spectral library creation, and structural elucidation support). MassHunter integrates natively with OpenLab CDS for enterprise-level chromatographic data management, including electronic signatures, role-based access control, and centralized report generation. Cerno Bioscience MassWorks MS calibration technology is embedded to deliver mass accuracy within ±0.001 Da across the full m/z 0.6–1091 range—enhancing confidence in elemental composition assignment without requiring high-resolution instrumentation.

Applications

The 5977C GC/MSD is routinely deployed in environmental testing labs for analysis of volatile organic compounds (VOCs), semi-volatile organic compounds (SVOCs), pesticides, and endocrine-disrupting chemicals in soil, water, and air matrices. In food safety, it enables multi-residue screening of organophosphates, carbamates, and pyrethroids at sub-ppb levels. Pharmaceutical QC laboratories apply it to residual solvent testing per ICH Q3C guidelines, while forensic labs use its robust EI spectral reproducibility for controlled substance confirmation (SWGDAM standards). Its hydrogen-compatible ion source makes it especially suited for high-efficiency, high-speed GC methods using narrow-bore columns and fast temperature ramps—reducing analysis time without sacrificing resolution or sensitivity.

FAQ

Does the 5977C GC/MSD support hydrogen as a carrier gas without performance loss?

Yes—the Hydro Inert Ion Source is specifically engineered to maintain spectral integrity, peak shape, and IDL sensitivity when operated with H₂ carrier gas, eliminating helium dependency while preserving compliance with method validation criteria.
Is the system compliant with FDA 21 CFR Part 11 for regulated laboratories?

Yes—MassHunter and OpenLab CDS provide full electronic signature support, audit trail logging, user access controls, and data integrity safeguards required for GxP environments.
Can the 5977C GC/MSD be integrated with existing Agilent GC platforms?

Yes—it is fully compatible with the 8890, 8860, and Intuvo 9000 GC systems, supporting both front- and back-end configuration with standardized interface protocols and synchronized timing control.
What consumables require scheduled replacement, and how is this managed?

CrossLab Smart Alerts monitors column lifetime, trap saturation, filament usage, and ion source contamination—triggering email alerts and generating maintenance work orders aligned with your lab’s SOPs.
How does JetClean extend operational uptime compared to manual cleaning?

JetClean reduces ion source maintenance frequency by up to 80%, eliminates human error in reassembly, and restores baseline performance in under 5 minutes—without venting the vacuum system.
