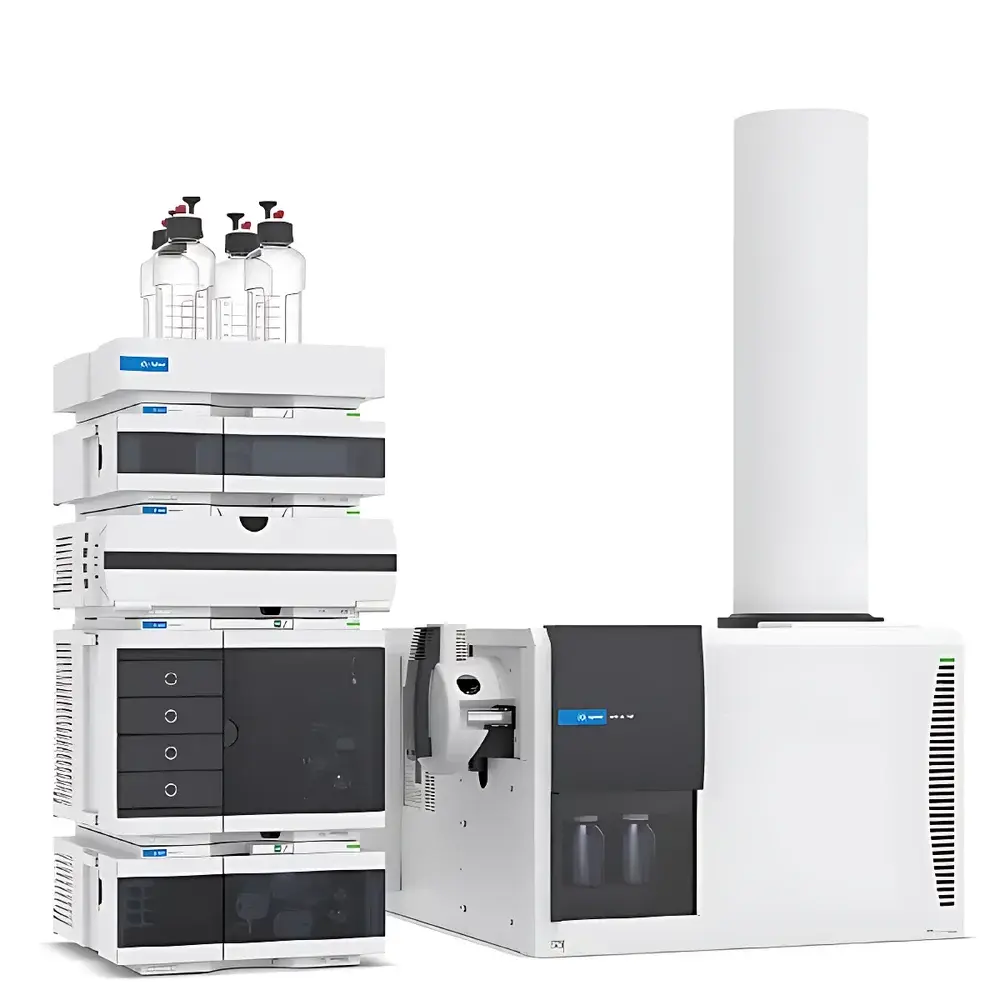

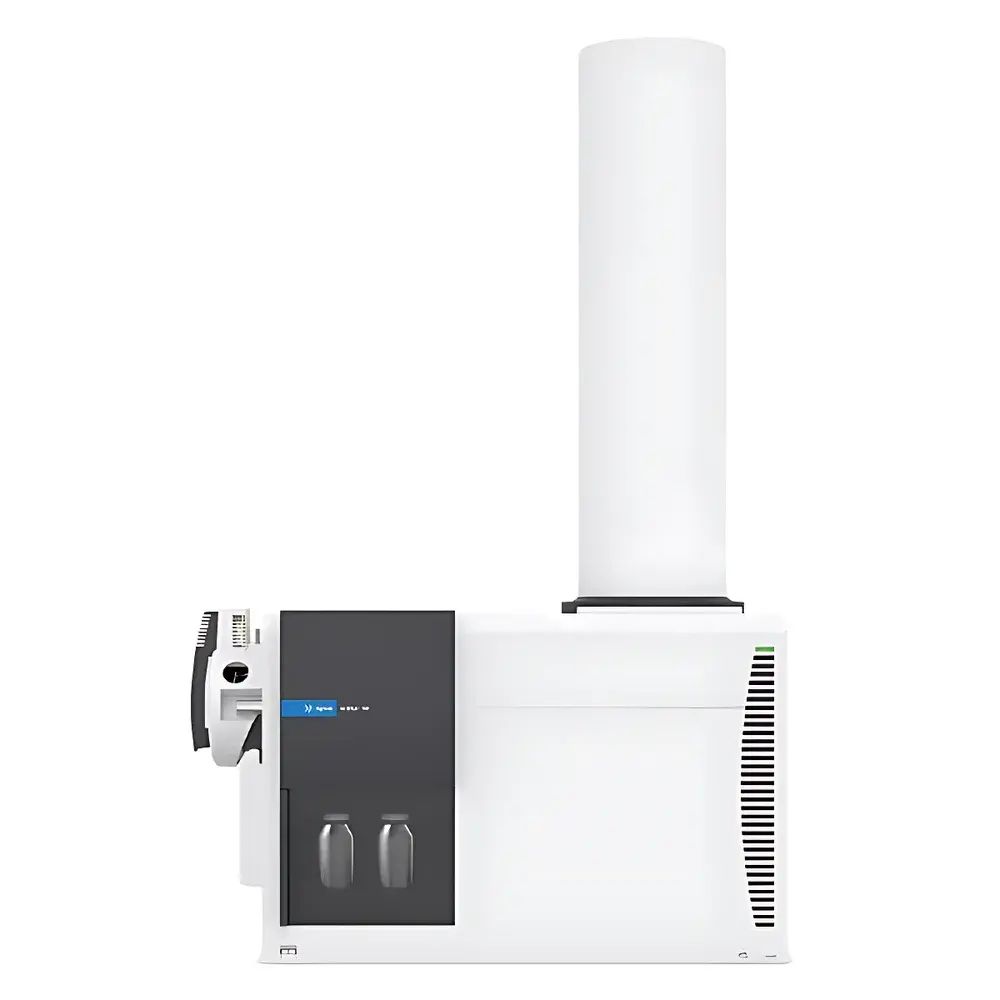

Agilent 6230B TOF LC/MS System

Overview

The Agilent 6230B TOF LC/MS System is a high-resolution, accurate-mass liquid chromatography time-of-flight mass spectrometer engineered for rigorous qualitative and quantitative analysis in regulated and discovery-driven laboratories. Operating on the fundamental principle of time-of-flight mass analysis—where ions are accelerated by a fixed voltage and separated based on their time to travel a known flight path—the system delivers exceptional mass accuracy (<1 ppm RMS), high spectral acquisition speed (up to 30 Hz), and broad mass coverage (m/z 25–20,000). Its orthogonal acceleration TOF architecture ensures resolution independence from acquisition rate, enabling robust performance even under ultra-high-performance liquid chromatography (UHPLC) conditions with sub-second peak widths. Designed for seamless integration with Agilent’s bio-inert HPLC platforms—including 1290 Infinity II and 1260 Infinity II systems—the 6230B supports comprehensive characterization of large biomolecules such as monoclonal antibodies (mAbs), glycans, oligonucleotides, and intact proteins. Its ability to generate full-scan, high-fidelity spectra without sacrificing sensitivity or resolution makes it particularly suited for untargeted screening, structural elucidation, and impurity profiling in pharmaceutical, biopharmaceutical, and environmental applications.

Key Features

• High mass accuracy (<1 ppm RMS in positive mode) minimizes false-positive identifications and enables confident elemental composition assignment.
• Resolution >22,000 FWHM at m/z 1522—maintained across full acquisition rates—ensures baseline separation of isobaric interferences in complex matrices.
• Wide mass range up to m/z 20,000 facilitates intact protein and large biomolecule analysis without fragmentation or reduction.
• Multi-ionization capability including ESI, AJS-ESI, APCI, dual ESI/APCI, NanoESI, CE-ESI, and GC-APCI interfaces expands method flexibility beyond conventional UHPLC.
• In-source dissociation (ISD) option supports non-targeted fragment ion generation for enhanced structural insight during full-scan acquisition.
• Spectral dynamic range of five orders of magnitude allows simultaneous detection of trace-level analytes against high-abundance matrix components.
• Sub-one-second polarity switching enables comprehensive bidirectional analysis within a single run—critical for multi-analyte workflows.
• Thermal mass stability <2 ppm per 2 °C ensures long-duration reproducibility without frequent recalibration.

Sample Compatibility & Compliance

The 6230B TOF LC/MS accommodates diverse sample types—from small-molecule pharmaceuticals and metabolites to intact therapeutic proteins, glycoforms, and synthetic oligonucleotides. Its bio-inert flow path and low-metal surface design minimize adsorption and degradation of labile biomolecules. The system complies with international regulatory expectations for analytical instrumentation: MassHunter software supports 21 CFR Part 11-compliant audit trails, electronic signatures, and role-based access control. It is fully compatible with Good Laboratory Practice (GLP) and Good Manufacturing Practice (GMP) documentation workflows when deployed with validated methods and instrument qualification protocols (IQ/OQ/PQ). Method transfer between labs is facilitated by standardized calibration routines and vendor-supported reference standards traceable to NIST-certified materials.

Software & Data Management

Controlled entirely through the Agilent MassHunter platform, the 6230B offers modular, task-oriented software suites optimized for different user roles and analytical objectives. MassHunter WalkUp provides guided, push-button operation for routine analyses—requiring no LC/MS expertise—while maintaining full data integrity and metadata capture. MassHunter BioConfirm enables deconvolution, charge state determination, and post-translational modification (PTM) mapping for biologics. Mass Profiler Professional supports multivariate statistical analysis (PCA, ANOVA, clustering) for comparative metabolomics and proteomics studies. Vista and Flux extend capabilities to imaging MS and real-time data streaming, respectively. All modules operate on a common database architecture with automated backup, version-controlled method storage, and export compliance for LIMS and ELN integration.

Applications

• Identification and structural confirmation of unknown extractables and leachables (E&L) in drug product packaging and manufacturing equipment.
• Characterization of monoclonal antibody heterogeneity—including glycosylation patterns, oxidation, deamidation, and C-terminal lysine clipping—with high mass accuracy and retention of native conformation.
• Non-targeted screening of environmental contaminants, food adulterants, and forensic toxicants using full-scan HRAM data and retrospective reprocessing.
• Intact mass analysis of oligonucleotide therapeutics and CRISPR guide RNAs, where precise mass measurement is essential for sequence verification and impurity assessment.
• Metabolite identification in ADME studies, leveraging accurate mass filtering and isotopic pattern matching across biological matrices.
• Support for 2D-LC, capillary electrophoresis (CE), and supercritical fluid chromatography (SFC) separations via configurable ion source interfaces.

FAQ

Is the 6230B compliant with FDA 21 CFR Part 11 requirements?
Yes—MassHunter software includes configurable audit trail logging, electronic signature enforcement, and user permission management aligned with Part 11 Annex 11 expectations.

Can the system perform polarity switching within a single chromatographic run?
Yes—polarity switching occurs in less than one second, enabling simultaneous detection of acidic and basic compounds without compromising duty cycle or sensitivity.

What is the recommended calibration frequency for maintaining <1 ppm mass accuracy?
With standard daily tuning using Agilent ESI-L Low Concentration Tuning Mix and ambient temperature control (<±2 °C), recalibration is typically required only once per 8–12 hours of continuous operation.

Does the 6230B support data-independent acquisition (DIA) or only full-scan TOF?
The 6230B operates exclusively in full-scan, high-resolution TOF mode; it does not support DIA or targeted MS/MS functions. For fragmentation-based workflows, complementary Q-TOF or triple quadrupole systems are recommended.

Is remote monitoring and instrument status reporting available?
Yes—via Agilent OpenLab CDS or MassHunter’s integrated web server interface, users can monitor real-time acquisition status, queue progress, and system health metrics from any authorized network endpoint.
