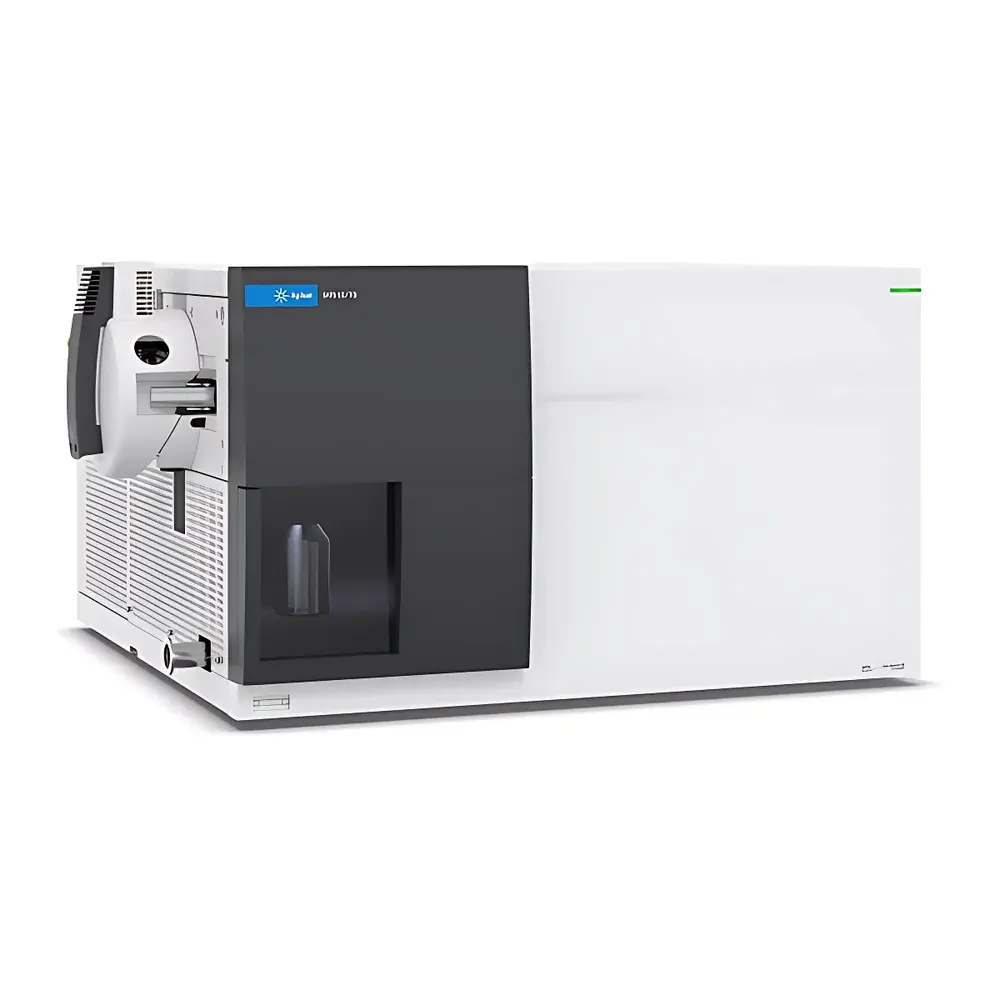

Agilent 6475 Triple Quadrupole Liquid Chromatography Mass Spectrometer

Overview

The Agilent 6475 Triple Quadrupole Liquid Chromatography Mass Spectrometer is a high-performance, universal tandem quadrupole (QqQ) system engineered for regulatory-grade quantitative analysis in demanding laboratory environments. It operates on the principle of electrospray ionization (ESI) or atmospheric pressure chemical ionization (APCI) coupled with triple-stage mass filtering—Q1 selects precursor ions, Q2 induces collision-induced dissociation (CID) in an optimized curved collision cell, and Q3 filters and detects specific product ions. This parallel reaction monitoring (PRM)-compatible architecture delivers exceptional selectivity, sensitivity, and reproducibility for targeted quantitation across diverse analyte classes—including small molecules, peptides, polar metabolites, and thermally labile compounds. Designed as a core platform for GLP/GMP-compliant laboratories, the 6475 integrates hardware robustness with embedded intelligence to sustain long-term analytical integrity under continuous operation.

Key Features

• Agilent Jet Stream (AJS) Ion Source: Delivers up to 10× higher ion transmission efficiency compared to conventional ESI sources, enabling sub-fg-level detection limits without signal suppression in complex matrices.
• Heated Dual-Curved Quadrupole Mass Filters: Maintain thermal stability and mass accuracy across wide dynamic ranges; curvature minimizes ion scattering and improves duty cycle in MRM acquisition.
• VacShield Front-End Maintenance: Enables rapid, vacuum-intact replacement of ion optics and source components—reducing routine maintenance downtime from ≥6 hours to ≤30 minutes.
• Early Maintenance Feedback (EMF) System: Monitors over 30 real-time operational parameters (e.g., detector voltage drift, vacuum integrity, RF amplitude stability) and generates predictive alerts aligned with ASTM E2655-21 guidelines for instrument health assessment.
• Intelligent Reflex Workflow: Automatically triggers blank injections or sample dilution when residual carryover exceeds user-defined thresholds or calibration verification fails—ensuring data validity per USP <1225> and ICH Q2(R2) requirements.
• SWARM Auto-Tuning: Employs multivariate optimization algorithms to identify optimal tuning parameters across voltage, gas flow, and temperature domains—eliminating manual iterative tuning and standardizing performance across operators.

Sample Compatibility & Compliance

The 6475 accommodates a broad spectrum of sample types—from environmental water extracts and food homogenates to biopharmaceutical digests and clinical plasma matrices—without requiring hardware reconfiguration. Its modular ion source architecture supports interchangeable ESI, APCI, MultiMode, Nano-ESI, and AJS configurations, enabling seamless method transfer between polarity modes and flow rates (10 nL/min to 2 mL/min). All firmware and software modules comply with FDA 21 CFR Part 11, EU Annex 11, and ISO/IEC 17025:2017 requirements for electronic records and signatures. Audit trails log all method edits, calibration events, and raw data manipulations with immutable timestamps and operator attribution—supporting full traceability during regulatory inspections.

Software & Data Management

Controlled via MassHunter Workstation Software v10.1 or later, the 6475 provides integrated acquisition, processing, and reporting workflows compliant with LIMS interoperability standards (ASTM E1578-20). Quantitative methods include built-in calibration curve fitting (linear, quadratic, weighted), matrix-matched standardization, and automated QC failure flagging. Data security is enforced through role-based access control (RBAC), encrypted database storage, and configurable retention policies aligned with HIPAA and GDPR retention mandates. Raw data files (.d format) are vendor-neutral and compatible with third-party processing platforms including OpenMS and Skyline for cross-platform validation studies.

Applications

• Regulated PFAS Analysis: Achieves reliable quantitation of C4–C14 perfluoroalkyl carboxylic acids (PFCAs) and sulfonic acids (PFSAs) at sub-ppt levels in drinking water per EPA Method 537.1 and EU Drinking Water Directive 2020/2184.
• Genotoxic Impurity Screening: Detects nitrosamine impurities (e.g., NDMA, NDEA) in pharmaceutical APIs down to 0.03 ppm using validated LC/MS/MS methods aligned with ICH M7(R2) and FDA Guidance for Industry (2021).
• Veterinary Drug Residue Testing: Supports multi-residue screening of >200 antibiotics and coccidiostats in milk and tissue matrices per EU Commission Decision 2002/657/EC decision limits.
• Clinical Biomarker Quantification: Enables precise measurement of endogenous steroids, vitamin D metabolites, and therapeutic drugs in serum using stable isotope-labeled internal standards and isotopic dilution calibration.

FAQ

What ionization sources are supported on the Agilent 6475?

The system accepts ESI, APCI, MultiMode (dual ESI/APCI), Nano-ESI, and Agilent Jet Stream (AJS) sources—all field-swappable without breaking vacuum.
Is the 6475 compatible with legacy Agilent LC systems?

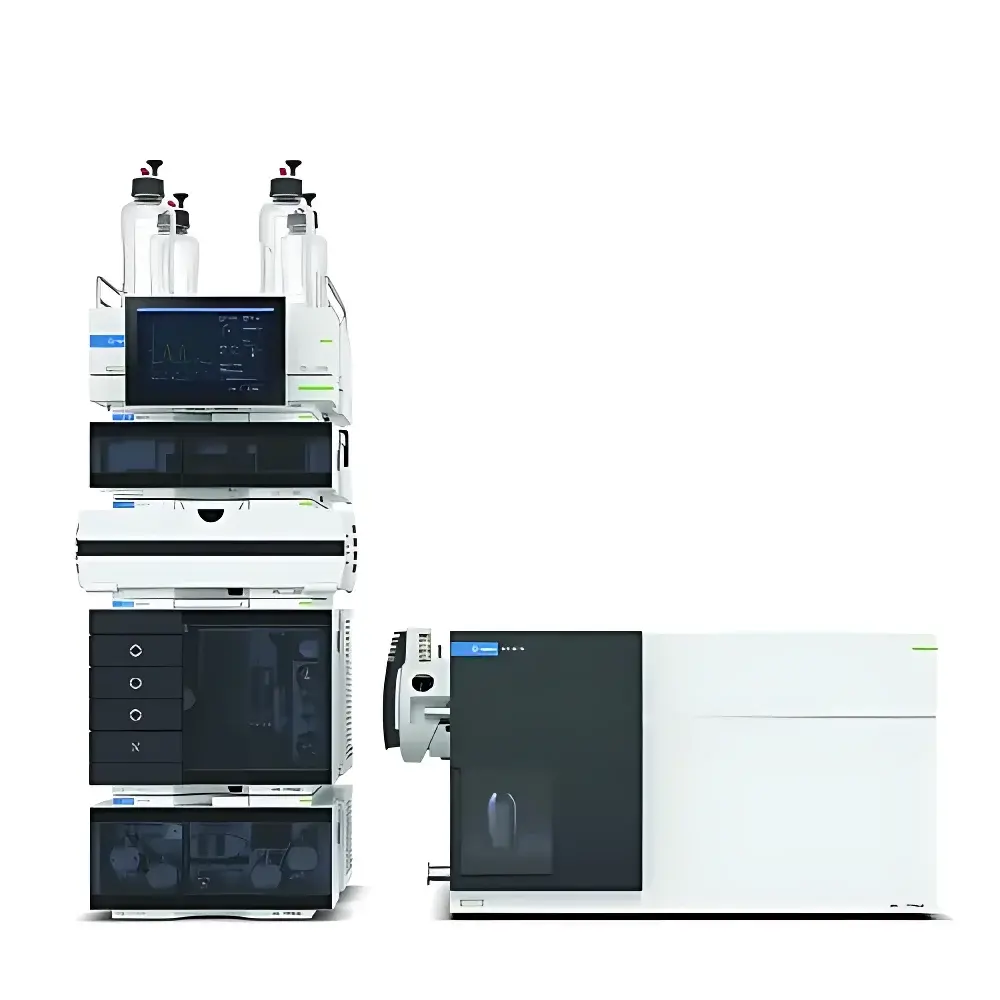

Yes—it interfaces seamlessly with 1200, 1260, and 1290 Infinity II LC modules via Agilent’s MassHunter LC/MS Control Module, supporting gradient delay compensation and active solvent composition feedback.
How does the VacShield feature reduce maintenance time?

VacShield isolates the front-end ion path from the main vacuum chamber, allowing source cleaning, nozzle replacement, and skimmer alignment while maintaining high vacuum in the analyzer region—cutting scheduled maintenance from 6+ hours to under 30 minutes.
Does the 6475 support 21 CFR Part 11 compliance out-of-the-box?

Yes—MassHunter v10.1 includes pre-validated electronic signature workflows, audit trail generation, and secure user authentication protocols required for regulated bioanalytical and quality control labs.
Can the 6475 perform polarity switching within a single MRM method?

Yes—switching between positive and negative ion modes occurs in <25 ms, enabling simultaneous quantitation of analytes with disparate ionization efficiencies in one injection.
