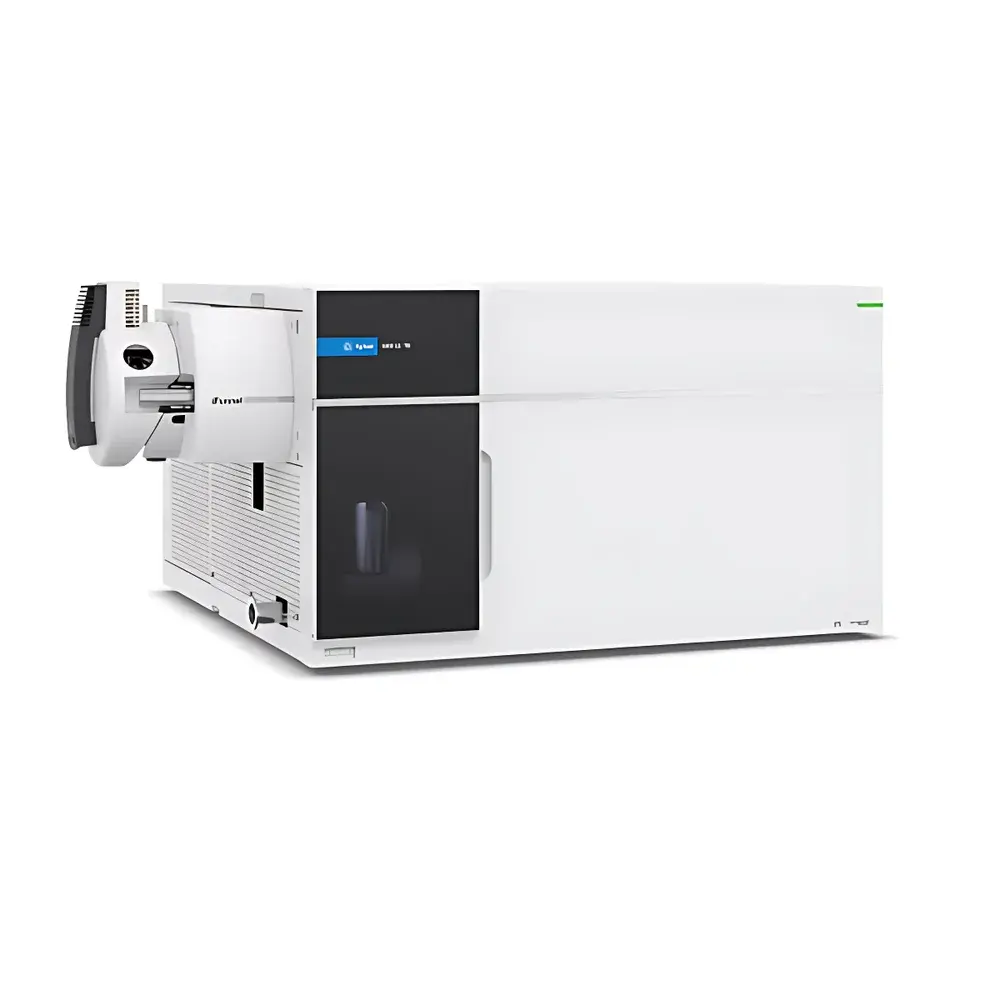

Agilent 6495D Triple Quadrupole LC/MS System

Overview

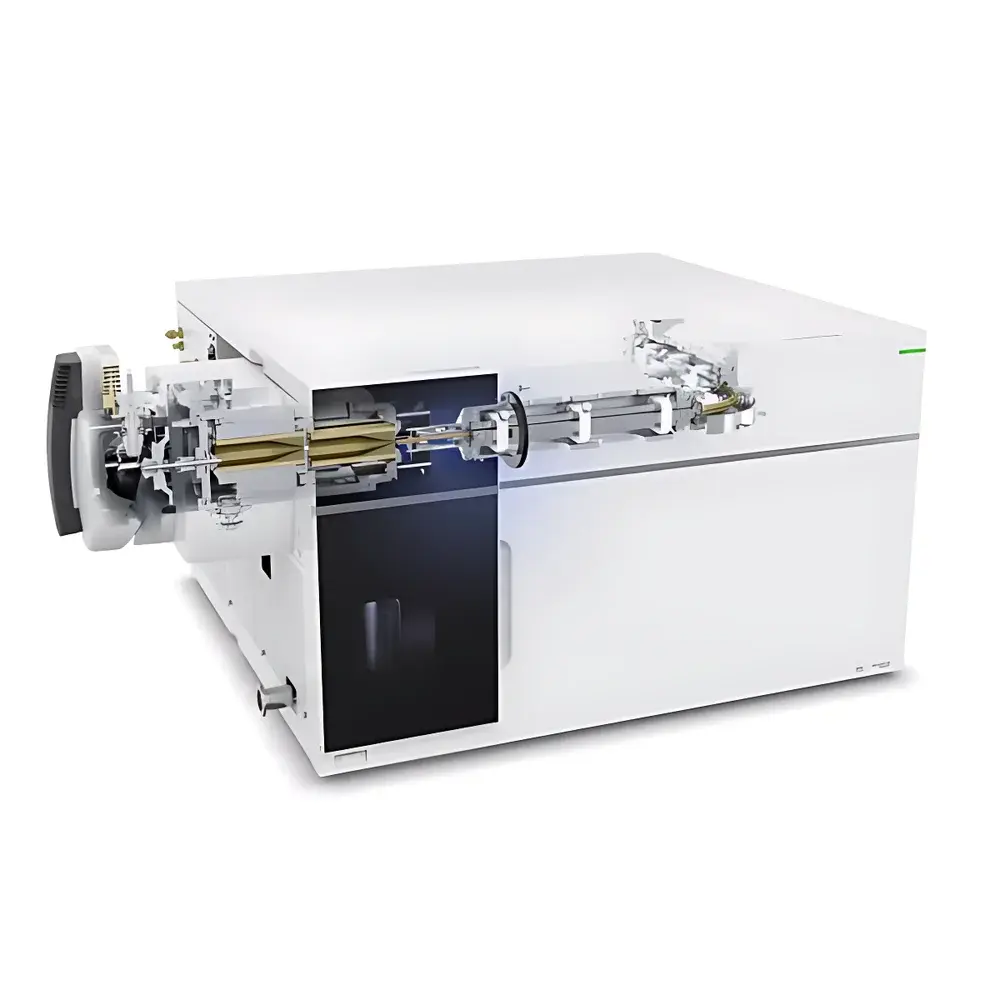

The Agilent 6495D Triple Quadrupole LC/MS System is a high-throughput, research-grade tandem mass spectrometer engineered for robust, reproducible targeted quantitation in regulated and discovery-oriented laboratories. Operating on the fundamental principle of electrospray ionization (ESI) coupled with triple quadrupole mass filtering—where Q1 selects precursor ions, Q2 fragments them via collision-induced dissociation (CID), and Q3 isolates specific product ions—the system delivers exceptional sensitivity, specificity, and dynamic range across complex biological, environmental, and food matrices. Its architecture integrates hardware innovations—including fourth-generation iFunnel ion optics and the optional Edwards nXL200i oil-free dry pump—with embedded instrument intelligence to sustain analytical performance over extended duty cycles without manual intervention.

Key Features

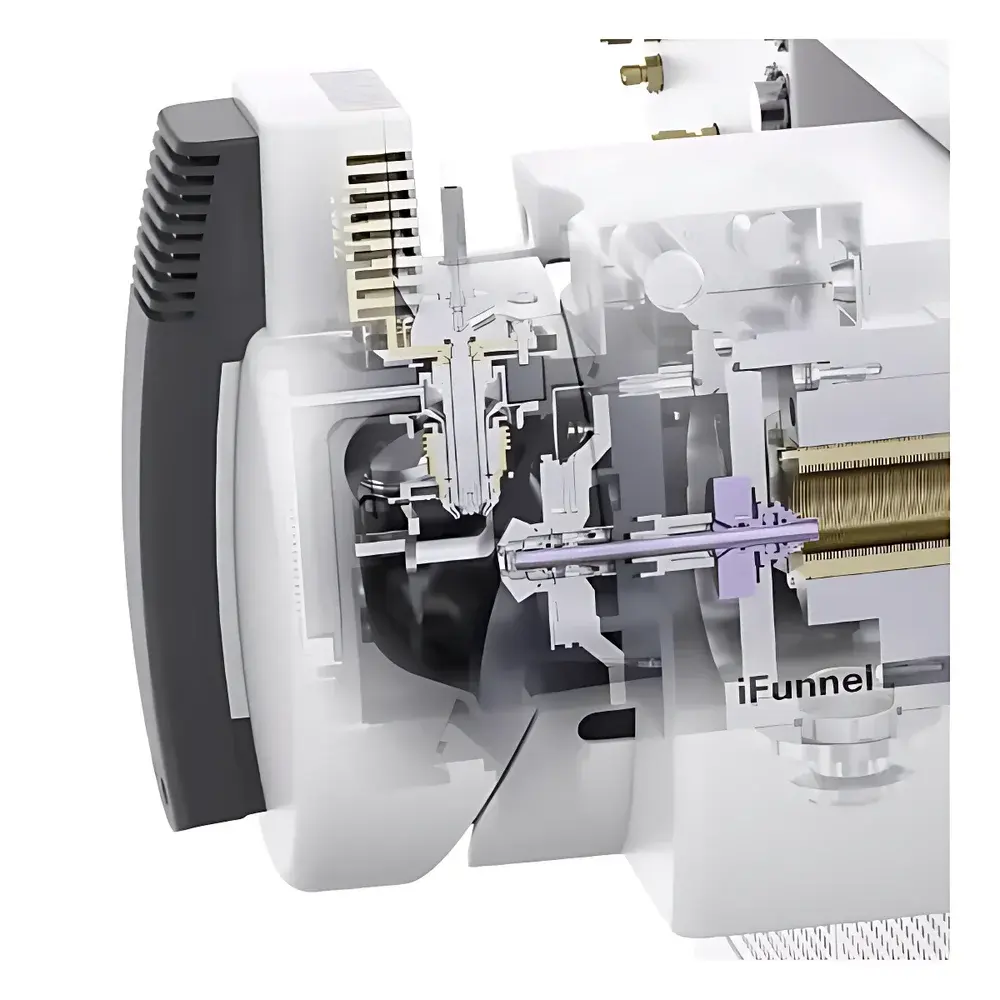

• iFunnel 4.0 ion transmission technology significantly enhances ion capture efficiency from the ESI plume, improving signal-to-noise ratios by up to 10× compared to conventional ion guides—enabling sub-ppt (ppq-level) detection limits in challenging sample backgrounds.
• SWARM (Smart Workflow-Assisted Rapid Method) auto-tuning employs multi-parameter AI-driven optimization to determine optimal RF/DC voltages, collision energies, and dwell times—reducing method development time while ensuring quantitative accuracy across diverse compound classes.
• VacShield enables rapid, in-vacuum cleaning of ion source components without venting the mass spectrometer, minimizing instrument downtime and preserving calibration stability between runs.
• Intelligent Reflex workflow supports data-dependent re-injection: upon detection of unexpected peaks or low-intensity transitions, the system automatically triggers secondary injections with modified parameters (e.g., longer dwell, alternate polarity) to confirm identity or improve quantification confidence.
• Early Maintenance Feedback (EMF) provides real-time, color-coded status monitoring of critical subsystems—including vacuum integrity, detector gain, and ion source cleanliness—supporting predictive maintenance planning aligned with GLP/GMP documentation requirements.
• Pre-scheduled tuning automates routine mass calibration and sensitivity checks during idle periods, ensuring consistent MRM response factors and reducing operator dependency for daily QC compliance.

Sample Compatibility & Compliance

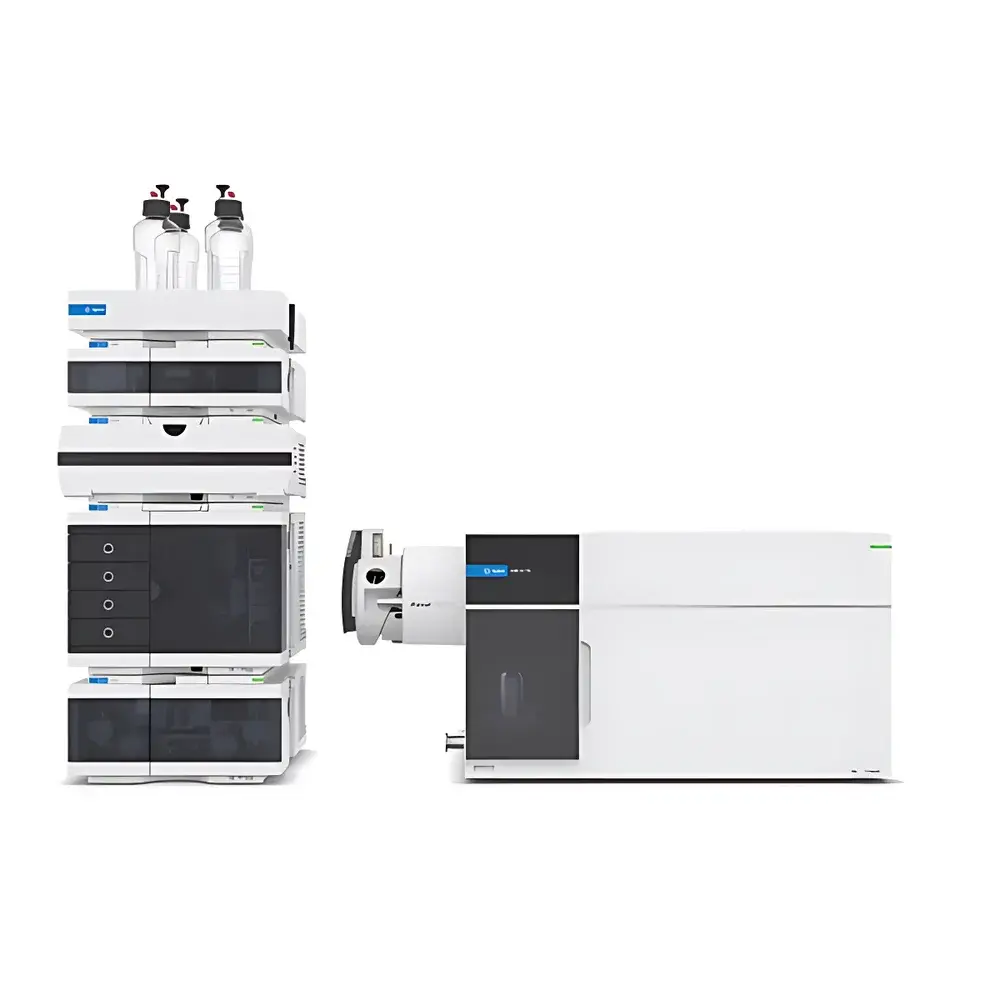

The 6495D accommodates a broad spectrum of sample introduction interfaces—including standard-flow ESI, Jet Stream (AJS), APCI, dual-mode ESI/APCI, and nano-ESI—making it compatible with UHPLC, HILIC, reversed-phase, and 2D-LC configurations. It meets regulatory expectations for trace-level quantitation in pharmaceutical, clinical, and environmental testing environments. The system supports audit-trail-enabled operation under MassHunter Software v12+, compliant with FDA 21 CFR Part 11 for electronic records and signatures. All instrument logs—including tuning reports, EMF events, VacShield interventions, and SWARM optimization histories—are timestamped, user-attributed, and exportable for regulatory submissions per ISO/IEC 17025 and ASTM D7822 guidelines.

Software & Data Management

Controlled exclusively through Agilent MassHunter Workstation (v12 or later), the 6495D enables seamless method transfer across Agilent LC/MS platforms—including 6470, 6490, and 6495C systems—via standardized acquisition templates and compound-centric method libraries. Compound Optimization workflows allow users to add new analytes to existing methods and auto-generate optimized MRM transitions, including declustering potential (DP), collision energy (CE), and cell accelerator voltage (CXP). Quantitative data processing leverages MassHunter Quantitative Analysis with integrated peak integration validation, isotopic ratio checking, and batch-level QC reporting. Raw data files (.d format) are stored in vendor-neutral formats compatible with third-party software (e.g., Skyline, SimLipid) for cross-platform verification and secondary analysis.

Applications

• Targeted Metabolomics: Supports end-to-end workflows—from Captiva EMR lipid extraction to HILIC-Z chromatography and Mass Profiler Professional statistical analysis—enabling reproducible quantification of >300 metabolites per run with sub-second dwell times and inter-run CVs <8% RSD.
• Lipidomics Population Studies: Delivers high-specificity quantitation of phospholipids, sphingolipids, and glycerolipids in plasma with picomolar sensitivity, supporting large-cohort epidemiological studies requiring strict batch-to-batch consistency.
• Quantitative Proteomics: When coupled with 1290 Infinity II Bio-LC or Evosep One nanoflow systems, achieves attomole-level detection of proteotypic peptides; validated for absolute quantification of plasma-derived biomarkers using stable isotope-labeled standards (SIS).
• Persistent Organic Pollutants (PFAS) & Pesticide Residue Analysis: Meets EU SANTE/11312/2021 and EPA Method 1633 requirements for multi-residue screening in water, soil, and biota at ng/L–pg/g levels with matrix-matched calibration and isotope dilution correction.

FAQ

What ion sources are supported on the 6495D?
The system offers ESI, AJS-ESI, APCI, dual ESI/APCI, and Nano-ESI configurations—each optimized for specific flow rates and analyte polarity profiles.

Is the 6495D compliant with 21 CFR Part 11?
Yes—when operated with MassHunter v12+ in audit-trail mode, all user actions, method changes, and data processing steps are recorded with immutable timestamps and digital signatures.

Can MRM methods be transferred from older Agilent QqQ systems?
Yes—MassHunter’s Method Migration Assistant ensures backward compatibility with 6410, 6460, and 6490 instruments, preserving retention time alignment and transition parameters.

How does VacShield reduce instrument downtime?

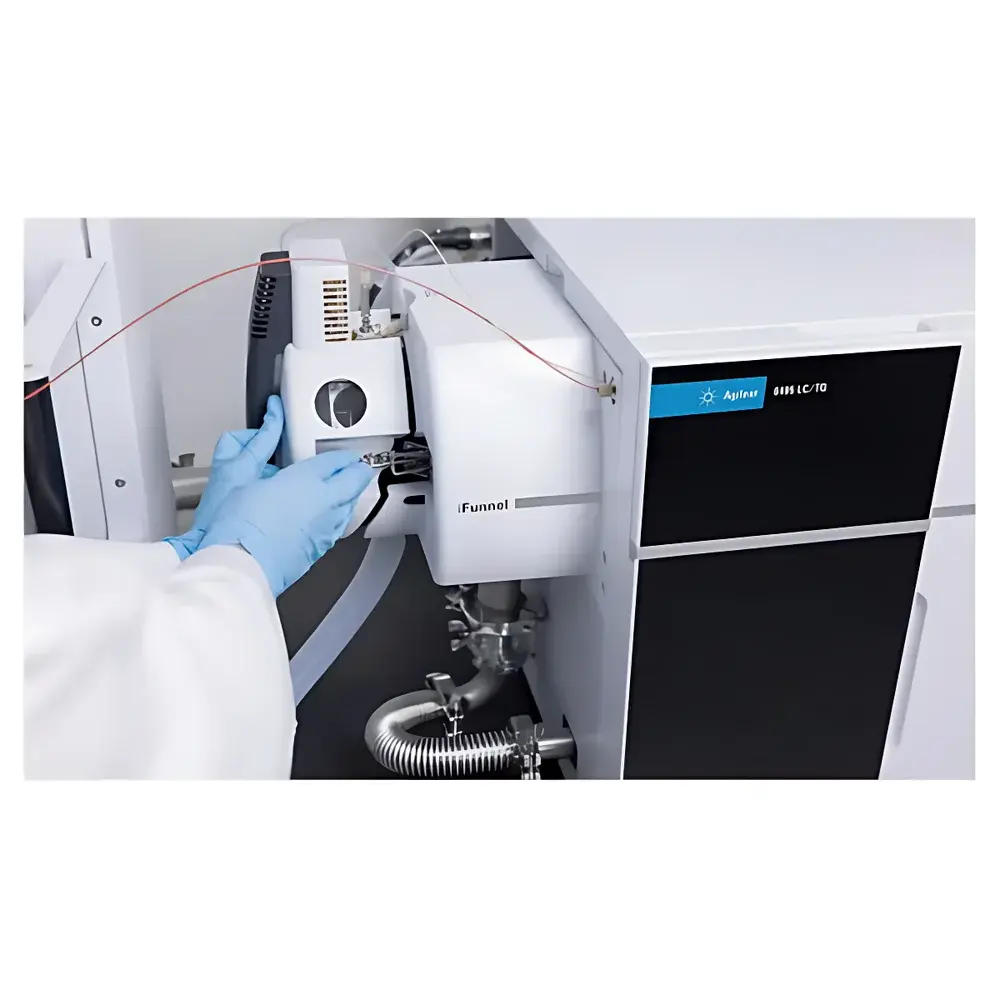

VacShield allows physical cleaning of the ion funnel and skimmer region under vacuum, eliminating the need for full vent-pump-down cycles that typically require 30–45 minutes.

What is the narrowest achievable resolution setting?
The system supports a nominal resolution of 0.4 Da FWHM in unit-resolution mode, optimized for high-selectivity MRM assays in highly multiplexed panels.
