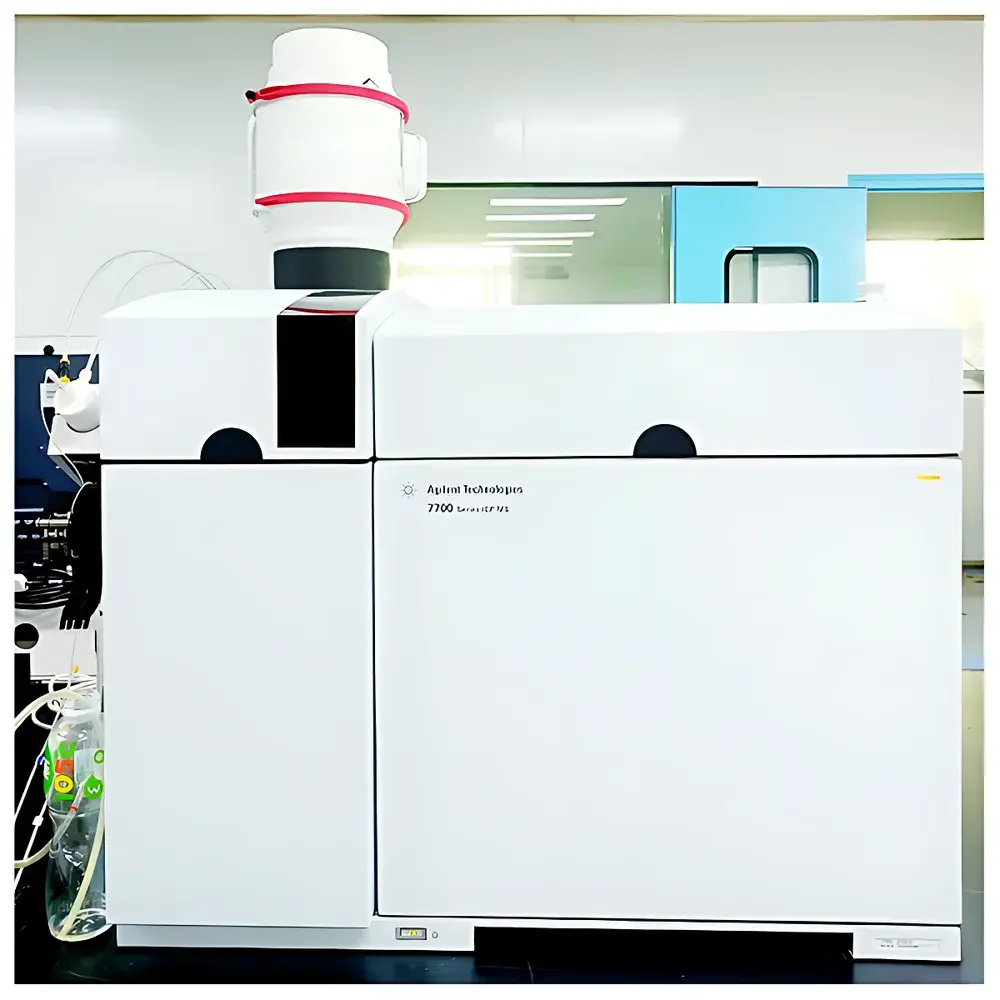

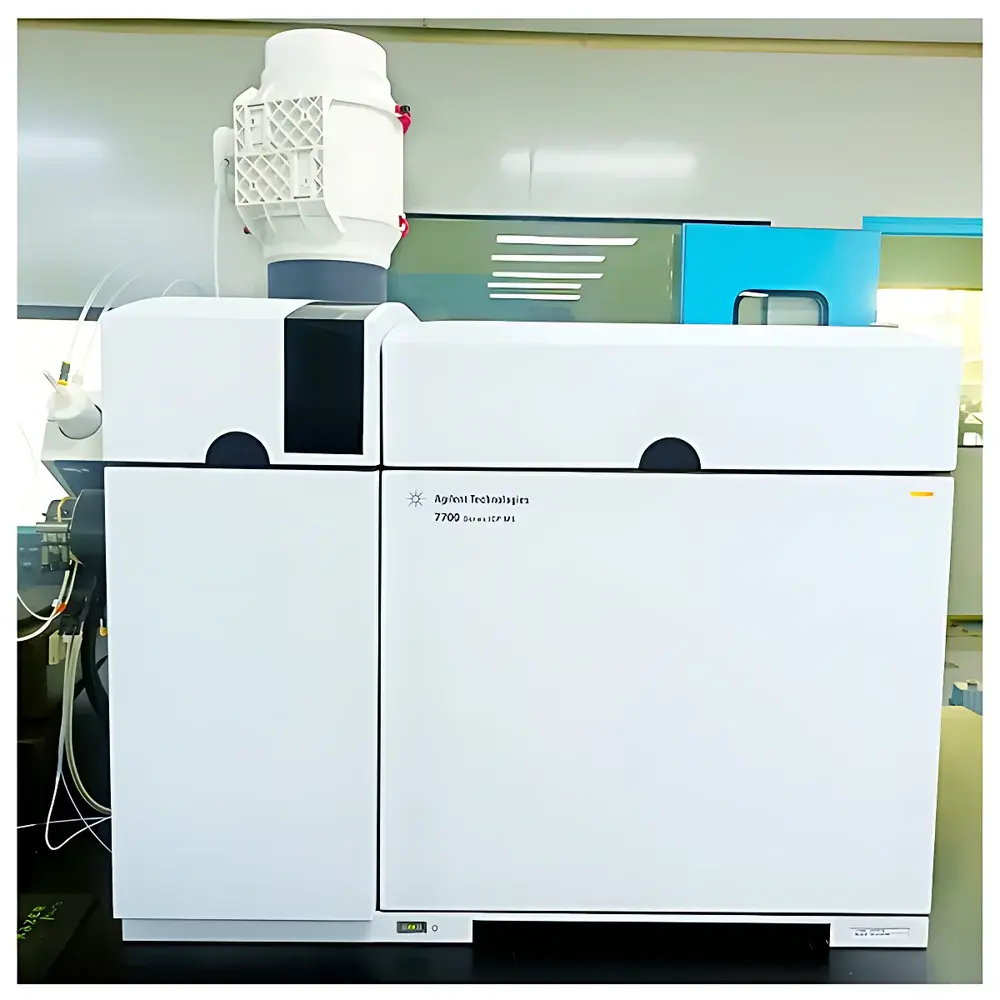

Agilent 7700x ICP-MS

Overview

The Agilent 7700x Inductively Coupled Plasma Mass Spectrometer (ICP-MS) is a high-performance quadrupole-based elemental analysis instrument engineered for robust, routine multi-element trace and ultra-trace quantification in complex matrices. It operates on the fundamental principle of ion generation via high-temperature argon plasma (≥7,000 K), followed by mass separation using a radiofrequency-driven quadrupole mass filter and detection via electron-multiplier-based ion counting. Designed specifically for laboratories requiring reliable performance across diverse sample types—including high-salt environmental waters, digested geological materials, biological tissues, and food extracts—the 7700x integrates thermal stability, interference mitigation architecture, and wide linear dynamic range (nine orders of magnitude) to deliver consistent accuracy under demanding analytical conditions.

Key Features

• High-Matrix Tolerance: Standard configuration includes High Matrix Introduction (HMI) sample introduction system with auto-tuned, high-efficiency RF generator, enabling stable plasma operation even with saline concentrations up to 0.2% NaCl without signal suppression or cone clogging.
• ORS3 Collision Cell Technology: Third-generation Octopole Reaction System (ORS3) with helium-only collision mode provides effective polyatomic interference removal (e.g., ⁴⁰Ar¹⁶O⁺ on ⁵⁶Fe⁺, ⁴⁰Ar⁴⁰Ar⁺ on ⁸⁰Se⁺) without requiring reactive gases or method re-optimization.
• Thermal Ion Source Optimization: Optimized torch positioning and auxiliary gas flow reduce oxide formation (CeO⁺/Ce⁺ < 1.5%), enhancing accuracy for rare earth and refractory element analysis.
• User-Centric Design: Quick-release sampler and skimmer cones enable tool-free replacement in under 90 seconds; automated tuning routines (mass calibration, sensitivity optimization, oxide reduction) minimize operator dependency and training time.
• Modular Expandability: Compatible with LC-ICP-MS, GC-ICP-MS, and direct injection high-purity acid modules (HF-resistant PFA nebulizers, quartz torches); supports optional cold plasma mode for alkali/alkaline earth analysis in ultrapure water and semiconductor-grade chemicals.

Sample Compatibility & Compliance

The 7700x accommodates liquid samples ranging from 0.1–10% total dissolved solids (TDS), including seawater, soil digests (EPA Method 6020B), biological fluids (diluted serum, urine), and food extracts (AOAC 2013.05). Its design supports compliance with ISO/IEC 17025:2017 requirements for method validation, and its data acquisition architecture enables full audit trails aligned with FDA 21 CFR Part 11 when paired with compliant LIMS or Agilent MassHunter software. Routine operation meets ASTM D5673 (water metals), USP (elemental impurities), and JIS K0120 (geological materials) protocols. All critical parameters—including dwell time, integration cycles, and detector voltage—are logged with timestamps and user IDs to support GLP/GMP documentation.

Software & Data Management

Controlled exclusively via Agilent MassHunter Workstation Software (version B.07.x or later), the 7700x supports fully customizable sequence methods, real-time interference monitoring, and automatic internal standard correction (e.g., Rh, Ir, Re). Data files (.d format) are structured for long-term archival and interoperability with third-party statistical tools (e.g., R, Python pandas). Built-in QC reporting generates control charts (X-bar/R), detection limit calculations per EPA Method 200.8, and isotopic ratio precision metrics (2σ RSD). Audit trail functionality records all parameter changes, calibration events, and report exports with immutable timestamps—essential for regulatory submissions and laboratory accreditation.

Applications

• Environmental Monitoring: Quantification of As, Cd, Pb, U, and Th in drinking water (EPA 200.8), seawater (ISO 17294-2), and solid waste leachates (TCLP).
• Food Safety & Agriculture: Multi-element screening for toxic metals (Hg, Sn, Sb) in infant formula, rice, and seafood; nutrient profiling (Zn, Se, I) in fortified products.
• Geochemical & Mining: Trace element mapping in rock powders (Li, Sc, Y, REEs) and exploration drill cores; isotopic ratio screening for provenance studies.
• Clinical & Nutritional Research: Zn/Cu ratios in serum, Cr/V speciation in urine, and longitudinal monitoring of essential/toxic elements in longitudinal cohort studies.
• Materials Science: Residual catalyst metal analysis in polymers; impurity profiling in battery cathode precursors (Ni, Co, Mn, Al).

FAQ

Is the Agilent 7700x compliant with regulatory requirements for environmental testing?
Yes—it supports full implementation of EPA Methods 200.8 and 6020B, including required blanks, duplicates, spikes, and continuing calibration verification (CCV) protocols.
Can the 7700x analyze high-salinity seawater without matrix separation?
Yes—its HMI system and He-mode ORS3 cell allow direct analysis of un-diluted seawater for most elements (excluding Na, K, Ca, Mg), with typical RSDs <4% over 8-hour runs.
What maintenance intervals are recommended for routine operation?
Sampler/skimmer cones require cleaning every 40–60 hours of runtime; torch replacement is recommended every 6–12 months depending on acid load; vacuum pump oil change every 3 months.
Does the 7700x support isotope ratio measurements?
It provides precise isotopic abundance data for applications such as tracer studies and geochemical fingerprinting, though high-precision ratio work (e.g., δ⁷Li) is better served by magnetic sector instruments.
Is service and spare parts still available for this discontinued model?
Yes—Agilent maintains extended support contracts and consumables inventory for the 7700 series through authorized service partners globally; refurbished units include full factory recalibration and 12-month warranty.
