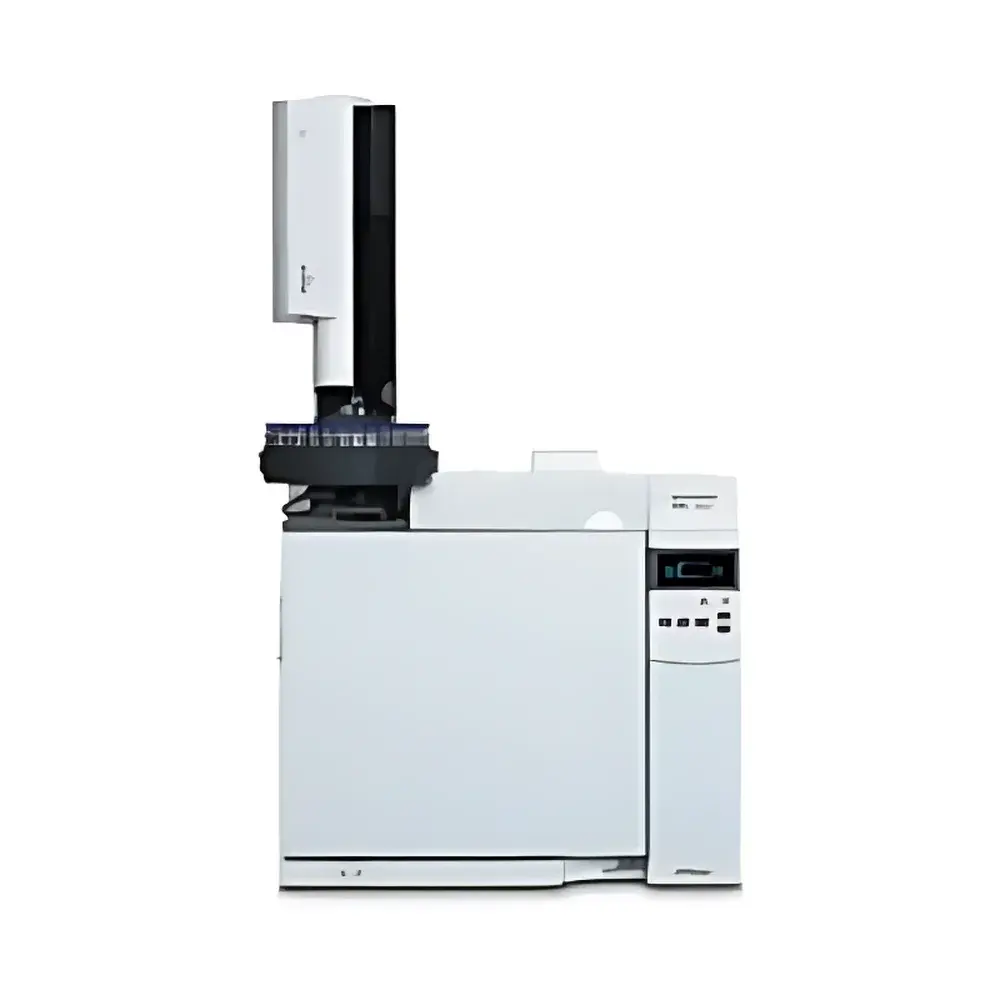

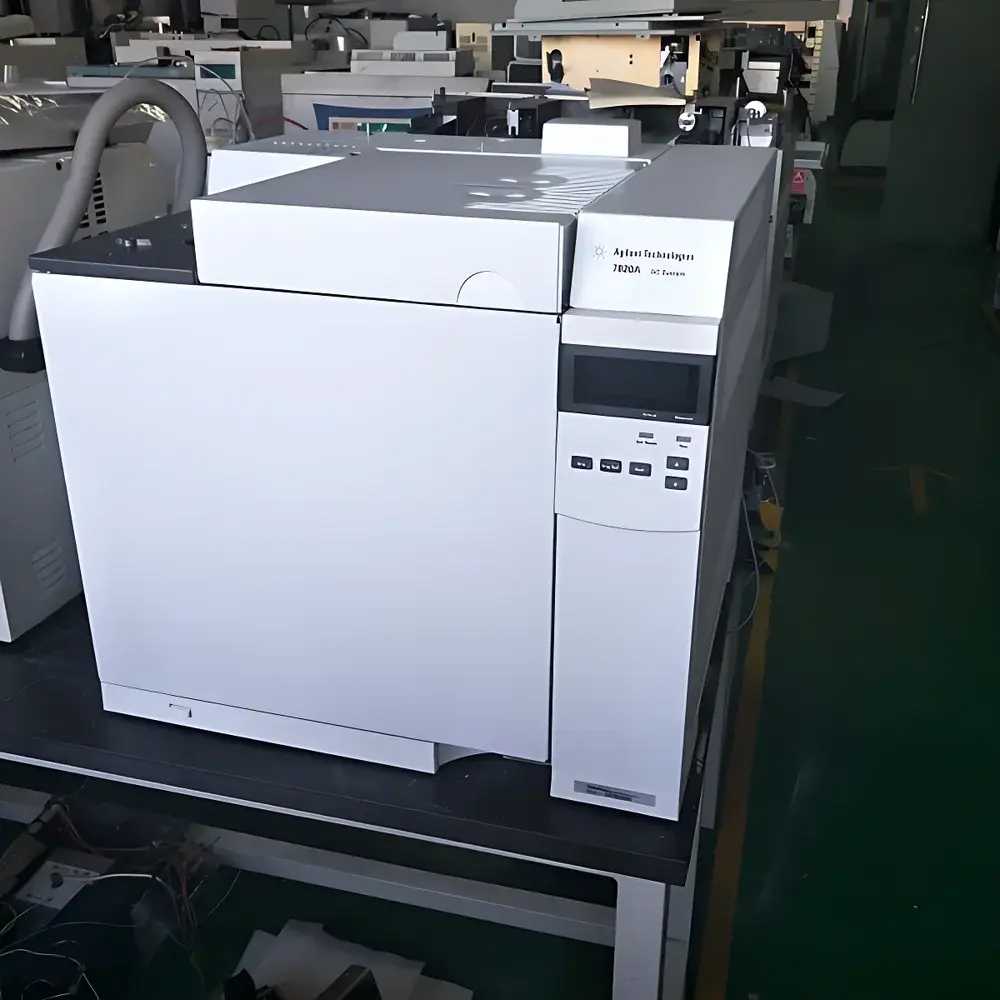

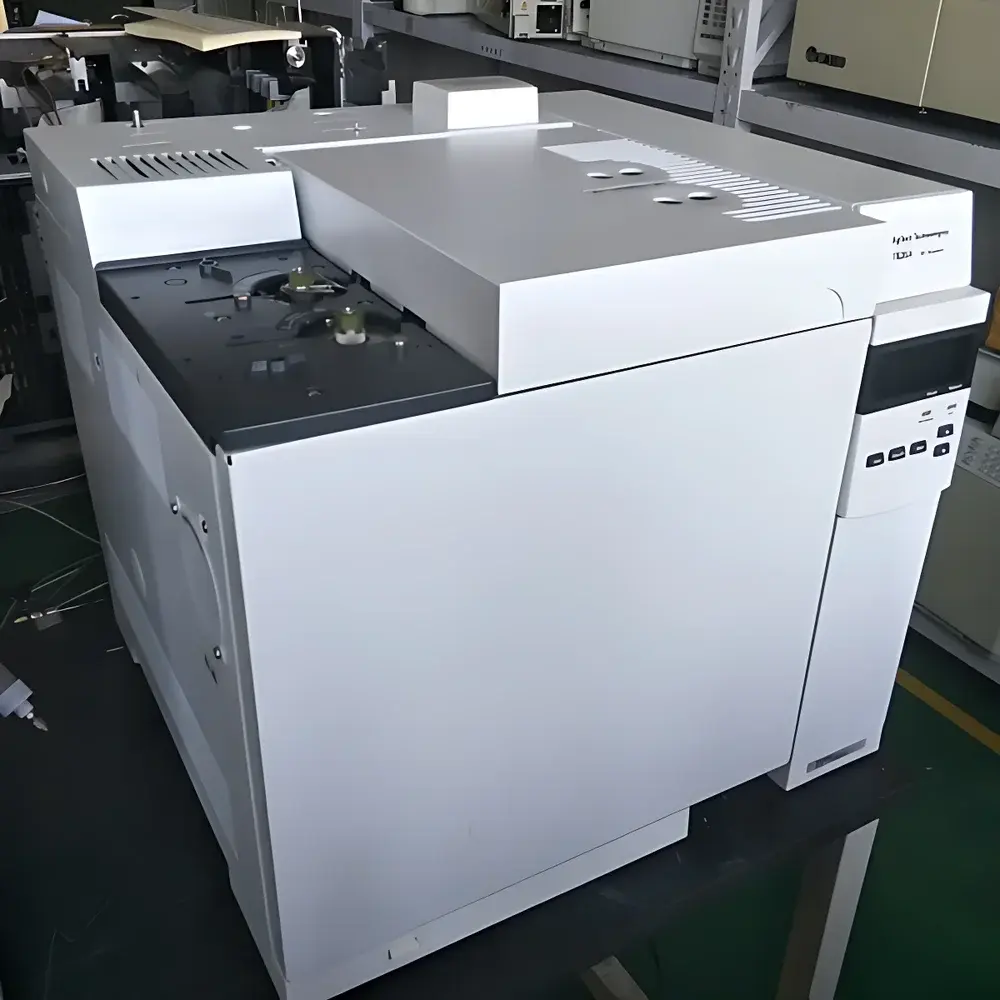

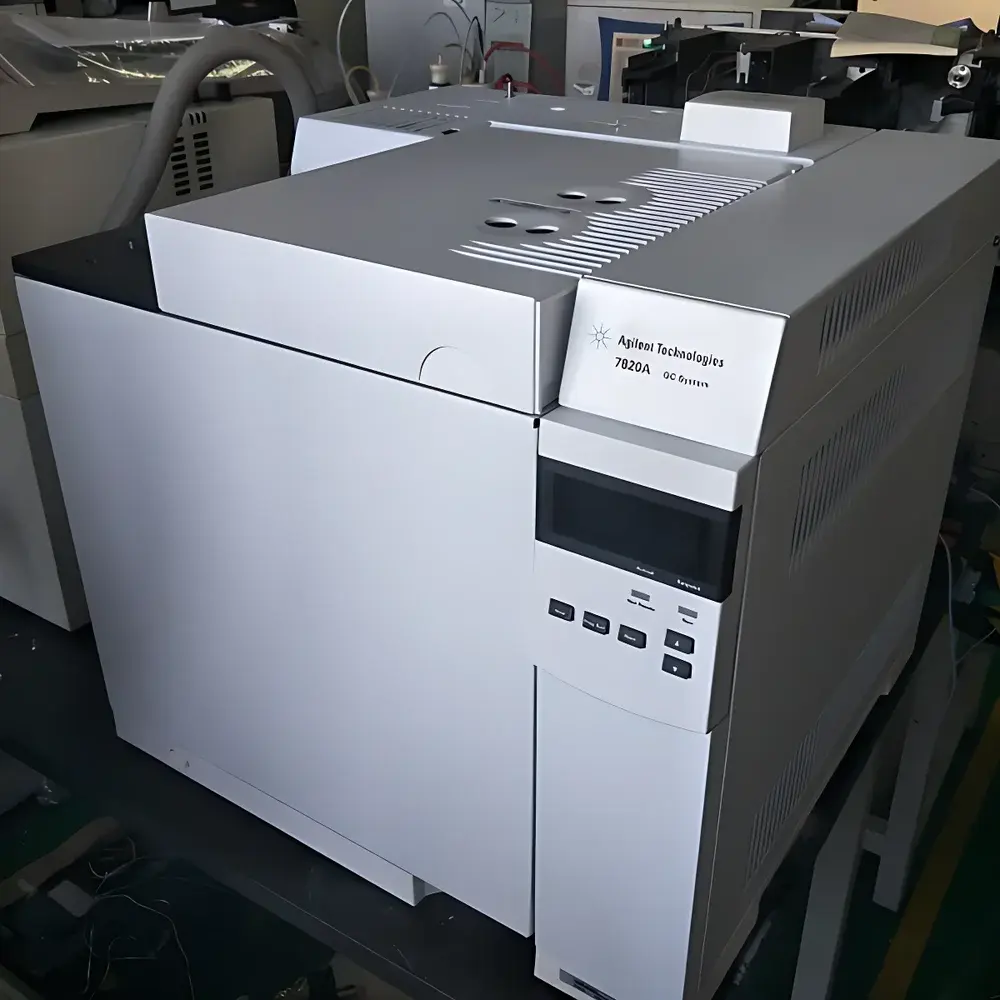

Agilent 7820A Gas Chromatograph

Overview

The Agilent 7820A Gas Chromatograph is a robust, benchtop analytical instrument engineered for precision, repeatability, and operational consistency in routine laboratory environments. Based on classical gas chromatographic separation principles—where analytes are volatilized, partitioned between a mobile gas phase (carrier gas) and a stationary liquid or polymer phase coated inside a fused-silica capillary column—the 7820A delivers high-resolution separation of volatile and semi-volatile organic compounds. Its architecture centers on full Electronic Pressure Control (EPC), regulating carrier gas flow, split ratios, and detector gases with digital accuracy across all modules—from the inlet to the detector. This eliminates mechanical drift, minimizes manual intervention, and ensures retention time stability critical for method transfer and multi-laboratory data harmonization. The system is purpose-built for compliance-driven workflows, supporting standardized operating procedures (SOPs) and regulatory frameworks including ISO/IEC 17025, USP , and ASTM D3606/D5501.

Key Features

• Full EPC architecture with real-time digital monitoring of pressure and flow at all gas zones—injector, column oven, and detector—enabling sub-psi pressure resolution and ±0.01 psi repeatability.
• Retention Time Locking (RTL) technology ensures retention time reproducibility across instruments, columns, and laboratories—essential for method validation and cross-site data comparison.
• Integrated single-filament Thermal Conductivity Detector (TCD) with zero-reference gas requirement and auto-zero stabilization, delivering baseline stability <0.05 mV/h over 24 hours.
• Flame Ionization Detector (FID) with auto-ranging capability: linear dynamic range of 10⁷, enabling simultaneous quantitation from low-ppt (ng/mL) to high-percentage levels in a single injection.
• Modular inlet options—including split/splitless, packed-column, purge-and-trap, and headspace-compatible configurations—support diverse sample introduction strategies without hardware reconfiguration.
• Front-panel interface with intuitive keypad and monochrome LCD display provides real-time access to method parameters, run status, error logs, and sequence queue—reducing operator dependency on external computers during routine operation.

Sample Compatibility & Compliance

The 7820A accommodates liquid, gaseous, and solid-phase extracted samples via compatible autosamplers (e.g., Agilent 7693A ALS) or manual syringe injection. It supports standard capillary columns (0.1–0.53 mm ID, up to 60 m length) and packed columns (up to ¼” OD). Method development adheres to ICH Q2(R2) guidelines for analytical procedure validation. Instrument qualification follows IQ/OQ/PQ protocols aligned with GAMP 5. All firmware and control logic comply with data integrity principles outlined in FDA 21 CFR Part 11, including electronic signatures, audit trail activation, and role-based user permissions—validated for use in pharmaceutical QC, environmental testing, petrochemical QA, and food safety laboratories.

Software & Data Management

The system operates natively with Agilent OpenLab CDS (ChemStation Edition or Modern Version), offering full method building, sequence scheduling, peak integration, calibration curve generation, and report export in PDF, CSV, and XML formats. It supports direct integration with LIMS via ASTM E1384-compliant interfaces. Audit trails record all method edits, parameter changes, and run executions with timestamps and user IDs. Data files are stored in secure, encrypted repositories with configurable retention policies. For labs using third-party software (e.g., Thermo Chromeleon, Waters Empower), the 7820A provides open communication via LAN-based Ethernet (TCP/IP) and RS-232 serial protocols.

Applications

• Environmental analysis: VOCs in water (EPA Method 524.4, 8260D), pesticides in soil (EPA 8081B), and hydrocarbon profiling in air samples.
• Pharmaceutical impurity profiling per ICH Q3B guidelines; residual solvent analysis (ICH Q2(R2), USP ).
• Petrochemical applications: gasoline hydrocarbon group-type analysis (ASTM D5134, D6730), natural gas composition (ASTM D1945), and refinery stream characterization.
• Food & flavor chemistry: fatty acid methyl ester (FAME) analysis (AOAC 996.06), aroma compound profiling, and ethanol quantification.
• Forensic toxicology: confirmation of drugs of abuse in biological matrices using FID or µECD detection.

FAQ

Is the Agilent 7820A manufactured in the USA?
No—the 7820A model referenced here is produced at Agilent’s manufacturing facility in Shanghai, China, under the same quality management system (ISO 9001 certified) as global production sites.
Can the 7820A be upgraded to support mass spectrometric detection?
The 7820A platform is not directly compatible with Agilent single-quadrupole GC/MS systems (e.g., 5977B); however, it can serve as a front-end separation module when interfaced via transfer line to external MS detectors using custom or third-party coupling solutions.
Does the system support unattended overnight operation?
Yes—when paired with an autosampler (e.g., 7693A) and configured with proper method sequencing and fault-handling routines, the 7820A supports fully automated, unattended batch runs with real-time alerting via email or SNMP traps.
What is the warranty coverage for the 7820A?
Standard warranty includes 12 months parts and labor coverage from date of installation, extendable to 3 years via Agilent Care service contracts including preventive maintenance, remote diagnostics, and priority technical support.
Is method transfer from older Agilent GC models (e.g., 6890N) straightforward?
Yes—RTL functionality, consistent EPC algorithms, and identical column oven thermal profiles enable seamless migration of validated methods with minimal re-qualification effort, especially when using equivalent column dimensions and carrier gas conditions.
