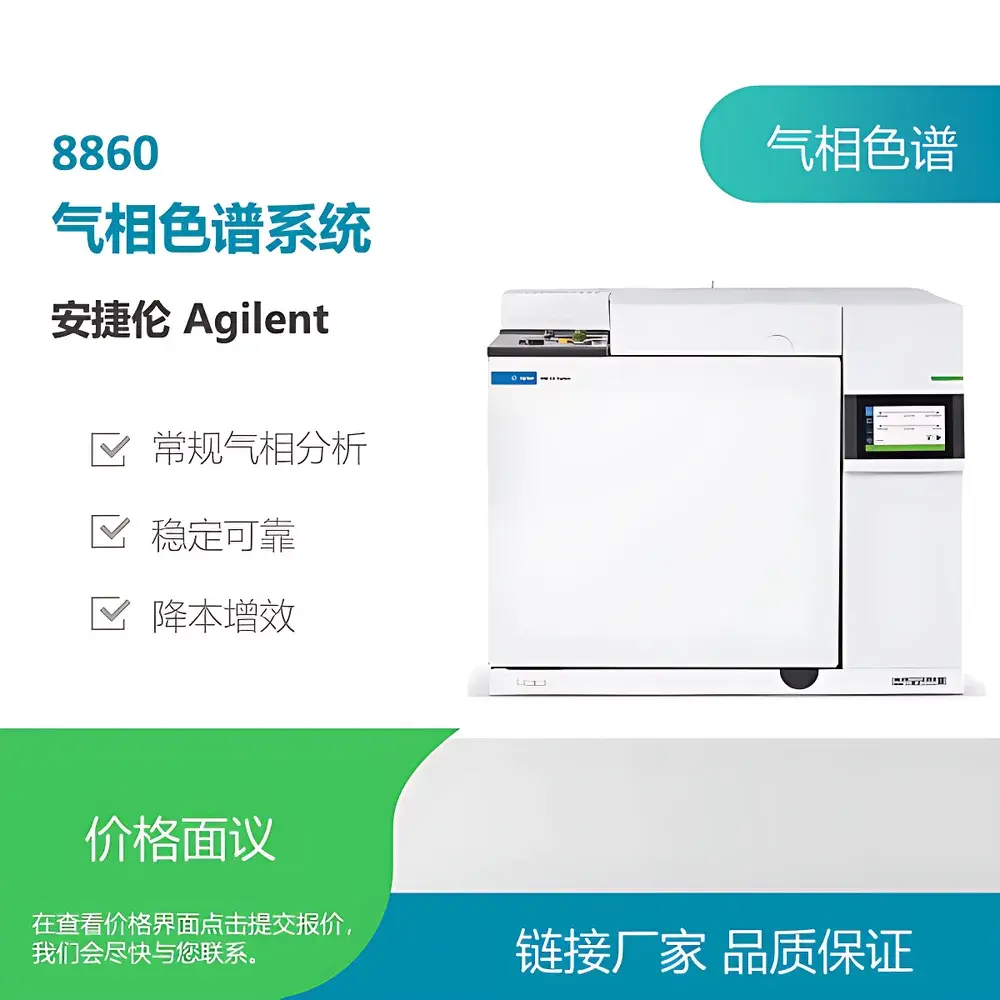

Agilent 8860 Gas Chromatograph (Rental Unit)

Overview

The Agilent 8860 Gas Chromatograph is a purpose-engineered analytical platform designed for routine, high-throughput gas chromatographic analysis in regulated and non-regulated laboratory environments. Based on Agilent’s sixth-generation microfluidic electronic pressure control (EPC) architecture, the system delivers exceptional retention time stability, peak area reproducibility, and long-term operational robustness—critical requirements for QC/QA labs, environmental testing facilities, and contract research organizations. Unlike legacy GC systems reliant on mechanical flow controllers or analog pressure regulators, the 8860 employs fully digital, temperature- and pressure-compensated EPC across all inlets and detectors, minimizing drift caused by ambient fluctuations and ensuring method transfer fidelity between instruments. Its modular design supports up to two independent inlets (e.g., split/splitless, PTV, or cool-on-column), three programmable valves, and three detectors—including FID, TCD, ECD, NPD, or a single quadrupole mass spectrometer (when configured as GC-MS). The system is not sold outright in this offering; it is available exclusively as a certified, maintenance-covered rental unit—fully calibrated, installation-validated, and backed by Agilent-authorized service support.

Key Features

• Full electronic pressure and flow control (EPC) on all inlets and detectors—enabling <0.01 psi pressure resolution and sub-0.1 mL/min flow precision under variable ambient conditions
• 7-inch full-color capacitive touchscreen interface with real-time signal visualization, method editing, and instrument status dashboard
• Browser-based remote access via Ethernet/Wi-Fi—enabling method development, sequence management, diagnostic execution, and health monitoring from any network-connected PC or tablet
• Embedded GC diagnostics suite: automated baseline anomaly detection (e.g., elevated noise, ghost peaks, baseline drift), detector response validation using calibration standards, and predictive maintenance alerts
• Retention Time Locking (RTL) compatibility—ensuring consistent retention times across multiple Agilent GC platforms when using identical columns and methods, facilitating lab-wide method harmonization
• Optional Electronic Pressure Regulation (EPR) module for manual-mode operation with digital pressure/flow readouts—ideal for method development, troubleshooting, or training scenarios where real-time parameter visibility is required
• Integrated environmental compensation—automatically adjusting EPC setpoints based on real-time lab temperature and barometric pressure measurements to maintain chromatographic consistency

Sample Compatibility & Compliance

The Agilent 8860 GC accommodates a broad range of volatile and semi-volatile organic compounds—from residual solvents and hydrocarbon fractions to pesticides, flavor volatiles, and petrochemical markers. It supports standard 0.25–0.53 mm ID capillary columns (up to 60 m length) and packed columns with appropriate inlet configuration. All hardware and firmware comply with international design conventions for analytical instrumentation, including IEC 61010-1 (safety) and CISPR 11 (EMC). When operated with Agilent OpenLab CDS software (v2.4 or later), the system supports 21 CFR Part 11 compliance through electronic signatures, role-based access control, full audit trail logging, and secure data archiving—making it suitable for FDA-regulated pharmaceutical stability studies, EPA Method 8260/8270 applications, and ISO/IEC 17025-accredited testing laboratories. Routine IQ/OQ documentation packages are provided with each rental deployment.

Software & Data Management

Instrument control, data acquisition, and reporting are managed through Agilent OpenLab CDS—a validated, scalable chromatography data system supporting multi-instrument networks and centralized license management. The base software includes full method building, sequence scheduling, peak integration, calibration curve generation, and PDF report export. For users requiring simplified workflows without full compliance functionality, the optional DA Express software provides intuitive drag-and-drop data review, batch report generation, and basic calibration management—ideal for teaching labs, field sites, or contract labs handling standardized test panels. All raw data (.D directories) are stored in vendor-neutral formats compatible with third-party reprocessing tools. Data backups, user permissions, and audit trail exports are configurable per organizational IT policies. Remote software updates and security patches are delivered via Agilent’s Secure Software Distribution Portal.

Applications

• Pharmaceutical: Residual solvent analysis (ICH Q3C), extractables/leachables screening, stability-indicating assays
• Environmental: VOC and SVOC quantification per EPA Methods 502.2, 524.4, 8260D, 8270E, and ASTM D7011
• Food & Beverage: Flavor profiling, adulteration detection, pesticide residue screening (AOAC 2007.01)
• Petrochemical: Hydrocarbon type analysis (HTA), gasoline component profiling (ASTM D6730), natural gas composition
• Academic & Government Research: Method development, reference material certification, inter-laboratory comparison studies

FAQ

Is the Agilent 8860 GC supplied with a mass spectrometer in this rental configuration?
No—the base rental unit includes FID and/or TCD detectors. A single quadrupole MS (5977B or 5977C) can be added as an optional detector module subject to availability, lead time, and additional rental surcharge.
Can I use my existing Agilent OpenLab CDS license with this instrument?
Yes—provided your current license covers GC instrument control and is active under a valid support contract. License portability requires formal authorization from Agilent Licensing Services.
What does the rental package include beyond the hardware?
Each deployment includes factory calibration certificates, on-site installation and operational qualification (IQ/OQ), operator training (8 hours), preventive maintenance planning, and 24/7 technical support escalation via Agilent’s authorized service network.
Are consumables and column supplies included in the lease agreement?
No—columns, septa, liners, gases, and other consumables remain the lessee’s responsibility. However, volume-based procurement agreements with Agilent’s consumables division can be arranged separately.
Can I extend the rental term or convert to purchase during the lease period?
Yes—both short-term leases and lease-to-own agreements include predefined extension clauses and buyout schedules aligned with GAAP capitalization rules and IRS Section 179 eligibility criteria.
