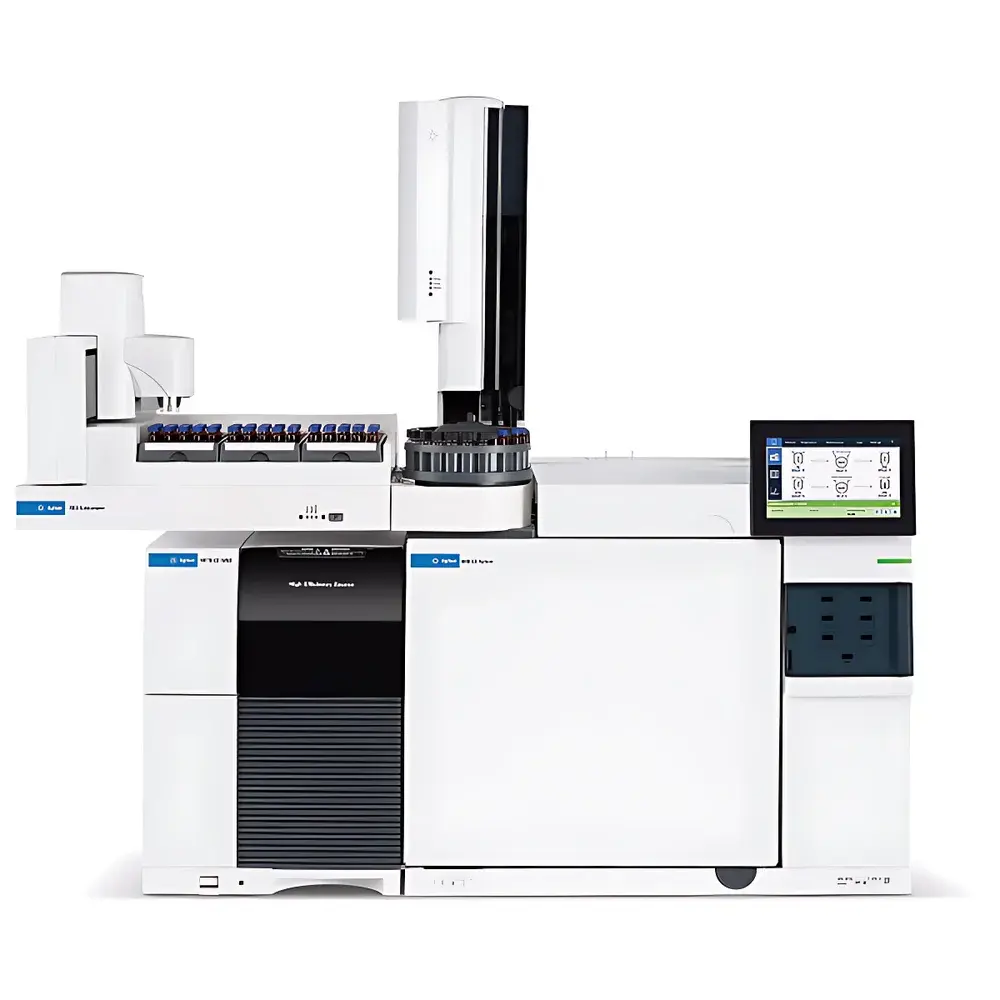

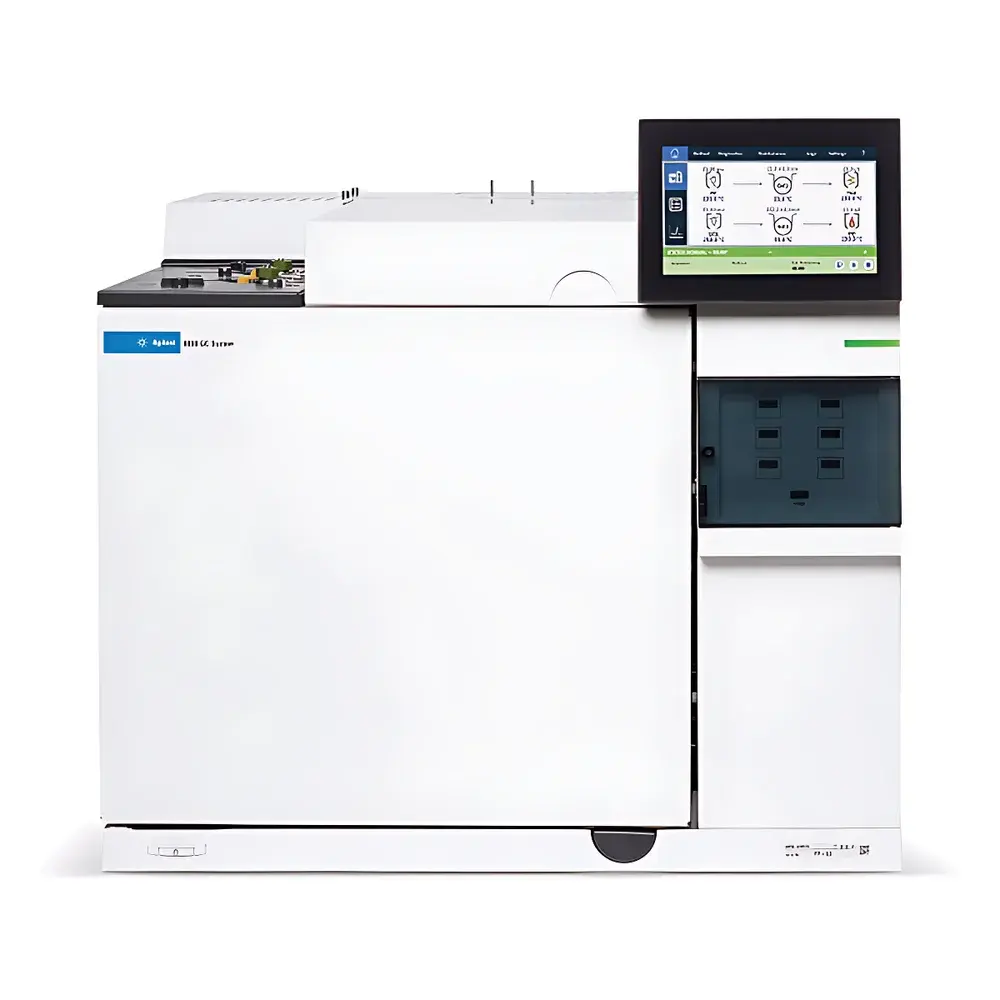

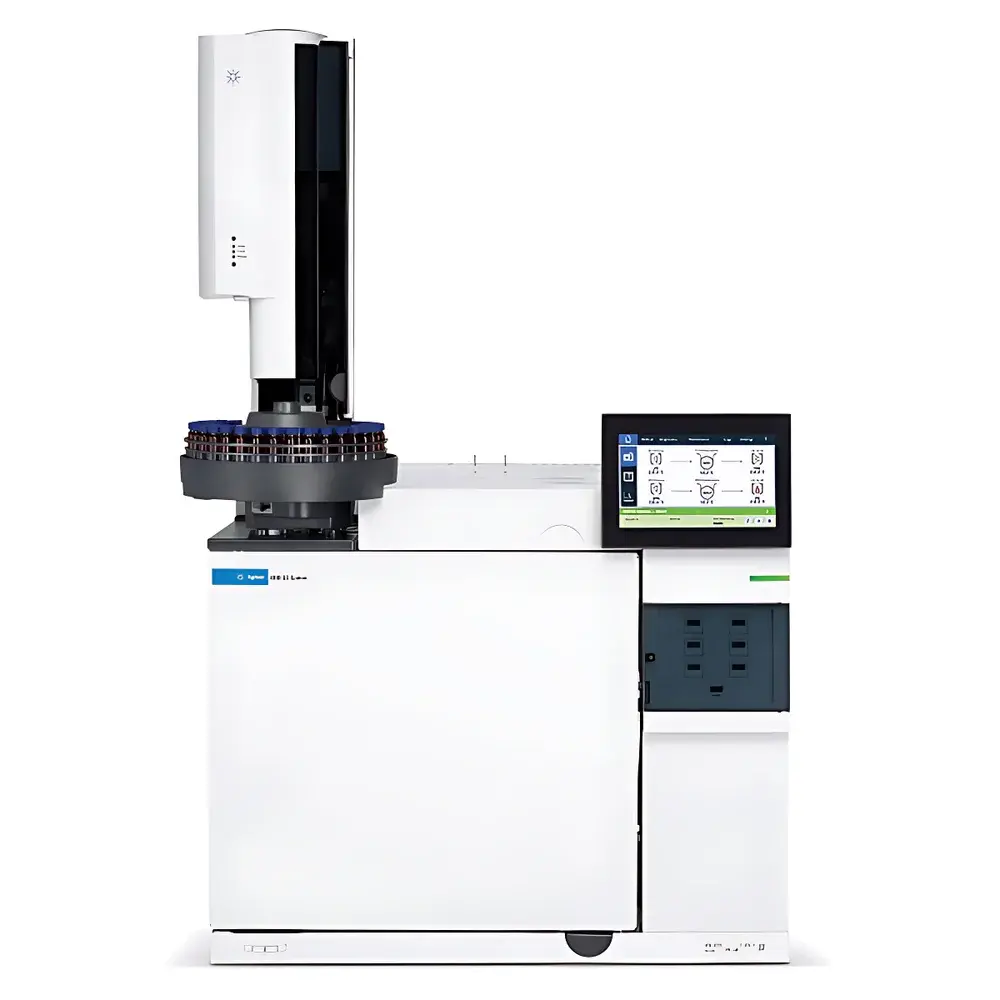

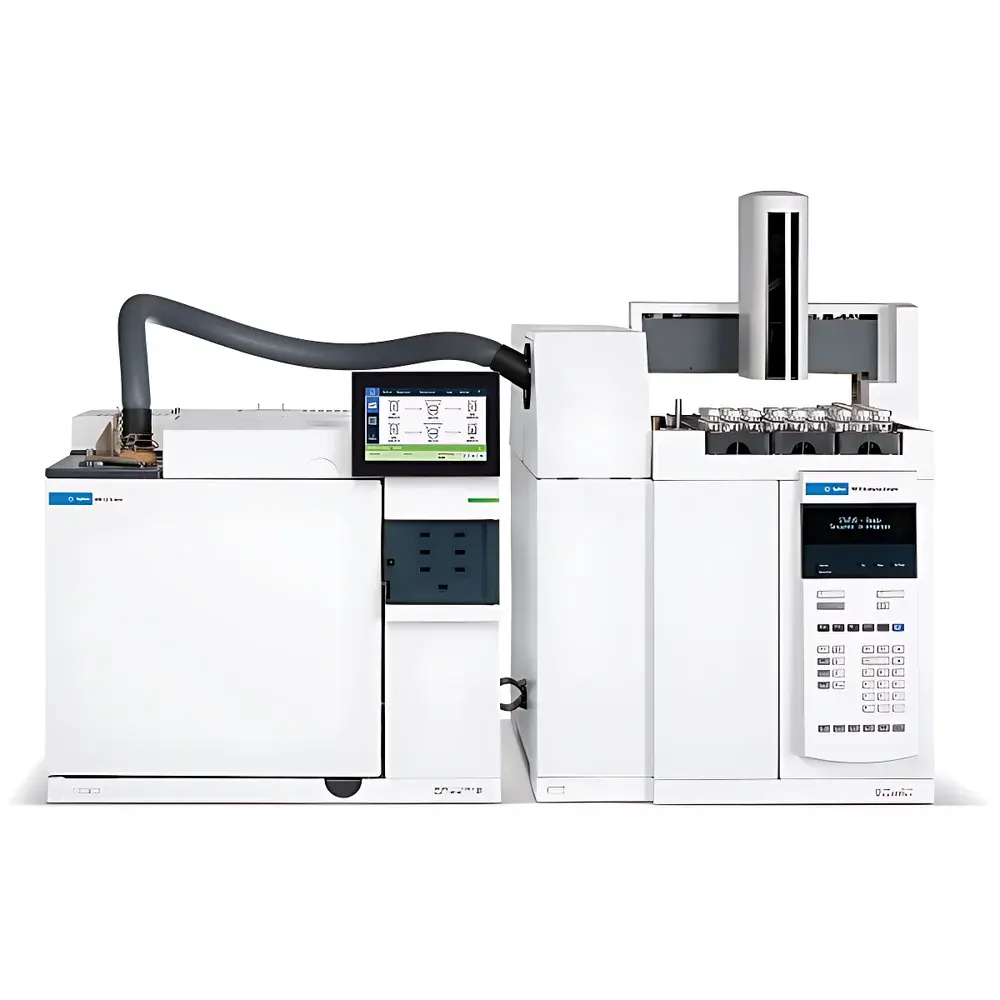

Agilent 8890 Gas Chromatograph System
| Brand | Agilent Technologies |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Regional Classification | Domestic (China-manufactured) |
| Model | 8890 GC |
| Instrument Type | Laboratory Gas Chromatograph |
| Application Scope | General-purpose |
| Oven Temperature Range | +4 °C above ambient to 450 °C |
| Maximum Ramp Rate | 120 °C/min (75 °C/min with 120 V power supply) |
| Oven Cool-down | 4.0 min from 450 °C to 50 °C (ambient 22 °C) |
| Detector Options | FID, TCD, SCD, NCD, compatible with single-quadrupole, triple-quadrupole, and Q-TOF GC/MS platforms |
| Retention Time Reproducibility | <0.008% RSD |
| Peak Area Reproducibility | <0.5% RSD |
| Pressure Control Resolution | 0.001 psi |
| Dual-Tower Simultaneous Injection | Yes |
| Dimensions (W × D × H) | 58 cm × 51 cm × 49 cm |
| Microfluidic Flow Control Technology (CFT) | Fully integrated |
| Cryogenic Cooling Options | –80 °C (LN₂), –40 °C (CO₂) |
| Inlet Configurations | Up to 2 inlets + 10 valves |
| Environmental Certification | My Green Lab ACT Label (Accountability, Consistency, Transparency) |
Overview
The Agilent 8890 Gas Chromatograph System is a high-performance, network-enabled analytical platform engineered for precision, reliability, and operational continuity in regulated and research laboratory environments. Built upon Agilent’s sixth-generation electronic pressure control (EPC) architecture, the system delivers deterministic gas flow management, sub-millipsi pressure regulation (0.001 psi resolution), and real-time diagnostics to ensure chromatographic integrity across method lifecycles. Its core measurement principle relies on differential partitioning of volatile and semi-volatile analytes between a mobile phase (carrier gas) and stationary phase (capillary column), followed by selective detection using mass-sensitive (FID), thermal-conductivity-based (TCD), or element-specific (SCD/NCD) transducers. Designed for compliance-critical workflows, the 8890 GC supports full audit trail generation, electronic signature capability, and 21 CFR Part 11–ready software integration when paired with OpenLab CDS or MassHunter platforms.
Key Features
- Sixth-generation microfluidic EPC architecture — hardened against particulate, moisture, and hydrocarbon contamination to extend consumable lifetime and reduce unplanned downtime.
- Integrated Smart Connect diagnostics — continuously monitors system health (leak detection, pressure decay, temperature deviation) and guides users through corrective actions via step-by-step visual prompts on the 7-inch capacitive touchscreen or remote GC Browser interface.
- Microplate Flow Control Technology (CFT) — enables precise, low-thermal-mass routing for advanced configurations including heart-cutting (GC-GC), comprehensive two-dimensional GC (GC×GC), and programmable column backflushing (pre-, mid-, and post-column).
- Intelligent column management — optional Smart Key modules store column history, dimensions, phase chemistry, and default method parameters to auto-populate method templates and enforce traceable column usage records.
- Helium conservation suite — includes carrier gas saver mode, hydrogen/argon alternative carrier support, and automated flow optimization algorithms to reduce helium dependency without compromising resolution or retention time stability.
- Hydrogen safety system (Series 2 sensor module) — performs continuous H₂ concentration monitoring with automatic shutoff and alarm triggering; calibrated every six months per IEC 60079-29-1 requirements.
- ACT-certified environmental profile — independently verified by My Green Lab for lifecycle transparency, material accountability, and energy efficiency metrics aligned with ISO 14040/14044 LCA standards.
Sample Compatibility & Compliance
The Agilent 8890 GC accommodates a broad range of sample matrices—including gaseous (natural gas, refinery streams), liquid (petrochemical solvents, environmental extracts, food volatiles), and solid-phase microextraction (SPME) desorbed analytes—without hardware modification. It meets key regulatory performance criteria: retention time reproducibility <0.008% RSD and peak area precision <0.5% RSD under ISO 8573-1 Class 2 compressed air quality conditions. The system supports GLP/GMP-compliant operation when deployed with validated OpenLab CDS v2.5+ or MassHunter Quant/Unknowns v10.1+, delivering full electronic record retention, user access controls, and FDA 21 CFR Part 11–compliant audit trails. All factory-installed firmware and embedded diagnostics are validated per Agilent’s IQ/OQ/PQ protocols and documented per ASTM D3612 (petroleum analysis) and EPA Methods 8260/8270 (environmental VOC/SVOC screening).
Software & Data Management
Control and data acquisition are managed via Agilent’s GC Browser web interface (HTML5-based, accessible from any networked device) or native OpenLab CDS software. GC Browser provides real-time status dashboards, remote diagnostic execution, and interactive maintenance wizards—no local client installation required. For regulated environments, OpenLab CDS enforces role-based permissions, electronic signatures, and immutable method/version control. All raw data files (.D format) are structured according to ASTM E1947 and include embedded metadata (instrument ID, method hash, calibration event timestamps). Data export supports .csv, .xlsx, and ANDI/NetCDF formats for third-party statistical packages (e.g., SIMCA, Unscrambler). System logs retain >18 months of operational history locally and can be archived to secure NAS or cloud repositories compliant with ISO/IEC 27001 policies.
Applications
The 8890 GC serves as a universal platform across verticals requiring robust, transferable chromatographic methods. In petrochemical QA/QC labs, it quantifies C₁–C₅ hydrocarbons in natural gas per ASTM D1945 and analyzes sulfur species in fuels per UOP 289. Environmental laboratories deploy it for EPA Method 8260D (volatile organics in water/soil) and Method 8082A (PCBs), leveraging its dual-tower injection for parallel sample analysis and automated valve sequencing for large-volume injection. Food safety applications include residual solvent testing (ICH Q3C), flavor profiling (ISO 11015), and authenticity verification (e.g., olive oil adulteration via fatty acid methyl ester patterns). Its compatibility with all Agilent GC/MS platforms—including 5977B MSD, 7010B Triple Quad, and 7250 GC/Q-TOF—enables seamless transition from targeted quantitation to untargeted screening within a single instrument footprint.
FAQ
Is the Agilent 8890 GC manufactured in the United States?
No. The 8890 GC systems supplied for the China domestic market are manufactured at Agilent’s Shanghai facility and comply with GB/T 19001–2016 (equivalent to ISO 9001:2015) quality management standards.
Can the 8890 GC operate with hydrogen as a carrier gas under GMP conditions?
Yes. When equipped with the Series 2 hydrogen sensor module and configured with OpenLab CDS v2.6+, the system meets ICH Q5C stability-indicating requirements and supports hydrogen carrier use with full safety interlock logging and periodic calibration documentation.
Does the CFT architecture support cryogenic modulation for GC×GC?
Yes. The fully integrated CFT manifold is compatible with commercial cryogenic modulators (e.g., Zoex ZX-2) and supports both thermal and flow-based modulation schemes without external plumbing or pressure compensation adjustments.
What validation documentation is provided with the instrument?
Each unit ships with Factory Acceptance Test (FAT) reports, IQ/OQ protocols aligned with ASTM E2500, and a Certificate of Conformance traceable to NIST standards. Optional PQ services are available through Agilent’s Global Validation Services team.
How does the ACT label impact procurement decisions in EU-funded research?
The My Green Lab ACT label satisfies Horizon Europe’s “Green Procurement” criteria (Commission Delegated Regulation (EU) 2023/1252), enabling preferential scoring in tender evaluations where sustainability performance is weighted.
