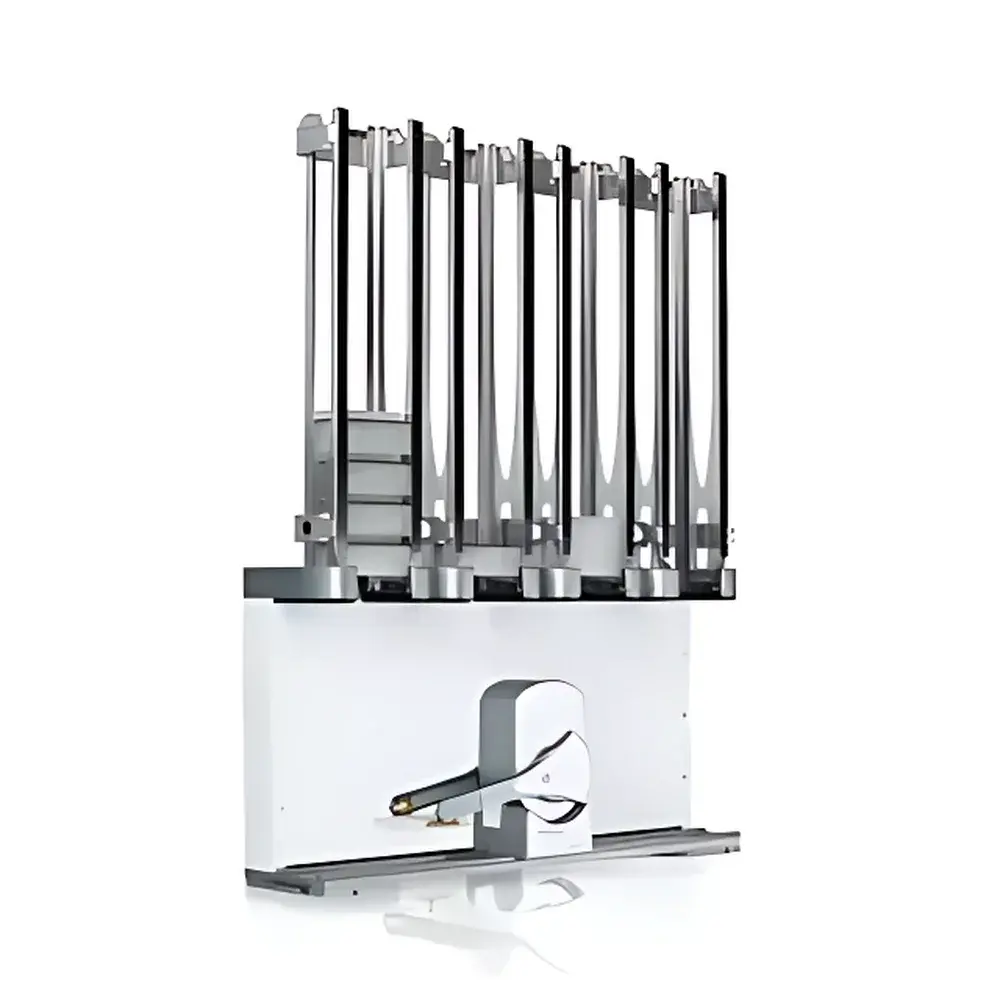

Agilent BenchCel Microplate Handler

Overview

The Agilent BenchCel Microplate Handler is a compact, benchtop-integrated automation solution engineered for high-efficiency microplate storage, retrieval, and transport in life science and pharmaceutical laboratories. Based on precision Cartesian robotic motion architecture, the system employs a high-speed, low-inertia mechanical arm optimized for repeatable positioning within ±0.15 mm accuracy across its operational envelope. It operates as a middleware automation node—neither a standalone assay platform nor a full-scale robotic workstation—but rather a modular, deterministic handler designed to bridge manual workflows with instrument-based analysis systems such as plate readers, liquid handlers, PCR thermocyclers, and mass spectrometry sample introduction modules. Its core function is to eliminate manual plate handling bottlenecks while maintaining compatibility with standard ANSI/SLAS footprint specifications (127.76 mm × 85.48 mm), ensuring seamless interoperability across global laboratory equipment ecosystems.

Key Features

• High-Speed Plate Transfer: Achieves end-to-end plate movement from stack to destination instrument in ≤8 seconds under standard load conditions (96- or 384-well plates), enabled by optimized acceleration profiles and brushless servo motor control.
• Modular Rack Configuration: Supports configurable deck layouts with 2-, 4-, or 6-rack options; maximum capacity reaches 360 standard microplates (96-well format) when fully expanded using SLAS-compliant rack carriers.
• Multi-Format Compatibility: Handles unsealed and sealed microplates (with thermal or adhesive seals), tip boxes (including racked and bulk-loaded formats), tube racks (up to 15 mL conical tubes), and filter/deep-well plates—all without hardware modification.
• Integrated Lid Management: Equipped with a programmable lid removal and resealing module capable of lifting, storing, and replacing plate covers with force feedback control to prevent seal damage or cross-contamination.
• Open Control Architecture: Native integration via Agilent VWorks Automation Software (Windows-based, .NET framework); also exposes COM/ActiveX interfaces compliant with IEC 61131-3 function block conventions for third-party LIMS, ELN, or custom orchestration platforms.
• Unattended Operation: Supports continuous 24/7 scheduling with automated error recovery routines—including jam detection, positional validation, and timeout-triggered alert escalation via SMTP or SNMP protocols.

Sample Compatibility & Compliance

The BenchCel is validated for use with ANSI/SLAS-standard microplates (96-, 384-, and 1536-well), deep-well plates (up to 25 mL volume), filter plates (PVDF, nylon, glass fiber), and polypropylene tip boxes. All gripper tooling and plate supports are manufactured from USP Class VI-certified polymers and anodized aluminum, ensuring chemical resistance to common solvents (e.g., DMSO, ethanol, aqueous buffers) and autoclavability of non-electronic components. The system complies with IEC 61000-6-2 (immunity) and IEC 61000-6-4 (emissions) electromagnetic compatibility standards. When operated under Agilent VWorks with audit trail enabled, it meets ALCOA+ data integrity principles and supports 21 CFR Part 11-compliant electronic signatures and user access controls.

Software & Data Management

Agilent VWorks provides a graphical workflow editor supporting drag-and-drop sequence building, conditional logic branching, and real-time status visualization. The embedded laboratoryware database maintains persistent metadata for over 200 predefined container types—including vendor-specific barcoded plates—and allows user-defined attributes (e.g., lot number, expiration date, assay type). All operations generate timestamped, immutable log entries containing source/destination coordinates, actuator status, error codes, and operator ID. Export formats include CSV, XML, and structured JSON for downstream integration with LabVantage, Thermo Fisher SampleManager, or custom SQL-based tracking systems. Remote monitoring is supported via HTTPS-enabled web dashboard with role-based access levels.

Applications

The BenchCel serves critical roles in high-throughput screening (HTS) core facilities, QC/QA labs performing stability studies, and regulated bioanalytical environments requiring traceable plate movement. Typical use cases include: pre-run plate staging for HTS campaigns; post-assay archival retrieval for retesting; serial dilution plate chaining between liquid handlers and detectors; and cold-chain plate management when integrated with refrigerated deck modules (optional accessory). Its deterministic timing profile makes it suitable for kinetic assays where plate-to-reader latency must remain below defined thresholds (e.g., calcium flux or luciferase reporter assays).

FAQ

Is the BenchCel compatible with non-Agilent instruments?
Yes—the ActiveX and TCP/IP command interface enables integration with third-party devices that support industry-standard communication protocols, including Modbus TCP, RS-232 ASCII, or HTTP RESTful APIs.
Can it handle plates with barcodes?
It does not include an integrated scanner, but it supports external barcode readers via USB HID or serial connection; plate IDs can be passed to VWorks for logging and traceability.
What safety certifications does it hold?
CE marking per Machinery Directive 2006/42/EC and RoHS 2011/65/EU compliance are documented in the Declaration of Conformity supplied with each unit.
Is remote software update supported?
Firmware updates require local administrator access and signed package verification; no over-the-air (OTA) update mechanism is implemented for security and regulatory reasons.
Does it support GLP/GMP audit requirements?
When deployed with VWorks Audit Trail mode enabled and configured with appropriate user permissions, it satisfies key elements of FDA GLP (21 CFR Part 58) and GMP (21 CFR Part 211) documentation expectations for material handling records.
