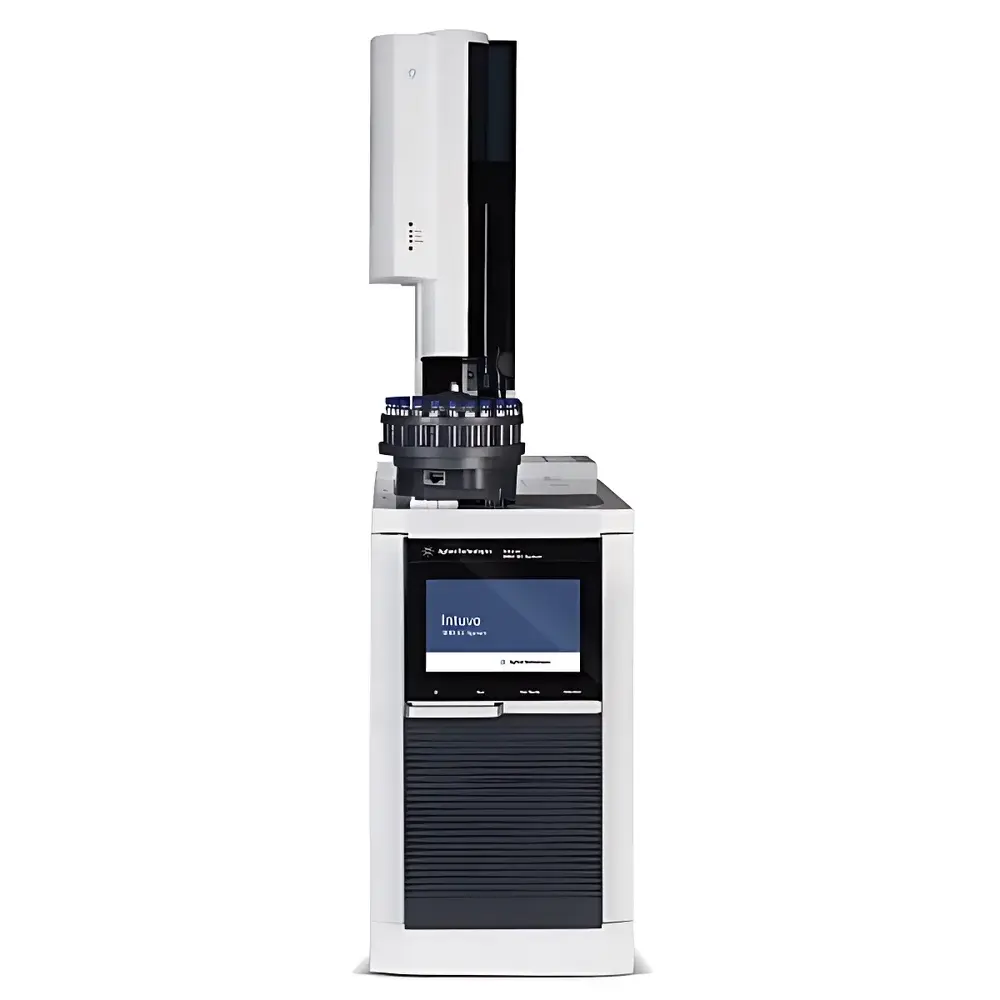

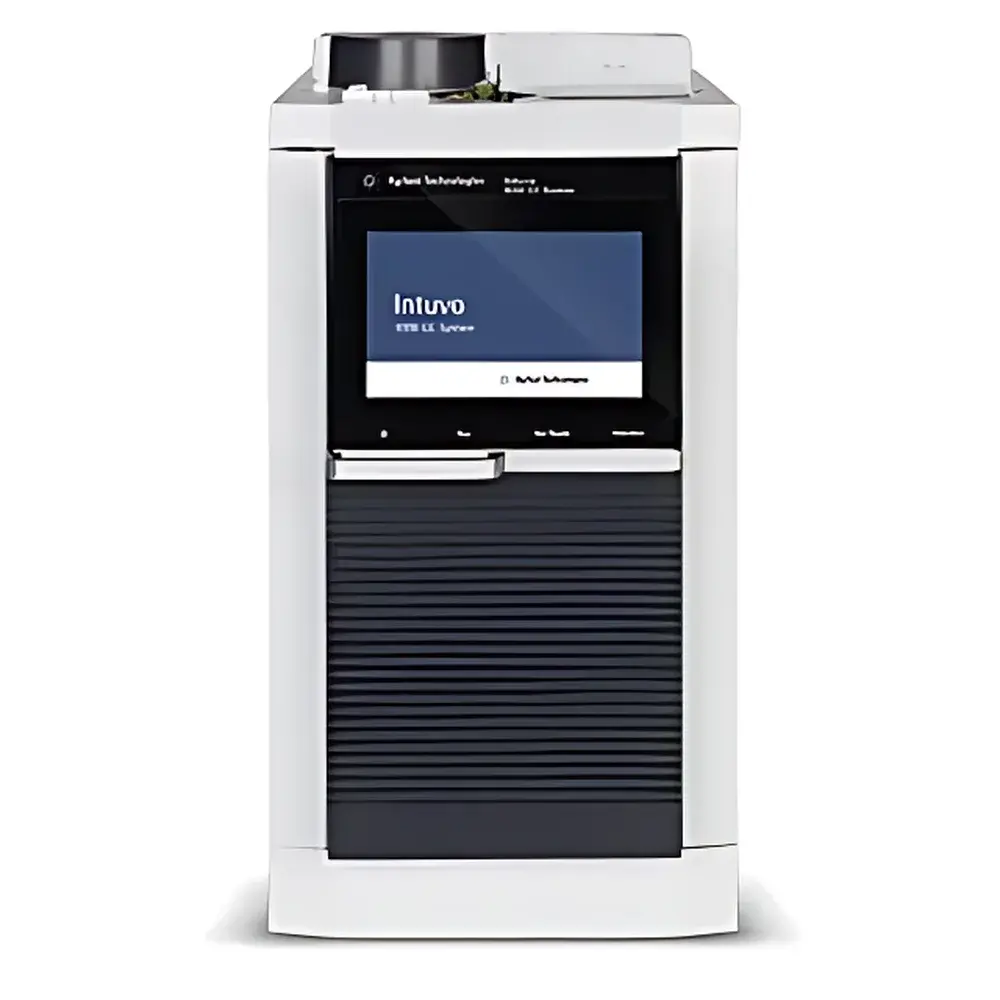

Agilent Intuvo 9000 Gas Chromatograph
| Brand | Agilent Technologies |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Regional Classification | Domestic (China-manufactured) |
| Model | Intuvo 9000 |
| Instrument Type | Laboratory Gas Chromatograph |
| Application Scope | General-purpose |
| Temperature Control Range | +10 °C above ambient to 450 °C |
| Maximum Ramp Rate | 250 °C/min |
| Cooling Performance | 450 °C to 50 °C in ≤3 min (ambient 22 °C) |
| Column Dimensions | Standard 0.18–0.53 mm ID capillaries |
| Detector Compatibility | FID, TCD, ECD, NPD, PID, and GC/MS interfaces |

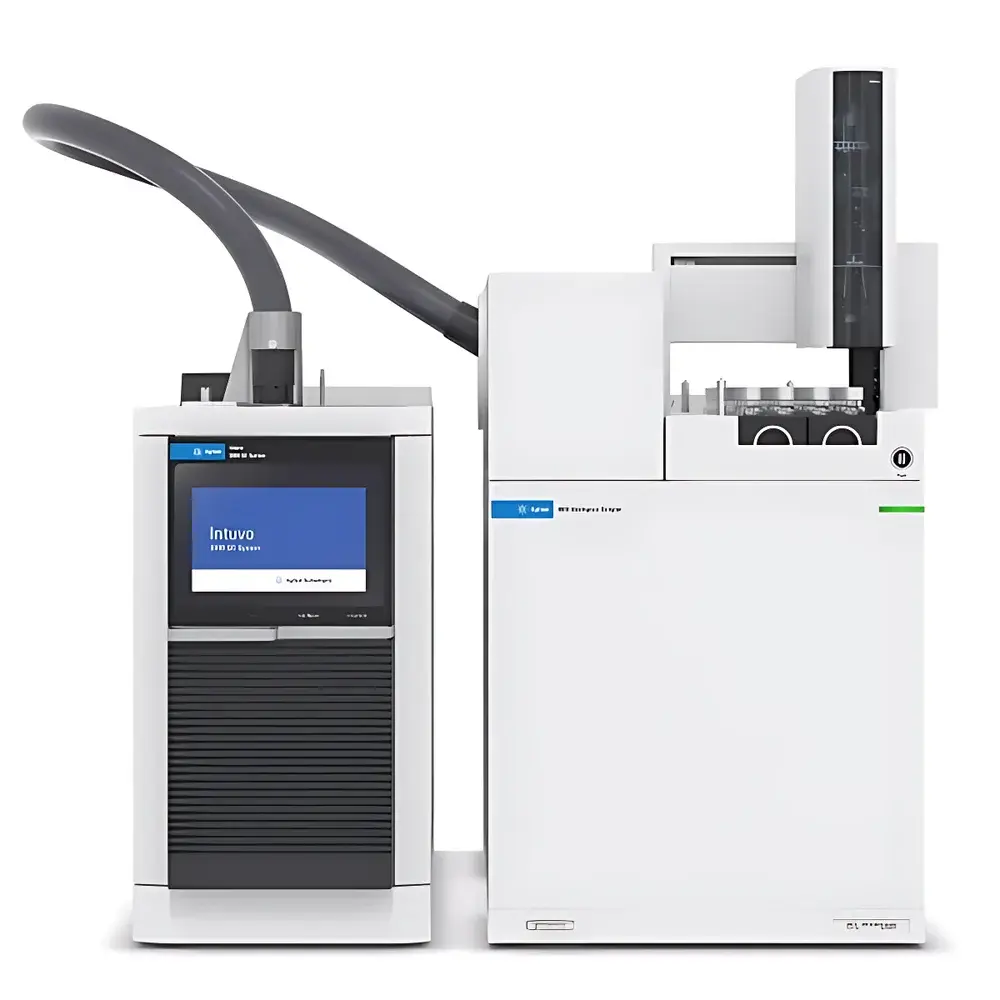

| GC/MS Integration | Compatible with Agilent 5977, 7000, and 7010 mass spectrometers |
| Retention Time Reproducibility | <0.008% RSD |
| Peak Area Reproducibility | <1% RSD |
| Pressure Control Resolution | 0.001 psi |
| Microfluidic Flow Technology | Integrated Chip-based Flow Path (CFT) with backflush and split capability |
| Environmental Certification | My Green Lab ACT Label (Accountability, Consistency, Transparency) |
| Power Consumption | <50% of conventional GC systems |
| Footprint | 27 cm W × 69 cm D × 51 cm H |
Overview

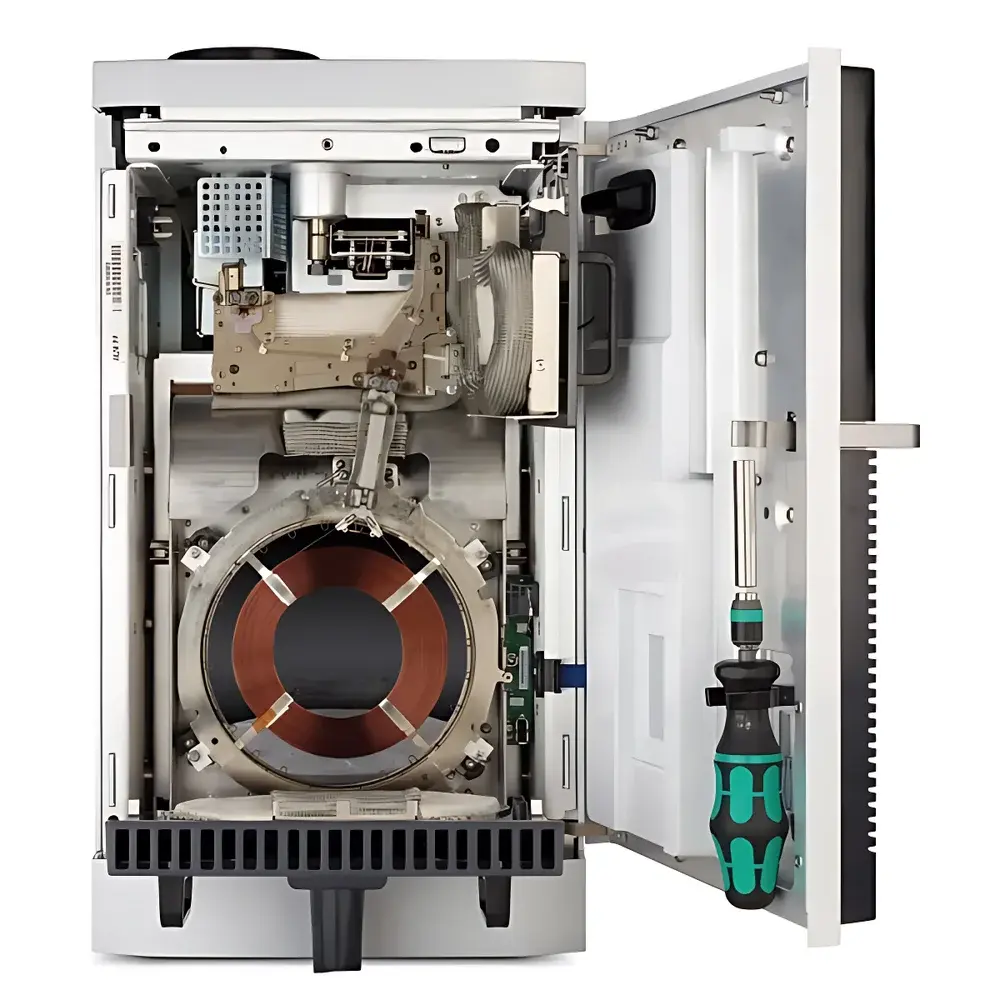

The Agilent Intuvo 9000 Gas Chromatograph is an engineered platform for high-throughput, rapid-cycle gas chromatography, grounded in fundamental advances in thermal management, microfluidic flow control, and intelligent system diagnostics. Unlike conventional oven-based GC systems relying on convective air heating, the Intuvo 9000 employs direct column heating via integrated resistive elements embedded within a thermally isolated flow path—enabling precise, linear, and highly reproducible temperature programming. This parabolic heating architecture eliminates thermal lag, reduces cycle time by up to 70%, and delivers exceptional retention time stability (<0.008% RSD) across repeated injections. The system operates over a validated temperature range from +10 °C above ambient to 450 °C, with programmable ramp rates up to 250 °C/min and active cooling capable of returning the column zone from 450 °C to 50 °C in under three minutes—critical for applications requiring rapid method cycling, such as environmental screening, petrochemical QA/QC, or clinical toxicology workflows.
Key Features
- Chip-Based Guard Column (CBGC): A monolithic, inert metal microfluidic chip replaces traditional guard columns and liner assemblies. It provides a 1-meter pre-column trapping zone between the inlet liner and analytical column, capturing non-volatile residues and preventing column head contamination—eliminating routine column trimming and extending column lifetime by ≥3× compared to conventional setups.
- Seal-Free Quick-Connect Fittings: Dual flat-face titanium sealing surfaces, coupled with torque-controlled hand-tightening (audible click feedback), ensure leak-free connections without graphite or Vespel seals. Validated per ASTM D3612 and ISO 10156, this design removes operator-dependent variables and supports GLP-compliant audit trails for connection integrity.
- Intelligent Flow Path Architecture: Onboard microfluidic valves and pressure sensors enable real-time flow reconfiguration—including backflush, split/splitless switching, and multi-dimensional GC (MDGC)—all programmable via method files without hardware modification.
- Smart Key Technology: RFID-enabled component identification automatically loads calibrated parameters (e.g., column dimensions, phase chemistry, max temp limits) into the instrument control software, enforcing configuration consistency and reducing method transfer errors.
- Self-Diagnostic Engine: Continuously monitors >100 operational parameters (pressure, flow, temperature gradients, valve timing, detector baselines). When anomalies are detected, it initiates step-by-step troubleshooting guided by contextual logic trees compliant with ISO/IEC 17025 Clause 7.7 (equipment verification).
Sample Compatibility & Compliance
The Intuvo 9000 accommodates standard fused-silica capillary columns (0.18–0.53 mm ID) and supports all common inlet types (split/splitless, PTV, cool-on-column) and detectors (FID, TCD, ECD, NPD, PID). Its low thermal mass and optimized carrier gas dynamics support helium-, hydrogen-, and nitrogen-based methods—fully aligned with USP , ASTM D3612 (petroleum hydrocarbons), EPA Method 8260D (VOCs), and ISO 17025-accredited laboratory requirements. The system meets IEC 61010-1 safety standards and carries CE marking. Its My Green Lab ACT certification verifies lifecycle environmental impact transparency, including energy use, material sourcing, and end-of-life recyclability metrics—supporting ESG reporting frameworks.
Software & Data Management
Controlled via Agilent OpenLab CDS 2.x or MassHunter GC/MS Acquisition software, the Intuvo 9000 supports 21 CFR Part 11-compliant electronic signatures, audit trail logging (with immutable timestamps and user attribution), and role-based access control. Method files embed Smart Key metadata, enabling automatic validation of column identity and thermal limits prior to run initiation. Raw data are stored in vendor-neutral .D format (compatible with third-party processing tools) and can be exported to LIMS via secure HTTPS or OPC UA protocols. Remote monitoring—including real-time status dashboards, predictive maintenance alerts, and firmware update notifications—is enabled through optional Agilent Connect cloud services, deployed behind customer-controlled firewalls.
Applications
The Intuvo 9000 serves as a primary analytical engine in regulated and research environments where speed, robustness, and traceability converge. It is routinely deployed for residual solvent analysis in pharmaceutical manufacturing (ICH Q3C), pesticide residue screening in food testing labs (AOAC 2012.01), hydrocarbon fingerprinting in refinery QC (ASTM D6730), and volatile organic compound profiling in indoor air quality studies (ISO 16000-6). Its rapid thermal cycling and microfluidic flexibility make it especially suited for heart-cutting MDGC analyses of complex matrices (e.g., essential oils, polymer additives, or environmental extracts), where peak capacity and inter-run reproducibility directly impact decision reliability.
FAQ
Does the Intuvo 9000 require special electrical infrastructure?
No—it operates on standard 100–240 V AC, 50/60 Hz power and draws <500 W peak, eliminating the need for dedicated circuits or HVAC upgrades.
Can legacy Agilent GC methods be transferred to the Intuvo 9000?
Yes—OpenLab CDS includes automated method conversion utilities that adjust ramp rates, hold times, and pressure profiles to match the Intuvo’s thermal kinetics while preserving chromatographic resolution.
Is the chip-based guard column replaceable in-house?
Yes—CBGC cartridges are field-replaceable in <60 seconds without tools; each cartridge is serialized and tracked via Smart Key for lifetime usage logging and compliance reporting.
How does the system handle helium conservation?
Through shorter run times, narrower-bore columns (0.18 mm ID), and intelligent carrier gas flow modulation—helium consumption is reduced by 40–60% versus comparable benchtop GCs, supporting sustainable lab operations.
What regulatory documentation is supplied with the instrument?
Factory calibration certificates (traceable to NIST), IQ/OQ/PQ protocol templates, 21 CFR Part 11 validation packages, and full My Green Lab ACT technical summary reports are included in the delivery package.
