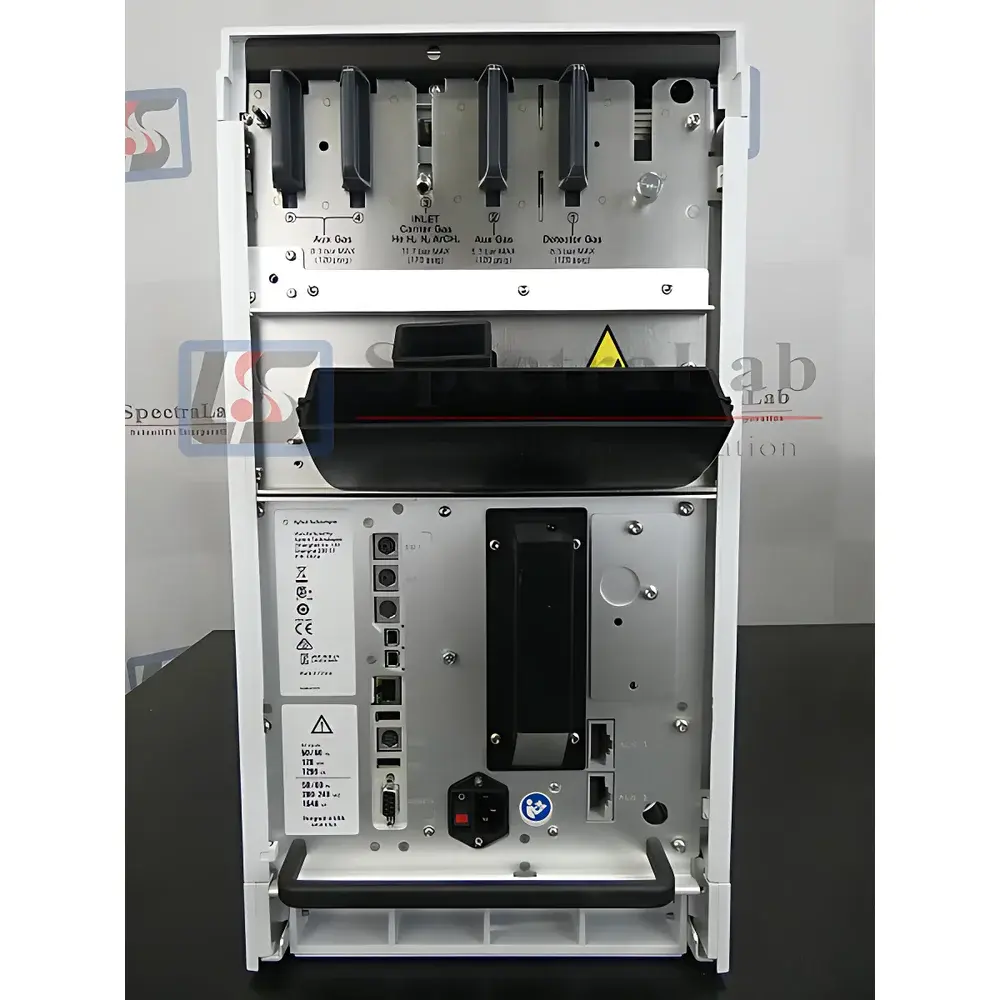

Agilent Intuvo 9000 Gas Chromatograph (Refurbished Unit)

Overview

The Agilent Intuvo 9000 Gas Chromatograph is a purpose-engineered platform for high-throughput, robust, and operator-independent gas chromatographic analysis. Built upon Agilent’s proprietary chip-based flow path architecture and direct resistive heating technology, the Intuvo 9000 eliminates traditional mechanical constraints associated with column installation, oven ramping, and leak-prone fittings. Its core measurement principle relies on precise separation of volatile and semi-volatile compounds in the gas phase using capillary columns, coupled with real-time detection via compatible detectors (e.g., FID, TCD, or mass spectrometers such as the 5977B, 7000D, and 7010B). Designed for laboratories operating under regulated environments—including pharmaceutical QC, environmental testing, and petrochemical R&D—the system delivers exceptional run-to-run reproducibility, accelerated method development cycles, and reduced downtime through predictive diagnostics and self-documenting hardware components.

Key Features

• Chip-Based Guard Column Technology: Integrated microfluidic guard chips protect downstream detector and column segments from particulate and non-volatile residue buildup—eliminating the need for routine column trimming or inlet liner replacement.
• Quick-Connect Column Coupling: Patented ferrule-free, push-to-connect fittings enable sub-minute column installation or exchange with zero risk of leaks—even for entry-level operators—without torque tools or seal replacement.
• Direct Resistive Heating Oven: Achieves linear, highly repeatable temperature programming from 30 °C to 450 °C at rates up to 250 °C/min, minimizing cycle time while maintaining thermal stability and gradient fidelity across all runs.
• Smart Key Integration: Each flow-path component (e.g., inlet, detector, column module) contains an embedded RFID tag that auto-configures instrument parameters—including column dimensions, phase chemistry, and recommended operating conditions—reducing manual input errors and method transfer variability.
• Intelligent Diagnostics Engine: Continuously monitors over 100 internal system parameters (pressure, flow, temperature, valve timing, detector baseline) and provides step-by-step troubleshooting guidance directly on the 9-inch capacitive touchscreen.
• Energy-Efficient Architecture: Consumes less than half the power of legacy GC platforms; operates reliably on standard laboratory outlets without dedicated circuitry or HVAC load adjustments.

Sample Compatibility & Compliance

The Intuvo 9000 supports universal sample introduction methods including split/splitless injection, cool-on-column, and programmable temperature vaporization (PTV), accommodating liquid, gaseous, and headspace-derived analytes. It is fully compatible with industry-standard 0.1–0.53 mm ID fused-silica capillary columns and adheres to critical regulatory frameworks: ASTM D3606/D5501 for hydrocarbon analysis, ISO 11843 for detection limit validation, USP for chromatographic system suitability, and FDA 21 CFR Part 11 when deployed with compliant OpenLab CDS audit trail and electronic signature modules. All refurbished units undergo full functional verification per Agilent’s GC Performance Qualification (PQ) protocol—including retention time precision (<0.02 min RSD), peak area repeatability (<1.5% RSD), and baseline noise assessment (<0.5 pA)—prior to release.

Software & Data Management

Controlled via Agilent OpenLab CDS (ChemStation Data System) v2.4 or later, the Intuvo 9000 supports secure networked operation with role-based access control, automated report generation, and full audit trail compliance. Raw data files (.D directories) are natively compatible with third-party processing tools (e.g., Chromeleon, AIA format importers). The system logs all hardware events—including Smart Key readouts, column usage hours, and diagnostic alerts—in encrypted, tamper-evident format. Remote monitoring and firmware updates are supported over TLS-secured Ethernet or Wi-Fi connections, enabling centralized fleet management in multi-instrument labs.

Applications

This refurbished Intuvo 9000 serves as a validated platform for diverse analytical workflows: residual solvent quantitation in APIs (ICH Q3C), pesticide screening in food matrices (AOAC 2007.01), VOC profiling in drinking water (EPA Method 524.4), hydrocarbon fingerprinting in fuels (ASTM D6730), and impurity profiling in polymer additives. Its rapid thermal cycling and modular flow path support advanced techniques such as heart-cutting multidimensional GC (MDGC), backflush-enabled dirty-sample analysis, and fast GC–MS coupling for time-critical forensic or clinical toxicology assays.

FAQ

Is this unit covered by Agilent factory warranty?
No—this is a professionally refurbished unit backed by a 6-month limited warranty covering parts and labor, administered by SpectraLab Scientific’s certified service team.
What documentation accompanies the instrument?
Each system ships with a full PQ report, calibration certificate traceable to NIST standards, refurbishment log, and original Agilent safety and maintenance manuals.
Can I integrate this GC with my existing mass spectrometer?
Yes—the Intuvo 9000 features standard GC–MS interfaces and is validated for seamless operation with Agilent 5977B, 7000D, and 7010B triple-quadrupole and single-quadrupole MS systems.
Does the system include OpenLab CDS software?
A licensed copy of OpenLab CDS Basic is included; optional upgrades to CDS Advanced or Compliance Edition are available upon request.
How is “refurbished” defined for this instrument?
Refurbishment includes complete disassembly, ultrasonic cleaning of all fluidic paths, replacement of consumables (septa, liners, ferrules), recalibration of pressure/flow controllers and oven thermistors, and full functional revalidation against Agilent’s published specifications.
