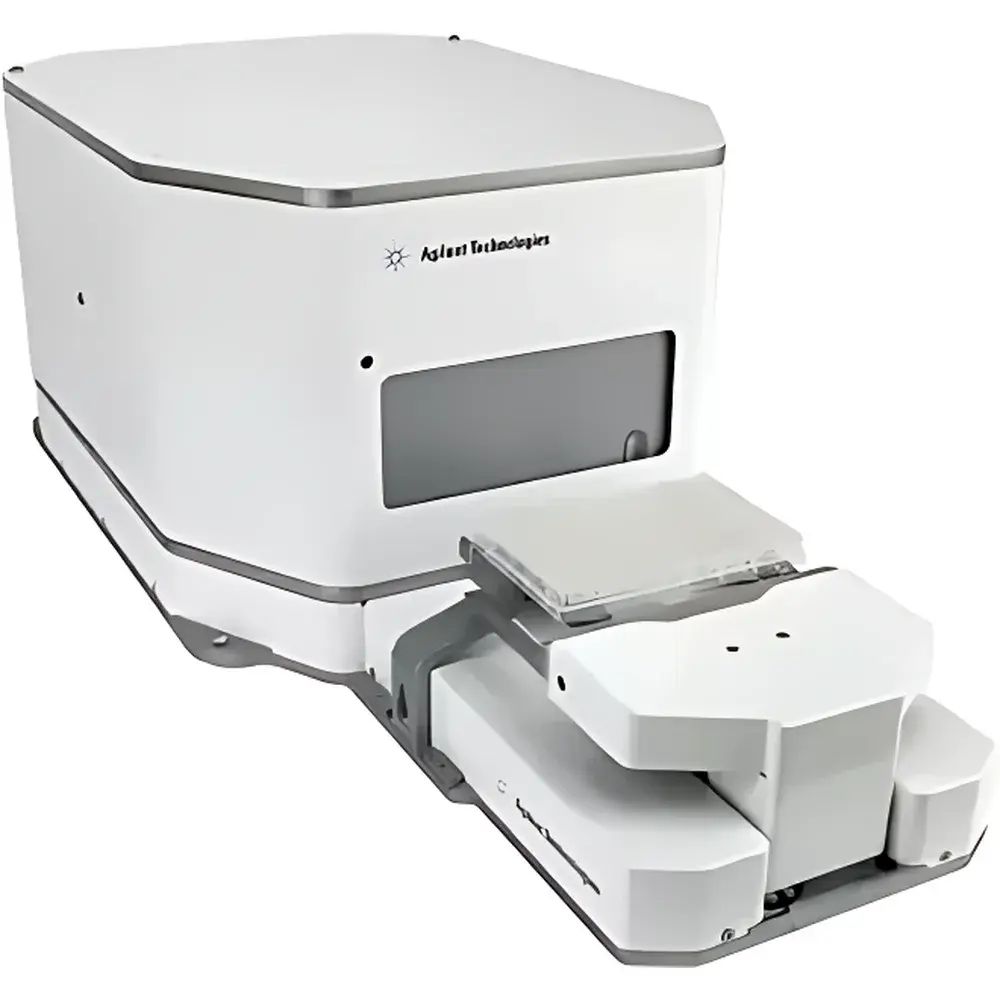

Agilent Microplate Centrifuge

Overview

The Agilent Microplate Centrifuge is an engineered solution for high-precision, high-throughput microplate processing in automated laboratory environments. Designed around a compact, modular architecture, it employs direct-drive brushless motor technology and closed-loop motion control to deliver rapid acceleration and deceleration profiles—achieving full operational speed within seconds and completing centrifugation cycles in as little as 3 seconds per plate. Unlike conventional benchtop centrifuges, this system is purpose-built for integration into robotic workcells and liquid handling platforms, supporting standardized microplate formats (96-well, 384-well, and deep-well plates) under controlled rotational dynamics. Its operation adheres to fundamental principles of radial force generation (F = m·ω²·r), ensuring consistent g-force application across all wells without edge effects or plate warping. The device operates at fixed-speed settings optimized for common molecular biology workflows—including PCR product clarification, post-lysis cell pellet recovery, and degassing of viscous reagents—while maintaining thermal stability and mechanical repeatability across thousands of cycles.

Key Features

• Ultra-fast cycle time: Full spin-up and spin-down completed in ≤3 seconds per microplate, minimizing dwell time in automated assay sequences.
• Compact footprint (W × D × H ≈ 240 × 360 × 220 mm): Designed for seamless integration into constrained benchtop spaces and multi-instrument racks.
• Robotic-accessible loading architecture: Front-facing high-clearance door with programmable actuation timing, compatible with standard gripper end-effectors and plate-handling arms (e.g., Tecan, Hamilton, PerkinElmer).
• Vibration-dampened base isolation: Integrated elastomeric mounting system reduces transmitted vibration to <0.5 mm/s RMS at adjacent instrumentation—critical in shared optical or sensitive detection zones.
• Stackable configuration: Units support vertical stacking via alignment guides and interlocking power/data interfaces, enabling throughput scaling without additional floor space.
• Optional auto-loader module: Motorized dual-carrier tray system accepts plates directly from conveyor rails or stackers; includes plate presence sensing and misalignment correction.

Sample Compatibility & Compliance

The centrifuge accommodates ANSI/SLAS-standard microplates (SBS format), including skirted, semi-skirted, and unskirted variants, with maximum plate height of 22 mm. It supports both sealed and unsealed plates, provided lid integrity remains intact during rotation. No consumables or disposable rotors are required—rotor assembly is permanently balanced and certified for ≥100,000 cycles. The system complies with IEC 61000-6-2 (immunity) and IEC 61000-6-3 (emission) for electromagnetic compatibility, and meets UL 61010-1 / EN 61010-1 safety requirements for laboratory equipment. While not classified as a medical device, its operational consistency supports GLP-compliant data generation when used within validated workflows per ISO/IEC 17025 and FDA 21 CFR Part 11–enabled software environments.

Software & Data Management

Operation is managed via RS-232, USB-C, or optional Ethernet interface using ASCII command protocol—enabling native integration with third-party scheduling engines (e.g., Bluebee, STARlet, or custom Python-based orchestration). No proprietary GUI is bundled; instead, the device responds to discrete TTL-triggered start/stop signals and reports status (ready, running, fault) through opto-isolated digital I/O lines. Audit-trail-capable logging requires external middleware, but all motion parameters (acceleration ramp time, dwell duration, brake profile) are programmable and retainable across power cycles. Firmware updates are performed via signed binary upload, with SHA-256 verification and rollback capability.

Applications

• Rapid removal of air bubbles from master mix solutions prior to qPCR setup.
• Consolidation of lysate supernatants following solid-phase extraction in HTS screening pipelines.
• Cell pellet compaction in suspension cultures processed on microplate-based bioreactors.
• Accelerated phase separation in immunoassay wash steps involving magnetic bead resuspension.
• Pre-spin conditioning of cryopreserved cell plates before thawing and plating.

FAQ

What microplate formats are supported?
Standard SBS-compliant 96-well, 384-well, and 1536-well plates up to 22 mm in height.
Is rotor balancing required between runs?
No—factory-balanced rotor assembly eliminates routine balancing; calibration is retained over lifetime usage.
Can the centrifuge operate unattended overnight?
Yes, when integrated with validated automation controllers and monitored via external fault-sensing relays.
Does it support variable speed control?
No—it operates at a single fixed speed optimized for microplate integrity and g-force uniformity (approx. 2,500 × g at outer well radius).
What maintenance is required?
Annual visual inspection of drive belt tension (if applicable), cleaning of air intake filters, and verification of door interlock function.
