Agilent MS-631 Single-Stage Oil-Sealed Rotary Vane Vacuum Pump

Overview

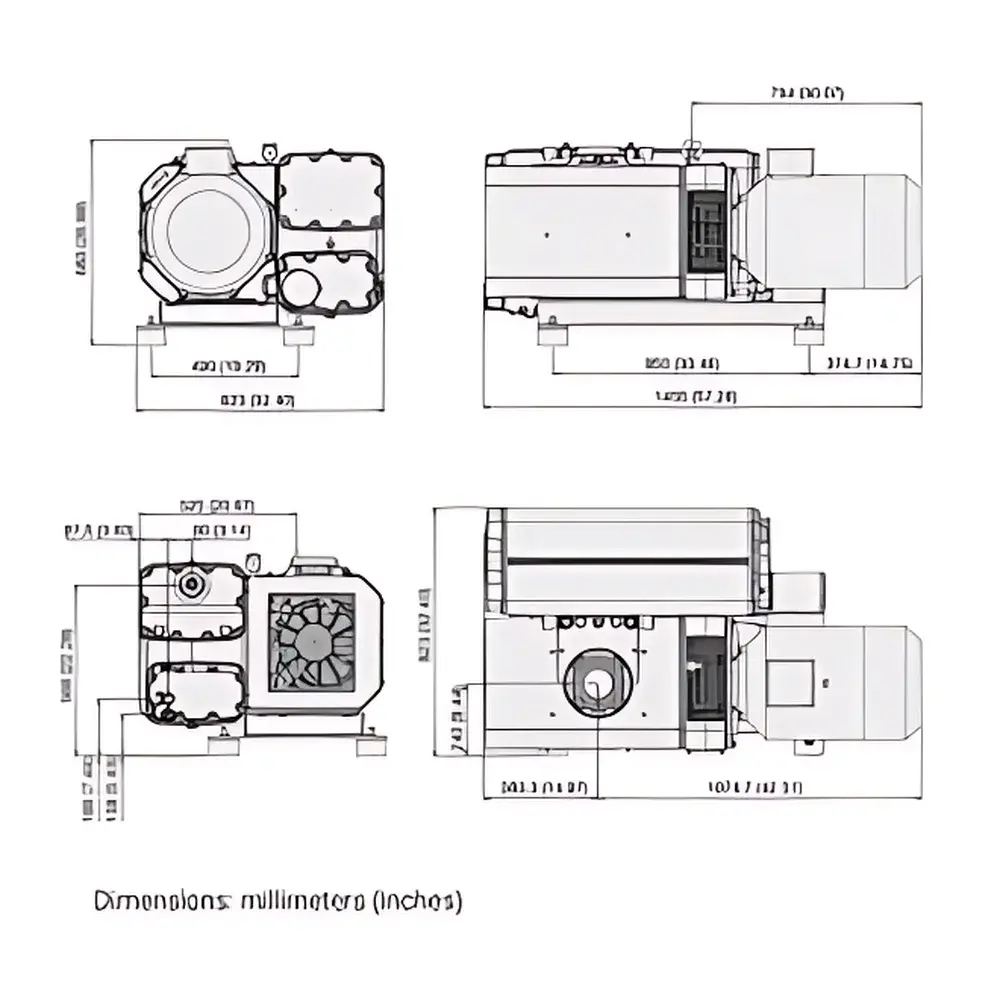

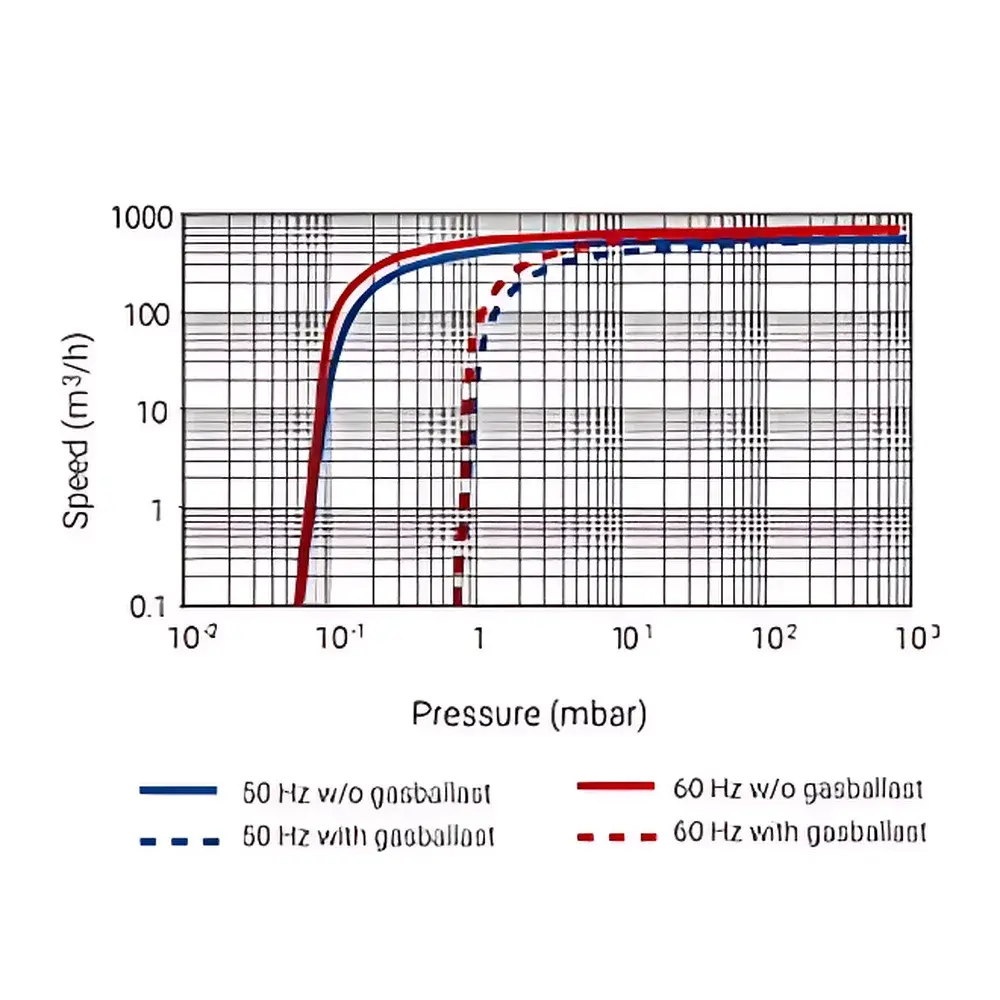

The Agilent MS-631 is a high-capacity, single-stage, oil-sealed rotary vane vacuum pump engineered for continuous operation in demanding laboratory and industrial vacuum environments. It operates on the principle of positive displacement via rotating vanes that slide radially within an eccentrically mounted rotor chamber, progressively reducing gas volume and expelling it through the exhaust port. This mechanical compression mechanism delivers stable, repeatable pumping performance across a wide operating range—from atmospheric pressure down to an ultimate vacuum of 8 × 10⁻² mbar (6 × 10⁻² torr). Designed specifically for applications requiring reliable roughing capability—such as backing high-vacuum pumps (e.g., diffusion or turbomolecular pumps), vacuum metallurgy, thermal processing, electron beam welding, and thin-film deposition—the MS-631 integrates precision engineering with operational efficiency. Its air-cooled architecture eliminates dependency on external water circuits, while its low-vibration motor and balanced rotor assembly minimize structural transmission, making it suitable for vibration-sensitive installations such as analytical instrumentation suites and cleanroom-adjacent vacuum lines.

Key Features

• Carbon-fiber-reinforced composite vanes: Provide superior wear resistance and dimensional stability under thermal cycling, significantly extending service life compared to conventional graphite or metal vanes.
• Integrated gas ballast valve: Enables controlled admission of atmospheric air into the compression chamber, facilitating efficient removal of condensable vapors—including water vapor—without compromising ultimate pressure or risking oil emulsification.
• Dual-function oil management system: Combines a high-efficiency coalescing mist separator with a floating oil recovery valve to capture >99.5% of entrained oil aerosols and return recovered oil directly to the sump, reducing oil consumption and environmental emissions.
• Frameless mounting configuration: Allows direct flange-to-flange integration with Roots booster pumps or vacuum chambers, eliminating alignment complexity and minimizing footprint in space-constrained systems.
• Steel rotor construction with precision-ground surfaces: Ensures long-term geometric integrity and consistent volumetric efficiency across extended duty cycles.
• Optimized oil circulation path: Maintains uniform lubrication film thickness and thermal distribution, enhancing bearing longevity and reducing maintenance frequency.

Sample Compatibility & Compliance

The MS-631 is compatible with standard ISO-KF (QF) and ISO-F flanges (per ISO 2861 and ISO 1609), supporting seamless integration into modular vacuum trains compliant with ASTM E574-22 (Standard Practice for Calibration of Vacuum Systems) and ISO 27874:2018 (Vacuum technology — Vocabulary). Its oil-sealed design meets material compatibility requirements for non-reactive process gases (e.g., N₂, Ar, He) and moderate concentrations of water vapor; however, exposure to aggressive halogenated solvents, strong oxidizers (e.g., O₃, Cl₂), or corrosive acid vapors requires prior consultation with Agilent Technical Support and optional corrosion-resistant coatings. The pump conforms to CE marking directives (2014/30/EU EMC, 2014/35/EU LVD), RoHS 2011/65/EU, and UL 61010-1 safety standards. For regulated environments—including pharmaceutical manufacturing and medical device sterilization—it supports audit-ready documentation packages aligned with FDA 21 CFR Part 11 data integrity expectations when paired with Agilent’s validated vacuum control software.

Software & Data Management

While the MS-631 operates as a standalone analog-controlled pump, it is fully interoperable with Agilent’s Vacuum Control Suite (VCS) via optional analog I/O modules (0–10 VDC or 4–20 mA) and RS-485 Modbus RTU interface. VCS provides real-time monitoring of inlet pressure, motor temperature, oil level status, and runtime hours; logs event-driven alarms (e.g., overheating, oil depletion, gas ballast activation); and generates CSV-formatted maintenance reports traceable to GLP/GMP requirements. All firmware updates and configuration parameters are digitally signed and version-controlled, ensuring compliance with change management protocols required in ISO 17025-accredited laboratories.

Applications

• Roughing and backing for high-vacuum systems: Paired with diffusion pumps, turbomolecular pumps, or cryopumps in surface science, mass spectrometry, and electron microscopy.
• Industrial thermal processing: Continuous vacuum furnaces for sintering, brazing, and annealing in aerospace and automotive component manufacturing.
• Thin-film coating: Supporting PVD (physical vapor deposition) and CVD (chemical vapor deposition) tools used in semiconductor fabrication and optical coating facilities.
• LNG and cryogenic infrastructure: Vacuum insulation panel (VIP) evacuation during prefabrication and quality assurance testing of insulated transfer lines.
• Research-scale vacuum distillation and solvent recovery: Enabling closed-loop operation in green chemistry labs adhering to ACS Green Chemistry Principles.

FAQ

What is the recommended oil type and change interval for the MS-631?
Agilent specifies use of Agilent VP-100 synthetic hydrocarbon vacuum pump oil. Under continuous operation at ambient temperatures ≤35 °C, oil replacement is recommended every 3,000 operating hours or annually—whichever occurs first.
Can the MS-631 be operated vertically or inverted?
No. The MS-631 must be installed in the horizontal orientation specified in the Installation Manual (Document No. G7300-90001) to ensure proper oil distribution and vane lubrication.
Is the pump compatible with ATEX-certified hazardous areas?
The standard MS-631 is not ATEX-certified. For Zone 1/2 explosive atmospheres, consult Agilent for the explosion-proof variant (MS-631-EX), which includes flameproof enclosure (IEC 60079-1) and certified motor windings.
Does the integrated oil mist separator meet ISO 8573-1 Class 2 particle purity requirements?
Yes—the coalescing separator achieves ISO 8573-1:2010 Class 2 for particles ≥0.1 µm and Class 3 for oil aerosol content (≤0.1 mg/m³), verified per EN 10204 3.1 certification.
How does the frameless mounting option affect vibration transmission?
Frameless installation reduces mechanical coupling stiffness by ~40% versus rigid-frame configurations, lowering structure-borne vibration amplitude by up to 12 dB(A) at 50–200 Hz—critical for adjacent interferometric or scanning probe systems.
