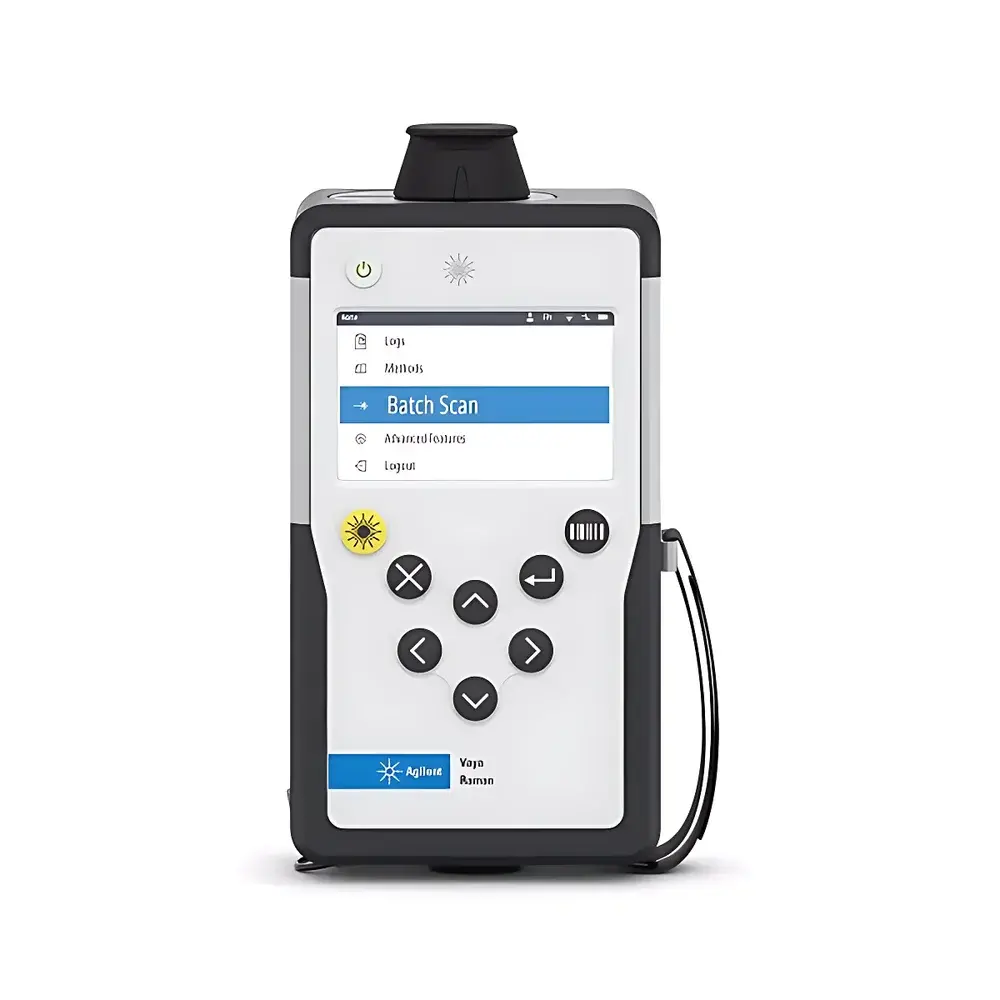

Agilent Vaya Handheld Raman Spectrometer for Raw Material Identification

Overview

The Agilent Vaya Handheld Raman Spectrometer is an advanced, regulatory-compliant analytical platform engineered for non-invasive raw material identification (RMID) in pharmaceutical and biopharmaceutical manufacturing environments. Unlike conventional handheld Raman systems that require direct contact or container opening, the Vaya leverages Spatially Offset Raman Spectroscopy (SORS)—a scientifically validated technique enabling molecular fingerprinting through opaque and translucent packaging. Operating at 830 nm with up to 450 mW laser power (Class 3B), it delivers high-fidelity spectra across a broad wavenumber range (350–2000 cm⁻¹) with spectral repeatability better than ±0.2 cm⁻¹—critical for method robustness under cGMP conditions. Its design aligns with the core principles of Quality by Design (QbD) and Analytical Procedure Lifecycle Management per ICH Q2(R2), supporting rapid, risk-based material release without compromising data integrity or regulatory traceability.

Key Features

• SORS-enabled non-invasive analysis: Penetrates diverse secondary packaging—including white/pigmented plastic drums, FIBCs, brown glass bottles, kraft paper bags, and laminated pouches—eliminating sampling, container breach, and associated contamination risks.
• GMP-ready software architecture: Onboard application includes guided method development, automated performance qualification (PQ) using NIST-traceable test slides, and built-in method validation workflows aligned with USP and ICH Q5E.
• FDA 21 CFR Part 11 & EU Annex 11 compliance: Full audit trail, role-based user access control, electronic signatures, and secure data encryption ensure enforceable data reliability throughout the instrument lifecycle.
• Workflow-integrated hardware: Integrated barcode/QR scanner, mechanical keypad, and high-contrast LCD interface enable reliable operation in warehouse or cleanroom environments—even with gloves. Wi-Fi and Ethernet connectivity support real-time synchronization with LIMS and enterprise networks.
• Sustainability-certified design: Independently verified by My Green Lab and awarded the ACT Label for Accountability, Consistency, and Transparency; enables zero-waste RMID by eliminating consumables, solvent use, and physical sample disposal.

Sample Compatibility & Compliance

The Vaya demonstrates consistent performance across a wide range of pharmaceutical excipients, active pharmaceutical ingredients (APIs), cell culture media components (e.g., amino acids, glucose, polyethylene glycols), surfactants (e.g., polysorbate 20/80), buffers, and oligonucleotide synthesis reagents—all while sealed in their original commercial containers. It meets compendial requirements outlined in USP (Raman Spectroscopy), (Near-Infrared and Raman Spectroscopy for Identity Testing), and EP 2.2.48 (Raman Spectrometry). All system suitability tests, including wavelength accuracy, resolution verification, and signal-to-noise assessment, are performed using certified reference materials traceable to NIST standards. The instrument’s optical path and detector calibration are maintained via automated self-checks prior to each measurement cycle.

Software & Data Management

Vaya’s embedded software implements a closed-loop data governance model compliant with ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available). Each spectrum is timestamped, linked to operator ID, method version, container barcode, and environmental metadata (e.g., ambient temperature). Reports generated include full spectral overlays, pass/fail decision logic, confidence scoring, and deviation flags—all exportable in PDF/A or CSV formats. Method libraries are centrally managed and synchronized across instrument fleets via Agilent’s Secure Method Sharing Protocol. Integration with major LIMS platforms (e.g., Thermo Fisher SampleManager, LabVantage) is achieved through ASTM E1578-compliant APIs and configurable HL7 message routing.

Applications

• Biopharmaceutical raw material release: Rapid identity confirmation of lyophilized excipients, cryoprotectants, and single-use bioreactor bag contents without unpacking or sterility compromise.
• Small-molecule API & excipient screening: Discrimination of structurally similar compounds (e.g., lactose monohydrate vs. anhydrous, polymorphic forms of mannitol) directly through HDPE bottles or blister packs.
• Supply chain verification: On-site authentication of incoming materials at receiving docks—reducing quarantine time from days to seconds while maintaining full regulatory defensibility.
• Cross-industry adaptability: Validated use cases extend to nutraceutical ingredient verification (vitamins, botanical extracts), cosmetic raw material screening (emulsifiers, preservatives), and veterinary pharmaceutical supply chains.

FAQ

Does the Vaya require method revalidation when switching between different container types?
No—its SORS-based acquisition algorithm automatically compensates for scattering heterogeneity across packaging materials. However, initial platform suitability assessment per USP is required for each new container category.
Can Vaya spectra be used for quantitative analysis?
The Vaya is optimized for qualitative identity testing per USP . Quantitative applications require separate method development and validation under ICH Q2(R2) guidelines.
Is remote firmware update supported?
Yes—secure over-the-air updates are delivered via encrypted HTTPS channels and require dual-authorized approval before installation.
How is laser safety ensured during routine operation?
The system incorporates interlocked beam gating, real-time power monitoring, and automatic shutdown if misalignment or thermal drift exceeds IEC 60825-1 Class 3B thresholds.
What documentation is provided for regulatory submissions?
Agilent supplies a complete Validation Support Package including IQ/OQ protocols, URS, risk assessments (FMEA), and a Traceability Matrix linking all software functions to 21 CFR Part 11 requirements.
