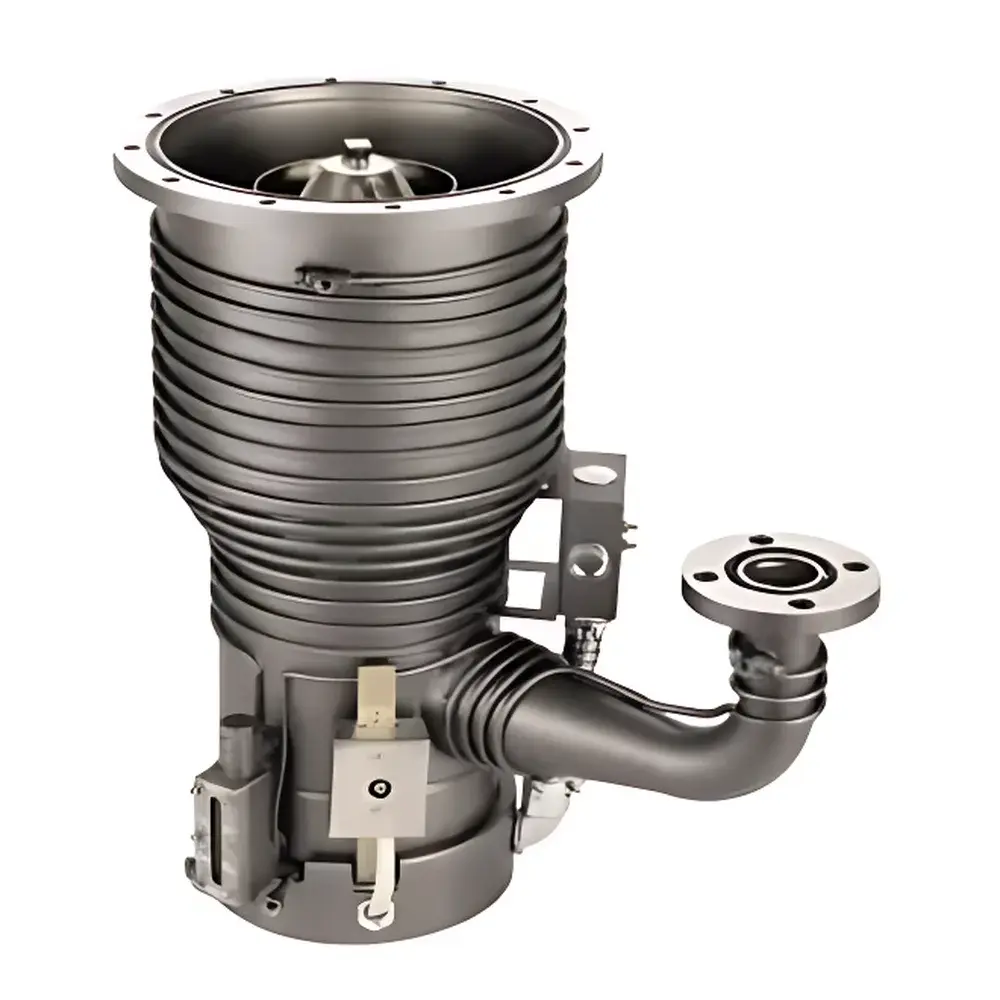

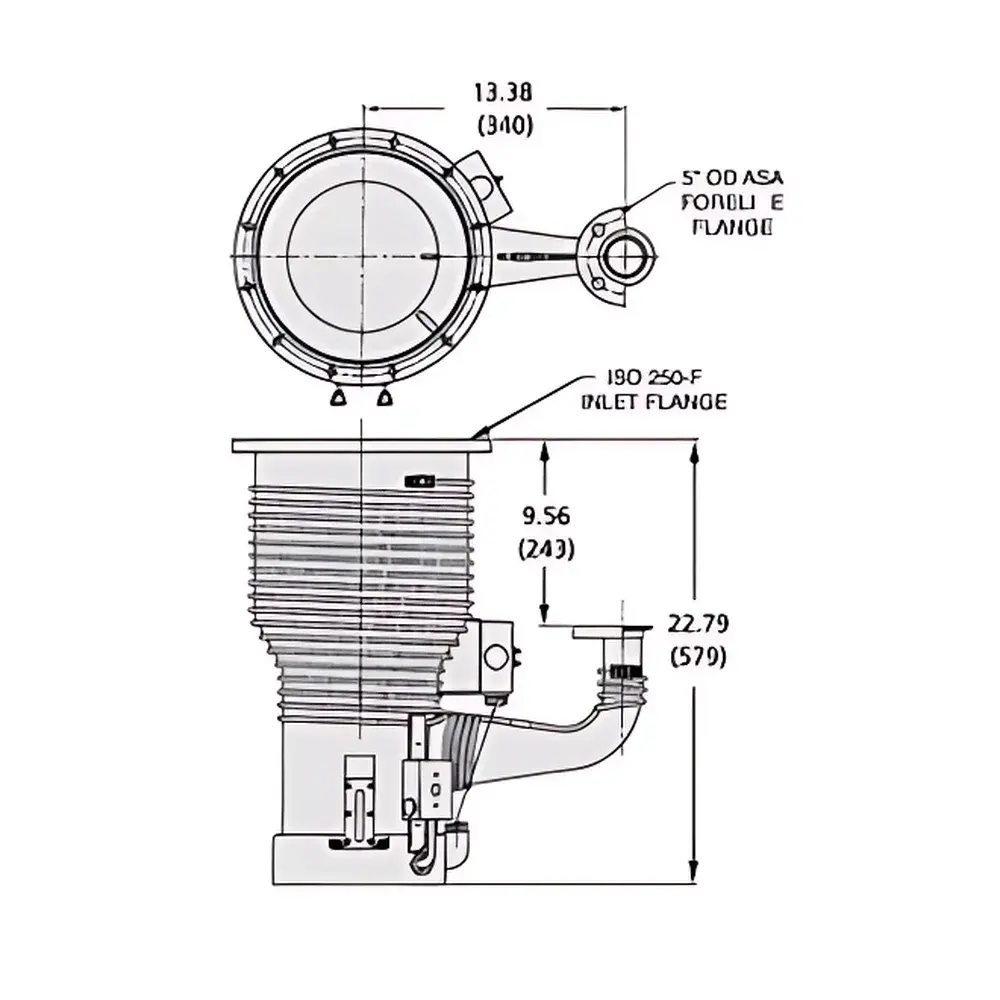

Agilent VHS-250 Oil Diffusion Vacuum Pump

Overview

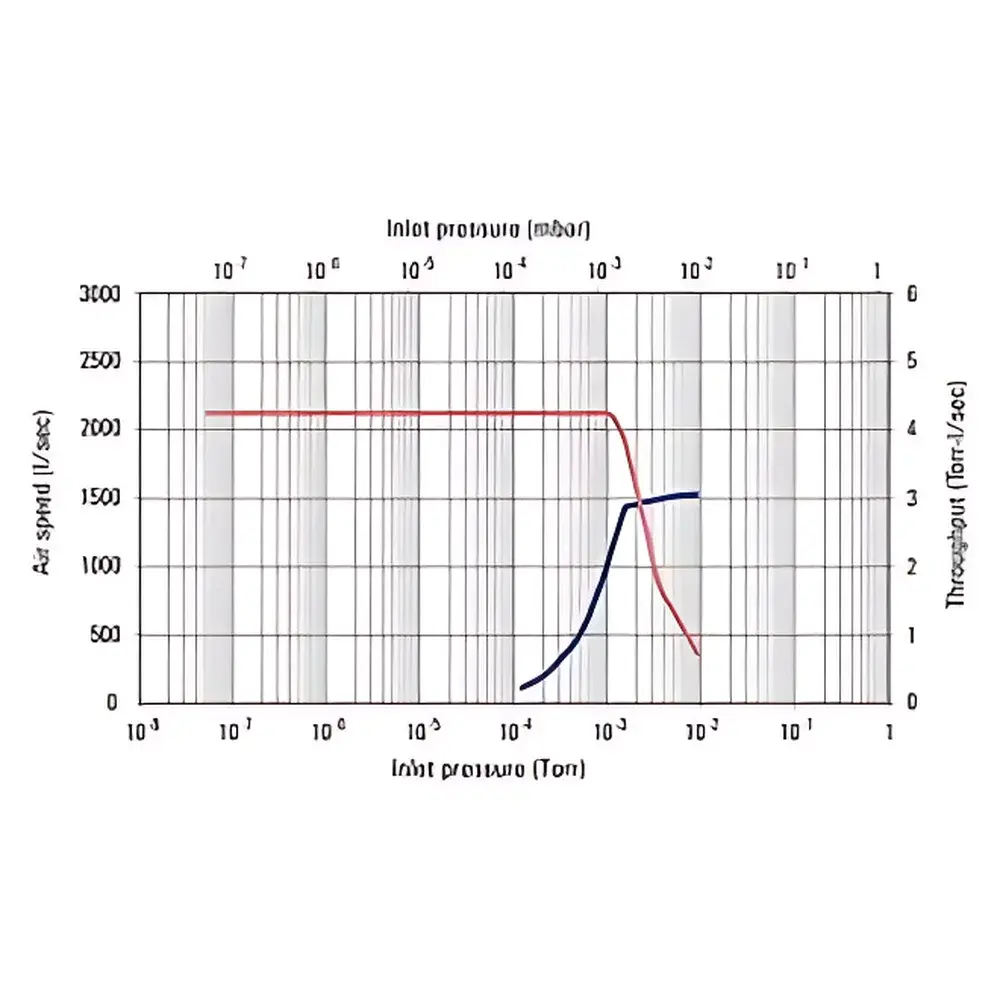

The Agilent VHS-250 is a high-performance oil diffusion vacuum pump engineered for continuous, stable operation in demanding high-vacuum and ultra-high-vacuum (UHV) systems. Operating on the principle of vapor jet momentum transfer, the VHS-250 utilizes thermally stabilized silicone-based diffusion pump oil, which is vaporized in the boiler section and directed through a precisely engineered multi-stage fractionating nozzle array. High-velocity oil vapor jets entrain gas molecules from the chamber and transport them toward the cooled pump walls, where condensation occurs and the oil returns to the boiler via gravity-driven reflow. This fundamental mechanism enables ultimate pressures down to ≤1 × 10⁻⁸ Torr (when backed by a suitable forepump and isolated from hydrocarbon backstreaming via cold traps or baffles), with a nominal nitrogen pumping speed of 2125 L/s — verified per ISO 21360-1 calibration methodology.

Key Features

• Convex chamber geometry increases effective condensing surface area and enhances gas capture efficiency across the full operating pressure range, particularly in the critical 10⁻² to 10⁻⁶ Torr transition zone.
• Finned heater plate design maximizes thermal uniformity and minimizes localized oil degradation, extending service life of diffusion oil by up to 40% compared to conventional flat-plate heaters under equivalent duty cycles.
• Integrated oil level viewport and dedicated fill/drain module enable real-time visual monitoring and tool-free oil replenishment or replacement without system venting — reducing maintenance downtime by >65% in production environments.
• Multi-stage fractionating nozzle assembly separates volatile contaminants from bulk oil during vapor generation, significantly reducing backstreaming rates (<5 × 10⁻⁹ g/cm²·s at 10⁻⁷ Torr, per ASTM F1893 test protocol) and maintaining clean vacuum integrity in sensitive deposition processes.
• Stainless steel construction (304 SS body and 316 SS nozzles) ensures long-term corrosion resistance against reactive process gases and residual halogenated species commonly encountered in PVD, CVD, and plasma etch applications.
• Standard quick-cool coil provides rapid thermal quenching during shutdown, minimizing oil oxidation and enabling faster restart cycles — critical for batch-process vacuum furnaces and metallurgical heat-treatment lines.

Sample Compatibility & Compliance

The VHS-250 is compatible with standard silicone diffusion oils (e.g., DC-704, DC-705) and certified low-backstreaming synthetic alternatives. It meets mechanical and safety requirements of IEC 61000-6-2 (EMC immunity) and UL 61010-1 (electrical safety for laboratory equipment). When integrated into a complete vacuum system, it supports compliance with ISO 27427 (vacuum system performance verification), ASTM E576 (metallographic vacuum furnace qualification), and SEMI F29 (semiconductor manufacturing vacuum standards). Its robust foreline pressure tolerance (up to 0.5 Torr continuous) eliminates need for auxiliary forepump throttling in high-gas-load applications such as sputtering and electron-beam evaporation.

Software & Data Management

While the VHS-250 operates as a standalone analog-controlled pump, it is fully compatible with Agilent’s Vacuum System Manager (VSM) software suite via optional 4–20 mA analog interface or RS-485 Modbus RTU communication module. VSM provides real-time heater temperature logging, thermal history profiling, predictive maintenance alerts based on cumulative heating hours, and audit-trail-capable event logging compliant with FDA 21 CFR Part 11 when deployed on validated Windows-based control platforms. All operational parameters are timestamped and exportable in CSV or XML format for GLP/GMP documentation workflows.

Applications

The VHS-250 serves as a primary high-vacuum pumping stage in industrial and research systems requiring high throughput and long-term stability. Primary use cases include: thermal vacuum chambers for satellite component testing; continuous-feed vacuum furnaces for titanium alloy annealing and brazing; large-area optical coating systems (e.g., anti-reflective, ITO, and AR/HR mirror stacks); roll-to-roll web coating lines for barrier film production; and high-current electron beam welders. Its high pumping speed and low base pressure capability also support analytical instrumentation such as residual gas analyzers (RGAs) and surface science tools (XPS, AES) requiring stable UHV environments.

FAQ

What forepump is recommended for optimal performance with the VHS-250?
A two-stage rotary vane pump with ≥12 m³/h (200 L/min) displacement and ultimate pressure ≤1 × 10⁻³ mbar is recommended; dry scroll or screw pumps may be used if foreline pressure remains below 0.3 Torr during operation.
Can the VHS-250 be operated vertically or horizontally?
It is designed for vertical orientation only — horizontal mounting compromises oil reflux dynamics and risks nozzle flooding or uneven heating.
Is cold trap integration required for semiconductor-grade cleanliness?
Yes — for sub-10⁻⁹ Torr base pressures and contamination-sensitive thin-film deposition, a liquid-nitrogen-cooled baffle or cryo-trap is strongly advised upstream of the pump inlet.
What is the typical oil service interval under continuous 24/7 operation?
With proper forepump maintenance and clean process conditions, standard DC-705 oil lasts 6–12 months; synthetic alternatives extend this to 18–24 months, as confirmed by periodic FTIR analysis per ASTM D6595.
Does the VHS-250 support remote interlock signaling for system safety protocols?
Yes — it includes dry-contact terminals for heater enable/disable, overtemperature fault, and foreline pressure interlock, compatible with PLC-based vacuum system controllers per IEC 61508 SIL-2 requirements.
