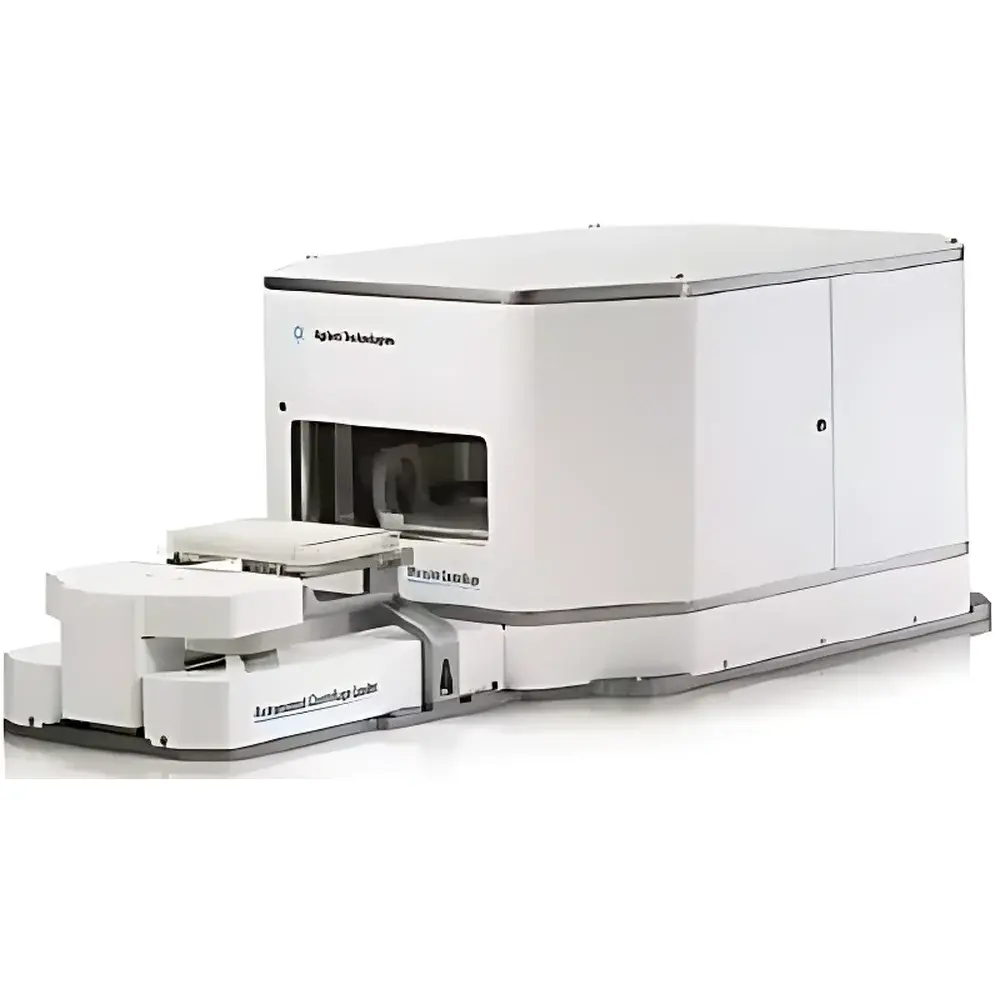

Agilent VSpin Microplate Centrifuge

Overview

The Agilent VSpin Microplate Centrifuge is an engineered benchtop centrifugation solution designed specifically for integration into automated liquid handling workflows. Unlike conventional centrifuges, the VSpin operates on a precision-engineered rotational platform optimized for SBS-standard microplates (96-, 384-, and 1536-well formats), delivering controlled, repeatable acceleration and deceleration profiles to minimize sample disturbance while achieving effective pellet formation or bubble removal. Its core principle relies on radial acceleration generated by high-fidelity angular velocity control—typically operating within a defined g-force range suitable for low-volume biological samples (e.g., 500–3,000 × g, depending on plate geometry and rotor configuration). The system’s mechanical architecture prioritizes positional repeatability and dynamic stability, enabling reliable synchronization with third-party robotic arms without requiring custom end-effector tooling.

Key Features

• Robotic Accessibility: Designed with front-access loading, standardized plate-height clearance, and programmable door actuation—fully compliant with ANSI SLAS/ISO 20776 mechanical interface guidelines for laboratory automation.
• Sub-3-Second Cycle Time: Achieves full load–spin–unload sequence in ≤3 seconds through synchronized motion control of lid actuation, plate insertion, rotor engagement, and braking—optimized for high-throughput assay preparation.
• Vibration-Damped Mounting: Equipped with elastomeric isolation feet that attenuate transmitted vibration to <5 µm peak-to-peak displacement at operational frequencies, reducing cross-instrument interference in dense instrumentation racks.
• Stackable Architecture: Modular footprint (240 mm W × 320 mm D × 210 mm H) supports vertical stacking without thermal or airflow compromise—validated for continuous operation under ambient lab conditions (15–30 °C, <80% RH).
• Automation-Ready Communication: Native support for RS-232 serial command sets (Agilent-defined ASCII protocol), TCP/IP-based remote control via HTTP API, and optional TTL-level trigger I/O for hardware handshaking with PLCs or robotic controllers.
• Optional Plate Loader Integration: Compatible with Agilent’s VSpin Loader module—a servo-driven, vision-assisted mechanism that autonomously transfers plates from conveyor rails or stack magazines into the centrifuge chamber with ±0.15 mm placement accuracy.

Sample Compatibility & Compliance

The VSpin accommodates all ANSI/SBS-compliant microplate formats, including low-profile PCR plates, full-skirted qPCR plates, deep-well storage plates, and filter-bottom assay plates. It maintains consistent centrifugal force distribution across heterogeneous plate loads (e.g., mixed fill volumes, asymmetric well occupancy) due to its balanced rotor design and real-time RPM feedback loop. From a regulatory standpoint, the instrument complies with IEC 61010-1 (Safety Requirements for Electrical Equipment for Measurement, Control, and Laboratory Use) and IEC 61326-1 (EMC for Laboratory Instruments). Its firmware architecture supports audit-trail-enabled operation when deployed in GLP- or GMP-regulated environments, with optional timestamped event logging (power-on, cycle start/end, error codes) exportable via Ethernet.

Software & Data Management

Control is managed either locally via intuitive LED interface with rotary encoder navigation or remotely using Agilent’s VSpin Control Suite—a Windows-based application supporting method creation, parameter locking, and batch execution scheduling. All centrifugation methods (acceleration ramp time, hold duration, deceleration profile, final brake setting) are stored as encrypted XML files with version control and user access levels (Operator, Supervisor, Administrator). For LIMS integration, the system provides configurable CSV log exports and RESTful API endpoints compliant with HL7 FHIR standards for metadata tagging (e.g., plate barcode, operator ID, timestamp, cycle count). Audit trails meet FDA 21 CFR Part 11 requirements when used with network-authenticated login and electronic signature modules.

Applications

The VSpin is routinely deployed in nucleic acid purification workflows (post-PCR cleanup, magnetic bead binding steps), cell pelleting in suspension cultures prior to lysis, degassing of viscous reagents in assay development, and removal of entrapped air bubbles from hydrogel-based microarrays. Its rapid cycling makes it especially valuable in real-time kinetic assays where plate-level centrifugation must occur between optical read steps—such as in time-resolved fluorescence resonance energy transfer (TR-FRET) or luminescence-based kinase assays. It is also validated for use in ISO 15189-accredited clinical labs performing high-volume molecular diagnostics, where throughput consistency directly impacts turnaround time metrics.

FAQ

What microplate formats does the VSpin support?
Standard SBS-formatted plates: 96-well, 384-well, and 1536-well; compatible with skirted, semi-skirted, and unskirted designs—including PCR, qPCR, deep-well, and filter-bottom variants.
Can the VSpin be integrated into existing robotic workcells?
Yes—via RS-232, Ethernet, or TTL I/O interfaces; mechanical dimensions and door actuation timing follow SLAS-2012 specifications for seamless integration with Hamilton, Tecan, Beckman Coulter, and PerkinElmer platforms.
Is the VSpin compliant with FDA 21 CFR Part 11?
When configured with user authentication, electronic signatures, and audit-trail logging enabled, the system meets technical controls required under Part 11 for electronic records and signatures.
Does the VSpin require routine calibration?
No scheduled calibration is required; however, annual performance verification using NIST-traceable tachometer and vibration meter is recommended per Agilent’s Preventive Maintenance Guide.
What is the maximum relative centrifugal force (RCF) achievable?
RCF varies with plate type and radius; typical operational range is 500–3,000 × g—configurable per method, with RCF values calculated and displayed in real time during setup.
