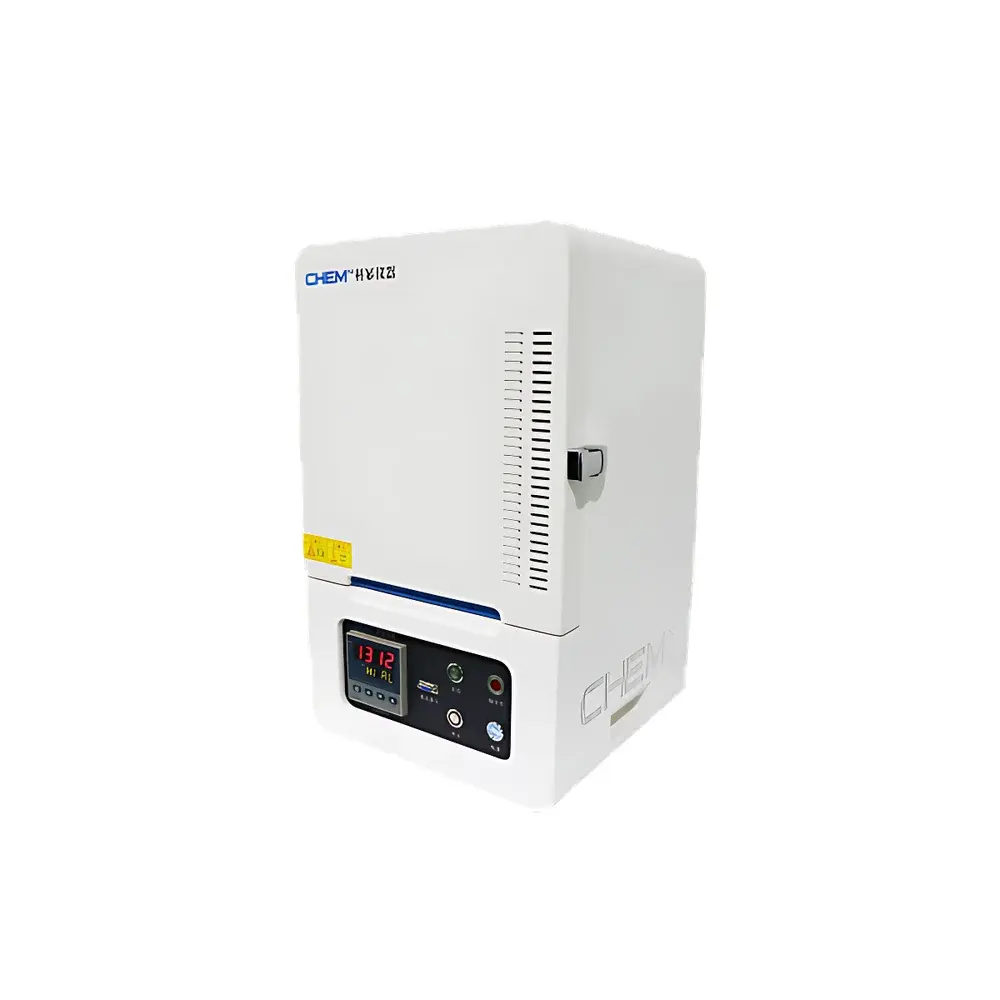

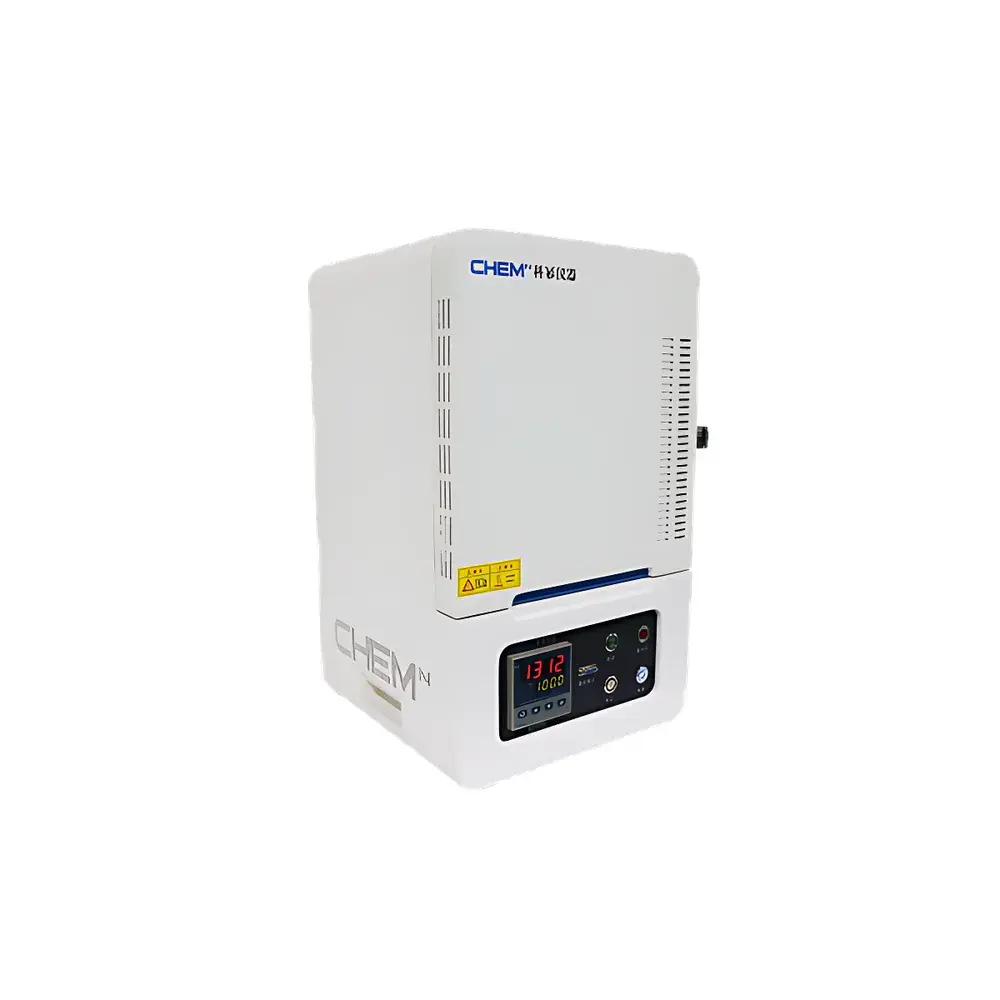

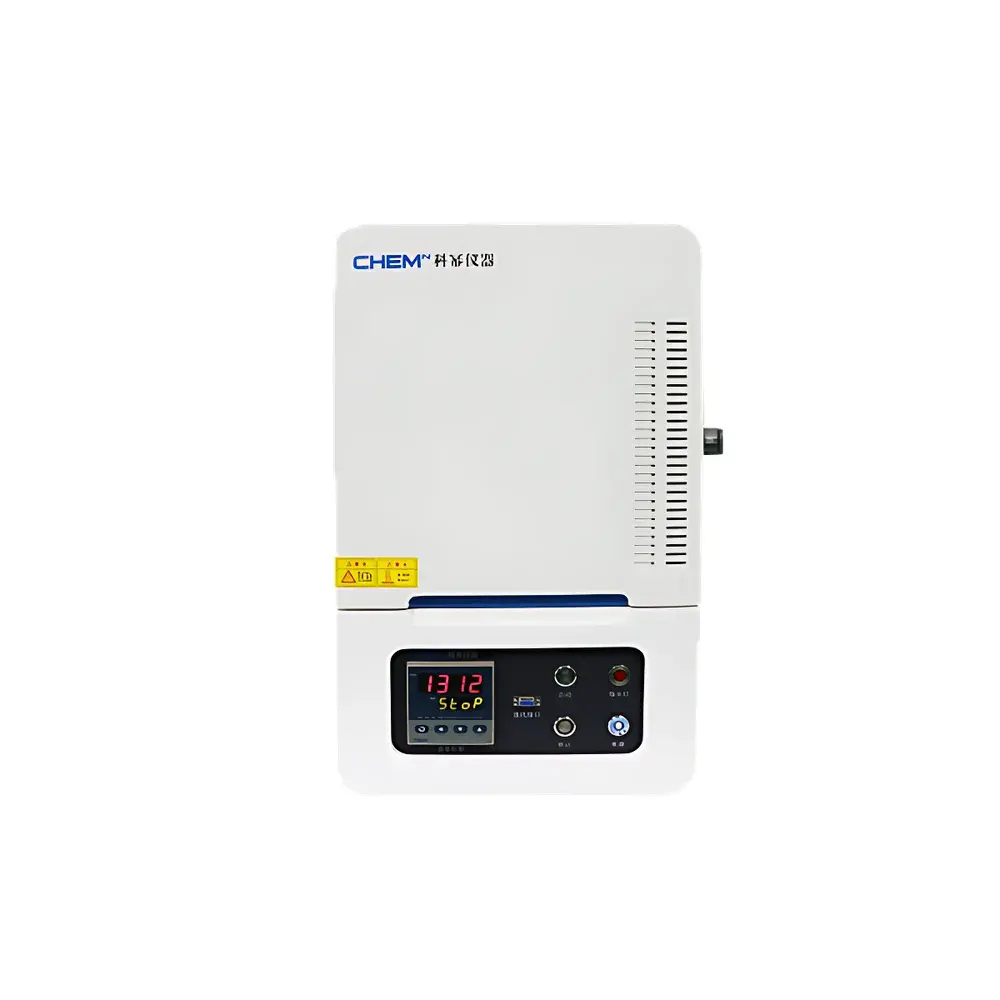

Ahkemi BEC-1500-8L High-Temperature Box Furnace

Overview

The Ahkemi BEC-1500-8L is a high-temperature box furnace engineered for precision thermal processing in academic research laboratories, materials science departments, and quality control environments. Operating on resistive heating principles via silicon carbide (SiC) elements, it delivers stable, repeatable thermal profiles up to 1400 °C—suitable for sintering, ashing, annealing, calcination, and heat treatment of ceramics, metals, composites, and inorganic powders. Its monolithic design integrates the furnace chamber and intelligent temperature controller into a single compact unit, minimizing thermal lag and reducing operator-induced variability. The dual-side U-shaped 1500-grade SiC rod configuration ensures symmetrical heat distribution across the 8 L working volume, achieving ≤±1 °C temperature uniformity at setpoint under steady-state conditions—a critical requirement for ISO/IEC 17025-compliant thermal validation protocols.

Key Features

• High-stability 1500-grade silicon carbide (SiC) heating elements arranged in U-shape on left and right chamber walls, enabling rapid thermal response and improved axial/radial uniformity
• 30-segment programmable temperature controller with adaptive fuzzy PID algorithm and self-tuning capability for optimal transient response and minimal overshoot
• Digital front-panel interface with real-time display of setpoint, actual temperature, segment time, and operational status—eliminating analog dial inaccuracies
• Integrated safety architecture including independent over-temperature cutoff (OTC) and thermocouple break detection, compliant with IEC 61000-6-2 EMC immunity standards
• Refractory ceramic fiber insulation (density ≥128 kg/m³) combined with double-layer stainless steel housing for low surface temperature (<60 °C at 1400 °C operation) and energy efficiency
• Robust mechanical construction: 80 kg net weight, reinforced door seal with high-temp gasket, and vibration-damped mounting feet for long-term stability in shared lab spaces

Sample Compatibility & Compliance

The BEC-1500-8L accommodates crucibles, boats, and sample holders up to 160 mm in height and 230 mm in width—compatible with standard alumina, quartz, and silicon nitride ware. Its temperature stability and repeatability support method development aligned with ASTM E1142 (Standard Practice for Calibration of High-Temperature Furnaces), ISO 8573-1 (for cleanroom-compatible operation when purged), and USP thermal validation guidelines. While not certified for Class I Div 1 hazardous locations, its electrical design meets CE marking requirements per EN 61000-3-2 (harmonic current emissions) and EN 61000-3-3 (voltage fluctuations). Routine calibration using NIST-traceable reference thermocouples satisfies GLP documentation needs for audit-ready thermal mapping.

Software & Data Management

The furnace supports optional RS485 Modbus RTU communication for integration into centralized lab management systems. When paired with Ahkemi’s optional PC-based control software (v3.2+), users gain full logging of temperature vs. time profiles, segment execution history, alarm event timestamps, and exportable CSV datasets for statistical process control (SPC) analysis. Audit trails include user ID, parameter changes, and manual override logs—enabling compliance with FDA 21 CFR Part 11 requirements when deployed in regulated GMP/QSR environments. Data retention is configurable up to 30 days onboard; external USB storage enables archival without network dependency.

Applications

• Sintering of advanced ceramics (e.g., ZrO₂, Al₂O₃, Si₃N₄) requiring precise ramp-hold-cool cycles
• Thermal gravimetric analysis (TGA) sample preparation and residue quantification
• Pre-oxidation of metal alloys prior to high-temperature tensile testing
• Ash content determination per AOAC 942.05 and EPA Method 1695 for environmental solid samples
• Heat treatment of battery cathode precursors (e.g., LiCoO₂, NMC) under controlled air or inert gas purge
• Calibration source for infrared pyrometer verification at fixed-point temperatures (e.g., Cu, Ag, Au melting points)

FAQ

What is the recommended maintenance interval for the SiC heating elements?
Under continuous operation at ≤1350 °C, SiC rods typically maintain rated performance for 1,500–2,000 hours; inspection every 500 hours is advised for visible cracking or resistance drift exceeding ±10% from baseline.
Can this furnace operate under inert or reducing atmospheres?
Yes—when fitted with a sealed flange port (optional accessory) and compatible gas inlet/outlet fittings, it supports N₂, Ar, or forming gas (5% H₂/95% N₂) atmospheres up to 1300 °C; consult Ahkemi’s Atmosphere Compatibility Guide before use.
Is the temperature controller validated for IQ/OQ protocols?
The embedded controller includes factory calibration certificates traceable to national metrology institutes; on-site IQ/OQ documentation templates are provided with purchase for GxP environments.
Does the furnace meet UL or CSA safety certification?
It carries CE marking per applicable EU directives; UL/CSA listing is available upon request for North American deployment—subject to regional voltage and enclosure modifications.
How is thermal uniformity verified during installation?
Ahkemi recommends a 9-point mapping procedure (per ASTM E220) using calibrated Type S thermocouples at defined locations within the cold zone, conducted at 800 °C, 1100 °C, and 1350 °C—results documented in the site acceptance test report (SATR).
