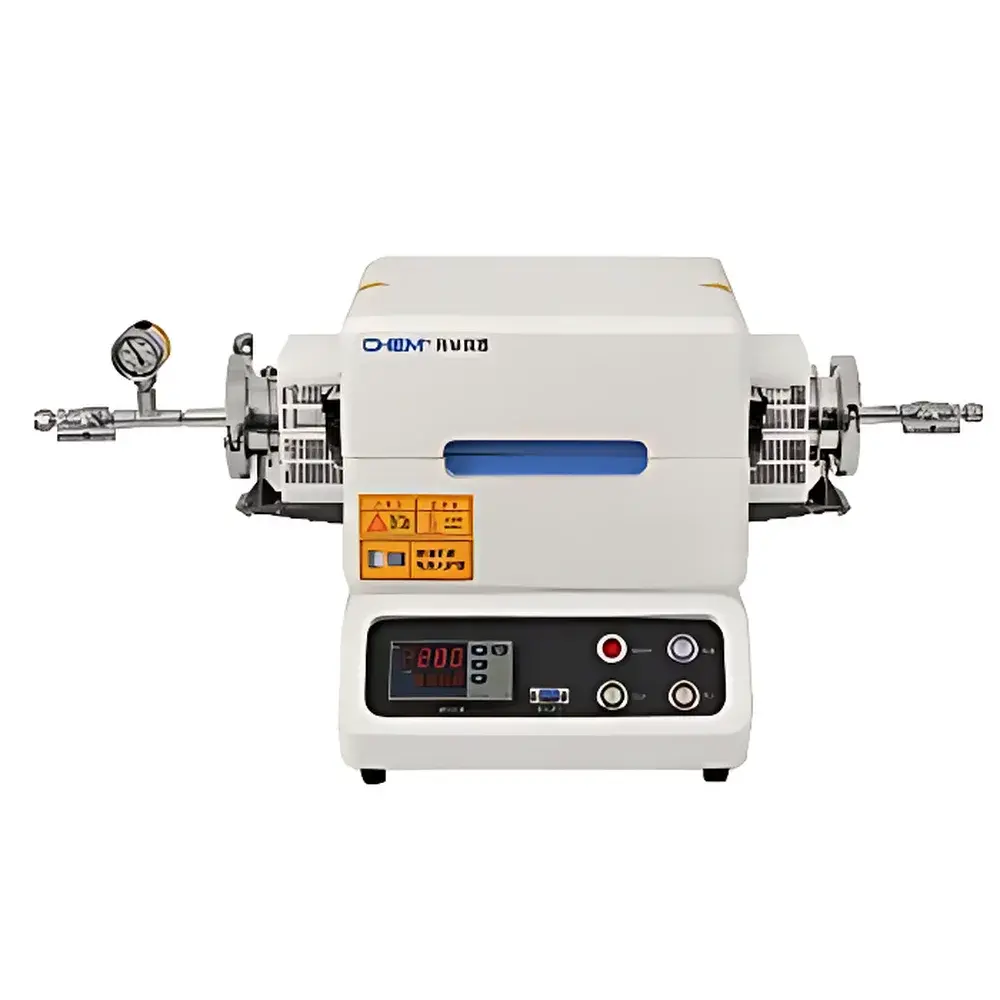

Ahkemi TFH-1200-30-I-220 Miniature Assisted Tube Furnace

Overview

The Ahkemi TFH-1200-30-I-220 Miniature Assisted Tube Furnace is a compact, benchtop-compatible horizontal tube furnace engineered for precise thermal processing under controlled atmospheres. It operates on the principle of resistive heating via high-stability Kanthal A1 or FeCrAl alloy heating elements embedded within a multi-layer insulation architecture. The furnace core features a cylindrical hot zone defined by polycrystalline alumina fiber insulation—offering low thermal mass, rapid thermal response, and excellent thermal retention at elevated temperatures up to 1200 °C. Its integrated intelligent temperature controller supports fully programmable 30-segment ramp-hold profiles, enabling reproducible thermal cycles essential for sintering, reduction, annealing, and crystallization protocols. Designed for laboratory-scale material synthesis and heat treatment, the unit maintains structural integrity and thermal uniformity across its Φ80 × 220 mm internal chamber, with surface temperature constrained below 60 °C during operation—ensuring safe proximity placement in shared lab environments.

Key Features

• Integrated one-piece construction combining furnace body and microprocessor-based PID temperature controller with intuitive 4.3-inch color touchscreen interface
• 30-programmable ramp-and-soak segments supporting complex thermal profiles—including cooling ramps—for repeatable process development
• High-efficiency dual-shell design with forced-air cooling system, minimizing external surface temperature and reducing ambient heat load
• Polycrystalline alumina fiber insulation providing superior thermal resistance and long-term stability at 1200 °C
• Robust stainless-steel outer housing with integrated gas inlet/outlet ports (standard NPT 1/4″) compatible with inert (N₂, Ar), reducing (H₂/N₂ mix), or vacuum conditions (when paired with optional vacuum pump)
• Dual safety protection: independent overtemperature cutoff (hardware limit switch) and automatic power cut-off upon thermocouple failure or open-circuit detection

Sample Compatibility & Compliance

The TFH-1200-30-I-220 accommodates standard quartz, alumina, or molybdenum tubes (ID up to 70 mm), allowing flexibility in sample containment and atmosphere management. Its design conforms to general laboratory safety standards for Class I, Division 1 electrical equipment per UL 61010-1 and IEC 61010-1. While not certified for hazardous location use, it incorporates grounding continuity verification, insulated terminal blocks, and thermal shielding compliant with EN 60529 (IP20). For regulated environments, the controller logs timestamped setpoint and actual temperature data (optional USB export), supporting GLP-compliant recordkeeping when paired with validated calibration procedures traceable to NIST standards.

Software & Data Management

The built-in controller stores up to 10 complete thermal programs locally and provides real-time graphical display of current segment, elapsed time, and deviation from setpoint. Temperature data is logged at user-selectable intervals (1–60 s) and exportable via USB flash drive in CSV format for post-processing in MATLAB, Excel, or LabVIEW. No proprietary software installation is required. Optional RS485 Modbus RTU communication enables integration into centralized lab automation systems for remote monitoring and supervisory control—supporting audit trails required under FDA 21 CFR Part 11 when deployed with appropriate electronic signature and access control policies.

Applications

• Controlled-atmosphere sintering of ceramic powders, metal oxides, and battery electrode materials
• Reductive annealing of transition metal catalysts (e.g., Ni, Co, Cu) under H₂/N₂ mixtures
• Vacuum-assisted degassing and stress-relief annealing of thin-film substrates
• Crystal growth and phase transformation studies in solid-state chemistry
• Thermal gravimetric pre-treatment prior to XRD or SEM analysis
• Calibration and validation of thermocouples and reference materials per ASTM E220 and ISO 17025 guidelines

FAQ

What tube materials are recommended for use at 1200 °C?
Quartz tubes are suitable up to ~1100 °C in oxidizing atmospheres; for sustained operation at 1200 °C, high-purity alumina or recrystallized alumina tubes are recommended.
Can this furnace be operated under vacuum?
Yes—when equipped with a compatible vacuum flange kit and connected to a two-stage rotary vane pump (≤10⁻² mbar base pressure), it supports vacuum annealing protocols.
Is the temperature uniformity specification documented?
Per internal validation testing, axial uniformity across the central 100 mm zone is ±5 °C at 1200 °C; radial uniformity is ±3 °C under static air conditions.
Does the controller support data logging without USB export?
No—the internal memory retains only active program parameters; continuous logging requires periodic USB transfer.
What calibration documentation is provided?
Each unit ships with a factory calibration certificate referencing Type K thermocouple verification at three points (300 °C, 800 °C, 1200 °C), traceable to national metrology institutes.
