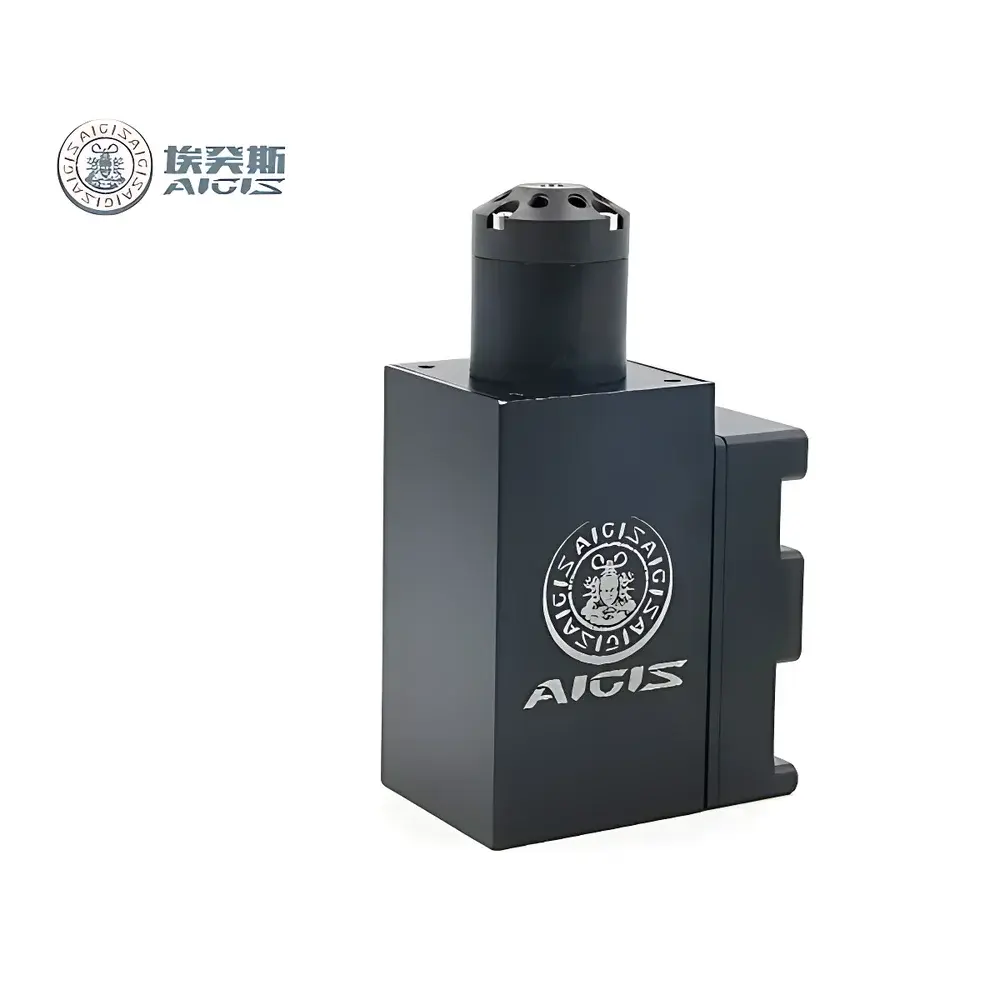

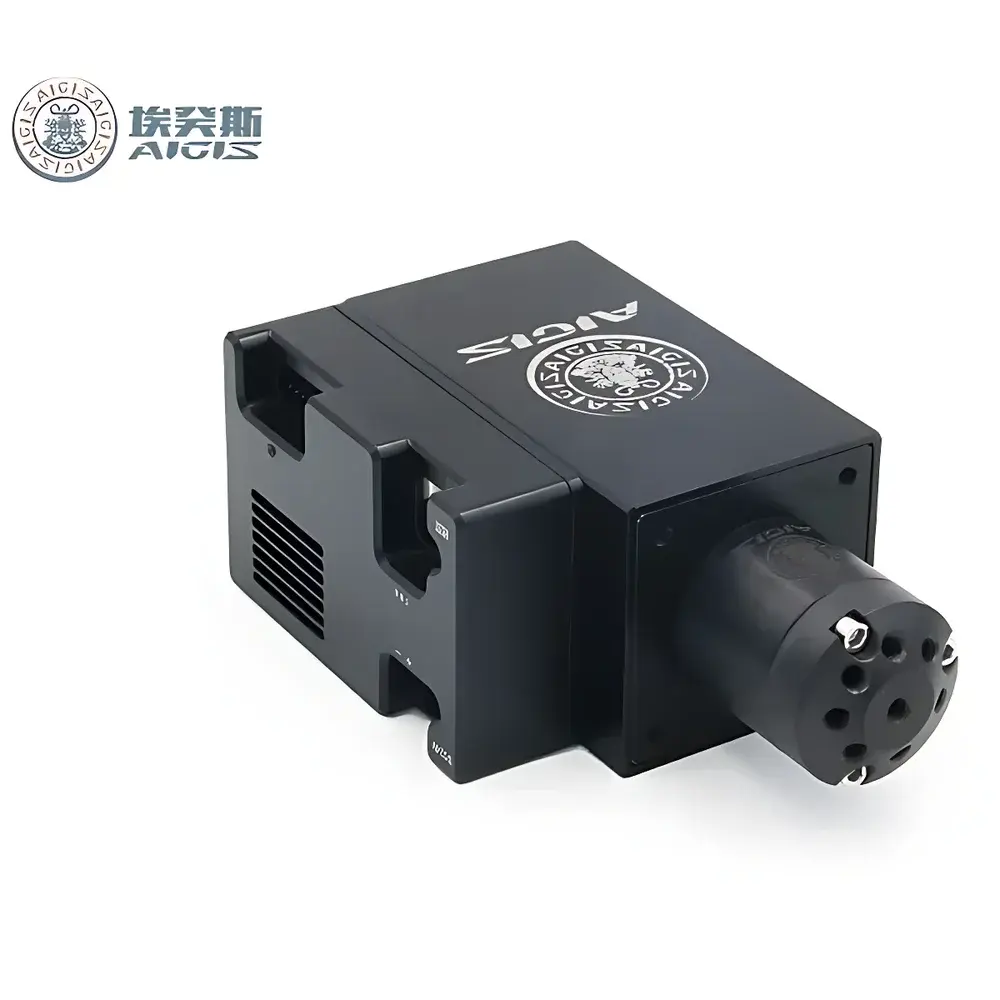

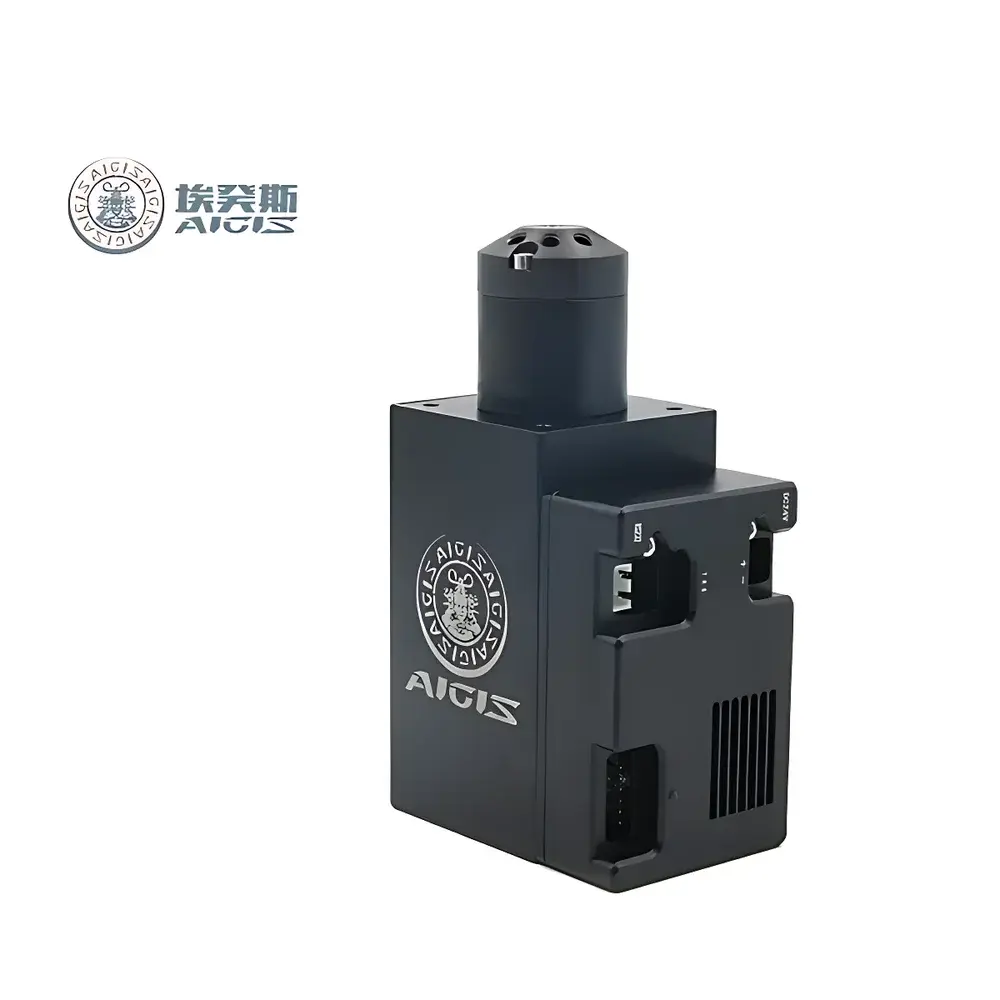

AIGIS AGS-HAB04W08T-ET-K75E2-E-Q3A High-Pressure 8-Port 4-Position Injection Valve Assembly for Protein Purification

Overview

The AIGIS AGS-HAB04W08T-ET-K75E2-E-Q3A is a precision-engineered, high-pressure, multi-position injection valve assembly designed specifically for integration into automated protein purification workflows. Built upon a robust rotary valve architecture, it operates on the principle of sequential port selection via controlled angular indexing—enabling deterministic fluid routing across eight discrete inlet/outlet ports under sustained backpressure conditions up to 100 bar (1450 psi), typical of fast protein liquid chromatography (FPLC) and high-performance liquid chromatography (HPLC) systems. Its four distinct rotational positions (0°, 22.5°, 45°, and 90°) provide programmable flow-path configurations essential for gradient elution, sample loop loading, column regeneration, buffer switching, and fraction collection—all without manual intervention or system depressurization. The valve’s monolithic ceramic rotor and PEEK-seated stator deliver exceptional chemical resistance to denaturing solvents (e.g., guanidine HCl, urea, low-pH acetate buffers) and biological matrices, ensuring long-term sealing integrity and minimal carryover in sensitive biomolecular applications.

Key Features

• Eight-port, four-position configuration with precise angular indexing (0°, 22.5°, 45°, 90°) for deterministic flow-path control
• High-pressure rating: compatible with operating pressures up to 100 bar (1450 psi) at ambient temperature
• Ceramic rotor and chemically inert PEEK stator seals—resistant to aggressive aqueous and organic mobile phases used in protein purification
• Low dead volume design (< 5 µL per flow path) to minimize sample dilution and band broadening
• Electrically actuated stepper motor drive with position feedback for repeatable, reproducible valve state transitions (±0.1° angular accuracy)
• Integrated TTL/RS-485 interface for seamless synchronization with FPLC controllers, PLCs, or custom automation platforms
• Autoclavable body housing (stainless steel 316L) compliant with ISO 13485 cleanroom-compatible assembly protocols

Sample Compatibility & Compliance

The AGS-HAB04W08T-ET-K75E2-E-Q3A supports direct handling of clarified cell lysates, affinity-eluted fractions, ion-exchange pools, and size-exclusion purified samples without degradation or adsorption artifacts. Its wetted materials—316L stainless steel, ceramic, and PEEK—are certified non-pyrogenic and extractables-tested per USP <661.1>. The valve meets mechanical safety requirements outlined in ISO 12100 and is designed for use in environments adhering to Good Manufacturing Practice (GMP) and Good Laboratory Practice (GLP) frameworks. While not intrinsically certified for IEC 61000-6-2/6-4 EMC compliance, its low-voltage drive electronics are compatible with standard laboratory-grade power conditioning and grounding practices required for regulated bioprocessing instrumentation.

Software & Data Management

The valve operates as a deterministic peripheral within larger purification software ecosystems such as Cytiva UNICORN, Bio-Rad NGC System Software, or custom LabVIEW- or Python-based control suites. It supports time-stamped position logging via serial command echo and accepts ASCII-based command sets (e.g., “POS=2”, “HOME”) with hardware-level acknowledgment. Audit trails—including valve position changes, timestamped execution, and error codes (e.g., timeout, stall detection)—can be captured and exported in CSV or JSON format for 21 CFR Part 11–compliant record retention when integrated with validated data acquisition middleware. No embedded firmware UI is provided; all configuration occurs externally through host controller logic.

Applications

• Automated multi-step purification schemes (e.g., capture → intermediate wash → polish) using tandem columns
• Online sample injection into analytical SEC or IEX columns for real-time purity assessment
• Buffer selection and gradient formation in dual-pump FPLC systems
• Loop-based injection for reproducible loading of pre-equilibrated sample loops (100 µL–5 mL)
• Recirculation mode activation for extended binding kinetics studies on immobilized ligands
• Fraction redirection during peak slicing in preparative runs

FAQ

What is the maximum recommended operating pressure for this valve?
The valve is rated for continuous operation at ≤100 bar (1450 psi) at 20–25°C with aqueous and low-viscosity organic-aqueous mobile phases.
Can this valve be sterilized in place (SIP) using steam?
No—steam sterilization is not supported due to thermal limitations of internal PEEK components; however, autoclaving at 121°C for 20 minutes (dry cycle only) is validated for the main housing.
Is position feedback available during motion?
Yes—each step pulse is accompanied by a hardware-generated confirmation signal; full positional verification requires external encoder integration.
Does the valve support analog voltage input for position control?
No—it accepts only digital commands via RS-485 or TTL-level discrete signals; analog control is not implemented.
What maintenance intervals are recommended for routine operation?
Inspection of seal integrity and rotor wear is advised every 50,000 cycles or annually—whichever occurs first—under typical lab-use conditions.
