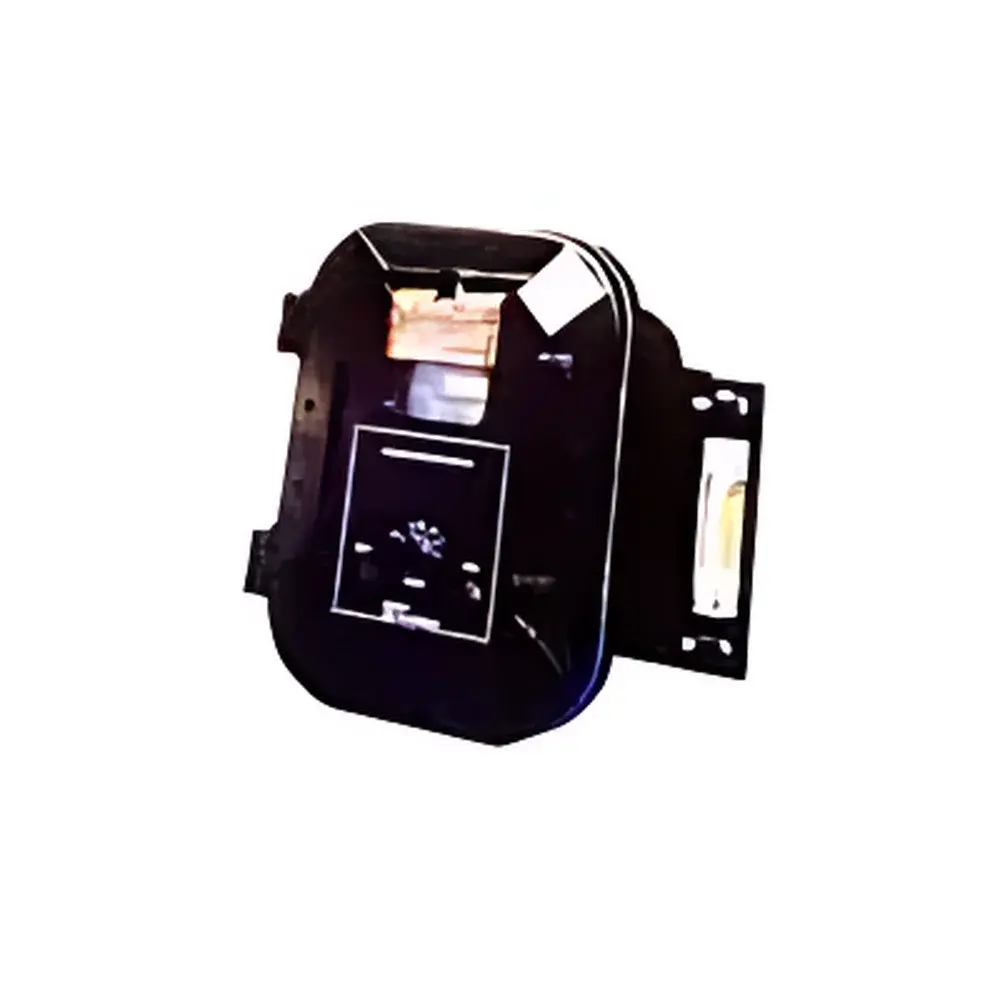

AII GPR-18 Online Trace Oxygen Analyzer

Overview

The AII GPR-18 Online Trace Oxygen Analyzer is an intrinsically robust electrochemical trace oxygen measurement system engineered for continuous, real-time monitoring in hazardous and demanding industrial process environments. Utilizing a proprietary fuel cell sensor technology—specifically the long-life GPR-12-333 sensor—the instrument delivers stable, drift-free performance without routine maintenance or electrolyte replenishment. Its core measurement principle relies on the galvanic oxidation of oxygen at a catalytic cathode, generating a current linearly proportional to O₂ partial pressure across five factory-configurable ranges (0–10 ppm to 0–25% FS). Designed for integration into high-integrity gas purification loops—including semiconductor bulk gas delivery, hydrogen reforming off-gas streams, inert blanketing systems, and CO₂-based food-grade packaging lines—the GPR-18 operates with sub-second response dynamics and maintains metrological stability under variable flow, pressure, and temperature conditions. The analyzer complies with fundamental safety and quality frameworks governing critical process instrumentation, including FM approval for Class I, Division 1, Groups B–D locations and adherence to ISO 9001-certified manufacturing protocols.

Key Features

• Five programmable measurement ranges (0–10 ppm, 0–100 ppm, 0–1000 ppm, 0–1% FS, 0–25% FS) selectable via front-panel controls or remote command
• GPR-12-333 electrochemical fuel cell sensor with guaranteed 24-month service life and zero-field maintenance requirements
• NEMA 4X/7-rated anodized aluminum enclosure rated for Class I, Division 1, Groups B–D hazardous areas; optional flame-arresting purge system available
• Integrated temperature compensation and pressure-tolerant inlet design (5–30 psig operating range, up to 100 psig max)
• Dual independent capacitive relay alarms with user-adjustable setpoints for high/low O₂ excursions and diagnostic fault signaling
• High-resolution LCD display with 0.01 ppm resolution and intuitive menu-driven interface for zero/ span calibration, range switching, and alarm configuration
• Isolated 4–20 mA analog output and 0–1 VDC auxiliary signal—both fully scalable and linear across full dynamic range
• Stainless steel sample train components (1/8″ Swagelok fittings, needle valve, rotameter, shut-off valve) included as standard

Sample Compatibility & Compliance

The GPR-18 supports analysis of non-corrosive and mildly acidic gas matrices, including ultra-high-purity nitrogen, argon, helium, hydrogen, synthetic air mixtures, and CO₂-rich streams—provided the optional XLT-12-333 sensor is installed for applications where CO₂ concentration exceeds 0.5%. It is not intended for use with halogenated gases, chlorine, or strongly oxidizing agents that may degrade the fuel cell membrane. All electrical and mechanical interfaces conform to international explosion protection standards: FM Class I, Division 1, Groups B–D; CSA C22.2 No. 157; and CE marking per ATEX Directive 2014/34/EU (Category 2G). The device meets electromagnetic compatibility (EMC) requirements per EN 61326-1 and carries ISO 9001:2015 certification for design, assembly, and calibration traceability. Calibration is performed using NIST-traceable 80% FS O₂ reference gas, ensuring repeatability within ±0.5% FS across its operational lifetime.

Software & Data Management

While the GPR-18 operates as a stand-alone analog transmitter with local HMI control, it integrates seamlessly into distributed control systems (DCS) and supervisory control and data acquisition (SCADA) architectures via its isolated 4–20 mA output. For advanced data logging, trending, and audit compliance, the analyzer supports connection to third-party historian platforms compliant with OPC UA or Modbus RTU protocols (via optional RS-485 interface module). All calibration events, alarm triggers, and sensor diagnostics are timestamped and stored in non-volatile memory—enabling full GLP/GMP-aligned audit trails when deployed in regulated pharmaceutical or electronics manufacturing facilities. Firmware updates and configuration backups are managed via secure USB interface, with change logs retained for FDA 21 CFR Part 11-compliant validation packages.

Applications

• Monitoring residual oxygen in semiconductor-grade nitrogen and argon purge lines prior to wafer processing
• Verification of deoxygenation efficiency in hydrogen production units (e.g., PEM electrolyzer vent streams)
• Continuous verification of inert gas blanket integrity in lithium-ion battery dry rooms and electrode coating lines
• O₂ leak detection in vacuum furnace backfill gas systems using helium or argon
• Quality assurance of modified atmosphere packaging (MAP) gases containing CO₂/N₂ blends for food processing
• Trace oxygen surveillance in cryogenic air separation plant product streams and storage vessels

FAQ

What is the recommended calibration frequency?
AII recommends quarterly calibration using certified 80% FS O₂ standard gas; however, annual recalibration is sufficient for stable, low-drift installations meeting ISO 5725 precision criteria.

Can the GPR-18 measure oxygen in 100% CO₂?
Yes—but only when equipped with the XLT-12-333 sensor variant, which features a chemically stabilized electrolyte formulation resistant to CO₂-induced acidification.

Is heated sample conditioning required for sub-ppm measurements?
For reliable quantification below 1 ppm, AII strongly recommends installing the optional thermostatically controlled heating system to prevent condensation-induced adsorption errors and ensure laminar, dew-point-stable flow.

Does the analyzer support remote diagnostics?
Yes—via optional RS-485 Modbus RTU interface, enabling remote readout of sensor voltage, temperature, alarm status, and calibration history through PLC or SCADA systems.

What is the minimum detectable O₂ level with the 0–10 ppm range?
The instrument achieves a practical limit of detection (LOD) of 0.05 ppm based on signal-to-noise ratio (SNR >3) and 3σ baseline stability over 24-hour periods under controlled lab conditions.
