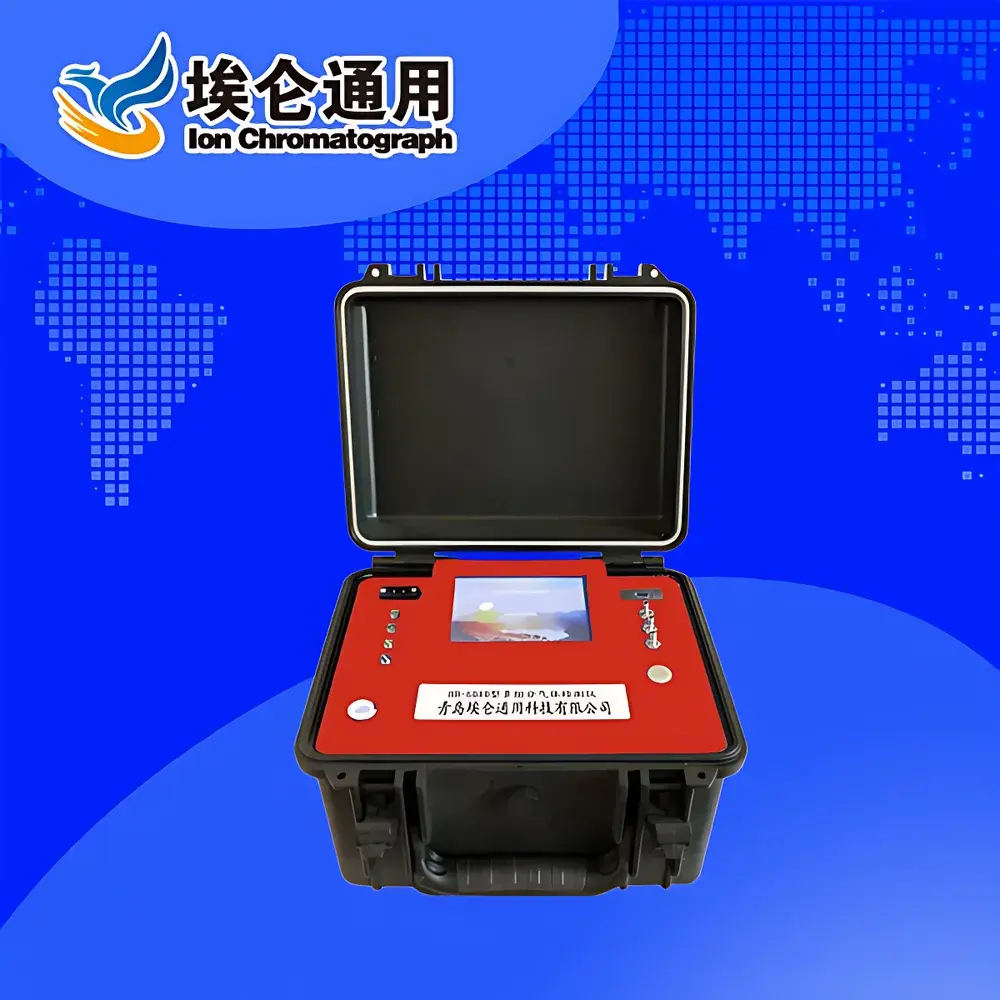

Ailun HB6080 Multicomponent Portable Gas Analyzer
| Brand | Ailun General / Qingdao Ailun |
|---|---|
| Origin | Shandong, China |
| Model | HB6080 |
| Detection Principle | Electrochemical Sensor Technology |
| Form Factor | Portable |
| Response Time | ≤30 s |
| Target Gases | SO₂, NO, CO |
| Repeatability | ±2% FS (typical for electrochemical sensors) |
| Compliance | Meets Chinese national standards for toxic and indoor air quality gas detection (e.g., HJ 693–2014, GB/T 18204.2–2014) |
| Sensor Interface | Auto-recognizing digital sensor module |
| Enclosure Rating | IP54 (dust- and splash-resistant) |
| Power Supply | Rechargeable Li-ion battery (≥10 h continuous operation) |
| Data Output | RS232/USB interface, optional Bluetooth 5.0 |
| Operating Temperature | –10 °C to +50 °C |
| Storage Temperature | –20 °C to +60 °C |
Overview
The Ailun HB6080 Multicomponent Portable Gas Analyzer is an engineered solution for real-time, field-deployable measurement of key toxic gases—including sulfur dioxide (SO₂), nitrogen monoxide (NO), and carbon monoxide (CO)—in ambient air, occupational environments, and confined spaces. Built upon proven electrochemical sensing principles, the instrument operates by inducing a diffusion-controlled redox reaction at the working electrode surface, generating a current linearly proportional to target gas concentration. This analog signal is digitized, temperature-compensated, and processed via an embedded 32-bit microcontroller to deliver stable, low-drift readings with high specificity under variable humidity and pressure conditions. Designed for compliance with Chinese environmental monitoring and occupational health regulations—such as HJ 693–2014 (for SO₂ and NOₓ determination in flue gas) and GB/T 18204.2–2014 (indoor air quality standards)—the HB6080 supports both qualitative screening and semi-quantitative assessment in regulatory and emergency response contexts.
Key Features
- Triple-electrochemical sensor configuration with independent, auto-identified modules for SO₂, NO, and CO—enabling simultaneous multi-gas detection without cross-interference calibration
- Intelligent sensor recognition firmware: automatically detects connected sensor type, initializes appropriate zero/span parameters, and applies preloaded temperature/humidity compensation curves
- Configurable dual-level alarm system with audible (≥85 dB), visual (high-brightness LED), and vibration alerts—user-definable threshold values stored in non-volatile memory
- Robust mechanical architecture: compact ABS+PC housing rated IP54, optimized for field durability; modular sensor bay allows tool-free replacement in <60 seconds
- Advanced signal conditioning: low-noise amplification, 24-bit ADC resolution, and digital filtering algorithms to suppress electromagnetic interference (EMI) from industrial equipment
- Integrated data logging: stores up to 100,000 timestamped records (gas concentration, temperature, relative humidity, battery voltage) with automatic time-stamping and sequence indexing
Sample Compatibility & Compliance
The HB6080 is validated for direct sampling of ambient air, workplace breathing-zone air, and post-incident atmospheric plumes in industrial, municipal, and remediation settings. It does not require sample conditioning (e.g., filtration or drying) for typical indoor or outdoor use but includes a hydrophobic PTFE membrane filter to prevent liquid ingress and particulate fouling. The analyzer meets design and performance criteria specified in GB 12358–2006 (general requirements for portable gas detectors) and aligns with functional equivalency benchmarks referenced in ISO 16000-23 (indoor air—determination of formaldehyde and other carbonyls) for co-detection applications. While not certified to IEC 61508 or ATEX for explosive atmospheres, its intrinsic safety profile (low-power circuitry, <1.5 W total draw) permits use in non-classified zones per GB 3836.1–2010.
Software & Data Management
Data export and configuration are managed via the proprietary Ailun PC Utility v3.2, compatible with Windows 10/11. The software enables full parameter setup—including alarm thresholds, sampling interval (1–60 s), zero calibration routines, and unit conversion (ppm, mg/m³, %LEL where applicable). All logged datasets are exported in CSV format with ISO 8601 timestamps and metadata headers compliant with GLP documentation requirements. Audit trail functionality records user login events, calibration actions, and configuration changes with operator ID and timestamp—supporting basic traceability for internal QA/QC workflows. Optional Bluetooth 5.0 module enables wireless telemetry to mobile devices running the Ailun FieldLink app (Android/iOS), facilitating real-time dashboard visualization and geotagged reporting.
Applications
- Emergency response: rapid hazard assessment during chemical spills, fire aftermath, or industrial accidents involving combustion byproducts
- Indoor air quality (IAQ) surveys: verification of ventilation efficacy and identification of pollutant sources in schools, offices, and residential buildings
- Occupational hygiene monitoring: personal exposure assessment in boiler rooms, waste treatment facilities, and metal fabrication shops
- Environmental site investigations: preliminary screening of landfill perimeter air, brownfield redevelopment zones, and soil vapor intrusion pathways
- Regulatory compliance checks: periodic verification against local environmental protection bureau (EPB) mandates for SO₂/NOₓ emissions in small-scale stationary sources
- Confined space entry pre-check: OSHA-aligned pre-entry atmospheric testing for permit-required spaces prior to worker deployment
FAQ
What gases does the HB6080 detect, and can additional sensors be added?
The standard configuration includes electrochemical sensors for SO₂, NO, and CO. Sensor modules are hardware-locked and factory-calibrated; no third-party or aftermarket sensors are supported. Custom configurations (e.g., H₂S, Cl₂) require OEM re-engineering and are available only through authorized Ailun distribution channels.
Is the instrument suitable for continuous unattended monitoring?
No—it is designed for intermittent, operator-conducted spot checks. Battery life and sensor drift characteristics make it unsuitable for fixed-site, 24/7 deployment. For continuous monitoring, consider Ailun’s fixed-mount GA series analyzers.
Does the HB6080 meet FDA 21 CFR Part 11 or EU Annex 11 requirements?
It does not implement electronic signature, role-based access control, or full audit trail features required for Part 11 compliance. It is intended for field screening—not GMP-regulated pharmaceutical or biotech environments.
How often must the sensors be calibrated?
Zero calibration is recommended before each use; span calibration using certified gas standards is required every 30 days or after exposure to concentrations exceeding 150% of full scale.
Can data be integrated into enterprise EHS platforms?
Yes—CSV exports are compatible with common EHS software (e.g., Intelex, ETQ Reliance, Sphera). API integration is not natively supported but may be enabled via custom middleware development through Ailun’s OEM services group.
