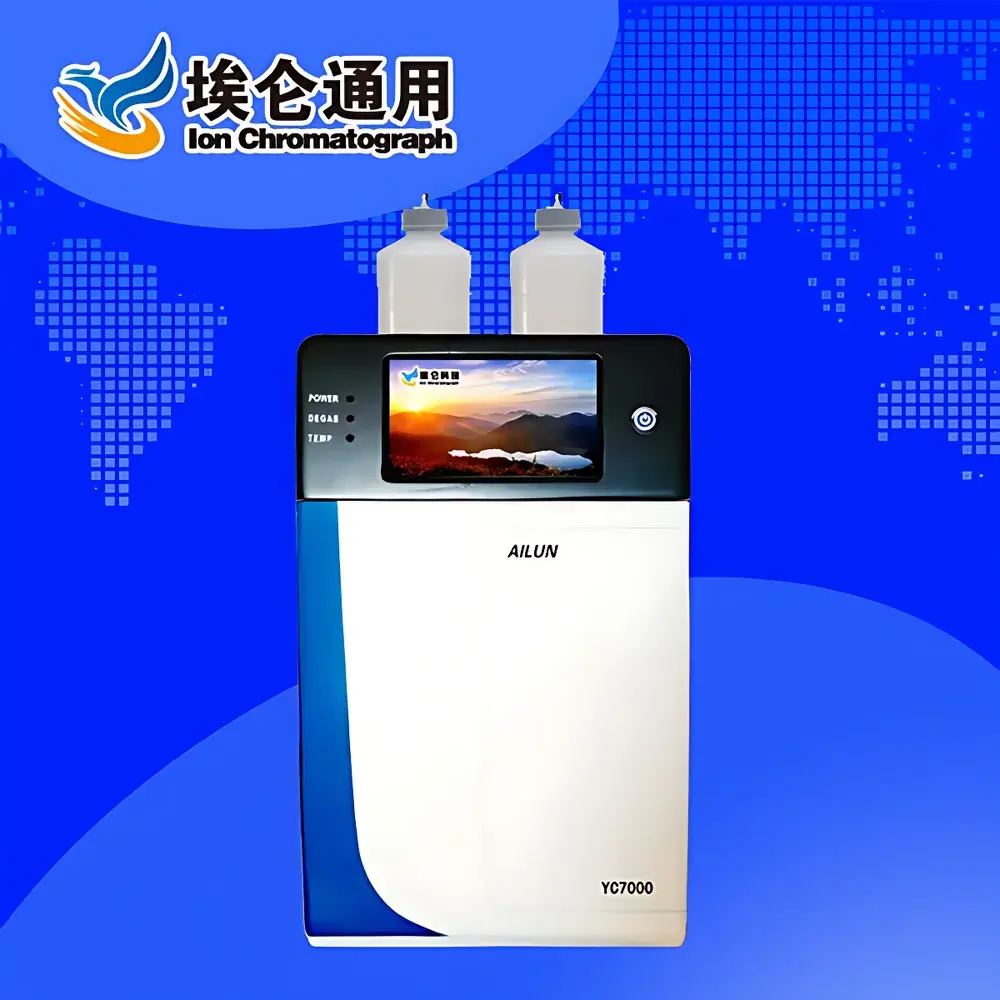

Ailun YC7000 Ion Chromatograph

Overview

The Ailun YC7000 Ion Chromatograph is a high-performance, laboratory-grade analytical instrument engineered for precise separation and quantitative detection of inorganic anions and cations in complex aqueous matrices. Based on suppressed conductivity detection principles—compatible with both chemical and electrolytic suppression—the system delivers high sensitivity, low baseline noise, and exceptional long-term stability. Its core architecture integrates a thermally stabilized TP (Temperature-Programmed) detector with advanced electromagnetic shielding using proprietary conductive composite materials, minimizing thermal drift and external electrical interference. Designed for compliance with routine QC/QA workflows in regulated environments, the YC7000 supports method validation per ISO 10304-1, ASTM D4327, and USP , and is suitable for laboratories operating under GLP or GMP-aligned quality systems.

Key Features

• High-resolution 7-inch color touchscreen interface with real-time monitoring of pressure, flow rate, column temperature, and eluent concentration—enabling full local control without PC dependency.
• Modular detector configuration: interchangeable conductivity, UV-Vis (190–400 nm), and electrochemical detection modules—supporting multi-analyte characterization across diverse sample types.
• Patented inline eluent pre-treatment and automatic gas–liquid separation system: enables continuous degassing, line flushing, and self-regenerating suppressor operation—eliminating manual maintenance intervals and acid replacement.
• Integrated suppressor–conductivity cell design: reduces dead volume and extra-column band broadening, enhancing peak resolution and detection limits down to sub-ppb levels for target ions (e.g., F⁻, Cl⁻, NO₂⁻, SO₄²⁻, Na⁺, NH₄⁺).
• Intelligent pre-heating and auto-baseline calibration: initiates thermal equilibration prior to system startup; performs real-time baseline offset correction during analysis—reducing method development time and improving inter-run reproducibility.
• Column oven with PID-controlled heating (5–65 °C), ±0.2 °C temperature reproducibility, and adaptive auto-tuning—ensuring retention time stability across environmental fluctuations.

Sample Compatibility & Compliance

The YC7000 accommodates a broad range of sample matrices—including wastewater, industrial effluents, soil leachates, pharmaceutical excipients, food extracts, geological waters, and biological fluids—following appropriate filtration (0.22 µm nylon) and dilution protocols. It complies with international standard methods for environmental and industrial testing, including EPA Method 300.0/300.1 (anions), EPA Method 317.0 (trace halides), and ISO 14911 (cation analysis in water). The system’s hardware and firmware support audit-trail-enabled data integrity practices aligned with FDA 21 CFR Part 11 requirements when used with validated software configurations.

Software & Data Management

Bundled Ailun IC Control & Analysis Software provides comprehensive instrument control, sequence management, peak integration, and customizable reporting. Raw data are acquired via a 24-bit analog-to-digital converter, ensuring ≥100,000:1 dynamic range and sub-microsiemens conductivity resolution. Spectral and chromatographic outputs export natively to CSV, PDF, and XML formats; integration with Microsoft Excel and Word enables direct report generation, while spectral overlays and calibration curves are compatible with Adobe Photoshop and CorelDRAW for publication-ready figure preparation. All acquisition parameters, event logs, and user actions are timestamped and stored with digital signatures—facilitating full traceability for regulatory review and troubleshooting.

Applications

• Environmental monitoring: quantification of nitrate, phosphate, sulfate, and heavy metal cations in surface water, groundwater, and landfill leachate.
• Industrial process control: real-time monitoring of chloride, fluoride, and sulfate in electroplating baths, semiconductor rinse waters, and battery electrolytes.
• Pharmaceutical quality control: assay of counterions (e.g., Na⁺, K⁺, Cl⁻) in APIs and excipients per ICH Q2(R2) guidelines.
• Food & beverage safety: detection of preservative anions (benzoate, sorbate), nitrite in cured meats, and iodide in dairy products.
• Nuclear and defense sectors: trace-level analysis of corrosion-inducing anions (Cl⁻, SO₄²⁻) in coolant loops and decontamination solutions.

FAQ

Does the YC7000 support gradient elution?
Yes—the system supports dual-pump gradient capability via optional auxiliary pump module, enabling programmed eluent concentration changes for complex multi-ion separations.
Is the suppressor cartridge replaceable or permanently installed?
The integrated suppressor is field-replaceable with standardized fittings; typical service life exceeds 2,000 injections under recommended operating conditions.
Can the instrument be integrated into a LIMS environment?
Yes—via configurable ODBC drivers and ASCII-based data export protocols, the YC7000 supports bidirectional communication with major LIMS platforms for automated result ingestion and sample tracking.
What is the minimum detectable concentration for chloride using the conductivity detector?
Under optimized conditions (25 °C, 1.0 mL/min flow, AS19 column), the limit of detection (LOD, S/N = 3) is ≤0.05 µg/L for Cl⁻ in ultrapure water matrix.
Is remote diagnostics supported?
Remote access for firmware updates and basic diagnostic queries is available through secure SSH tunneling; full remote control requires on-premise VPN configuration and IT policy approval.
