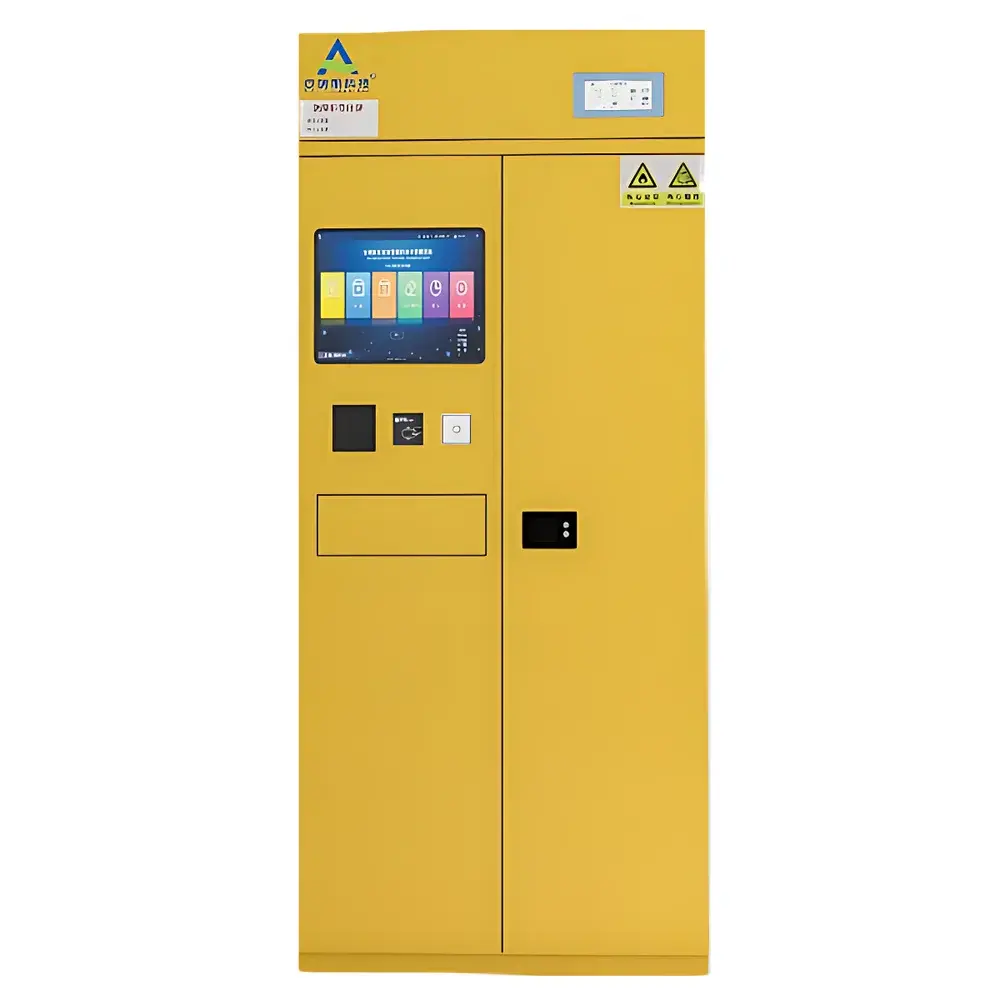

Airs AES-45 FR Smart Chemical Storage Cabinet with RFID and Facial Recognition
| Brand | Airs |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | AES-45 FR (RFID-enabled) |
| Pricing | Available upon Request |
Overview
The Airs AES-45 FR Smart Chemical Storage Cabinet is an engineered safety solution for controlled, auditable, and intelligent storage of hazardous and regulated chemicals in research laboratories, pharmaceutical QC facilities, and industrial R&D environments. Built upon a Class I, Type B2 recirculating fume cabinet architecture with integrated active carbon filtration and real-time airflow monitoring, the cabinet combines physical containment with digital inventory governance. Its core functionality rests on three interlocking systems: (1) hardware-level chemical exposure control via certified airflow velocity (0.5 m/s face velocity, compliant with EN 14175-3 and ANSI/ASHRAE 110), (2) RFID-based item-level tracking of containers (ISO 18000-6C/EPC Gen2 compatible), and (3) embedded Windows 10 IoT Enterprise software enabling role-based access, audit-trail logging, and GLP-aligned inventory lifecycle management.
Key Features
- 15-inch industrial-grade capacitive touch display with Airs Touch HMI interface — optimized for gloved operation and chemical-resistant surface coating
- Integrated facial recognition module (ISO/IEC 30107-1 compliant) for biometric user authentication and session logging
- Real-time cabinet status dashboard: fan operational state, filter saturation level (% remaining life), cumulative runtime, door-open duration, and fault code diagnostics (e.g., F07 = airflow deviation >±10%, F12 = RFID reader timeout)
- Automated post-closure inventory reconciliation: RFID antenna array scans all tagged containers within 8 seconds of door closure; discrepancies trigger immediate alert
- Configurable threshold alerts: low-stock notification (user-defined minimum quantity), expiry warning (based on batch-managed shelf-life metadata), overdue return (for loaned reagents), and unauthorized removal (door-open >90 s without valid check-out event)
- Remote administrative access via TLS 1.2-encrypted web portal; supports concurrent multi-site monitoring and firmware over-the-air (FOTA) updates
Sample Compatibility & Compliance
The AES-45 FR accommodates standard laboratory containers including glass bottles (up to 4 L), HDPE carboys (≤20 L), aerosol cans, and solvent-safe plastic jerricans. Internal shelving is adjustable in 25 mm increments and constructed from epoxy-coated steel with 150 mm deep spill containment trays. The cabinet meets CE marking requirements under the Machinery Directive 2006/42/EC and the EMC Directive 2014/30/EU. Filtration performance complies with DIN EN 1822-1:2020 for particulate retention and ASTM D5233-21 for VOC adsorption capacity verification. Data integrity features—including immutable timestamped logs, user-specific action records, and electronic signature support—align with FDA 21 CFR Part 11 Annex 11 and ISO/IEC 17025:2017 clause 7.11 requirements for traceable chemical handling.
Software & Data Management
The embedded Windows 10 IoT Enterprise OS hosts the Airs ChemLog™ v4.2 application suite, designed for ISO 13485 and GxP-regulated workflows. All inventory transactions generate ALM (Audit Log Management) entries with SHA-256 hashed integrity verification. Reports export in PDF/A-1b or CSV formats with optional digital signature embedding. Role-based permissions (Admin, Lab Manager, Technician, Guest) enforce separation of duties; password policies enforce minimum 12-character length, complexity rules, and 90-day rotation. System logs retain ≥18 months of data locally and support automated daily backup to network-attached storage (NAS) or validated cloud endpoints (AWS S3 GovCloud or Azure Government regions).
Applications
- Regulatory-compliant storage of cytotoxic agents in oncology research labs (per USP handling protocols)
- Controlled access to DEA Schedule II–IV substances in academic chemistry departments (supporting DEA Form 222 audit trails)
- Inventory reconciliation for ISO 17025-accredited calibration standards (certified reference materials with expiration tracking)
- Preventive maintenance scheduling for activated carbon filters based on cumulative VOC loading estimates (calculated from logged usage patterns and compound-specific breakthrough curves)
- Integration with LIMS platforms (e.g., Thermo Fisher SampleManager, LabVantage) via RESTful API for bidirectional inventory synchronization
FAQ
Does the AES-45 FR support integration with existing enterprise identity providers (e.g., Active Directory or Azure AD)?
Yes — the system supports SAML 2.0 and LDAP v3 protocols for centralized user provisioning and single sign-on (SSO) configuration.
What RFID tag standards are natively supported?
The cabinet reads ISO 18000-6C (EPC Gen2) passive UHF tags operating at 902–928 MHz; tag orientation tolerance ±45°; read range up to 30 cm per antenna zone.
Is the facial recognition module GDPR-compliant for biometric data processing?
Biometric templates are stored exclusively on-device in encrypted TPM 2.0 memory; raw images are never captured, transmitted, or retained.
Can the cabinet operate offline while maintaining full audit functionality?
Yes — all logging, authentication, and inventory reconciliation occur locally; sync to central servers resumes automatically upon network restoration without data loss.
What documentation is provided for validation (IQ/OQ/PQ)?
A complete validation toolkit is included: URS template, FAT/SAT protocols, calibration certificates for airflow sensors and RFID readers, and pre-validated test scripts aligned with ASTM E2500-13.
