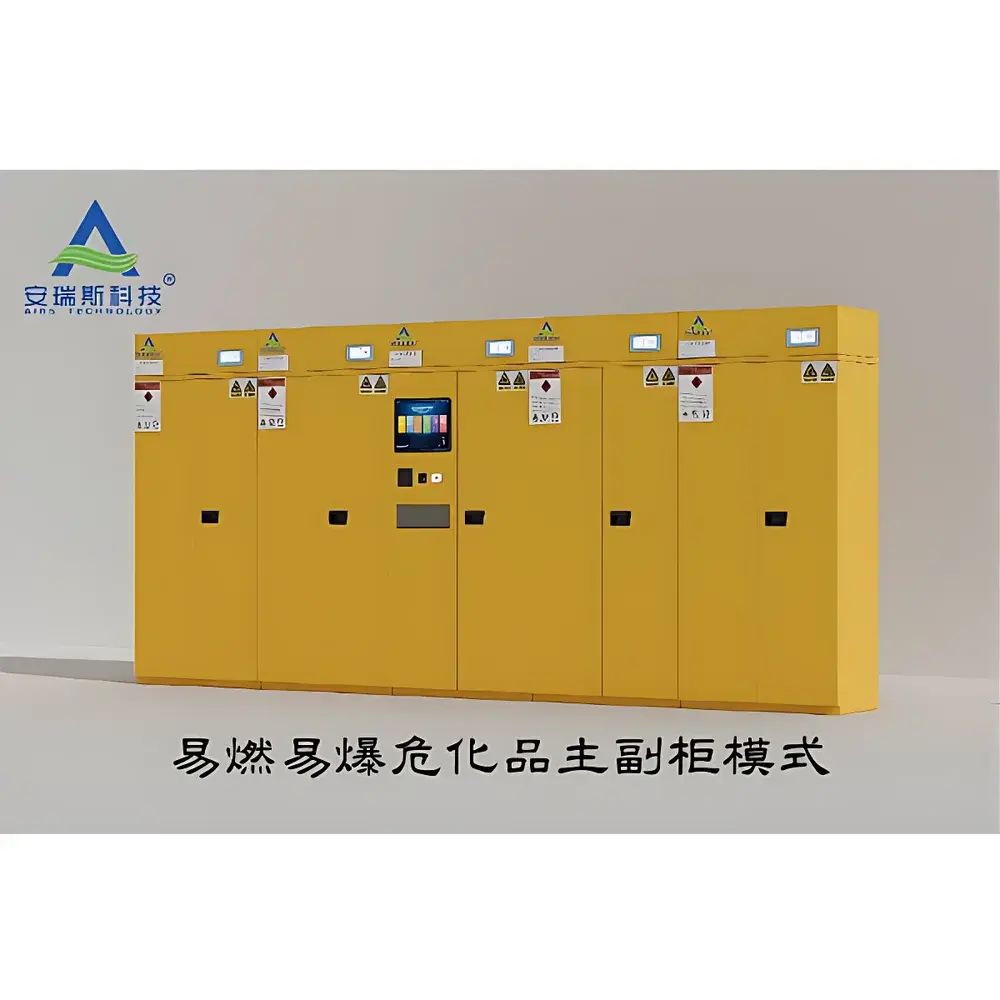

Airs AES-45FR Smart Chemical Storage Cabinet
| Brand | Airs |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | AES-45FR (Fire-Rated Version) |
| Pricing | Available Upon Request |
Overview
The Airs AES-45FR Smart Chemical Storage Cabinet is an engineered safety solution designed for regulated laboratory and industrial environments requiring secure, intelligent, and compliant storage of hazardous chemicals. Built to meet NFPA 30 and OSHA 1910.106 fire-resistance standards, the cabinet features a double-walled steel construction with 1.5-inch insulating air gap and intumescent door seals—certified for 45-minute fire endurance (UL 1275 Class 120). Unlike conventional ventilated cabinets, the AES-45FR integrates real-time environmental monitoring, active vapor containment via dual-stage filtration, and digital inventory governance—all coordinated through a purpose-built industrial control architecture. Its core function extends beyond passive containment: it actively manages chemical lifecycle data, access integrity, and operational compliance in alignment with ISO/IEC 17025 quality management systems and GLP audit requirements.
Key Features
- 15-inch industrial-grade touchscreen HMI running Windows 10 IoT Enterprise, hardened for continuous operation in laboratory ambient conditions (operating temperature: 5–40°C; humidity: 20–80% RH non-condensing)
- Integrated facial recognition module compliant with ISO/IEC 30107-1 (Presentation Attack Detection Level 1), supporting role-based access control (RBAC) with audit trail logging per user session
- Dual-stage filtration system: pre-filter (G4 class) + activated carbon + HEPA H14 (≥99.995% @ 0.1 µm), with real-time filter saturation monitoring and predictive lifespan calculation based on cumulative airflow and VOC load history
- Automated inventory reconciliation: RFID-enabled door-integrated sensor array triggers full cabinet scan upon closure, cross-referencing barcode/RFID-tagged containers against master database
- Smart alerting engine: configurable thresholds for low-stock alerts (by mass or expiration date), overdue return notifications, unauthorized access attempts, and abnormal dispensing patterns (e.g., repeated high-volume withdrawals within short intervals)
- Fan fault detection with self-diagnostic code display (e.g., E03 = motor phase loss; E17 = static pressure sensor drift), enabling rapid root-cause identification without service technician dispatch
Sample Compatibility & Compliance
The AES-45FR accommodates standard UN-certified chemical containers up to 4 L (including glass bottles, HDPE carboys, and metal cans) across common hazard classes: flammables (Class I–III), corrosives (pH ≤2 or ≥12), toxics (LD50 ≤200 mg/kg), and oxidizers. Internal shelf configuration supports adjustable 3-point leveling (±2 mm tolerance) and spill-containment sumps rated to 110% of largest container volume. The cabinet complies with EN 14470-1:2019 (fire resistance), DIN 5510-2 S4 (railway fire behavior), and meets the mechanical strength requirements of ASTM F2656-20 (vehicle impact resistance at 30 mph). All electronic subsystems are CE-marked and operate within EMC Class B limits per EN 61326-1.
Software & Data Management
The embedded AirsChemOS v3.2 firmware provides local data persistence with optional cloud synchronization via TLS 1.3-encrypted MQTT protocol. Audit logs—including user login/logout timestamps, door open/close events, filter status changes, and inventory modification records—are stored with SHA-256 hashing and immutable write-once storage. Remote administration is accessible through HTTPS-secured web portal (no third-party cloud dependency), supporting multi-site deployment with centralized policy enforcement. Data export formats include CSV (for LIMS integration), PDF (compliance reports), and XML (FDA 21 CFR Part 11-compliant electronic signatures enabled via optional PKI module).
Applications
- Academic and contract research laboratories managing diverse chemical inventories under NIH or NSF grant reporting requirements
- Pharmaceutical QC/QA labs maintaining traceability for reference standards and stability-indicating reagents per USP and ICH Q7
- Microelectronics fabrication facilities storing ultra-high-purity solvents where particulate and metallic contamination must be minimized
- Government forensic labs requiring chain-of-custody documentation for evidentiary chemical samples
- University teaching labs enforcing student accountability and minimizing solvent waste through usage analytics
FAQ
Does the AES-45FR support integration with existing LIMS or ERP systems?
Yes—via RESTful API endpoints and configurable ODBC drivers compatible with LabWare LIMS, Thermo Fisher SampleManager, and SAP S/4HANA.
What is the maximum allowable static load per shelf?
Each fully extended shelf supports 75 kg uniformly distributed load, tested per EN 14470-1 Annex D (static deflection ≤1.5 mm at center point).
Is the facial recognition system GDPR-compliant for EU-based institutions?
Yes—the biometric template is stored locally in encrypted enclave (TPM 2.0), never transmitted or retained beyond authentication session; full opt-in consent workflow included.
Can filter replacement be performed by lab personnel without certified service technicians?
Yes—modular filter cartridges feature tool-free bayonet locking and auto-calibration upon insertion; replacement procedure requires <2 minutes and is documented in onboard video tutorial.
How does the cabinet handle power outages or network disconnection?
All critical functions—including door lock actuation, fan emergency shutdown, and volatile compound detection—remain operational via integrated 24 VDC backup battery (72-hour hold-up time); local database sync resumes automatically upon network restoration.
