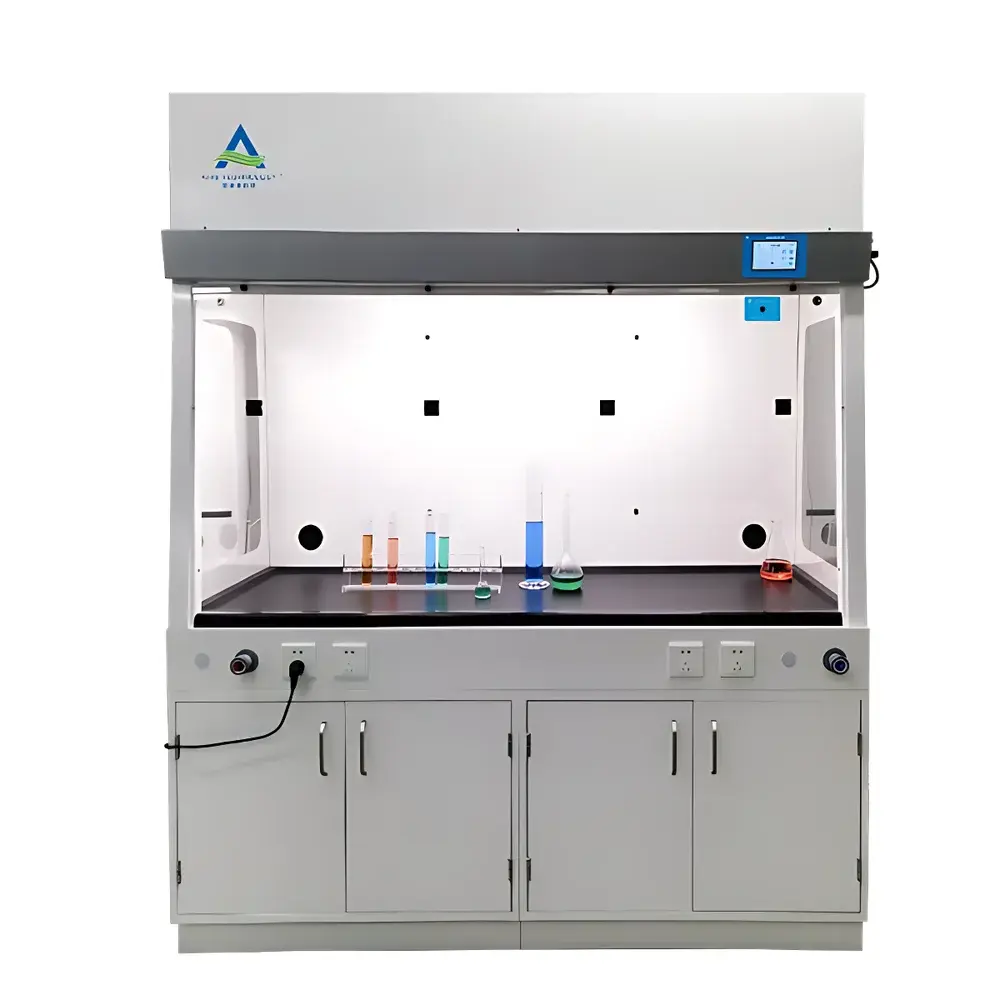

Airs AFH1503 Ductless Fume Hood

Overview

The Airs AFH1503 Ductless Fume Hood is an all-steel, recirculating chemical containment system engineered for precision, safety, and operational flexibility in modern laboratories. Unlike conventional ducted hoods requiring complex HVAC integration and dedicated exhaust infrastructure, the AFH1503 employs a self-contained airflow management architecture based on dual-stage filtration—comprising pre-filters for particulate capture and high-efficiency activated carbon filters for volatile organic compounds (VOCs), acids, aldehydes, and other common laboratory vapors. Its face velocity range of 0.4–0.6 m/s complies with internationally recognized performance thresholds for operator protection as defined in EN 14175-3 and aligns with best practices outlined in ANSI/ASHRAE 110 and ISO 10975. The unit operates via an integrated EC centrifugal blower, delivering consistent airflow without external ductwork or make-up air systems—reducing both installation complexity and HVAC energy load by up to 70% compared to traditional ducted alternatives.

Key Features

• All-steel construction with epoxy-powder-coated finish for corrosion resistance and cleanroom-compatible surface integrity
• Real-time monitoring of critical safety parameters—including face velocity, filter saturation status, internal temperature, and operational runtime—via intuitive 5-inch capacitive touch interface
• Smart connectivity: QR-code-based pairing enables remote monitoring and control via iOS/Android mobile application; supports historical log retrieval (e.g., filter life tracking, alarm events, power-on cycles)
• Modular deployment options: available in both benchtop configuration (for integration onto existing lab benches) and freestanding floor-model variants, optionally equipped with locking casters for repositioning within shared lab spaces
• Low-noise operation (≤54 dB[A]) achieved through acoustic insulation and optimized fan blade geometry, supporting quiet environments such as teaching labs and quality control suites
• Energy-efficient design: 60 W nominal power draw supports continuous 24/7 operation while maintaining compliance with IEC 60335-1 safety standards for electrical appliances

Sample Compatibility & Compliance

The AFH1503 is validated for use with low-to-moderate hazard chemicals commonly encountered in academic research, pharmaceutical QC, clinical diagnostics, and industrial R&D settings—including ethanol, acetone, methanol, hydrochloric acid (dilute), ammonia solutions, and formaldehyde (at concentrations below occupational exposure limits). It is not intended for perchloric acid, radioactive isotopes, or highly toxic agents requiring dedicated scrubber systems. Filter replacement intervals are determined dynamically based on real-time VOC adsorption metrics and cumulative runtime; typical service life ranges from 6–12 months depending on usage intensity and chemical profile. The hood conforms to structural and performance requirements specified in EN 14175-3 (2021) for ductless fume cabinets and meets mechanical safety provisions of ISO 10975:2018. Optional documentation packages support GLP-compliant validation protocols, including IQ/OQ templates and traceable calibration records.

Software & Data Management

The embedded firmware implements non-volatile data logging with timestamped entries for all operational events—fan status, filter efficiency decay, abnormal airflow deviations (>±10% from setpoint), and user-initiated commands. Logged data is exportable in CSV format via USB-C port or cloud-synced (with optional on-premise server deployment). Mobile application functionality includes push notifications for maintenance alerts (e.g., “Carbon filter at 90% saturation”), multi-device fleet management dashboards, and role-based access controls aligned with FDA 21 CFR Part 11 principles where electronic records are required. Audit trails retain full metadata—including operator ID, action type, and system time—ensuring regulatory readiness during inspections.

Applications

• Chemical synthesis and small-scale reaction monitoring in university teaching laboratories
• Reagent dispensing and sample preparation in clinical pathology and biotech QA/QC workflows
• Electroplating bath maintenance and solvent-based cleaning in microelectronics prototyping labs
• Pharmaceutical stability testing involving volatile excipients under ambient conditions
• Field-deployable containment for temporary lab setups, mobile diagnostic units, or renovation-constrained facilities

FAQ

Does the AFH1503 require external ducting or building HVAC modifications?
No. It is a fully self-contained ductless system with integrated blower and filtration—no exhaust piping, roof penetrations, or dedicated makeup air supply are needed.
How often must the carbon filter be replaced?
Filter replacement frequency depends on chemical exposure profile and usage duration; the system provides predictive alerts based on real-time adsorption modeling and cumulative runtime—typically every 6–12 months.
Can this hood be used for perchloric acid or hydrogen sulfide applications?
No. The AFH1503 is not rated for oxidizing acids, pyrophoric substances, or gases requiring specialized chemisorption media; consult Airs technical support for alternative containment solutions.
Is the mobile caster option compatible with all floor types?
Yes—the heavy-duty dual-brake casters are rated for smooth concrete, vinyl composite tile (VCT), and epoxy resin flooring; load capacity is 120 kg per caster.
What regulatory documentation is provided with purchase?
Standard delivery includes CE Declaration of Conformity, EN 14175-3 test report summary, electrical safety certificate (IEC 60335-1), and filter performance datasheets; full validation kits available upon request.
