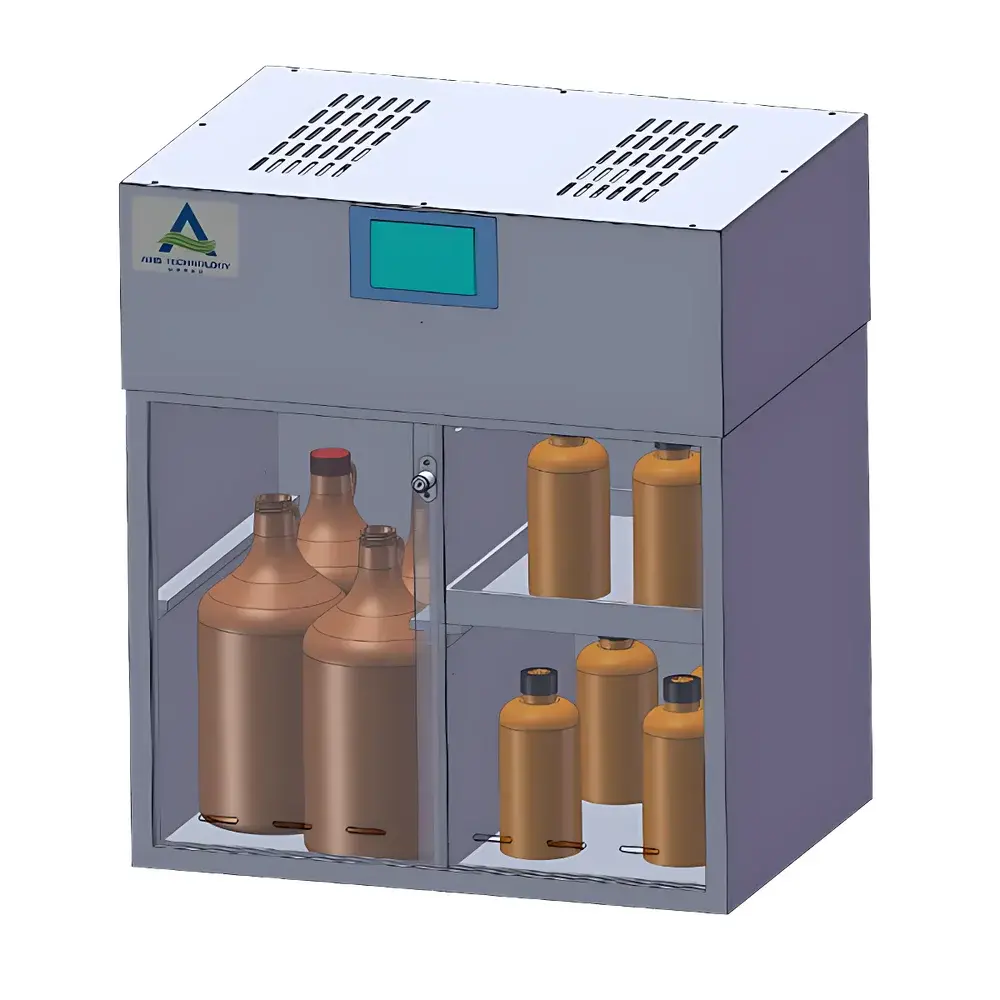

Airs AGS 450 PP Smart Air-Purifying Chemical Storage Cabinet

Overview

The Airs AGS 450 PP Smart Air-Purifying Chemical Storage Cabinet is an engineered containment solution designed for safe, low-emission storage of corrosive and volatile chemicals in laboratory environments. Unlike conventional ventilated cabinets that exhaust conditioned air to the outside, this unit operates on a closed-loop recirculation principle: ambient air is drawn through a dual-stage filtration system—comprising pre-filtration and chemically selective adsorption media—then returned to the lab space. This design maintains positive pressure within the laboratory or cleanroom, reduces HVAC load by minimizing required air exchange rates (ACH), and supports energy-efficient facility operation without compromising chemical safety. Constructed entirely from corrosion-resistant polypropylene (PP), the cabinet resists degradation from strong acids (e.g., hydrochloric acid, nitric acid), bases, and organic solvents, making it suitable for long-term deployment in QC labs, pharmaceutical R&D suites, and university chemistry departments.

Key Features

• Fully PP-welded monocoque structure with seamless interior joints—eliminates crevices where chemical residue can accumulate and degrade material integrity.
• Modular filtration architecture supporting interchangeable filter cartridges: 1C molecular filter (impregnated activated carbon + specialty chemisorbents) for acidic vapors and organic volatiles; 1P particulate filter (HEPA-grade) for aerosols and dust generated during reagent handling.
• Airs Touch HMI—a 5-inch medical-grade capacitive touchscreen—provides real-time visualization of operational parameters including cumulative fan runtime, remaining filter service life (%), active alarm status, and door-open duration history.
• Integrated environmental monitoring logic: automatic fan speed modulation based on internal VOC concentration trends (via onboard semiconductor sensor array), door-open event logging, and configurable audible/visual alerts for maintenance thresholds.
• Transparent acrylic sliding door with ergonomic handle and smooth linear rail mechanism—enables unobstructed visual verification of contents while maintaining consistent airflow dynamics across the face velocity profile.
• Mechanical three-point locking system compliant with ANSI Z358.1-2014 secondary containment access control recommendations for hazardous material storage areas.

Sample Compatibility & Compliance

The AGS 450 PP accommodates standard laboratory containers—including glass and HDPE bottles (500 mL to 4 L), dropper bottles, and solvent dispensers—without requiring custom shelving. Its PP interior surface exhibits excellent resistance to ASTM D543-acid immersion tests (20% HCl, 65% HNO₃, 30% NaOH at 23 °C for 7 days). While not certified to UL 1275 or EN 14470-1 as a fire-rated safety cabinet, its design aligns with OSHA 1910.1200 (HCS) and CLSI GP35-A4 guidance for non-ignitable chemical storage under controlled ventilation conditions. The filtration performance meets ISO 16000-23 for indoor air quality impact assessment when operated per manufacturer-specified duty cycles.

Software & Data Management

The Airs Touch interface supports audit-ready data capture: all critical events—including door openings, filter replacement timestamps, fan fault occurrences, and manual mode overrides—are time-stamped and stored locally for ≥12 months. Optional RS-485 Modbus RTU output enables integration into centralized BMS or LIMS platforms for GLP-compliant recordkeeping. No cloud connectivity is embedded; all firmware updates are performed via secure USB interface to satisfy institutional IT security policies. Event logs comply with ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available) for regulated environments.

Applications

• Secure storage of concentrated mineral acids and oxidizers in analytical chemistry laboratories where fume hood availability is constrained.
• Point-of-use reagent staging in GMP-compliant manufacturing support labs, reducing cross-contamination risk during preparation of calibration standards.
• Under-bench integration in cytology or histopathology workstations to isolate formaldehyde-containing solutions while preserving laminar airflow integrity.
• Teaching lab deployment where mechanical lock access control and transparent visibility meet pedagogical safety requirements without infrastructure retrofitting.
• Field-deployable mobile labs requiring zero external ducting and minimal power draw (rated ≤120 W continuous).

FAQ

Does the AGS 450 PP require external ductwork or make-up air connections?
No. It is a self-contained recirculating system and operates independently of building HVAC infrastructure.
How often must the 1C or 1P filter be replaced?
Filter service life depends on chemical loading and exposure frequency; typical range is 6–12 months under moderate use (≤20 door openings/day with 500 mL acid bottles); the Airs Touch interface calculates remaining life based on runtime and sensor-derived saturation metrics.
Can the cabinet be installed beneath a standard laboratory sink base?
Yes—the AGS 450 PP has a height of 450 mm and is specifically engineered for under-counter installation with ≥50 mm rear clearance for heat dissipation and service access.
Is the touchscreen interface compatible with glove use in PPE-compliant workflows?
Yes—the 5-inch Airs Touch panel supports gloved operation and features adjustable touch sensitivity calibrated for nitrile and latex gloves.
What documentation is provided for validation and qualification?
Each unit ships with Factory Acceptance Test (FAT) report, material compliance certificates (RoHS, REACH), PP resin traceability data, and filter media technical datasheets—including breakthrough capacity curves for common analytes (HCl, NO₂, acetone).
