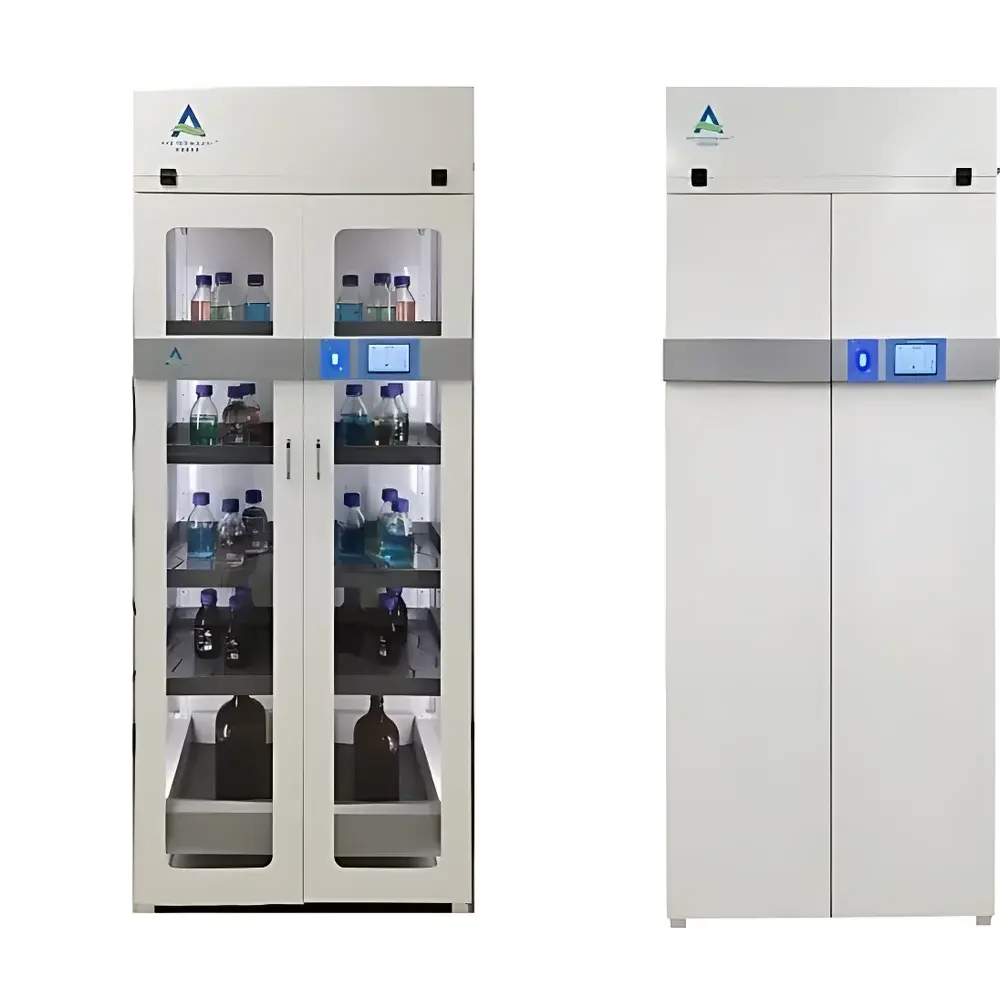

Airs AGS Smart Air-Purifying Chemical Storage Cabinet

Overview

The Airs AGS Smart Air-Purifying Chemical Storage Cabinet is an engineered solution for the safe, compliant, and intelligent containment of volatile, hazardous, and sensitive laboratory chemicals—including reference standards, solvents, reagents, and controlled substances. Unlike conventional ventilated cabinets that exhaust air externally via ductwork, the AGS operates as a recirculating, filter-based containment system. It maintains continuous negative-pressure airflow across the cabinet interior—ensuring no unfiltered vapor escape—and directs all airborne contaminants through a certified multi-stage filtration module. The core filtration architecture includes a pre-filter for particulates, an activated carbon bed for organic vapors (e.g., acetone, methanol, toluene), and optionally an impregnated carbon or HEPA layer for acidic gases or fine aerosols. This design eliminates structural ducting requirements while meeting local occupational exposure limit (OEL) compliance under EN 689 and adhering to ventilation performance benchmarks defined in EN 14175-3 for laboratory containment devices.

Key Features

• Continuous negative-pressure ventilation at 230 m³/h—validated per ISO 10793-2 airflow uniformity protocols
• Real-time embedded monitoring of fan RPM, filter saturation status (via pressure differential sensors), ambient temperature (±0.5 °C accuracy), and relative humidity (±3% RH)
• 5-inch medical-grade capacitive touchscreen running Airs–Touch OS—supporting multi-user role-based access control (administrator, technician, auditor)
• Integrated audit trail logging compliant with GLP and FDA 21 CFR Part 11 requirements—records user ID, timestamp, compound name, CAS number, quantity removed, and duration of access
• Modular telescopic pull-out trays (optional)—constructed from chemically resistant polypropylene with anti-slip grooves and labeled RFID-tagged compartments
• Cloud-enabled mobile application (iOS/Android) providing push notifications for filter replacement alerts, door-open anomalies, or temperature excursions beyond configurable thresholds

Sample Compatibility & Compliance

The AGS cabinet accommodates glass, HDPE, and fluoropolymer containers ranging from 1 mL vials to 4 L solvent bottles. Its internal layout supports IUPAC-compliant segregation of incompatible chemical classes (oxidizers, flammables, toxics, corrosives) via color-coded zone labeling and physical partitioning. All materials in contact with stored substances meet USP Class VI biocompatibility and REACH SVHC-free declarations. The system is designed to operate within ambient lab conditions of 15–30 °C and ≤80% RH non-condensing. While not classified as a fume hood per EN 14175-1, its containment performance aligns with ISO 15714:2020 criteria for “low-risk vapor management” in analytical QC and R&D laboratories—making it suitable for storage of WHO-referenced standard solutions, USP monograph compounds, and ISO/IEC 17025-accredited reference material inventories.

Software & Data Management

The Airs–Touch OS firmware supports CSV export of full audit logs, customizable alert profiles, and scheduled filter life diagnostics. Data encryption follows AES-256 standards; all remote app communications use TLS 1.3. Audit trails are immutable and time-stamped with NIST-traceable network time protocol (NTP) synchronization. For enterprise integration, the cabinet offers optional RESTful API endpoints compatible with LIMS platforms (e.g., LabWare, Thermo Fisher SampleManager) and electronic lab notebooks (e.g., Benchling, LabArchives). Electronic signatures are supported for critical actions such as filter change validation and inventory reconciliation—fully satisfying ALCOA+ data integrity principles.

Applications

• Secure, traceable storage of certified reference materials (CRMs) and working standards in pharmaceutical QC labs operating under ICH Q5, Q7, and EU GMP Annex 19 guidelines
• Controlled environment for stability-indicating assay reagents requiring thermal and vapor isolation (e.g., hydrazine derivatives, peroxide-forming ethers)
• Compliance-ready chemical inventory management in academic research facilities subject to NIH Chemical Hygiene Plan (CHP) requirements
• High-frequency access zones in clinical chemistry labs storing calibrators and controls with strict lot-tracking mandates
• Reduction of HVAC load in LEED-certified laboratories by eliminating dedicated ducted exhaust infrastructure

FAQ

Does the AGS cabinet require external ducting?
No—it is a self-contained, recirculating air-purification system. All air is filtered and returned to the lab environment.
How often must the filter module be replaced?
Filter service intervals depend on chemical usage profile and are dynamically calculated based on real-time VOC sensor feedback and cumulative airflow metrics—typically every 6–12 months under standard academic lab conditions.
Can the AGS integrate with existing laboratory information management systems (LIMS)?
Yes—via optional API license, supporting bidirectional exchange of compound metadata, storage location, and audit events.
Is the touchscreen interface compatible with gloved operation?
Yes—the Airs–Touch OS is calibrated for responsive input with nitrile and latex gloves, meeting IEC 61000-4-2 ESD immunity standards.
What certifications does the AGS hold?
CE marking per Machinery Directive 2006/42/EC and EMC Directive 2014/30/EU; RoHS 2011/65/EU compliant; tested to UL 61010-1:2012 for laboratory equipment safety.
