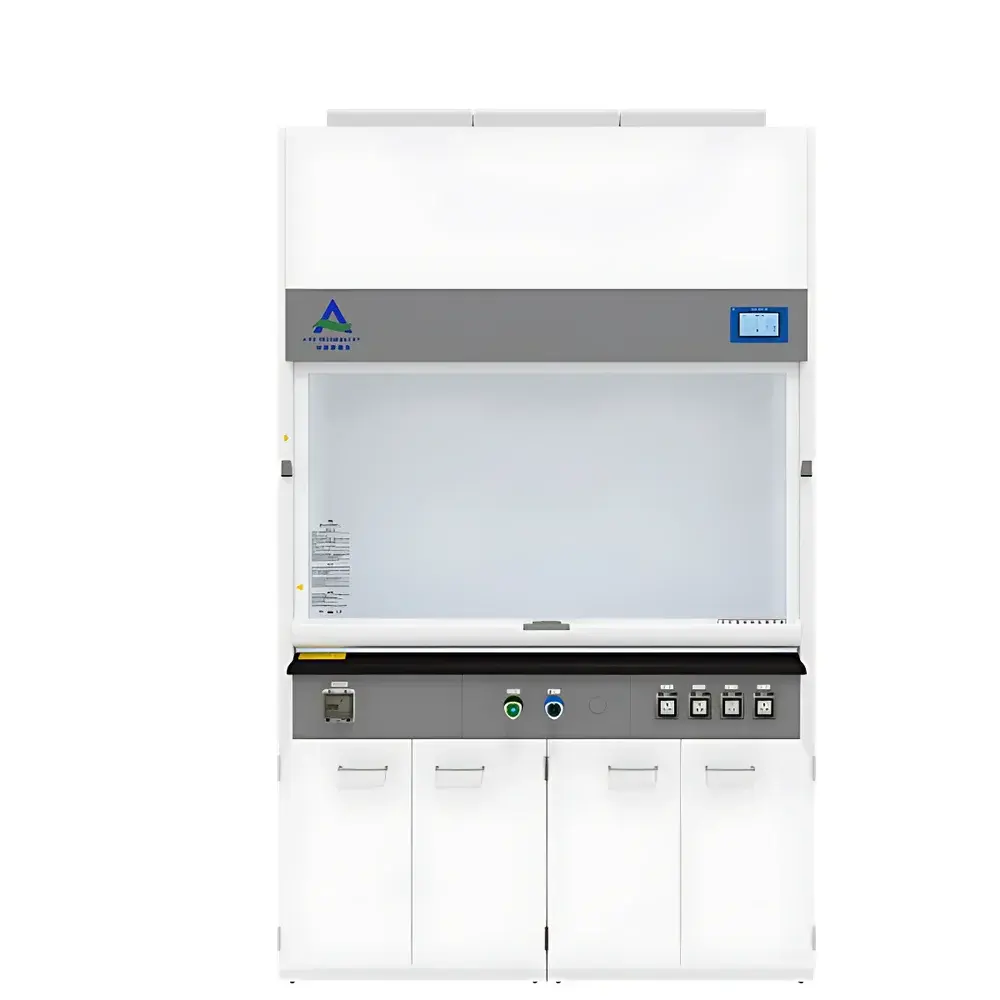

Airs ATH1503 Premium Recirculating Ductless Fume Hood

Overview

The Airs ATH1503 Premium Recirculating Ductless Fume Hood is an engineered safety solution for laboratories requiring chemical containment without infrastructure-dependent ductwork. Designed according to the fundamental principles of aerodynamic containment and adsorptive filtration, it operates on a closed-loop recirculation principle: ambient air is drawn across the work surface at a controlled face velocity, passed sequentially through particulate and molecular filtration stages, and returned to the laboratory environment—eliminating exhaust duct installation while maintaining operator protection per ISO 10975:2022 and ANSI/ASHRAE 110-2016 performance benchmarks. Its monolithic white steel enclosure features an ultra-slim European-style profile (≤35 mm frame thickness), aligning with contemporary laboratory architecture standards for seamless integration into modular lab fit-outs. The vertically sliding sash enables unobstructed access, dual-purpose use (instrument storage and active experimentation), and ergonomic workflow continuity.

Key Features

• Fully welded cold-rolled steel construction with epoxy-powder-coated finish—resistant to corrosion from common solvents, acids, and bases per ASTM B117 salt-spray testing protocols.
• Intelligent adaptive airflow control system: real-time sash position sensing automatically modulates centrifugal blower speed to sustain face velocity within 0.4–0.6 m/s across sash heights from 100 mm to 750 mm—ensuring consistent containment regardless of operational configuration.
• Triple-stage filtration architecture: pre-filter (EN779 G4 grade) captures >90% of airborne particles ≥5 µm; primary HEPA filter (EN1822 H13) removes ≥99.95% of particles ≥0.3 µm; dual-bed molecular filter (impregnated activated carbon + potassium permanganate) achieves ≥90% adsorption efficiency for volatile organic compounds (VOCs), aldehydes, ammonia, hydrogen sulfide, and halogenated hydrocarbons per ISO 10121-1:2013 test conditions.
• Integrated high-efficiency LED lighting (500–600 lux at work surface, uniformity ≥0.7) with glare-reducing diffuser panel—compliant with EN 12464-1:2021 photometric requirements for laboratory task lighting.
• Embedded IoT-ready controller with QR-code-based mobile interface: enables remote start/stop, real-time airflow monitoring, filter saturation alerts, maintenance cycle logging, and event-driven anomaly reporting (e.g., low airflow, filter bypass, sensor drift)—all accessible via secure HTTPS web portal or native iOS/Android application.

Sample Compatibility & Compliance

The ATH1503 is validated for safe handling of low-to-moderate volatility chemicals including acetone, ethanol, methanol, formaldehyde (≤1 ppm), dilute HCl/HNO₃ (<10%), and non-radioactive iodine vapors. It is not intended for perchloric acid, hydrofluoric acid, radioactive isotopes, or nanoparticle synthesis processes. All filtration media are certified to ISO 16000-23:2017 for VOC removal verification. Device firmware supports audit-trail generation compliant with GLP (OECD Principles) and 21 CFR Part 11 Annex 11 requirements when deployed in regulated QC/QA environments. CE marking (EMC Directive 2014/30/EU, LVD Directive 2014/35/EU) and RoHS 2011/65/EU compliance are documented in the technical file.

Software & Data Management

The embedded controller runs AirsFumeOS v3.2—a deterministic real-time operating system with encrypted local data storage (2 GB flash memory). Filter life estimation employs dynamic mass-loading algorithms calibrated against breakthrough testing per ASTM D5228. All operational logs—including sash position history, fan RPM profiles, filter pressure differential trends, and user-initiated actions—are timestamped, digitally signed, and exportable as CSV or PDF reports. Optional integration with LabVantage LIMS or Thermo Fisher SampleManager via RESTful API enables automated filter replacement scheduling and regulatory documentation traceability.

Applications

• Chemical dispensing and reagent storage in analytical chemistry labs where duct retrofitting is prohibited.
• Preparation of standard solutions and calibration standards under ISO/IEC 17025-accredited conditions.
• Electron microscopy sample coating (sputtering, carbon evaporation) with solvent-based cleaning steps.
• Pharmaceutical stability testing support—handling excipients and low-hazard APIs during formulation development.
• University teaching labs requiring flexible, plug-and-play containment for undergraduate organic chemistry experiments.

FAQ

What certification standards does the ATH1503 meet for ductless fume hood performance?

It conforms to ISO 10975:2022 (ductless fume hood safety requirements), ANSI/ASHRAE 110-2016 (face velocity and containment testing), and EN 14175-7:2017 (type testing for recirculating hoods). Third-party verification reports are available upon request.
How often must the molecular filter be replaced?

Filter service intervals depend on chemical load and exposure duration. Under typical academic lab usage (4 hrs/day, mixed solvents), replacement is recommended every 6–12 months. The system provides predictive alerts based on cumulative VOC exposure metrics.
Can the ATH1503 be integrated into a building management system (BMS)?

Yes—via Modbus RTU over RS-485 or optional BACnet/IP gateway module, enabling centralized monitoring of airflow, power consumption, and alarm status across multi-unit installations.
Is the unit suitable for use with lithium battery testing chemicals?

It is approved for electrolyte solvents (e.g., EC/DMC mixtures) but not for thermal runaway off-gases (e.g., HF, PF₅) or metallic lithium handling. Application-specific risk assessment is required prior to deployment.
Does the device support GLP-compliant electronic signatures?

When configured with AirsFumeOS Enterprise License, it supports role-based user authentication, 21 CFR Part 11–compliant electronic signatures, and immutable audit trails for all critical operations.
