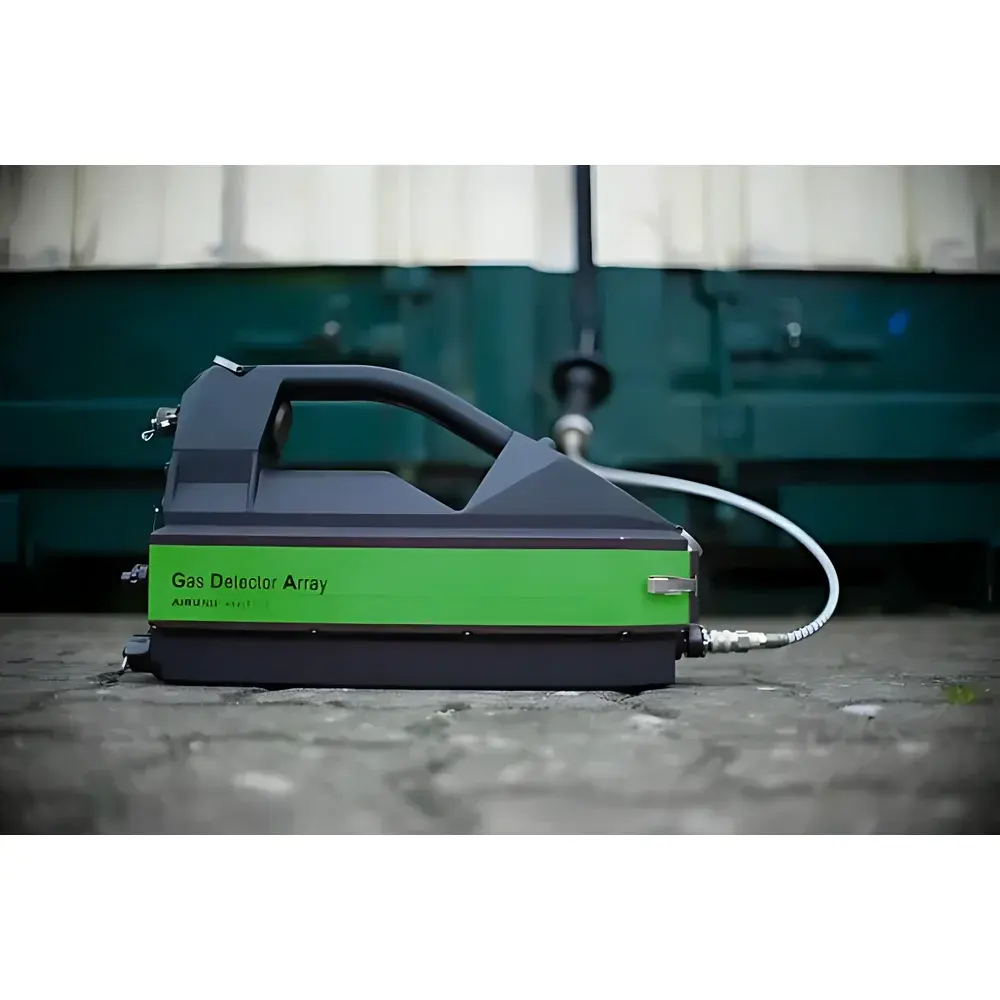

AIRSENSE GDA-F Portable Fumigant & Multi-Gas Detector for Container Inspection

Overview

The AIRSENSE GDA-F is a purpose-built portable fumigant and multi-gas detection system engineered for rapid, on-site screening of hazardous gases in maritime shipping containers. Designed specifically for port authority personnel, customs inspectors, and quarantine officers, the GDA-F employs a multi-sensor array architecture based on electrochemical, metal-oxide semiconductor (MOS), and photoionization detection (PID) principles—enabling simultaneous, real-time quantification of both inorganic toxicants (e.g., chlorine, hydrogen fluoride, hydrogen cyanide) and structurally diverse organic fumigants (e.g., chlorobenzene, toluene, methyl bromide degradation products). Unlike single-sensor gas monitors, the GDA-F’s parallel sensing configuration ensures cross-compensation for environmental interference and minimizes false positives during high-throughput container inspections. Its measurement principle adheres to ISO 16000-23 (indoor air — determination of volatile organic compounds) and aligns with EU Directive 2019/1020 on market surveillance of conformity assessment for safety-critical instruments.

Key Features

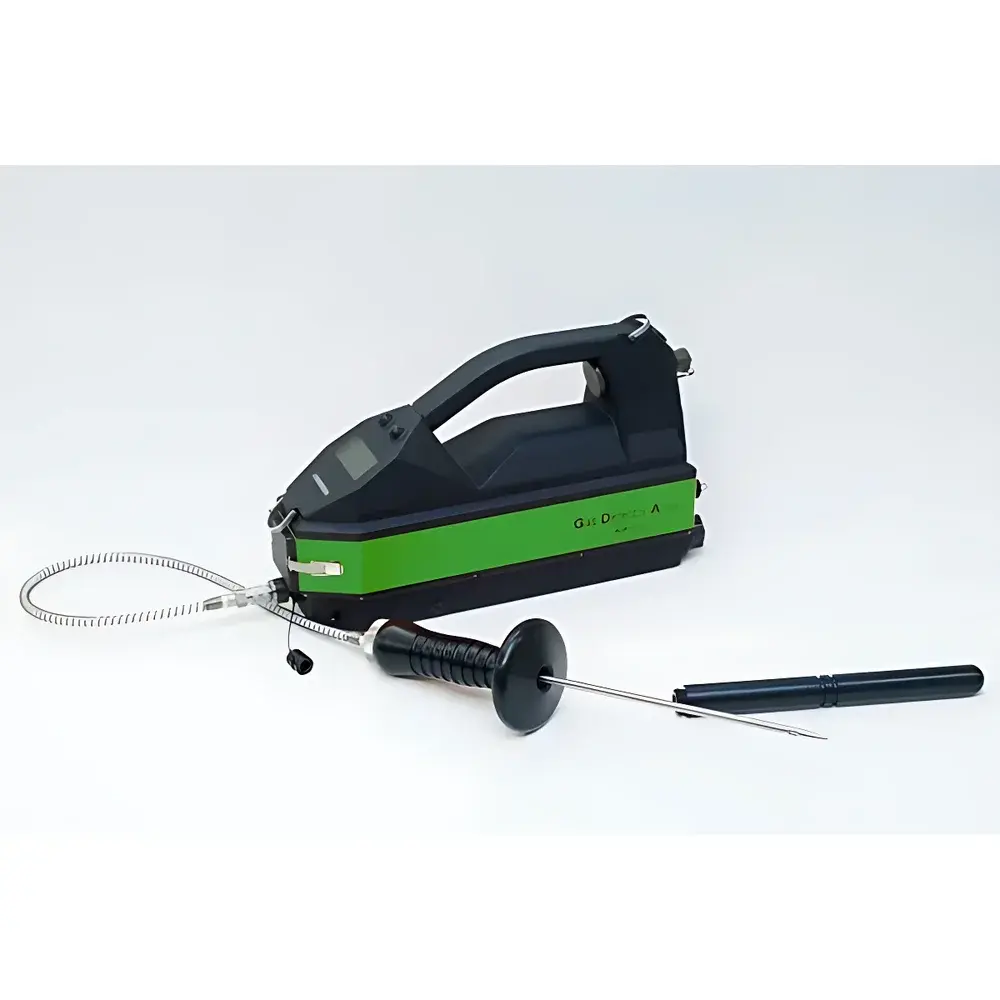

• Compact, hand-carried design weighing only 2 kg—optimized for field deployment across docks, rail yards, and bonded warehouses.

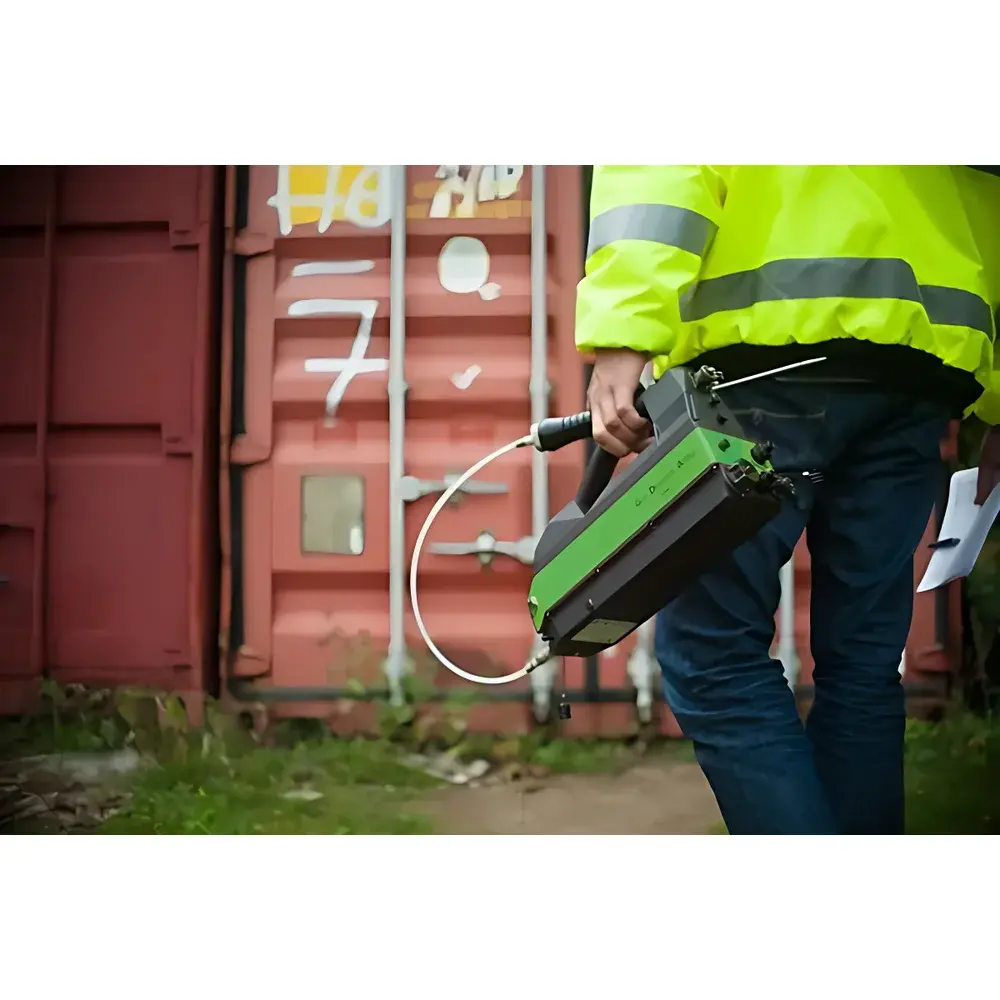

• Automatic continuous sampling via integrated pump with adjustable flow rate (100–500 mL/min), supporting both static headspace analysis and dynamic air draw from container apertures.
• Multi-modal sensor fusion: Electrochemical cells for Cl₂, HF, and HCN; MOS elements for broad-spectrum VOC detection; 10.6 eV PID lamp for aromatic and halogenated compound sensitivity down to sub-ppb levels.
• Real-time data logging with timestamped concentration profiles per container ID—compatible with export to CSV or XML for audit trail generation.
• Pre-configured inspection protocols validated by Hamburg Customs, including standardized dwell time, purge cycles, and alarm thresholds compliant with IMO MSC.1/Circ.1264 (Guidelines for Safe Handling of Fumigated Containers).
• Intuitive interface with tactile buttons and backlit OLED display—designed for gloved operation under variable lighting conditions.

Sample Compatibility & Compliance

The GDA-F is calibrated and verified for use in ambient-temperature environments (15–30 °C) with relative humidity ≤80% non-condensing. It supports direct sampling from open container doors, ventilation grilles, and intermodal seal points without auxiliary adapters. All sensors meet IEC 61000-4 electromagnetic compatibility standards and carry CE marking under the EU ATEX Directive 2014/34/EU (Category 3G, Zone 2). The instrument conforms to GLP-aligned documentation requirements—including sensor calibration certificates traceable to NIST standards—and supports 21 CFR Part 11-compliant electronic signatures when paired with AIRSENSE’s optional desktop verification software.

Software & Data Management

Data acquisition and reporting are managed through the AIRSENSE Connect Desktop Suite (v3.2+), which provides firmware updates, sensor health diagnostics, and customizable report templates aligned with ISPM No. 15 and FAO phytosanitary documentation frameworks. Each measurement session generates an immutable log file containing GPS coordinates (when connected to external module), operator ID, container number, ambient T/RH, and raw sensor response curves. Audit logs retain full revision history and user access records—meeting ISO/IEC 17025 clause 7.9 requirements for testing laboratories engaged in border phytosanitary verification.

Applications

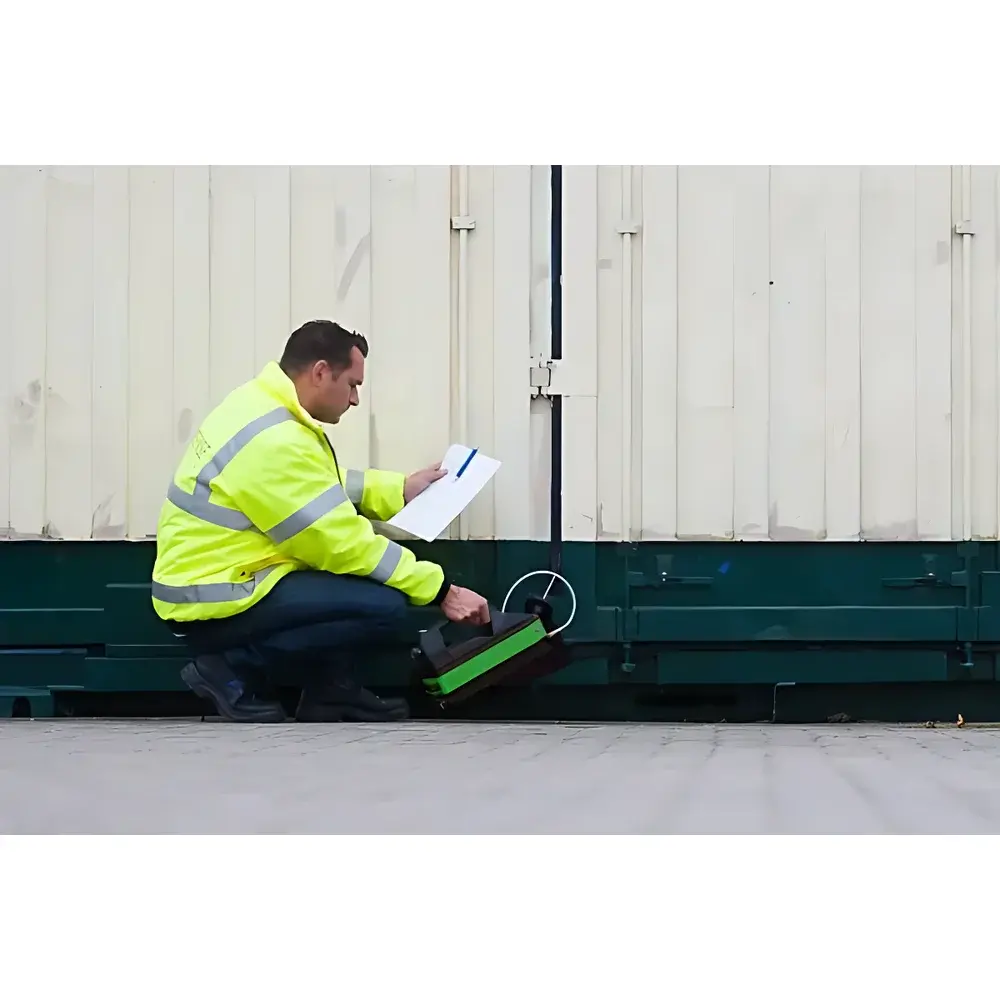

• Routine pre-unloading fumigant residue screening at seaports and inland container depots.
• Post-fumigation clearance verification for methyl bromide, sulfuryl fluoride, and phosphine-treated cargo.
• Emergency response to suspected chemical leakage or unauthorized fumigation incidents.
• Supporting national plant protection organizations (NPPOs) in fulfilling obligations under the International Plant Protection Convention (IPPC).
• Integration into automated container handling systems via Modbus RTU or RS-485 output for centralized monitoring dashboards.

FAQ

What fumigants does the GDA-F detect with certified accuracy?
The GDA-F is factory-calibrated for Cl₂, HF, HCN, chlorobenzene, toluene, and sulfuryl fluoride. Custom calibration kits for phosphine and methyl bromide are available upon request and require annual revalidation.
Can the GDA-F be used inside sealed containers?
No—it is designed for open-container or semi-ventilated sampling only. Forced-air entry into fully sealed units poses safety and regulatory noncompliance risks under IMO guidelines.
How often must sensors be recalibrated?
Electrochemical sensors require zero and span calibration every 30 days; PID lamps and MOS elements undergo functional verification weekly using certified challenge gases.
Is the GDA-F suitable for use in explosive atmospheres?
Yes—its housing meets IP65 ingress protection and ATEX Category 3G certification for use in Zone 2 gas hazardous areas.
Does the device support remote data transmission?
Standard configuration includes USB-C and Bluetooth 5.0; optional LTE-M module enables secure cloud upload to enterprise EHS platforms with TLS 1.3 encryption.
