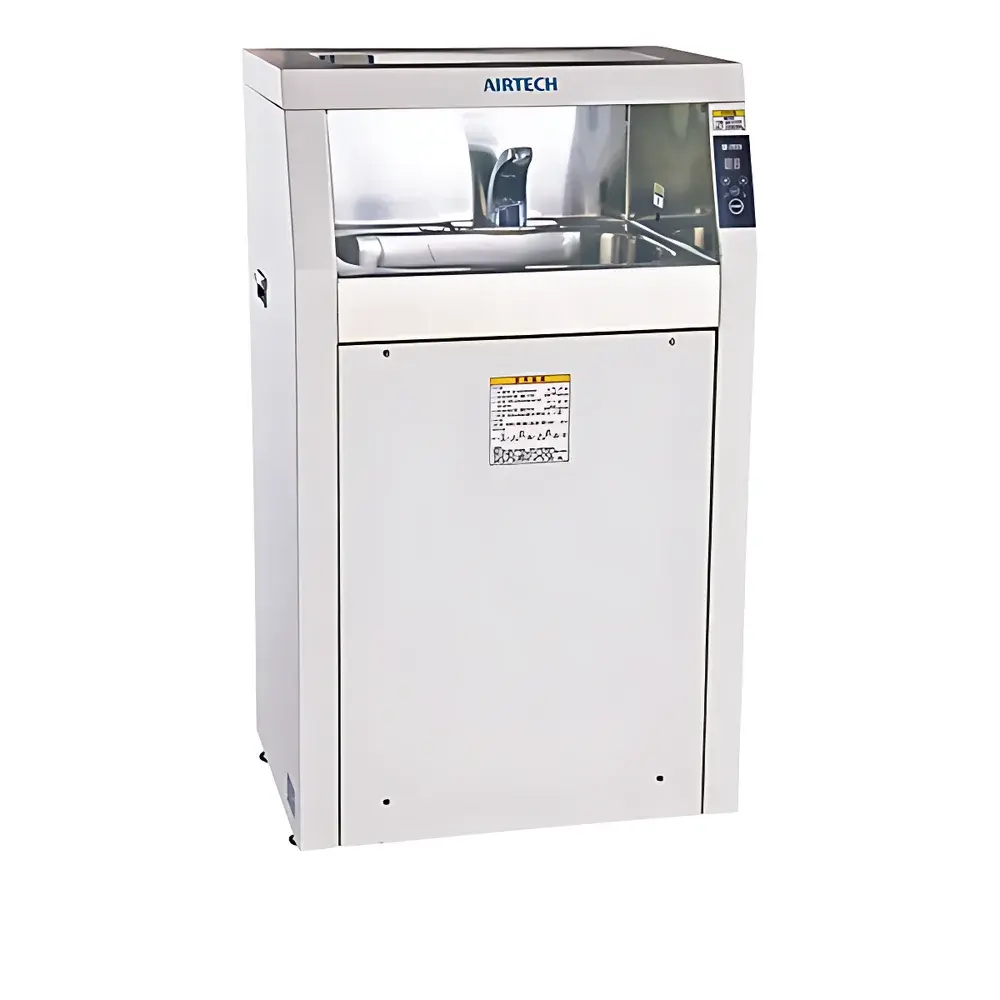

AIRTECH AHS-01DCIII Sterile Hand-Drying Unit with Integrated Handwashing Function

Overview

The AIRTECH AHS-01DCIII is an integrated sterile hand hygiene station engineered for controlled environments where microbial control and operational efficiency are critical—such as cleanrooms (ISO Class 5–8), pharmaceutical manufacturing suites, hospital isolation rooms, and biomedical laboratories. Unlike conventional hand dryers, the AHS-01DCIII combines automated handwashing and high-velocity sterile air drying within a single, space-optimized enclosure. Its core functionality relies on two validated engineering subsystems: a precision-controlled water delivery system with timed wash cycles, and a dual-stage air handling module incorporating a certified HEPA filter (≥99.99% @ ≥0.5 µm) followed by a low-turbulence, laminar-flow blower assembly. The resulting airflow is not merely filtered but actively conditioned to minimize particle resuspension and cross-contamination risk during drying—a key requirement aligned with ISO 14644-1 particulate cleanliness standards and EU GMP Annex 1 hygiene principles.

Key Features

• Integrated dual-mode operation: Sequential or independent activation of handwashing and air-drying functions via programmable logic controller (PLC)-based timing circuitry.
• HEPA-filtered airflow: Compliant with EN 1822-1:2019 classification H13, delivering ≥99.99% particle removal efficiency for particles ≥0.5 µm; optional upgrade to H14 available upon request.
• Adjustable cycle parameters: Touch-sensitive control panel enables precise setting of wash duration (0–99 s), rinse time, and dry time—supporting validation protocols and user-specific ergonomic requirements.
• Dual activation interface: Combines capacitive touch sensing (for intentional, deliberate actuation) with infrared proximity detection (for hands-free operation in gowning areas), enhancing reliability across varying glove materials and ambient lighting conditions.
• Modular construction: Enclosure fabricated from either electropolished stainless steel (SUS304) for corrosion resistance and cleanability per ISO 14644-3 surface finish requirements, or powder-coated SPCC cold-rolled steel for cost-optimized deployment in lower-risk support zones.
• Hydraulic integration readiness: Standardized 1/2″ BSP inlet and Φ32 mm gravity-fed drain connections enable seamless integration into existing facility plumbing infrastructure without custom adapters.

Sample Compatibility & Compliance

The AHS-01DCIII is designed for use with standard municipal potable water supplies meeting WHO Guidelines for Drinking-water Quality. It does not require chemical disinfectants or antimicrobial additives to achieve its stated hygienic performance—relying instead on physical removal (rinsing) and rapid moisture evaporation under laminar, particle-free airflow. The unit complies with IEC 61000-6-3 (EMC emission limits) and IEC 60335-1 (general safety requirements for household and similar electrical appliances). While not classified as a medical device under FDA 21 CFR Part 820, its design supports adherence to USP environmental monitoring expectations and facilitates documentation for ISO 9001/13485 quality management system audits. All wetted components meet FDA-compliant material specifications (e.g., EPDM seals, 304 SS valves).

Software & Data Management

The AHS-01DCIII operates via embedded firmware with non-volatile memory for cycle parameter retention and usage logging. Event logs—including total actuations, average cycle duration, and fault codes—are accessible via USB export for trend analysis and preventive maintenance scheduling. Though it lacks network connectivity or cloud integration, its log structure conforms to GLP-aligned record-keeping practices: timestamps are hardware-synchronized, entries are immutable post-write, and audit trails include operator ID (if paired with external access control systems). Optional RS-485 Modbus RTU interface allows integration into building management systems (BMS) for centralized monitoring of operational status and energy consumption.

Applications

• Cleanroom gowning and de-gowning corridors requiring sequential hand hygiene before entry/exit.
• Pharmaceutical aseptic processing isolators where manual towel use introduces fiber shedding risks.
• Research animal facilities adhering to AAALAC International standards for personnel hygiene controls.
• Vaccines and cell therapy manufacturing suites needing documented, repeatable hand drying performance.
• Hospital central sterile supply departments (CSSD) supporting instrument reprocessing workflow integrity.

FAQ

Does the AHS-01DCIII require regular HEPA filter replacement? Why?

Yes. HEPA filters must be replaced at intervals determined by cumulative runtime and ambient particulate load—typically every 6–12 months in ISO Class 7 environments. Filter life is monitored via differential pressure sensors; replacement ensures sustained ≥99.99% efficiency and avoids airflow degradation.
Can the unit be validated for IQ/OQ/PQ in regulated facilities?

Yes. Documentation packages—including Factory Acceptance Test (FAT) reports, calibration certificates for flow sensors and timers, and material compliance declarations—are provided. Protocol templates for Installation Qualification (IQ), Operational Qualification (OQ), and Performance Qualification (PQ) are available upon request.
Is the water heating function included?

No. The AHS-01DCIII uses ambient-temperature water only. Integration with facility hot-water lines requires external thermostatic mixing valves and is not supported out-of-the-box.
What maintenance certifications are required for service technicians?

Technicians must hold valid electrical safety certification (e.g., NFPA 70E) and receive AIRTECH-specific training on HEPA filter handling, PLC diagnostics, and hydraulic seal replacement procedures prior to performing field service.
