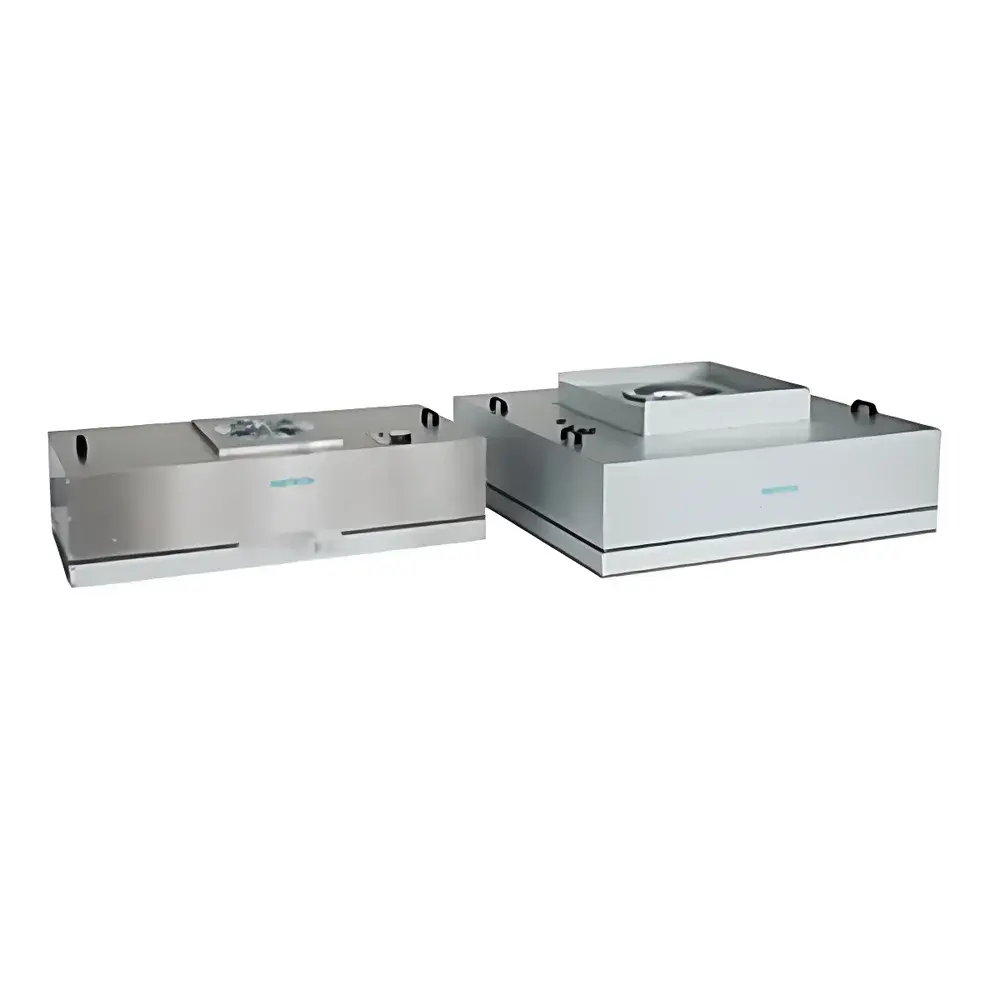

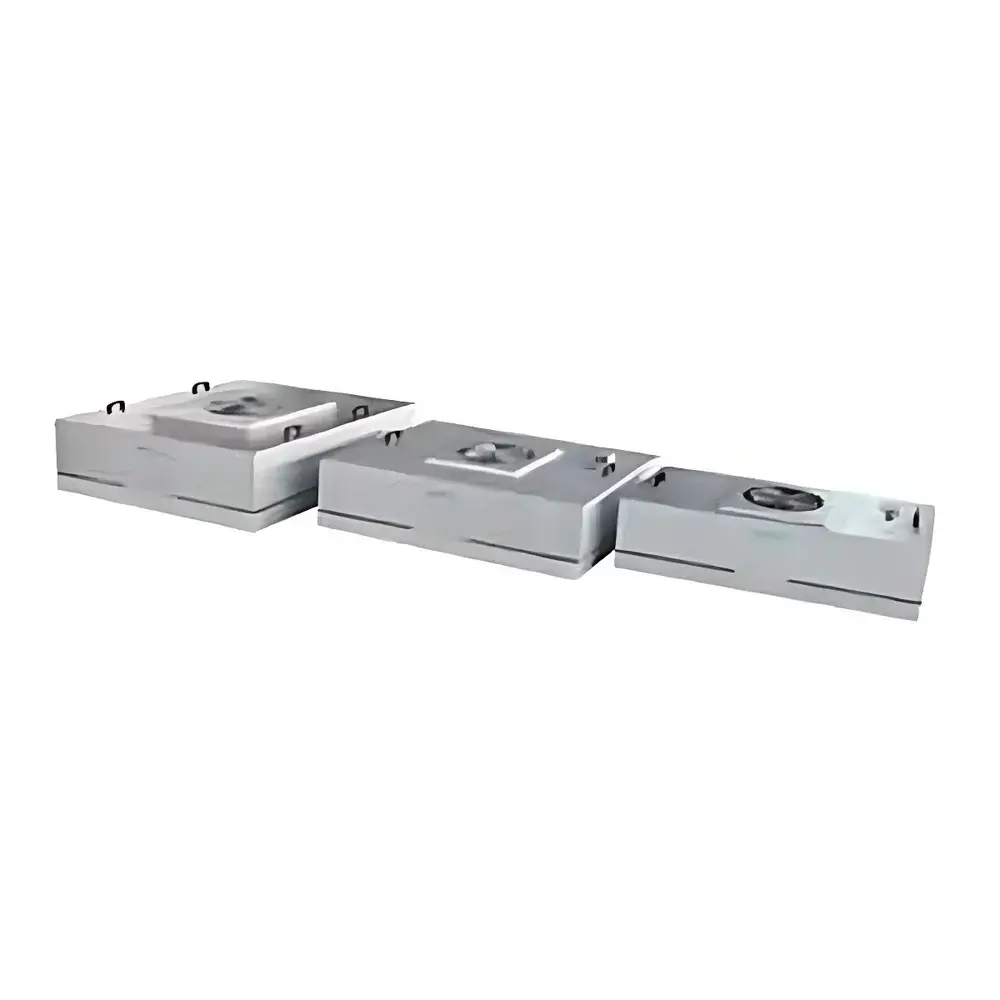

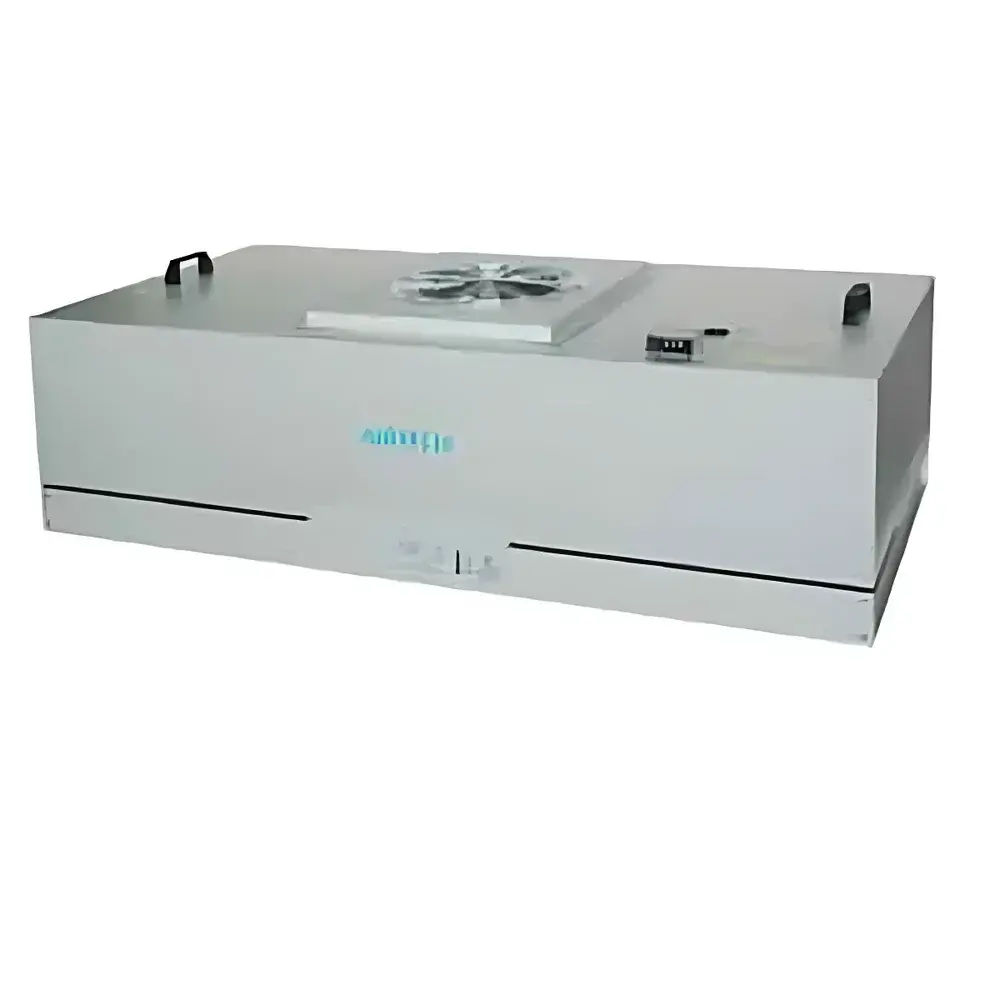

AIRTECH FFU-4X2E Fan Filter Unit System
| Brand | AIRTECH |
|---|---|
| Origin | Jiangsu, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | FFU-4X2E |
| Airflow | Configurable per filter and fan selection |
| External Static Pressure | 50–120 Pa |
| Flow Stability | Engineered for uniform laminar airflow distribution with ≤±5% velocity variation across outlet face |
| Auto-sampling | Not applicable |
| Sample Capacity | Not applicable |
Overview
The AIRTECH FFU-4X2E is a high-performance Fan Filter Unit (FFU) engineered for precision air supply in controlled environments requiring ISO Class 3 through Class 8 cleanliness. Unlike laboratory purification systems that process liquid or gel matrices, this unit operates on the principle of mechanical particulate filtration combined with laminar airflow generation—delivering continuously conditioned, particle-free air to critical workspaces. It functions as a modular terminal air handling device, integrating a low-noise, high-efficiency centrifugal fan with a certified HEPA or ULPA filter into a compact, ceiling-mounted enclosure. Its design adheres to core cleanroom engineering principles defined in ISO 14644-1 and IEST-RP-CC002, ensuring compliance with GMP (Annex 1), USP <797>, and EU GMP guidelines for aseptic processing zones in pharmaceutical, biotechnology, and analytical laboratories.
Key Features
- EC motor-driven fan system with integrated electronic speed control—enabling precise airflow regulation, energy savings exceeding 40% versus conventional AC motors, and extended service life without routine lubrication or belt replacement.
- Optimized aerodynamic cavity and baffle-guided airflow path—reducing overall unit height by up to 15% while improving velocity uniformity across the filter face (measured per ISO 14644-3 Annex B).
- Wide operational airflow range: configurable between 600–1,200 m³/h depending on filter class and static pressure requirements—supporting both low-velocity gowning rooms and high-velocity biosafety cabinets or isolators.
- High external static pressure capability (50–120 Pa at rated flow)—specifically engineered to overcome elevated resistance from deep-bed pre-filters, ductwork, and multi-stage recirculation systems typical in retrofitted cleanrooms.
- Modular construction with multiple material and configuration options: standard aluzinc housing; optional 304/430 stainless steel for corrosive or high-hygiene applications; field-installable pre-filter kits and real-time fault indication modules.
Sample Compatibility & Compliance
This FFU is not a sample-processing instrument; it does not interface with gels, solvents, or biological specimens. Instead, it ensures environmental integrity for downstream processes—including gel electrophoresis staging areas, HPLC sample prep benches, lyophilization suites, and cell culture hoods—by maintaining stable, particle-controlled airflow. Units are supplied with EN 1822-compliant filters: standard H13/H14 HEPA (≥99.95% @ 0.3 µm) or optional U15/U16 ULPA (≥99.9995% @ 0.12 µm). All configurations support validation protocols aligned with ISO 14644-1:2015, FDA Aseptic Processing Guidance (2004), and EU Annex 1 (2022), including DOP/PAO leak testing, airflow mapping, and recovery time assessment.
Software & Data Management
The FFU-4X2E supports two distinct control architectures. For EC-motor-equipped units, single-unit operation includes standard variable-speed drivers with analog 0–10 V or PWM input; optional three/five-step controllers or continuous 0–100% analog dimming are available. Cluster-level monitoring integrates via RS485 Modbus RTU or Ethernet/IP into centralized Building Management Systems (BMS) or proprietary cloud-based dashboards—enabling remote parameter adjustment, runtime logging, motor temperature trending, and predictive maintenance alerts. AC-motor variants utilize terminal block interfaces compatible with standard industrial PLCs. All digital control systems maintain audit trails compliant with FDA 21 CFR Part 11 when deployed within validated GxP environments.
Applications
- ISO Class 5–7 laminar flow hoods and horizontal/vertical flow workstations
- Modular cleanroom ceilings in QC labs performing chromatographic analysis, dissolution testing, or microbial limit assays
- Pharmaceutical aseptic filling lines requiring redundancy and rapid requalification after maintenance
- Biotech R&D labs housing sensitive instrumentation (e.g., MALDI-TOF, SEM, AFM) where airborne particulates compromise measurement fidelity
- University core facilities supporting CRISPR editing, stem cell expansion, and recombinant protein purification workflows
FAQ
Does the FFU-4X2E include integrated particle counting or real-time air quality monitoring?
No. This unit delivers filtered airflow but does not incorporate embedded sensors. Particle counters and differential pressure transducers must be installed externally as part of the cleanroom qualification protocol.
Can the FFU-4X2E be used in explosive or hazardous atmospheres?
Not without third-party ATEX/IECEx certification. Standard configurations are rated for non-hazardous indoor use only (IEC 60335-1, IP42 ingress protection).
Is validation documentation provided with the unit?
Yes—each shipment includes a Factory Acceptance Test (FAT) report verifying airflow, static pressure, noise level (≤48 dB[A] at 1 m), and electrical safety. IQ/OQ templates aligned with ISO 14644 and ASTM E2454 are available upon request.
What is the expected service life under continuous operation?
EC motor variants demonstrate ≥50,000 hours MTBF at 25°C ambient; filter replacement intervals depend on upstream pre-filtration efficiency and local airborne load—typically 3–5 years for HEPA in well-maintained environments.
Are spare parts and technical support available outside China?
Yes. AIRTECH maintains authorized service partners in North America, EMEA, and APAC regions. Motor assemblies, filter frames, and controller modules are stocked globally with lead times under 4 weeks.
