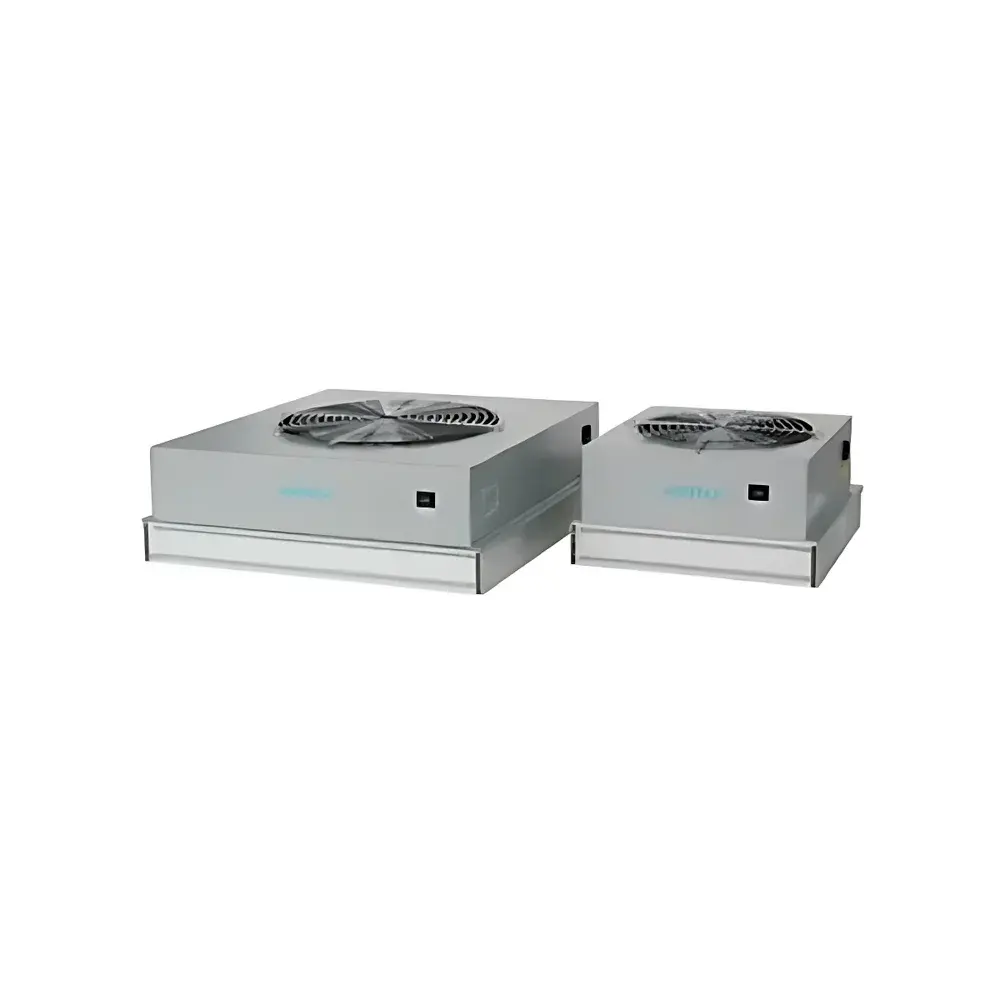

AIRTECH MAC-600E Compact Air Purification Unit

Overview

The AIRTECH MAC-600E Compact Air Purification Unit is an engineered solution for localized airborne particulate control in laboratory, pharmaceutical, and microelectronics environments. Designed around a unidirectional laminar airflow principle, the unit integrates a high-efficiency centrifugal blower and a certified H14-grade HEPA filter (EN 1822-1:2019) to deliver consistent, low-turbulence air purification. Unlike general-purpose consumer air cleaners, the MAC-600E is purpose-built for integration into controlled environments—serving as the core airflow module in custom clean benches, laminar flow hoods, pass-through chambers, and gowning cabinets. Its performance aligns with ISO 14644-1 Class 8 (formerly Fed Std 209E Class 100,000) ambient cleanliness requirements when installed in properly sealed enclosures. The unit operates on a constant-volume principle, maintaining stable face velocity across filter life via integrated pressure compensation in the fan drive circuit.

Key Features

• Two-speed motor control (High/Low) enables dynamic adjustment of airflow volume (600 m³/h at High, ~450 m³/h at Low) to match process demands or energy-saving protocols.
• H14 HEPA filter (610 × 610 × 69 mm) certified to EN 1822-3 with ≥99.995% particle capture efficiency at the most penetrating particle size (MPPS) of 0.3 µm.
• Low-noise operation (≤56 dB[A] at 1 m) achieved through acoustic dampening in the housing and optimized impeller aerodynamics—critical for quiet laboratory zones and QC labs.
• Thermal overload protection embedded in the motor windings ensures fail-safe shutdown under sustained overtemperature conditions, supporting GLP-compliant operational continuity.
• Modular mechanical design permits both horizontal and vertical mounting without structural modification; no dedicated support frame required.
• Tool-free filter access allows full cartridge replacement in under 90 seconds—minimizing downtime during routine maintenance or filter integrity verification.
• Energy-efficient operation (≤110 W nominal) supports sustainability goals and reduces cumulative heat load in temperature-sensitive lab spaces.

Sample Compatibility & Compliance

The MAC-600E is not intended for direct sample exposure but functions as an environmental conditioning component within larger containment systems. It is compatible with ISO Class 5–8 cleanroom architectures and meets mechanical safety requirements per IEC 61000-6-3 (EMC emission) and IEC 60335-1 (household/ similar equipment safety). While not intrinsically rated for hazardous area use, its non-sparking motor and grounded chassis permit deployment in non-explosive laboratory zones compliant with NFPA 45 and local fire codes. For regulated environments, the unit’s consistent airflow output supports validation protocols aligned with ISO 14644-3 (testing methods) and EU GMP Annex 1 (2022) Section 4.32 on localized air supply integrity.

Software & Data Management

The MAC-600E is a standalone electromechanical device with no embedded firmware, network interface, or digital control system. All operation is analog—via front-panel toggle switch—and generates no electronic audit trail. This architecture intentionally eliminates cybersecurity surface area and avoids regulatory complications associated with “computerized systems” under FDA 21 CFR Part 11 or EU Annex 11. Maintenance logs (filter change dates, airflow verification results) must be recorded manually in lab notebooks or LIMS-integrated SOPs. Optional external anemometers (e.g., TSIs VelociCalc® series) may be used for periodic face velocity checks per ISO 14644-3 Annex B.2.

Applications

• Primary air supply module for Class II biosafety cabinets retrofitted with auxiliary filtration.
• Core airflow generator in modular clean benches used for cell culture preparation, sterile compounding, and microbiological assay staging.
• Integrated purification stage in pass-through transfer hatches between classified and non-classified laboratory zones.
• Local particle scrubbing in analytical instrument rooms (e.g., adjacent to SEM, XRD, or ICP-MS suites) where vibration-sensitive equipment precludes central AHU ductwork.
• Temporary clean air barrier in renovation or commissioning phases of GMP facility build-outs.

FAQ

Can the MAC-600E be used as a freestanding room air purifier?
No—it lacks intake/exhaust grilles, air quality sensors, and recirculation logic required for ambient room purification. It is designed exclusively for ducted or enclosed integration.
Is the HEPA filter replaceable with activated carbon variants?
Yes. AIRTECH offers optional composite filters (610 × 610 × 69 mm) with upstream activated carbon layers for VOC and acid gas abatement—compatible with the same mounting interface.
Does the unit comply with FDA or EU GMP requirements?
It is not a GMP-certified device per se, but its performance characteristics and construction materials (electro-galvanized steel housing, silicone-sealed filter gasket) meet baseline material compatibility and cleanability expectations outlined in EU GMP Annex 1 Section 4.27.
What is the recommended filter replacement interval?
Under continuous operation in ISO Class 8 environments, replace every 12–18 months—or sooner if differential pressure across the filter exceeds 250 Pa (measured with a Magnehelic® gauge).
Can multiple MAC-600E units be synchronized for uniform airflow in large enclosures?
Yes. Units operate independently but achieve phase-coherent airflow when powered from the same circuit and mounted with identical orientation—validated via smoke wire testing per ISO 14644-3 Clause 8.2.
