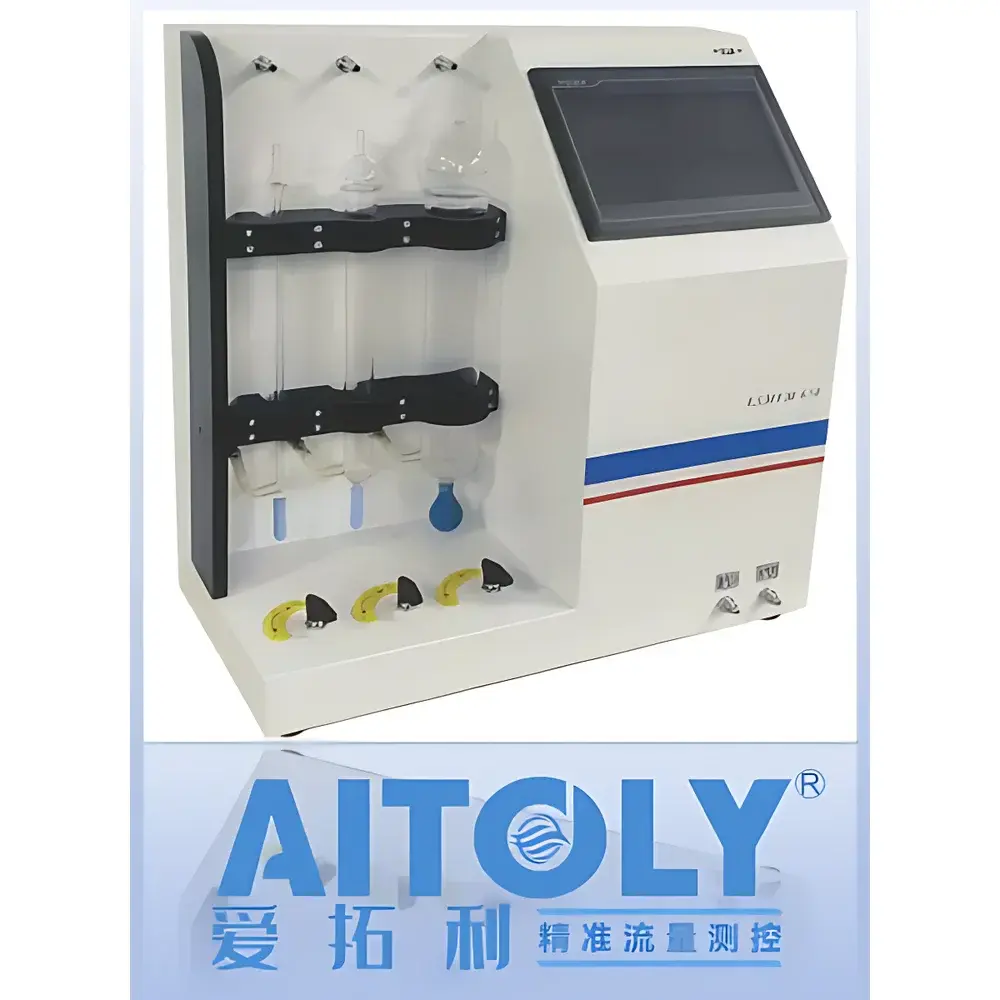

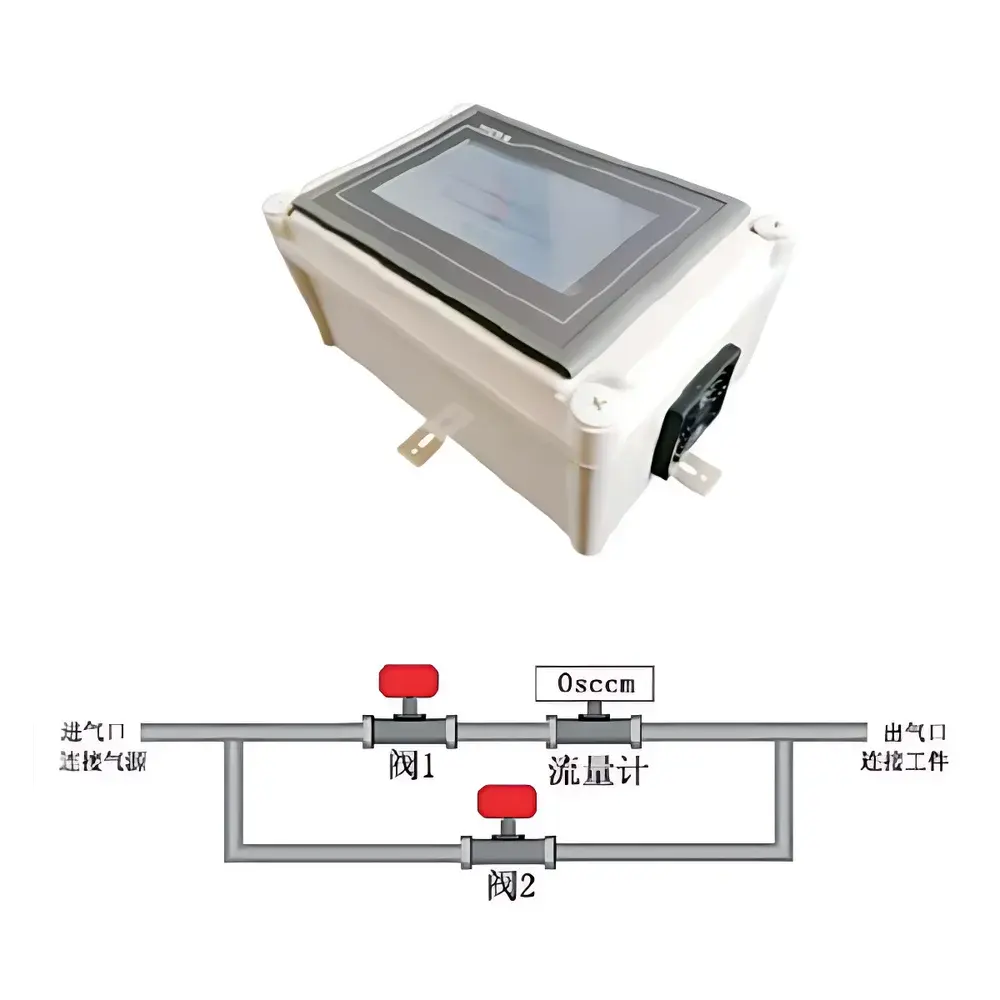

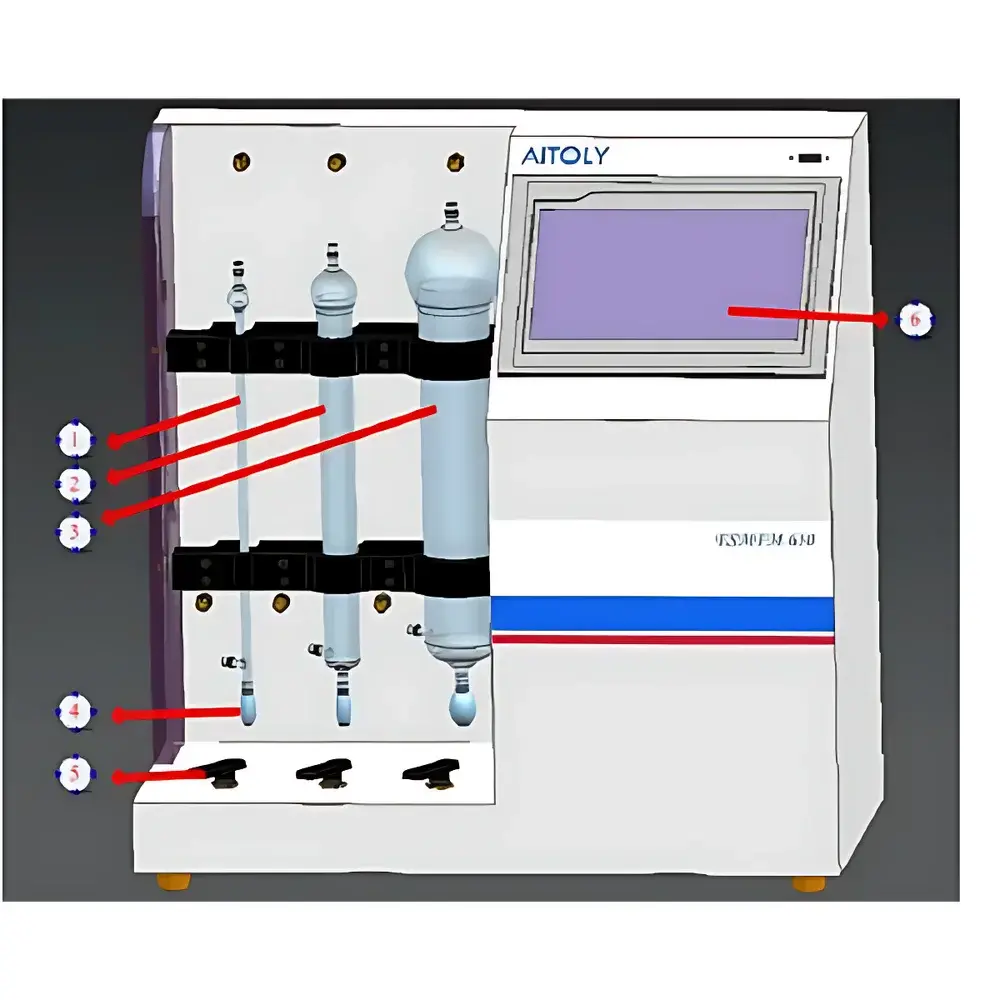

AITOLY ESMFM-650 Standard Soap Film Gas Flowmeter Calibration System

Overview

The AITOLY ESMFM-650 Standard Soap Film Gas Flowmeter Calibration System is a primary-standard reference instrument engineered for traceable, high-accuracy volumetric flow calibration of low-flow gas measurement devices. It operates on the well-established soap film displacement principle — a gravimetric and time-based method recognized in international metrology standards (e.g., ISO 4064, ASTM D5467) for its inherent simplicity, repeatability, and minimal uncertainty contribution at flows below 10 L/min. The system integrates infrared optical beam interruption detection with microsecond-resolution timing circuits to precisely measure the transit time of a soap film across a calibrated glass tube of known internal diameter. This raw transit time, combined with real-time measurements of ambient temperature and absolute pressure via integrated PT100 and piezoresistive sensors, enables automatic conversion from observed volumetric flow (actual conditions) to standardized volumetric flow (e.g., 25 °C, 101.325 kPa), in full compliance with ISO 12181 and ISO 6145-10 protocols.

Key Features

• Multi-channel modular design: Four independently calibrated soap film tubes (e.g., 1–100 mL/min, 10–1,000 mL/min, 100–5,000 mL/min, 500–10,000 mL/min) enable seamless range switching without manual recalibration or tube replacement.
• Integrated 4-channel thermal mass flow controllers (MFCs): Each MFC provides closed-loop gas flow regulation with stability better than ±0.2% FS over 24 h, enabling precise, programmable gas delivery during calibration sequences or leak rate testing.
• High-fidelity optical timing: Dual-beam infrared photogates with sub-millisecond response ensure consistent film edge detection, eliminating operator-dependent parallax error associated with manual stopwatch methods.
• Real-time environmental compensation: Onboard temperature (±0.1 °C) and pressure (±0.1 kPa) sensors feed continuous corrections into NIST-traceable ideal gas law calculations for standard cubic meter (SCM) or standard liter (SL) output.
• Embedded data management: Local storage supports ≥100,000 calibration events with timestamp, channel ID, raw transit time, T/P values, calculated standard flow, RSD (%), and operator ID — all exportable via USB or Ethernet as CSV or XML.
• Touchscreen HMI: 7-inch industrial-grade display with intuitive icon-driven navigation; supports multi-language UI (English, Chinese, Spanish), audit trail logging, and user-level access control (operator/admin).

Sample Compatibility & Compliance

The ESMFM-650 is compatible with dry, non-corrosive, non-condensing gases including air, nitrogen, oxygen, argon, helium, and synthetic air mixtures. It is not suitable for humid, particulate-laden, or chemically aggressive streams (e.g., H₂S, Cl₂, NH₃). Its architecture aligns with requirements for ISO/IEC 17025 accredited laboratories: built-in calibration certificate traceability to CNAS-accredited national standards, configurable uncertainty budgets per ISO/IEC GUIDE 98-3 (GUM), and optional GLP/GMP-compliant electronic signature and 21 CFR Part 11 audit trail modules. All firmware and software revisions are version-controlled and documented per IEC 62304.

Software & Data Management

The embedded firmware includes a real-time operating system (RTOS) with deterministic timing for sensor synchronization and event logging. Data files adhere to ASTM E2500-22 metadata conventions, embedding instrument ID, calibration date, environmental conditions, and measurement uncertainty components. Optional PC-based AITOLY FlowCal Suite (v3.x) enables automated test sequence scripting, statistical process control (SPC) charting, certificate generation (PDF/A-1b compliant), and integration with LIMS via HL7 or RESTful API. All stored data include cryptographic hash signatures to prevent tampering — a requirement for regulatory submissions under FDA or EMA guidelines.

Applications

• Primary calibration of portable gas analyzers, air samplers, and personal exposure monitors (e.g., OSHA Method 001, NIOSH 0500).
• Verification and adjustment of stack gas monitoring systems (CEMS) per EN 15267 and EPA Method 205.
• Traceable flow validation of GC carrier gases, ICP-MS nebulizer flows, and breath analysis instrumentation.
• Leak rate quantification in vacuum chambers, medical gas manifolds, and semiconductor process tools using differential soap film decay testing.
• Reference standard in metrology labs supporting accreditation to ISO/IEC 17025:2017 Clause 6.4 (Equipment) and Clause 7.7 (Uncertainty of Measurement).

FAQ

What gas types can be calibrated using the ESMFM-650?

Dry, non-reactive gases such as air, N₂, O₂, Ar, He, and CO₂ are supported. Avoid corrosive, condensable, or high-humidity streams.
Is the device suitable for field use or only lab environments?

It is designed for controlled laboratory environments (15–35 °C, <70% RH, vibration-isolated benchtop); not rated for outdoor or industrial floor deployment.
How is traceability maintained for calibration certificates?

Each unit ships with a factory calibration report traceable to CNAS-accredited primary standards; users may perform intermediate verification using certified reference flow artifacts.
Can the system generate ISO/IEC 17025-compliant calibration certificates?

Yes — when used with FlowCal Suite and configured with digital signatures, audit logs, and uncertainty budgeting, it meets clause 7.8.2 requirements for reporting.
What maintenance is required for long-term accuracy?

Annual verification of soap film tube geometry (micrometer check), optical alignment (using alignment jig), and sensor calibration (T/P sensors every 12 months) is recommended.
