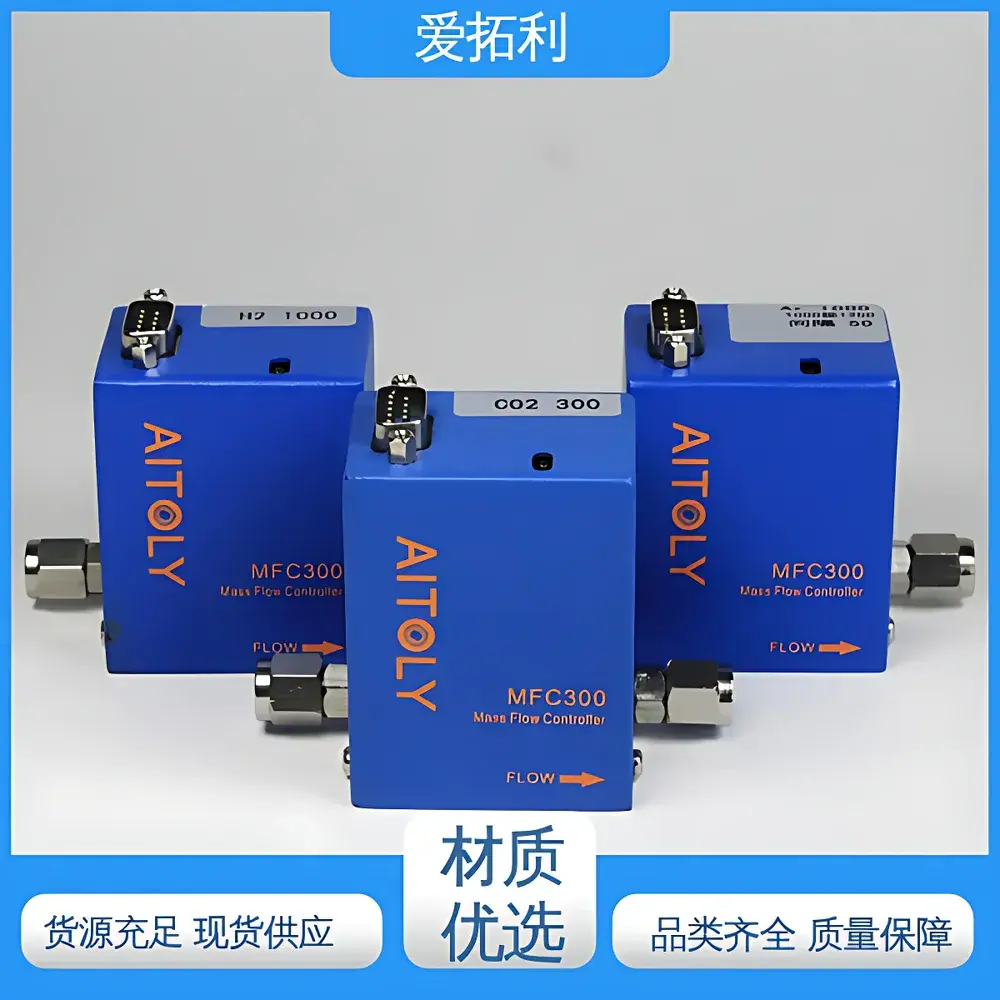

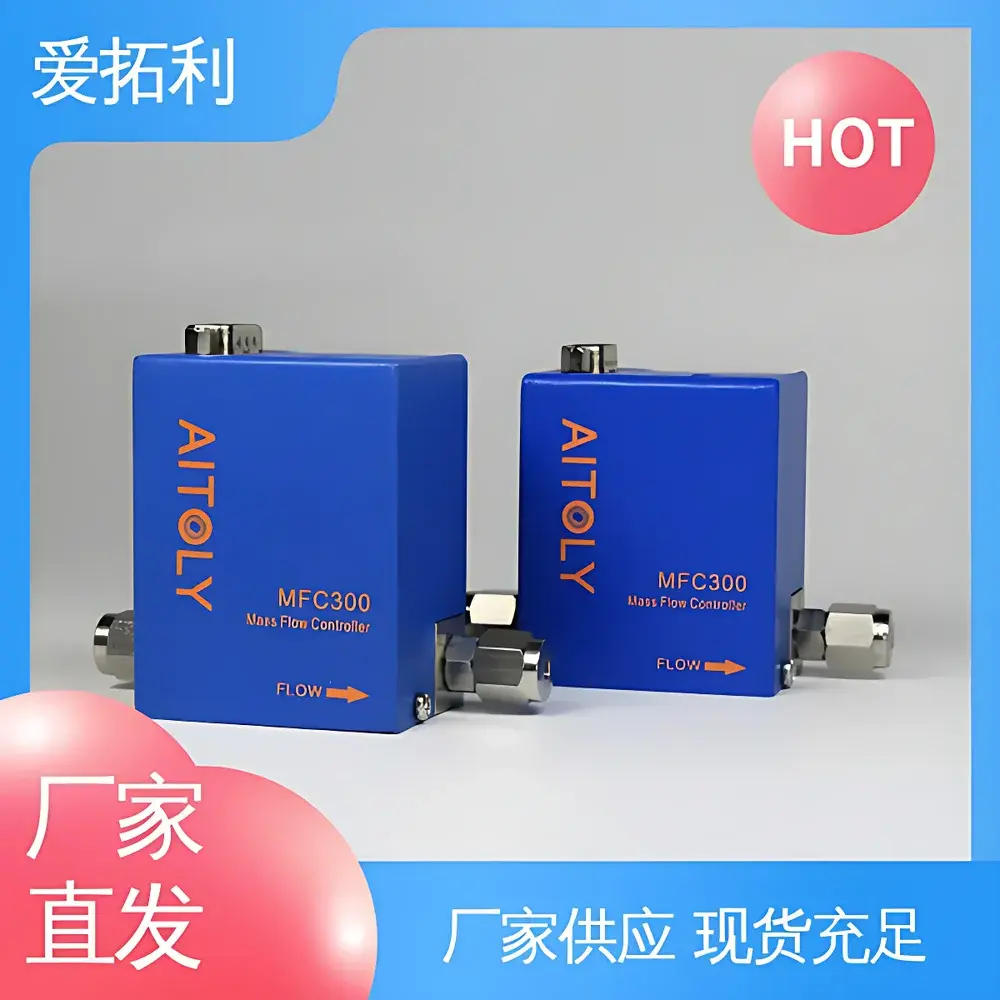

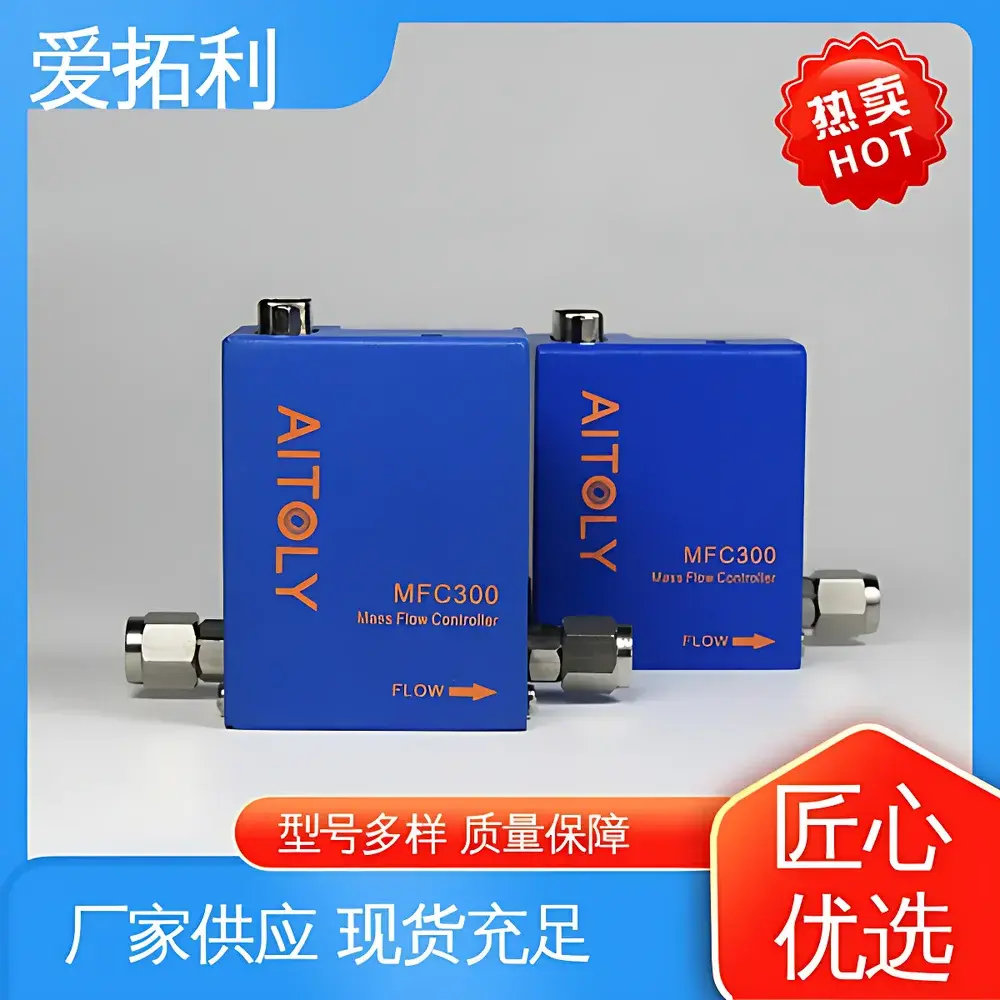

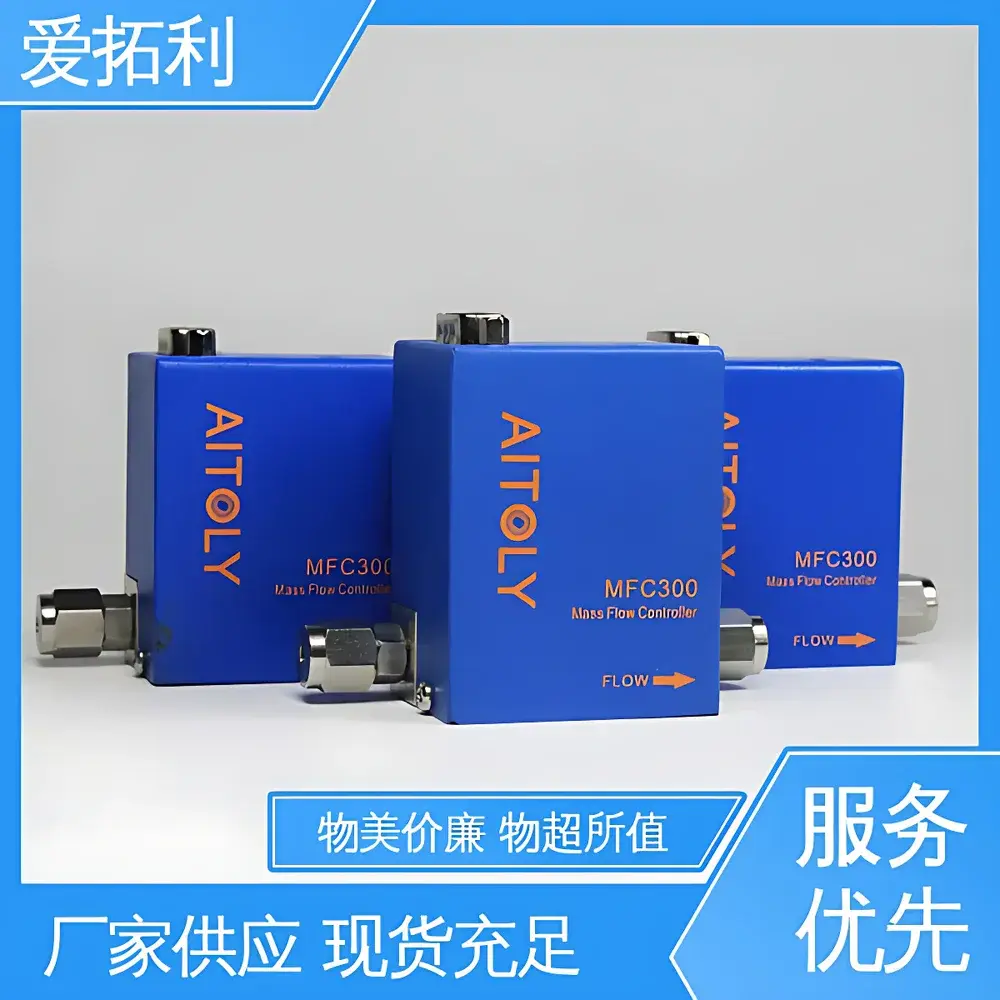

AITOLY MFC300 Thermal Mass Gas Flow Meter for Argon

Overview

The AITOLY MFC300 Thermal Mass Gas Flow Meter for Argon is an engineered solution for precise, real-time mass flow measurement and closed-loop control of argon gas in demanding industrial and laboratory applications. Unlike volumetric flow devices, the MFC300 employs constant-temperature anemometry (CTA) based on MEMS thermal sensor technology—measuring heat transfer between a heated element and the flowing gas stream. This principle enables direct mass flow quantification independent of upstream pressure or temperature fluctuations, eliminating the need for external transducers or manual correction factors. The integrated microprocessor performs on-the-fly temperature and absolute pressure compensation using onboard sensors, ensuring traceable accuracy across variable ambient conditions. Designed specifically for inert gas handling—including high-purity argon used in semiconductor chamber purging, sputtering processes, and analytical carrier gas delivery—the MFC300 delivers stable, low-drift performance with minimal pressure loss (<1 kPa at full scale), making it suitable for vacuum-integrated and low-backpressure systems.

Key Features

• MEMS-based thermal mass flow sensing architecture with factory argon-specific calibration
• Ultra-fast dynamic response: 5 ms measurement latency and 300 ms closed-loop control settling time
• Wide turndown ratio up to 100:1 (e.g., 0.1–10 SLM), enabling single-instrument coverage across low-flow purge and high-flow process stages
• Compact monolithic housing (L×W×H ≈ 120 × 50 × 35 mm) with multiple mounting options: panel-mount, DIN-rail adapter, and direct-tube inline integration
• No warm-up period required—operational immediately upon power application
• Dual-mode operation: standalone flow metering or closed-loop flow controller (with integrated proportional valve actuation)
• Multi-protocol digital interface: standard RS-485 (Modbus RTU), optional USB virtual COM port for configuration and diagnostics

Sample Compatibility & Compliance

The MFC300 is calibrated for argon (Ar) and may be reconfigured for other gases—including nitrogen, oxygen, helium, and CO₂—via software-based gas correction factors (NIST-traceable K-factors provided). It is rated for clean, dry, non-corrosive gases up to 1 MPa absolute inlet pressure and operates reliably within 0–50 °C ambient temperature. All wetted materials comply with ASTM F519 and SEMI F57 standards for semiconductor-grade compatibility: 316L stainless steel body, glass-fused ceramic sensor substrate, and PTFE-sealed fittings. Manufacturing adheres to ISO 9001:2015 quality management requirements. While not intrinsically safe or explosion-proof certified, the device meets CE marking directives for electromagnetic compatibility (EMC Directive 2014/30/EU) and low-voltage safety (LVD Directive 2014/35/EU). For regulated environments (e.g., pharmaceutical gas distribution or medical device manufacturing), optional firmware enables timestamped data logging with user-accessible audit trails aligned with FDA 21 CFR Part 11 principles.

Software & Data Management

Configuration, calibration verification, and real-time monitoring are supported through AITOLY’s cross-platform PC utility (Windows/macOS/Linux), which provides intuitive access to setpoint ramping profiles, flow step sequencing, alarm thresholds, and zero/span adjustment. Logged data exports to CSV or Excel-compatible formats with millisecond-resolution timestamps. The embedded Modbus register map supports seamless integration into SCADA, PLC (Siemens S7, Allen-Bradley ControlLogix), and LabVIEW-based DAQ systems. Optional OEM SDKs enable custom GUI development and API-level access to raw sensor outputs, temperature/pressure telemetry, and valve drive signals—facilitating validation documentation per GAMP 5 guidelines.

Applications

• Semiconductor fabrication: Argon mass flow control in PVD sputtering chambers, etch tool purges, and CVD carrier gas delivery
• Photovoltaic manufacturing: Precise dopant gas dosing and chamber backfilling in thin-film deposition lines
• Analytical instrumentation: Carrier and makeup gas regulation in GC, ICP-MS, and residual gas analyzers
• Fuel cell R&D: Stoichiometric air/argon balance control in PEM and SOFC test stations
• Medical gas mixing: Calibration gas blending systems requiring NIST-traceable argon reference flows
• Industrial automation: Leak testing, pneumatic circuit balancing, and inert atmosphere maintenance in welding and metal heat treatment

FAQ

Is the MFC300 certified for use in hazardous locations?
No—this model is rated for general-purpose industrial environments only. Explosion-proof variants (ATEX/IECEx) are available under separate part numbers upon request.
Can the device be recalibrated for a different gas after initial argon setup?
Yes—gas-specific scaling factors can be loaded via software without hardware modification. Full recalibration services (including NIST-traceable certificates) are offered by AITOLY’s ISO/IEC 17025-accredited calibration lab.
What is the maximum allowable particulate level in the argon supply?
To prevent sensor fouling, inlet gas must meet ISO 8573-1 Class 2:2:2 specifications (≤0.1 µm particles, ≤0.1 mg/m³ oil aerosol, dew point ≤−40 °C). A 0.01 µm inline filter is recommended upstream.
Does the MFC300 support analog output redundancy or hot-swappable modules?
Standard units provide one analog output channel (4–20 mA or 0–5 V). Dual-output and field-replaceable electronics modules are available as configurable options for mission-critical installations.
How is long-term stability verified during routine QA checks?
Built-in self-test routines verify sensor offset drift and heater resistance consistency. Users may execute automated zero-check sequences at scheduled intervals; results are logged with pass/fail status and deviation metrics relative to baseline calibration.
