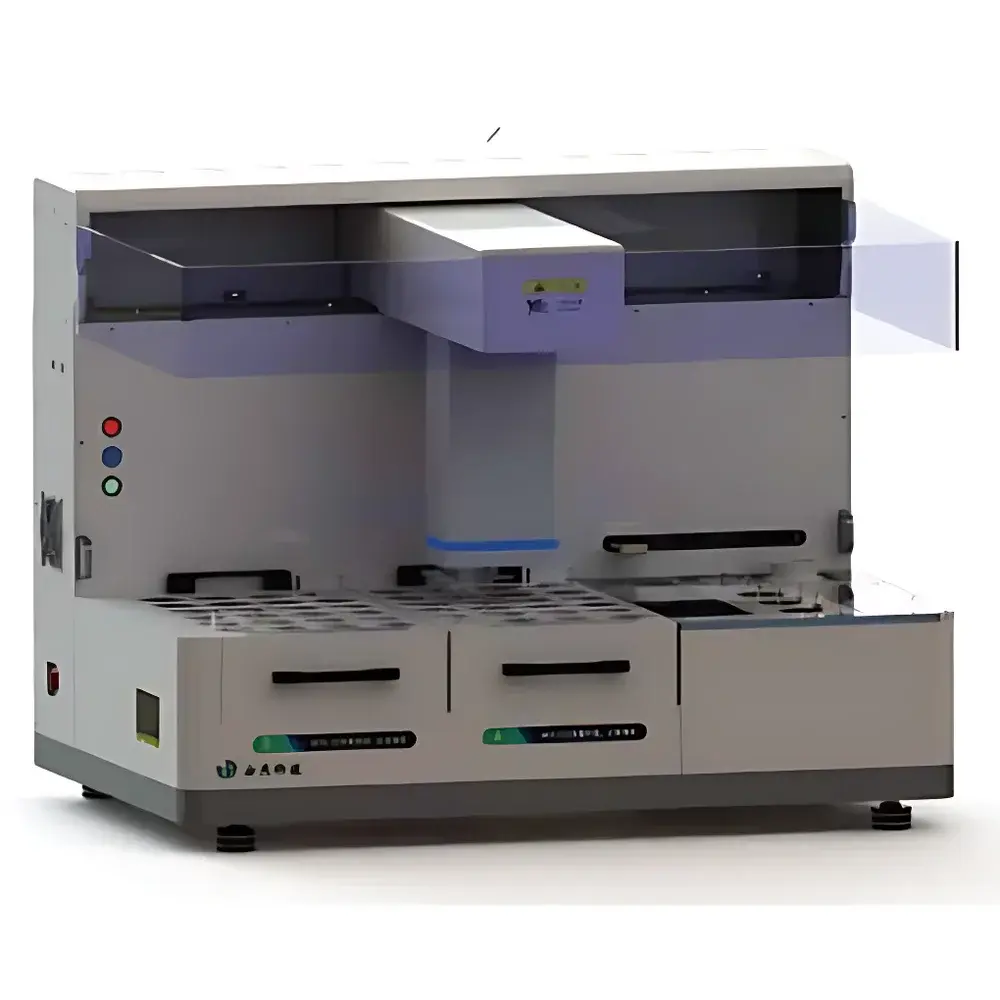

AJ-5100 Automatic Permanganate Index Analyzer (ANJIE)
| Brand | ANJIE |
|---|---|
| Origin | Shanghai, China |
| Model | AJ-5100 |
| Measurement Principle | Potassium Permanganate Oxidation with ORP Endpoint Detection |
| Instrument Type | Benchtop Laboratory Analyzer |
| Range | 0–4.5 mg/L as O₂ |
| Repeatability | RSD ≤ 5.0% |
| Accuracy | ±10% of reading |
| Limit of Detection | < 0.07 mg/L |
| Resolution | 1 µL |
| Sample Analysis Time | 3 min 50 s per sample |
| Heating Method | Infrared Rapid Boiling (reaches boiling within 100 s) |
| Reaction Control | User-defined oxidation holding time |
| Fluidic Architecture | Dedicated reagent addition station, titration analysis station, and waste discharge station |
| Dispensing System | Single-arm precision liquid handler for all reagents |
Overview
The AJ-5100 Automatic Permanganate Index Analyzer is a benchtop laboratory instrument engineered for the standardized determination of the permanganate index (also known as KMnO₄ index or oxygen consumption) in aqueous extracts from food-contact materials. It operates on the principle of controlled potassium permanganate oxidation under acidic conditions, followed by potentiometric endpoint detection using an oxidation-reduction potential (ORP) sensor. This method conforms to internationally recognized protocols—including ISO 846:2019 (plastics), GB/T 5009.60–2003 (food packaging paper and board), GB/T 5009.64–2003 (coating migration), and GB/T 5009.67–2023 (rubber and silicone elastomers)—where quantification of oxidizable organic substances serves as a surrogate for overall extractable organic load. The AJ-5100 delivers trace-level sensitivity with a sub-0.07 mg/L detection limit and supports routine compliance testing in quality control laboratories operating under GLP or GMP frameworks.
Key Features
- Infrared heating module achieves rapid, uniform boiling of sample solutions within 100 seconds—minimizing thermal degradation of labile organics and improving inter-batch consistency.
- User-configurable oxidation holding time ensures precise adherence to method-specific reaction durations (e.g., 30 min at boiling for GB/T 5009.60, or 10 min for certain rubber extracts), directly enhancing measurement accuracy.
- Dedicated functional stations isolate reagent dispensing, titration analysis, and waste disposal—eliminating cross-contamination and enabling robust long-term operation without manual intervention.
- Single-arm precision liquid handler with 1 µL resolution delivers all reagents (KMnO₄ solution, sulfuric acid, sodium oxalate standard) with high volumetric reproducibility, reducing calibration drift and lowering consumables cost.
- Integrated ORP electrode system provides real-time redox monitoring and sharp endpoint recognition, eliminating subjective visual endpoint judgment and supporting automated titration curve logging.
Sample Compatibility & Compliance
The AJ-5100 is validated for use with aqueous migration solutions derived from diverse food-contact matrices, including polyolefin and PET plastic simulants (e.g., 3% acetic acid, 10% ethanol, distilled water), paperboard extracts, cured coating leachates, vulcanized rubber and silicone rubber simulates, and infant feeding product extracts (e.g., pacifier and nipple immersion solutions). Its operational range (0–4.5 mg/L as O₂) aligns with regulatory thresholds specified in Chinese National Standards (GB series) and harmonized EU Commission Regulation (EU) No 10/2011 Annex I migration limits. All hardware and software components comply with CE electromagnetic compatibility directives and support audit-ready data integrity when used in conjunction with documented SOPs and electronic signature controls.
Software & Data Management
The embedded firmware supports full method parameterization—including temperature setpoint, oxidation duration, titrant concentration, blank subtraction logic, and auto-zero calibration intervals. Raw ORP vs. time profiles and derivative curves are stored with timestamp, operator ID, and instrument serial number. Export formats include CSV and PDF reports compliant with internal QA documentation requirements. While the base system does not include 21 CFR Part 11-compliant electronic signatures or audit trail modules, it is compatible with third-party LIMS integration via RS-232 or optional Ethernet interface, facilitating centralized data archiving and review workflows required for ISO/IEC 17025-accredited laboratories.
Applications
- Migration testing of food packaging plastics per GB/T 5009.60–2003 and ISO 11891–1.
- Compliance verification of paper and board packaging for fatty foods using 3% acetic acid simulant.
- Quality release testing of coated metal containers and printed laminates.
- Extractable organic load assessment in medical device elastomer extracts (ISO 10993-12).
- Batch-to-batch consistency evaluation of silicone rubber baby bottle nipples and pacifiers.
FAQ
What standards does the AJ-5100 support out-of-the-box?
It is preconfigured for GB/T 5009.60–2003, GB/T 5009.64–2003, GB/T 5009.67–2023, and ISO 846:2019; users may customize method parameters to align with other national or industry-specific protocols.
Is the ORP electrode field-replaceable and calibrated automatically?
Yes—the ORP sensor is a user-serviceable module with built-in temperature compensation; calibration is performed manually using standard quinhydrone or Zobell’s solution prior to each analytical session.
Can the AJ-5100 be integrated into a networked lab environment?
Standard RS-232 communication is provided; optional Ethernet and Modbus TCP modules enable connection to central lab data systems and SCADA platforms.
Does the system require external cooling or fume hood installation?
No—its sealed reagent handling, low-volume digestion (<10 mL), and infrared heating design eliminate volatile acid fumes and permit safe operation on standard lab benches.
How is system performance verified between runs?
A daily system suitability test (SST) using certified 1.0 mg/L KMnO₄ reference solution is recommended; RSD ≤ 5.0% across three replicates confirms operational readiness.
