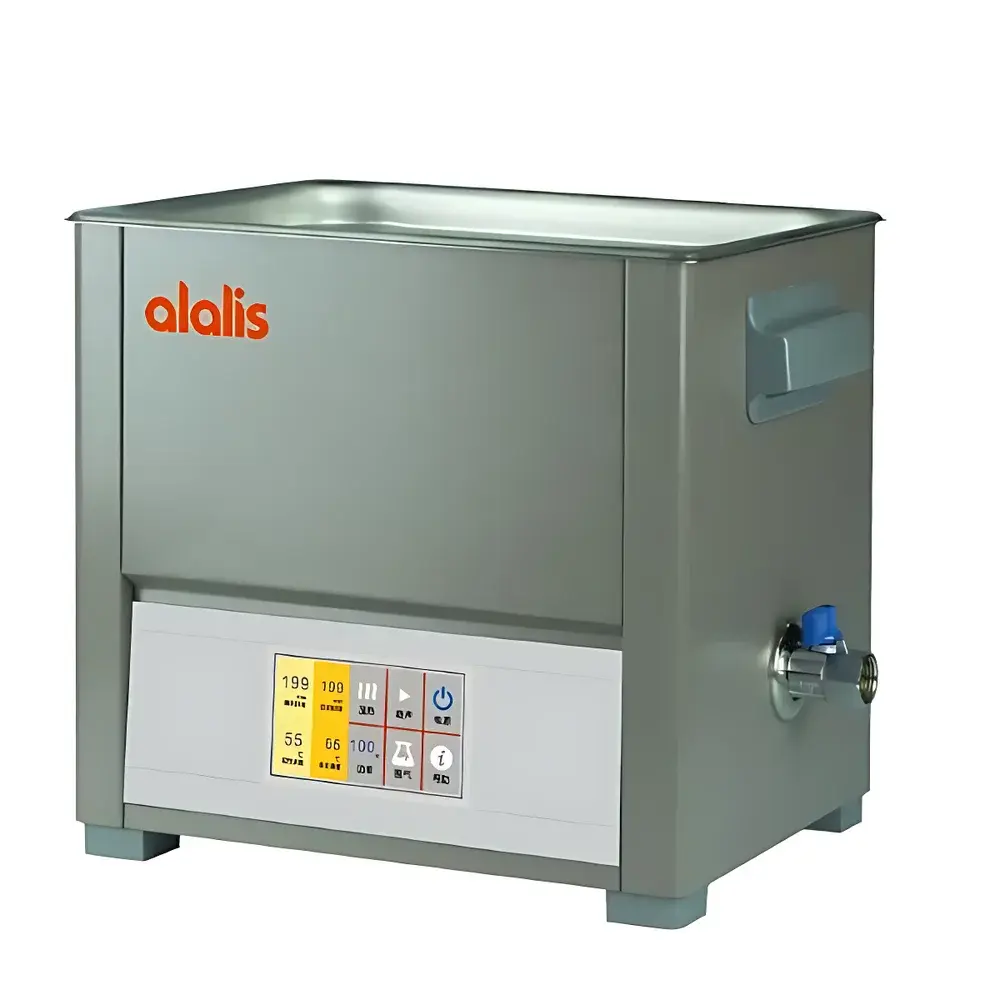

alalis AS10T Touchscreen Ultrasonic Cleaner

Overview

The alalis AS10T Touchscreen Ultrasonic Cleaner is an engineered solution for precision cleaning of delicate, high-value laboratory and industrial components. It operates on the principle of cavitation—generating microscopic vacuum bubbles in a liquid medium via high-frequency (40 kHz) ultrasonic transducers bonded to a 304 stainless steel tank. When these bubbles collapse near a submerged surface, they produce localized micro-jets and shockwaves capable of dislodging particulate contaminants, organic residues, biofilms, and oils without mechanical abrasion or surface damage. Designed for reproducible, non-destructive cleaning of parts with blind holes, threaded features, microchannels, and intricate geometries, the AS10T meets the stringent operational requirements of analytical laboratories, biomedical device manufacturing, optics assembly, and quality control environments where residue-free surfaces are critical prior to inspection, coating, or sterilization.

Key Features

• Industrial-grade 304 stainless steel tank with electropolished interior for corrosion resistance and ease of decontamination.
• Intelligent touchscreen interface with icon-driven navigation, real-time parameter feedback, and intuitive multi-language support (English, Spanish, French, German).
• Adjustable ultrasonic power output (40–100% in 10% increments), enabling optimization for sensitive substrates (e.g., silicon wafers, glass slides) or heavily soiled metal components.
• Precise digital temperature control (20–65 °C ±1 °C) with PID regulation, supporting aqueous and mild solvent-based cleaning protocols requiring thermal activation.
• Programmable timer (1–199 minutes) with auto-shutdown and audible end-of-cycle alert.
• Integrated degassing function to remove dissolved air from cleaning solutions prior to ultrasonication—critical for maximizing cavitation efficiency and minimizing surface pitting.
• Sound-dampening lid with safety interlock prevents ultrasonic emission during operation and reduces ambient noise to ≤55 dB(A) at 1 m distance.
• Front-mounted drain valve and rear fill port enable rapid, spill-free solution exchange—compatible with continuous recirculation systems when paired with external pumps.
• Self-diagnostic firmware with over-temperature, over-current, and transducer fault detection; automatic shutdown and on-screen error code display (e.g., E03 = heater open circuit).
• Non-volatile memory retains all user-defined programs and default settings after power interruption.

Sample Compatibility & Compliance

The AS10T accommodates a broad range of sample types—including glassware (vials, cuvettes, pipette tips), metal components (surgical instruments, calibration standards), ceramic substrates, printed circuit boards (PCBs), and polymer-based medical devices—without risk of etching or dimensional change. Its construction and performance align with key international standards: ASTM D2603 (ultrasonic cleaning efficacy testing), ISO 13485 (medical device manufacturing environments), and USP (cleaning validation guidance). The unit is CE-marked per Directive 2014/30/EU (EMC) and 2014/35/EU (LVD), and complies with RoHS 2011/65/EU for hazardous substance restrictions. While not certified as a Class II medical device, it supports GLP- and GMP-aligned workflows through audit-ready parameter logging and operator access controls when integrated with validated cleaning SOPs.

Software & Data Management

The AS10T operates autonomously via embedded firmware with no external PC dependency. All operational parameters—including frequency, power level, set temperature, elapsed time, and cycle count—are logged internally with timestamps and stored for up to 10,000 cycles. Data export is supported via USB-C port (FAT32-formatted drive required) in CSV format for traceability and regulatory reporting. Optional firmware updates are distributed through alalis’ secure customer portal and include enhanced security patches, expanded language packs, and compatibility with third-party lab information management systems (LIMS) via Modbus RTU over RS-485 (adapter sold separately). Audit trail functionality meets FDA 21 CFR Part 11 requirements when used with electronic signature-enabled LIMS integration.

Applications

• Pre-analytical preparation of HPLC vials, GC autosampler trays, and ICP-MS sample introduction components.
• Cleaning of optical lenses, laser mirrors, and photomask blanks prior to metrology or thin-film deposition.
• Removal of flux residues and solder paste from PCB assemblies in electronics R&D labs.
• Decontamination of reusable surgical instruments and dental handpieces in hospital central sterile supply departments (CSSD).
• Surface preparation of biomaterial scaffolds and tissue culture inserts prior to cell seeding.
• Validation of cleaning processes per ISO 15883-1 and AAMI ST79 for reprocessed medical devices.

FAQ

What cleaning solutions are compatible with the AS10T?
Aqueous alkaline, neutral, and mildly acidic detergents—as well as low-boiling-point solvents such as isopropanol and ethanol—are suitable. Avoid halogenated solvents (e.g., chloroform, trichloroethylene) due to potential transducer degradation and safety hazards.
Can the AS10T be used for passivation of stainless steel parts?
No. Passivation requires nitric or citric acid immersion under controlled temperature and time conditions; the AS10T provides mechanical cleaning only and lacks acid-resistant tank lining or exhaust scrubbing capabilities.
Is the unit suitable for use in a fume hood?
Yes—its compact footprint (383 × 267 × 305 mm) and lack of internal ventilation make it ideal for containment within Class II biosafety cabinets or chemical fume hoods when volatile cleaning agents are employed.
Does the AS10T support remote monitoring or network connectivity?
Not natively. Remote status readout and control require optional RS-485-to-Ethernet gateway hardware and custom SCADA integration.
How often should the ultrasonic transducers be serviced?
Under normal operating conditions (≤8 hrs/day, deionized water or approved detergent), transducers require no scheduled maintenance. Visual inspection for delamination or discoloration is recommended every 6 months; alalis offers transducer impedance testing as part of annual calibration services.
