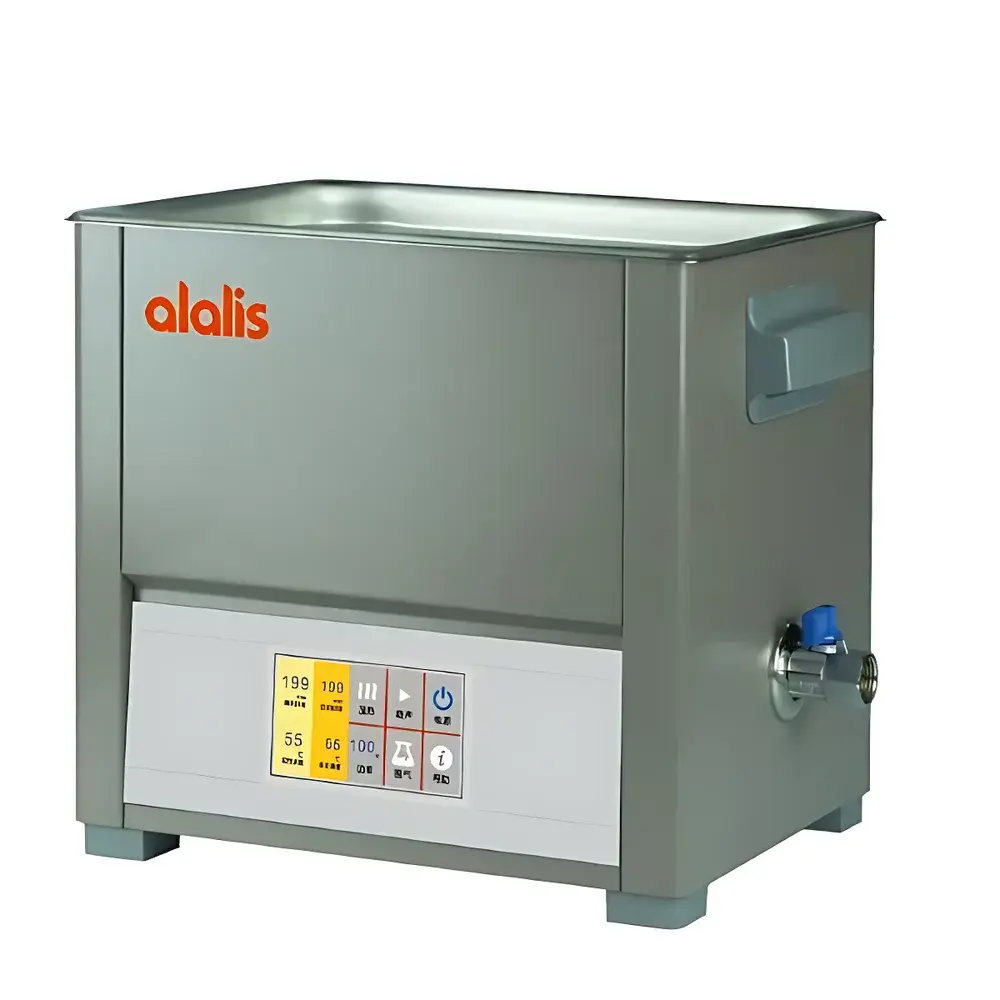

alalis AS30T Touchscreen Ultrasonic Cleaner

Overview

The alalis AS30T Touchscreen Ultrasonic Cleaner is an engineered solution for precision cleaning of delicate and complex laboratory components, medical instruments, optical elements, and microfabricated parts. It operates on the principle of ultrasonic cavitation—where high-frequency sound waves (40 kHz) generate microscopic vacuum bubbles in a liquid medium that collapse with localized energy release, dislodging particulate contaminants, organic residues, and biofilms from surfaces—even within blind holes, capillary channels, and recessed geometries—without mechanical abrasion or surface damage. Designed for consistent performance across variable ambient conditions, the AS30T maintains stable cavitation intensity regardless of water temperature fluctuations or load distribution, making it suitable for regulated environments requiring reproducible cleaning validation.

Key Features

• Intuitive 5-inch full-color capacitive touchscreen interface with icon-driven navigation, real-time parameter feedback, and multi-language support (English, Spanish, German, French).
• Digitally controlled ultrasonic output with PWM-based power modulation (40–100% in 5% increments), enabling optimization for sensitive substrates such as silicon wafers, glass slides, or coated lenses.
• Independent degassing mode with programmable pulse cycling to remove dissolved air prior to cleaning—critical for maximizing cavitation efficiency and minimizing pitting on polished metal surfaces.
• Stainless steel tank constructed from electropolished ASTM A240 Type 304 stainless steel (1.2 mm thickness), passivated per ASTM A967, ensuring long-term corrosion resistance against aqueous solvents, mild alkaline detergents, and IPA-based rinse solutions.
• Integrated thermal management system with PT100 sensor feedback loop, enabling ±0.5 °C temperature stability across the full 20–65 °C range; heater power rated at 760 W for rapid thermal equilibration.
• Comprehensive safety architecture including automatic over-temperature cutoff (≥70 °C), ultrasonic transducer overcurrent protection, leak detection circuitry, and fail-safe drain valve interlock.
• Non-slip vibration-damped rubber feet and reinforced chassis design meet IEC 61000-6-2 immunity requirements for electromagnetic compatibility in shared lab infrastructure.

Sample Compatibility & Compliance

The AS30T accommodates a broad spectrum of sample types—including glassware (vials, cuvettes, pipette tips), surgical tools (tweezers, forceps, endoscope components), semiconductor fixtures, printed circuit board assemblies, and biological sample holders—without risk of etching, delamination, or acoustic shadowing artifacts. Its construction and operational parameters comply with ISO 13485:2016 (medical device manufacturing), ASTM D2603 (ultrasonic cleaning performance evaluation), and USP (sterile processing validation guidelines). The sealed electronics housing meets IP54 ingress protection rating, and all electrical components conform to UL 61010-1 and CE/EMC Directive 2014/30/EU standards.

Software & Data Management

While the AS30T operates as a standalone instrument, its embedded firmware supports GLP-compliant data integrity through non-volatile memory retention: all user-defined protocols—including time, temperature, power level, and degas sequence—are preserved after power interruption or system reset. Optional RS-232 and USB-B ports enable external logging via third-party SCADA systems or LIMS integration. Audit trail functionality records timestamped event logs (e.g., lid open/close, parameter changes, fault triggers) with read-only export capability—supporting FDA 21 CFR Part 11 readiness when paired with validated software clients.

Applications

• Pre-analytical sample preparation in clinical labs: decontamination of HPLC autosampler vials, LC-MS injection syringes, and microcentrifuge tubes prior to trace-metal analysis.
• Quality control in pharmaceutical manufacturing: removal of residual tablet coating agents from punch tooling and granulation equipment components.
• Research-grade cleaning in nanotechnology facilities: particle-free rinsing of AFM cantilevers, TEM grids, and MEMS devices prior to characterization.
• Biomedical device reprocessing: adjunctive cleaning of reusable laryngoscope blades, dental handpieces, and laparoscopic trocars under ISO 15883-1 protocols.
• Materials science workflows: solvent-assisted debubbling of polymer castings, ceramic green bodies, and composite layups before sintering or curing.

FAQ

Does the AS30T support remote monitoring or network connectivity?
No—this model does not include Ethernet, Wi-Fi, or cloud connectivity. Remote operation is limited to serial command-line control via RS-232.
Can the unit be used with flammable solvents?
Not recommended. The AS30T is designed for aqueous or low-flashpoint (<60 °C) cleaning solutions only. Use in explosive atmospheres violates IEC 60079-0 compliance requirements.
Is the stainless steel tank certified for autoclave compatibility?
No—the tank is not intended for steam sterilization. Electropolishing and passivation provide corrosion resistance but do not confer autoclave-rated structural integrity.
What maintenance intervals are specified for transducer calibration?
Transducers are factory-calibrated and require no routine recalibration. Annual verification of output amplitude using a calibrated hydrophone (per ASTM E1065) is advised for GMP-regulated applications.
How is the sound-dampening lid secured during operation?
A spring-loaded latch mechanism ensures positive closure and acoustic isolation; lid-open detection immediately suspends ultrasonic output and triggers audible alert.
