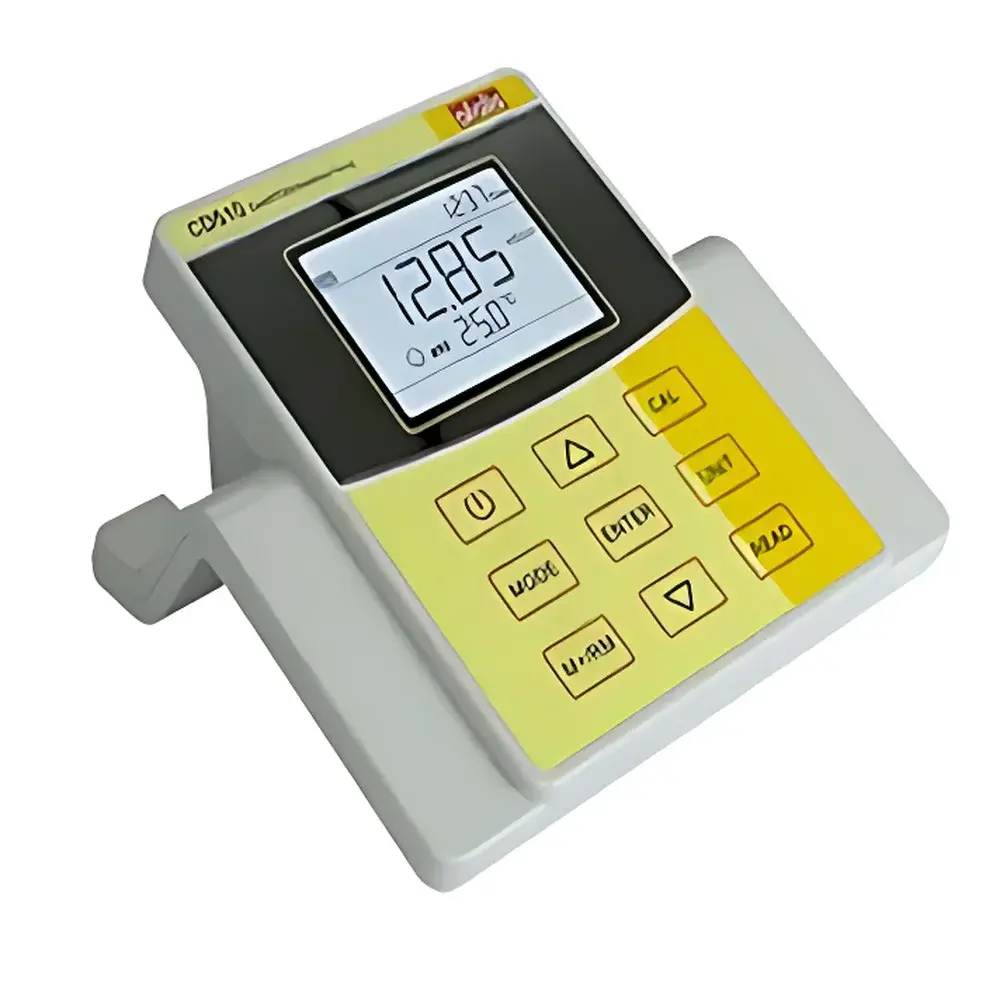

Alalis CD510 Professional Benchtop Conductivity Meter

Overview

The Alalis CD510 Professional Benchtop Conductivity Meter is a high-precision, multi-parameter electrochemical analyzer engineered for demanding industrial and pharmaceutical water quality monitoring applications. It operates on the principle of two-electrode or four-electrode conductometric measurement—applying an alternating current across a conductivity cell and measuring the resulting voltage to determine solution conductance, which is then converted into conductivity (µS/cm or mS/cm), resistivity (MΩ·cm), total dissolved solids (TDS in g/L), and salinity (ppt) using standardized algorithms and temperature compensation models. Designed specifically for environments where thermal stability and wide dynamic range are critical—including medical multiple-effect distillation (MED) systems, boiler feedwater and condensate loops, heat exchanger monitoring, industrial thermal cleaning baths, and closed-loop cooling water circuits—the CD510 delivers robust performance across a broad temperature span (−10 °C to 110 °C) without drift or calibration instability.

Key Features

• Auto-ranging six-segment conductivity measurement (0.00 µS/cm to 2000 mS/cm) with intelligent segment switching and optimized resolution per range (0.01 µS/cm minimum)
• Integrated ATC (Automatic Temperature Compensation) with user-selectable temperature coefficient (β) and manual compensation mode for non-standard electrolytes
• 1–4 point calibration routine with real-time guidance, automatic standard recognition, and validation feedback for CH and USA conductivity standards (8 built-in solutions plus customizable entries)
• Dual-mode display: stable endpoint detection with configurable response threshold and auto-hold function for reproducible readings in turbulent or low-conductivity samples
• GLP-compliant data management: 500-stored measurements with timestamp, electrode ID, calibration history, operator ID (via optional software), and audit trail metadata
• IP54-rated enclosure with sealed connector ports and rubber protective caps—suitable for humid, splash-prone laboratory and plant-floor environments
• Ultra-pure water mode employing low-frequency AC excitation and guard-ring electrode architecture to minimize polarization error and surface contamination effects below 1 µS/cm
• Configurable temperature units (°C/°F), adjustable contrast/backlight intensity, and intuitive menu navigation via tactile keypad

Sample Compatibility & Compliance

The CD510 accommodates a wide spectrum of aqueous matrices—from ultrapure water (e.g., USP Purified Water, EP Water for Injection) to highly conductive brines and industrial process streams. Its K=1.0 ATC conductivity electrode enables accurate measurement across all five operational ranges without hardware switching. The instrument complies with key regulatory expectations for analytical instrumentation used in GMP and GLP environments: full traceability of calibration events, secure data storage with immutable timestamps, and exportable records compatible with FDA 21 CFR Part 11–aligned review workflows (when paired with validated Alalis DataLink software). While not certified to IEC 61000-4 EMC standards out-of-box, its design meets typical laboratory electromagnetic immunity requirements per EN 61326-1. It supports ISO 7888 (water conductivity), ASTM D1125 (electrical conductivity of water), and pharmacopeial methods requiring temperature-compensated conductivity at 25 °C.

Software & Data Management

The included USB interface enables bidirectional communication with Windows-based Alalis DataLink software (supplied on optical disc). This application facilitates automated report generation (PDF/CSV), calibration certificate printing, trend analysis across multiple instruments, and batch export of GLP-compliant datasets—including raw sensor values, compensated results, electrode impedance logs, and environmental conditions. All stored entries retain metadata such as date/time, measurement mode, temperature reading, electrode constant, and calibration status. Software-generated reports include digital signatures, revision control headers, and configurable footers suitable for internal QA review or external regulatory submission. Data integrity safeguards include write-protected archive folders, session-level encryption keys, and export logs traceable to operator login credentials.

Applications

• Pharmaceutical water systems: continuous verification of conductivity in purified water (PW) and water for injection (WFI) loops per USP and EU Ph. Eur. 2.2.38
• Power generation: real-time monitoring of boiler feedwater purity, condensate return quality, and demineralizer effluent conductivity
• Food & beverage processing: inline validation of CIP rinse water conductivity to confirm detergent removal and microbial control efficacy
• Electronics manufacturing: ultra-low conductivity verification of rinse tanks used in semiconductor wafer cleaning
• Chemical process control: concentration tracking of acid/base solutions, salt baths, and electroplating electrolytes
• Environmental labs: field-deployable benchtop verification of surface water, wastewater, and desalination brine conductivity profiles

FAQ

Does the CD510 support four-electrode conductivity measurement?
No—the CD510 uses a two-electrode cell architecture with integrated temperature sensing (ATC). For applications requiring high accuracy in high-conductivity or fouling-prone media, a separate four-electrode sensor (e.g., Alalis K=10 probe) may be connected via optional adapter module.
Can calibration data be exported independently of measurement records?
Yes—Alalis DataLink allows selective export of calibration logs, including standard IDs, measured values, deviation reports, and pass/fail flags per ICH Q2(R2) guidelines.
Is the instrument suitable for use in explosion-hazard areas?
No—the CD510 is not intrinsically safe or ATEX-certified. It is rated for general-purpose laboratory and industrial indoor use only.
How does the ultra-pure water mode improve low-conductivity stability?
By reducing excitation frequency and applying active shielding to suppress stray capacitance and interfacial polarization artifacts common below 0.1 µS/cm.
What happens during a factory reset?
All user settings, calibration coefficients, stored data, and time/date configuration are erased; the device reverts to default firmware parameters and prompts initial setup upon reboot.
