ALIO Industries 6-D Nano Positioning® Air Bearing Motion System

Overview

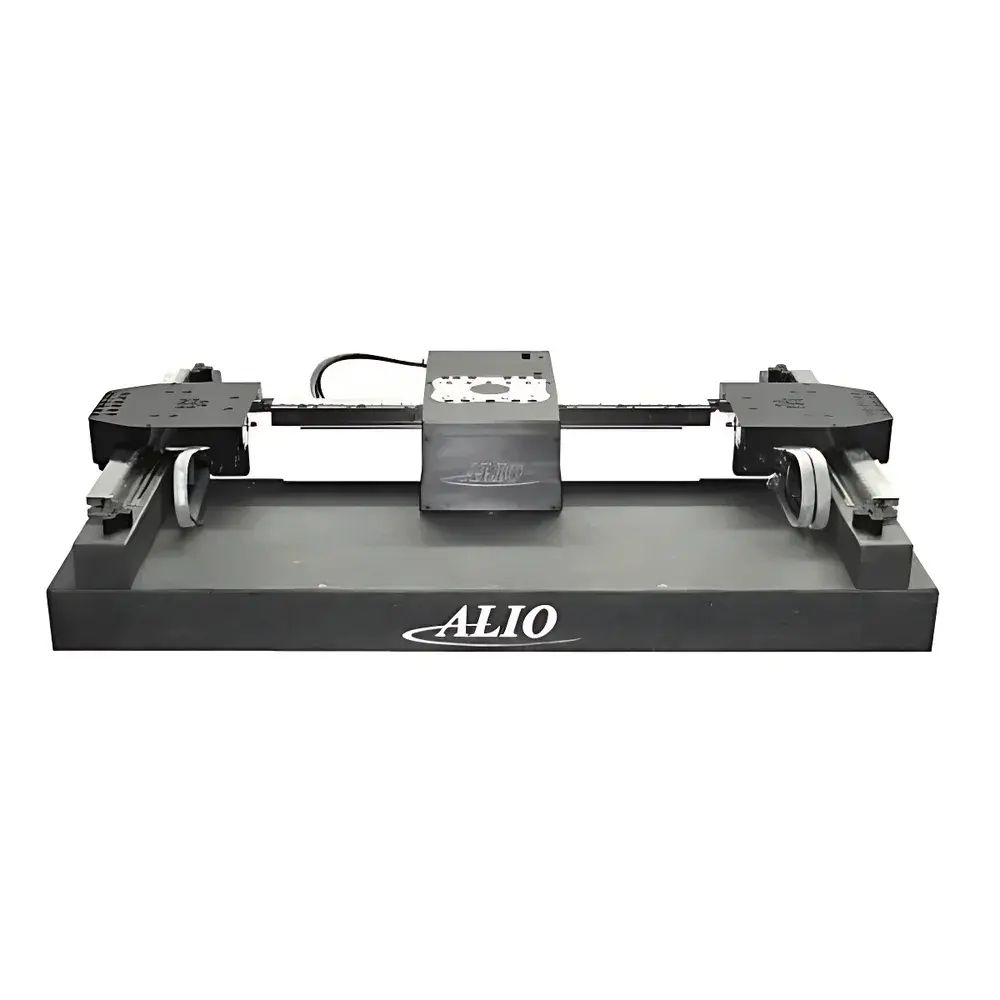

The ALIO Industries 6-D Nano Positioning® Air Bearing Motion System is a metrology-grade, ultra-high-precision multi-axis positioning platform engineered for applications demanding true nanometer-level control across all six degrees of freedom (X, Y, Z, pitch, yaw, roll). Unlike conventional mechanical or magnetic bearing stages, this system employs aerostatic air bearings—where a thin, uniform film of compressed air (typically 3–7 bar) separates the moving carriage from the granite base—eliminating solid-to-solid contact entirely. This fundamental design principle enables zero static friction, no stiction, negligible hysteresis, and absence of wear-induced drift over time. The system’s structural architecture integrates high-stiffness natural granite bases, thermally stable aluminum or stainless-steel carriages, and direct-drive linear motors with sub-nanometer resolution optical encoders (e.g., Renishaw RESOLUTE™ or Heidenhain LC 481). Performance validation is conducted per ISO 230-2 (determination of positioning accuracy and repeatability) and ISO 10360-2 (coordinate measuring machine acceptance testing), with full NIST-traceable calibration reports available upon request.

Key Features

• True 6-degree-of-freedom nanoscale motion control: simultaneous linear (X/Y/Z) and angular (pitch/yaw/roll) positioning with documented ≤±450 nm accuracy
• Aerostatic air bearing guidance: eliminates mechanical wear, particulate generation, and vibration coupling—critical for cleanroom environments (ISO Class 1–5 compliant installations)
• Sub-micron flatness over extended travel: ≤1 µm flatness maintained across 300 mm travel; scalable to >3 m in X/Y via modular granite base integration
• Bidirectional repeatability of ±100 nm—verified under continuous operation and thermal equilibrium conditions

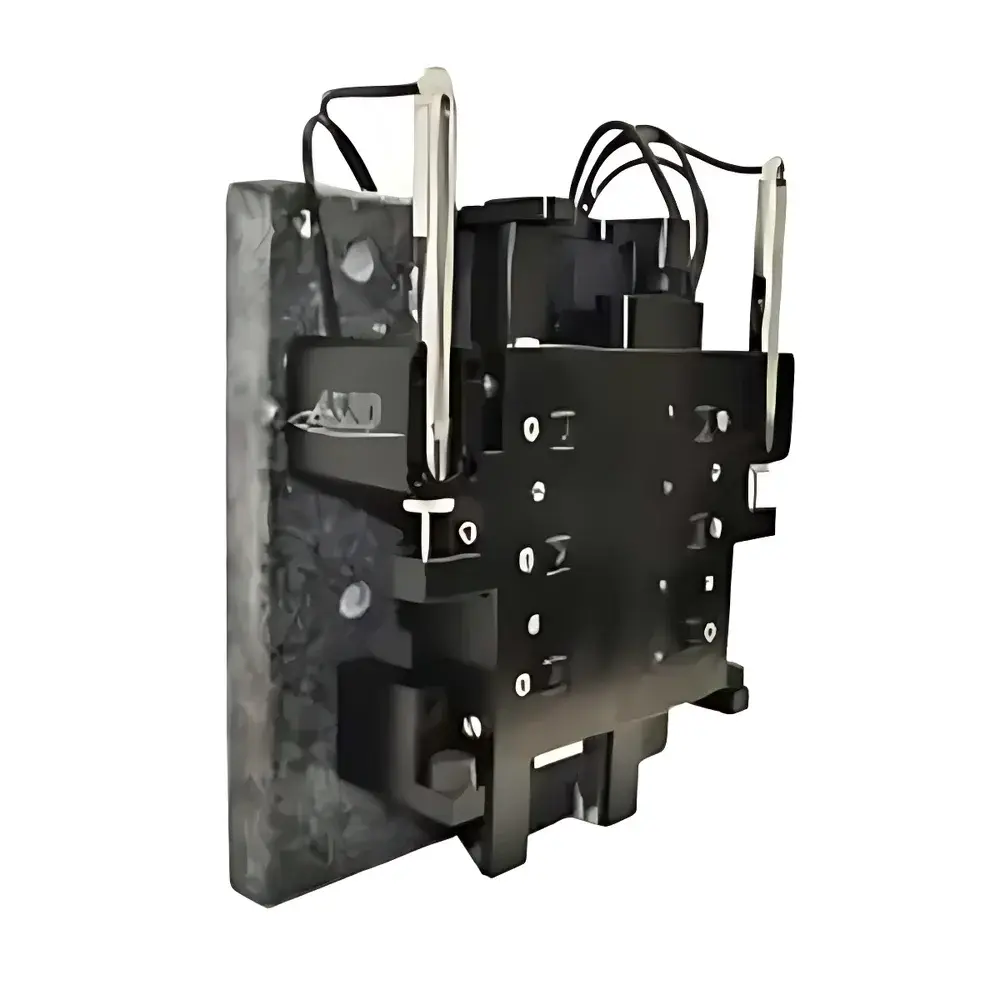

• Low-profile, long-stroke Z-axis platforms (Z-ABCB series): 200–500 mm travel, 25 kg payload capacity, centerline-balanced actuation to minimize tilt error

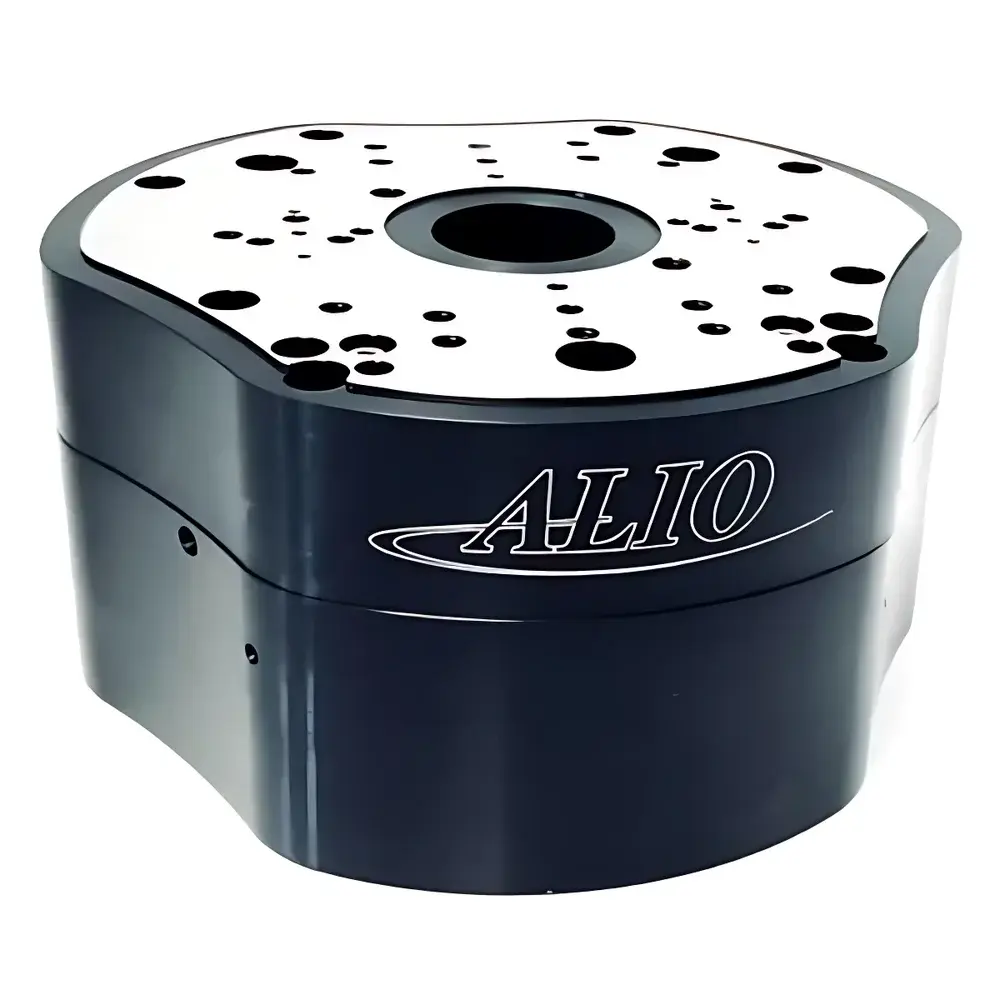

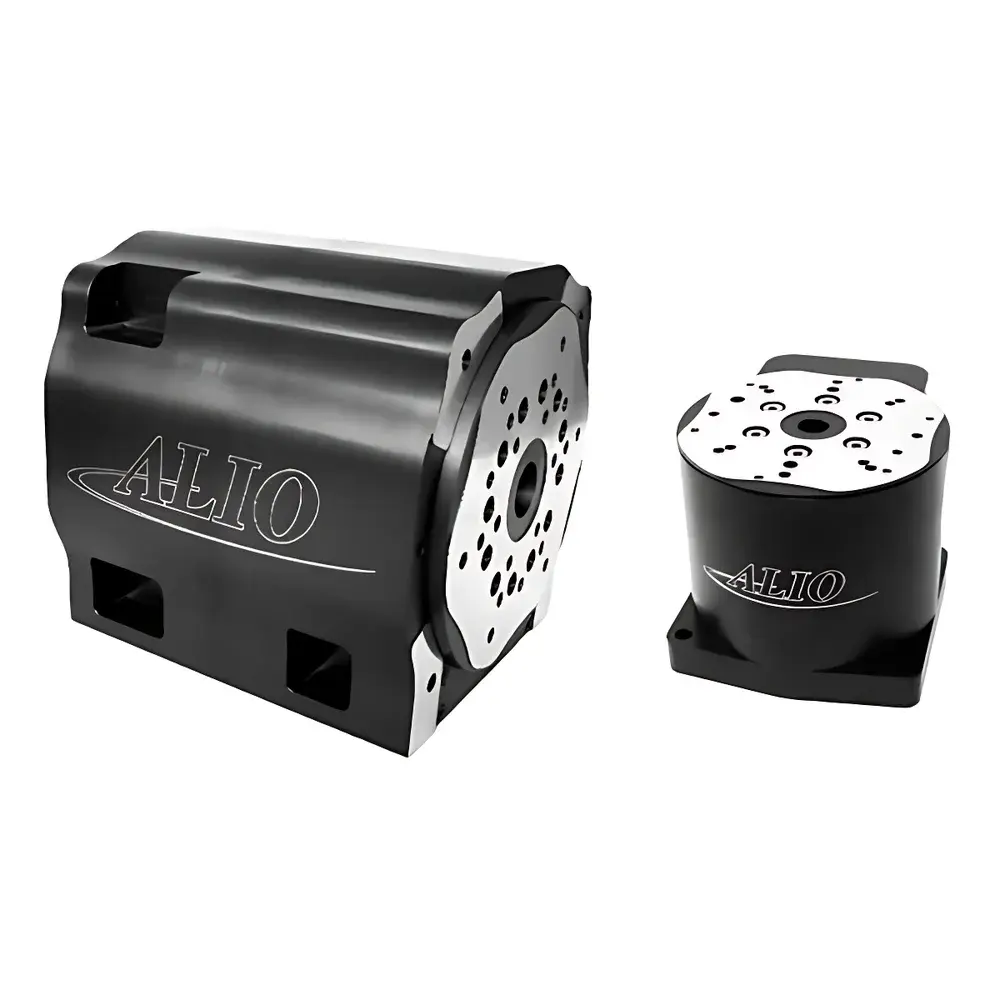

• High-speed rotary stages with <5 arcsec wobble and <0.5 µm radial runout—suitable for vertical mounting and high-RPM scanning
• Direct-drive linear motor architecture: no belts, gears, or lead screws—ensuring high bandwidth (>100 Hz closed-loop bandwidth typical), smooth velocity profiles, and minimal settling time

Sample Compatibility & Compliance

These motion systems are routinely deployed in semiconductor lithography tool alignment, photomask inspection, EUV optics metrology, wafer-scale optical interferometry, and advanced photonics packaging. Their non-particulating operation meets stringent requirements for ISO 14644-1 Class 1 cleanrooms. All platforms comply with CE marking directives (EMC Directive 2014/30/EU, Machinery Directive 2006/42/EC) and support integration into FDA-regulated environments where motion traceability and audit-ready calibration logs are required. Optional features include IP54-rated enclosures, vacuum-compatible variants (10⁻⁶ Torr), and electromagnetic compatibility hardening for proximity to electron microscopes or MRI systems.

Software & Data Management

ALIO systems interface natively with industry-standard motion controllers (e.g., ACS Motion Control SPiiPlus, Galil DMC-41×3, or Parker Compax3) via EtherCAT, RS-232, or USB. Real-time position feedback is provided through high-resolution optical encoders with quadrature or EnDat 2.2 protocols. For GxP-compliant labs, optional software modules enable 21 CFR Part 11–compliant electronic signatures, audit trails for parameter changes, and automated calibration report generation. Data logging supports CSV/TXT export synchronized with external triggers (TTL, analog), enabling precise correlation with interferometric, spectral, or imaging data streams.

Applications

• Semiconductor manufacturing: mask alignment, reticle stage positioning, and overlay metrology
• Advanced optics: aspheric lens surface profiling, interferometric null testing, and adaptive optics wavefront correction actuation
• Nano-imprint lithography: high-throughput, low-distortion template alignment and gap control
• Quantum technology: cryogenic nanopositioning for superconducting qubit characterization and trapped-ion trap staging
• Biophotonics: precision scanning of multiphoton microscopy objectives and optical tweezers sample manipulation
• Standards laboratories: primary calibration of coordinate measuring machines (CMMs) and laser trackers per ISO 10360-2 Annex B

FAQ

What is the maximum travel range achievable with ALIO’s XY air bearing stages?
Standard configurations offer 200–800 mm travel; custom systems scale to >3 m in X and Y using segmented granite reference bases.
Can these stages operate in vacuum environments?
Yes—vacuum-compatible versions (10⁻⁶ Torr) are available with stainless-steel construction, dry-running air bearings, and feedthrough-optimized cabling.
Is bidirectional repeatability verified per ISO 230-2?
Yes—each system ships with an ISO 230-2 test report documenting bidirectional repeatability, positioning deviation, and lost motion across full travel.
Do ALIO air bearing stages require external air filtration?
Yes—compressed air must be filtered to ISO 8573-1 Class 1.4.1 (≤0.1 µm particles, ≤0.1 ppm oil, dew point −40°C) to ensure bearing longevity and performance stability.
How is thermal drift compensated in long-travel systems?
Integrated temperature sensors (PT100) and encoder interpolation allow real-time thermal expansion compensation; optional laser interferometer feedback provides absolute position correction.
