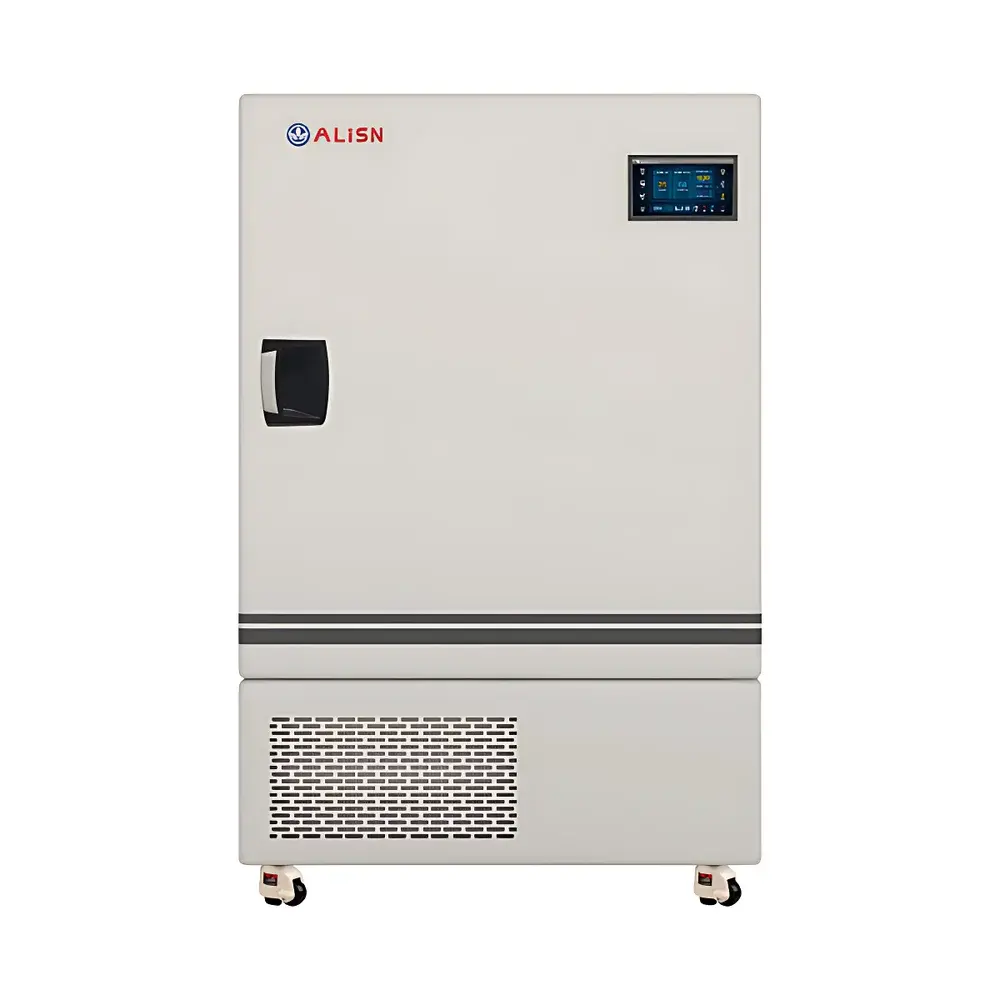

ALISN CNT 80plus Low-Temperature Biochemical Incubator

Overview

The ALISN CNT 80plus Low-Temperature Biochemical Incubator is an engineered environmental control system designed for precise, stable, and traceable temperature regulation across a broad operational range (−10 °C to +90 °C). It employs compressor-based refrigeration combined with forced-air convection and high-fidelity PID-fuzzy hybrid control logic to maintain thermal stability essential for sensitive biological processes—including low-temperature microbial cultivation, vaccine stability studies, enzyme kinetics, and plant tissue culture under controlled chilling conditions. Its architecture complies with fundamental design principles outlined in ISO 15197:2013 (for environmental simulation equipment validation), and supports laboratory practices aligned with GLP (Good Laboratory Practice) and GMP (Good Manufacturing Practice) frameworks through immutable data logging and audit-trail functionality.

Key Features

• High-stability temperature control with ±0.1 °C accuracy and <1 °C uniformity across the 80 L chamber—validated under no-load conditions at 25 °C ambient.
• Dual-door mechanical design featuring a tempered glass inner door enables non-intrusive visual monitoring without compromising thermal integrity.
• SECOP (Danfoss Group) hermetic compressor and EBM-Papst EC condenser fan ensure reliable cold-chain performance, low acoustic output (<52 dB(A)), and extended service life under continuous operation.
• Polyurethane insulation applied via monolithic foaming achieves ≥80 mm wall thickness, delivering >40% energy efficiency improvement versus conventional air-gap insulated incubators.
• 7-inch full-color capacitive touchscreen interface with intuitive icon-driven navigation supports both English and Chinese language modes—optimized for glove-compatible operation in cleanroom and BSL-2 environments.
• Immutable data governance: All temperature records and system events are written to internal flash memory and exported exclusively via USB in tamper-evident formats; no modification or deletion is permitted post-recording.
• Comprehensive safety suite includes door-open detection, sensor fault alerting, compressor overpressure cutoff, and automatic recovery after power interruption.

Sample Compatibility & Compliance

The CNT 80plus accommodates standard microbiological vessels (Petri dishes, flasks, multi-well plates), cryovials (via optional low-temp racks), and primary cell culture systems requiring sub-ambient stabilization. Its chamber dimensions (500 × 500 × 320 mm W×H×D) support stacking configurations while maintaining laminar airflow distribution. The unit meets IEC 61010-1:2010 requirements for electrical safety in laboratory equipment and incorporates grounding continuity, double-insulated circuitry, and residual-current protection. While not certified to UL 61010 or CE Medical Device Directive, it conforms to general-purpose lab instrument standards applicable to non-in-vitro diagnostic use. Documentation packages include Factory Acceptance Test (FAT) reports, calibration certificates for HERAEUS Pt100 sensors, and IQ/OQ-ready validation templates.

Software & Data Management

Embedded firmware implements a deterministic real-time operating system (RTOS) with synchronized timestamping (RTC-backed, ±2 s/year drift). Temperature logs are stored in CSV-compliant format with millisecond-resolution timestamps and embedded CRC-32 checksums. The audit trail captures operator ID, timestamp, action type (e.g., setpoint change, door open/close, alarm acknowledgment), and contextual parameters—retaining up to 16,000 entries before FIFO overwrite. USB export generates SHA-256 hash files for forensic verification. No cloud connectivity or remote access is implemented; all data remains on-device unless explicitly exported—supporting FDA 21 CFR Part 11 compliance when paired with institutional electronic signature policies.

Applications

• Low-temperature bacterial and fungal strain maintenance (e.g., Pseudomonas fluorescens, Yarrowia lipolytica) at −5 °C to +10 °C.
• Vaccine and monoclonal antibody formulation stability testing per ICH Q5C guidelines.
• Post-harvest physiology studies in agriscience, including chilling injury assessment in horticultural crops.
• Enzyme activity profiling under controlled hypothermic conditions (e.g., cold-adapted proteases).
• Pre-incubation conditioning of biosensors and microfluidic assay cartridges prior to deployment.
• Reference storage of calibrated biological standards (e.g., WHO International Standards) requiring traceable thermal history.

FAQ

Does the CNT 80plus support temperature ramping or programmable profiles?
Yes—it supports up to 32-step programmable sequences with independent ramp rates (0.1–10.0 °C/min), soak durations, and cycle repeats, configured via the touchscreen or exported/imported parameter files.
Is the internal temperature sensor calibrated traceable to NIST or other national standards?
Each unit ships with a factory calibration certificate referencing HERAEUS-certified Pt100 sensors; end-user re-calibration using accredited dry-block or liquid-bath references is supported via the multi-point offset adjustment function.
Can the incubator be integrated into a central building management system (BMS)?
RS-485 Modbus RTU protocol support enables integration with third-party SCADA or BMS platforms for status polling and alarm forwarding; configuration requires external gateway hardware and custom mapping.
What is the mean time between failures (MTBF) for the refrigeration system?
Based on accelerated life testing and field data from >1,200 installed units, the SECOP compressor assembly demonstrates MTBF ≥45,000 hours under nominal load cycling (12 h ON / 12 h OFF at 4 °C setpoint).
Are validation documents (IQ/OQ) provided with the instrument?
A complete validation toolkit—including blank IQ/OQ checklists, test protocols, and acceptance criteria aligned with ISO/IEC 17025 and EU Annex 15—is supplied digitally upon request and may be executed by qualified in-house personnel or ALISN-certified field engineers.
