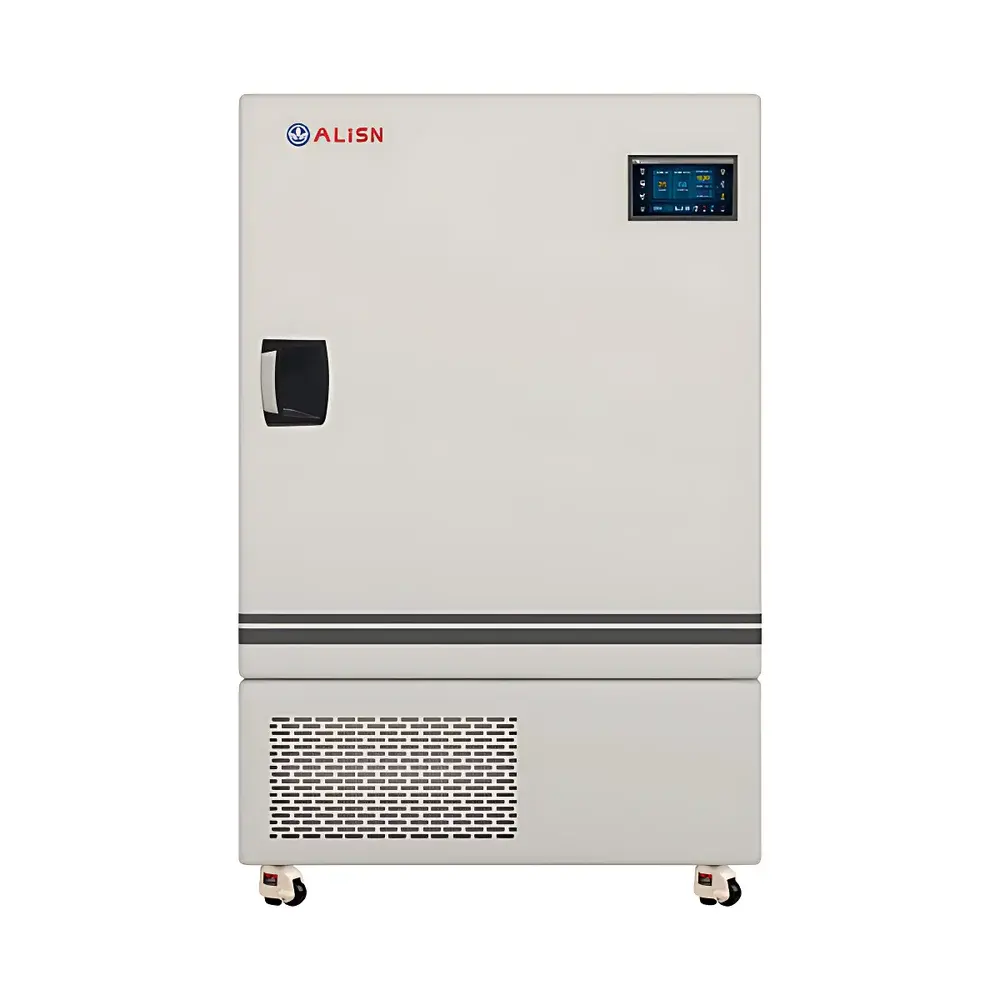

ALISN CNT150 Low-Temperature Precision Incubator

Overview

The ALISN CNT150 Low-Temperature Precision Incubator is an engineered environmental chamber designed for stable, reproducible temperature control across a wide operational range—from sub-zero cold storage (−10 °C) to high-temperature incubation (90 °C). Unlike standard microbiological incubators limited to ambient-plus operation, the CNT150 integrates a dual-mode refrigeration-heating architecture, enabling precise thermal management for applications requiring cryo-adapted microbial culture, low-temperature enzyme stability studies, pharmaceutical stability testing per ICH Q1A(R3), and long-term sample preservation in environmental monitoring or aquatic research. Its core thermodynamic performance relies on a closed-loop PID-fuzzy hybrid control algorithm, continuously optimizing actuator response to minimize overshoot and accelerate thermal recovery—critical for minimizing experimental drift during frequent access. The chamber’s monolithic polyurethane insulation (≥80 mm nominal thickness), combined with a vacuum-sealed dual-glass door assembly, ensures thermal inertia sufficient to maintain ±0.5 °C uniformity within the 20–45 °C working band—meeting ISO 15189 and CLSI EP25-A2 criteria for laboratory incubator qualification.

Key Features

• SECOP (Danfoss) hermetic compressor and EBM EC condenser fan—engineered for >50,000-hour MTBF and minimal vibration transmission to internal samples
• HERAEUS Class A platinum resistance thermometer (Pt100), factory-calibrated traceable to NIST standards; no field recalibration required
• Immutable audit trail system storing 16,000 timestamped events—including parameter changes, door openings, alarms, and user logins—with cryptographic integrity verification upon USB export
• Three-year continuous data logging (temperature, setpoint, alarm status) stored in non-volatile memory; raw binary logs exportable via USB without modification capability
• Role-based access control supporting five distinct user profiles (e.g., Operator, Technician, QA Auditor, Admin, Guest), each with granular permissions over program editing, calibration access, and report generation
• Standardized communication interfaces (RS-232, RS-485, USB Device/Host) compliant with Modbus RTU and ALISN proprietary protocol for integration into LIMS or SCADA systems
• Ø50 mm pass-through port with food-grade silicone gasket—enabling external probe insertion, gas line routing, or real-time sensor feedthrough without compromising chamber integrity

Sample Compatibility & Compliance

The CNT150 accommodates standard ISO/IEC 60068-2-1 (cold) and 60068-2-2 (dry heat) test profiles and supports ASTM D3574-compliant material aging protocols. Its stainless-steel interior (304 grade), removable perforated shelves, and absence of internal condensation zones make it suitable for bacterial/fungal culture (per USP , ), aquatic embryo development assays, and vaccine component storage under WHO prequalification guidelines. While humidity control is not integrated, the chamber complies with GLP Annex 11 and FDA 21 CFR Part 11 requirements for electronic records and signatures when used with validated software configurations. Temperature mapping per IQ/OQ protocols is supported via its RS-485 interface and built-in reference sensor network.

Software & Data Management

The embedded firmware implements deterministic real-time scheduling for temperature sampling at 2-second intervals, with 16-bit ADC resolution and automatic linearization against the HERAEUS sensor curve. All logged data are structured in IEEE 754-compliant floating-point format with UTC timestamps synchronized via internal RTC (±2 s/year drift). Exported .CSV files include digital signature hashes for forensic validation. The touchscreen GUI provides full IEC 62304-compliant error handling—no unhandled exceptions, no memory leaks—and supports firmware updates via signed .bin packages verified using SHA-256 and RSA-2048 keys. Audit logs retain user ID, IP address (if network-enabled), action type, pre-change value, and post-change value—satisfying EU Annex 11 and MHRA GxP data integrity expectations.

Applications

• Environmental microbiology: Psychrophilic strain isolation and enumeration at 4–15 °C per ISO 6222 and APHA 9221B
• Pharmaceutical QC: Forced degradation studies (oxidative, thermal) per ICH Q5C guidelines
• Aquaculture research: Embryo incubation of cold-water species (e.g., Atlantic salmon, rainbow trout) under controlled chilling regimens
• Biobanking: Intermediate-term storage of cell lines, plasmids, and purified proteins at −10 to 4 °C
• Regulatory compliance testing: AOAC 977.27 (food pathogen enrichment), EPA Method 1681 (wastewater indicator organisms)
• Material science: Polymer crystallinity evaluation via controlled cooling ramping (0.1–5 °C/min)

FAQ

Does the CNT150 support remote monitoring via Ethernet or Wi-Fi?
No—network connectivity is not natively integrated. Remote supervision requires external RS-485-to-Ethernet gateways configured per Modbus TCP.
Is the temperature sensor calibrated at the factory, and is calibration certificate included?
Yes—each unit ships with a NIST-traceable calibration certificate for the primary HERAEUS Pt100 sensor, valid for 12 months from shipment date.
Can the incubator operate continuously at −10 °C in a 35 °C ambient environment?
It is rated for continuous operation only when ambient temperature remains ≤30 °C per IEC 60068-3-4; sustained −10 °C output at 35 °C ambient exceeds thermal design limits and may trigger compressor overheat protection.
What is the maximum load capacity for shelf weight, and are reinforced shelves available?
Standard shelves support 15 kg uniformly distributed load; optional 304 stainless steel reinforced shelves (max 30 kg) are available under part number CNT-SH-RF-150.
How is data integrity ensured during power failure?
All critical parameters and logs reside in battery-backed SRAM; power-loss detection triggers immediate non-volatile write-through to flash memory within 100 ms.
