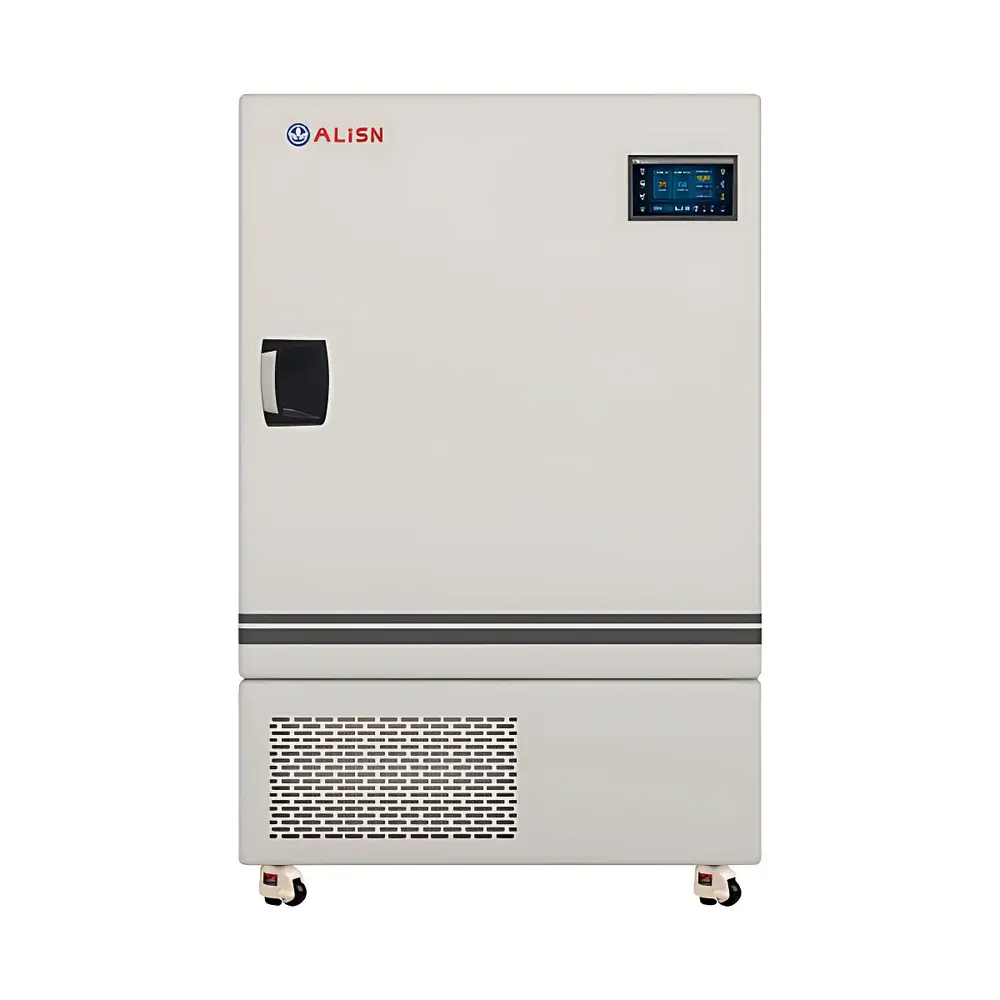

ALISN MTN-460 Mold Incubation Chamber

Overview

The ALISN MTN-460 Mold Incubation Chamber is a precision-engineered environmental test chamber designed specifically for controlled fungal cultivation, long-term microbial preservation, and standardized mold growth assessment in compliance with ISO 846, ASTM G21, IEC 60068-2-10, and relevant pharmacopoeial requirements (e.g., USP <51>, EP 2.6.12). It operates on a dual-mode temperature control architecture combining digital PID regulation with adaptive fuzzy logic algorithms—ensuring rapid thermal stabilization, minimal overshoot, and high reproducibility across extended incubation cycles. Unlike general-purpose climate chambers, the MTN-460 integrates biological safety features—including UV sterilization, sealed access ports, and audit-trail-capable firmware—making it suitable for GLP- and GMP-aligned laboratories conducting environmental monitoring, pharmaceutical stability testing, or antimicrobial efficacy validation.

Key Features

• High-fidelity temperature control: Achieves ±0.1°C stability and ±0.2–0.5°C uniformity (measured at 15–45°C, empty chamber, per IEC 60068-3-5) using a calibrated HERAEUS platinum resistance thermometer (PT100) and a SECOP hermetic compressor paired with an EBM EC centrifugal condenser fan.
• Dual-door mechanical design: Outer door provides thermal insulation; inner tempered glass door enables real-time visual observation without compromising chamber integrity or thermal load.
• Immutable data governance: Internal non-volatile memory stores up to three full experimental datasets—including time-stamped temperature profiles, setpoint logs, and alarm events—with write-once export capability via USB flash drive (FAT32 formatted), preventing post-acquisition modification.
• Comprehensive audit trail system: Records ≥16,000 timestamped entries covering user logins, parameter changes, alarm triggers, UV activation, and door openings—retained locally and exportable in CSV format for regulatory review under FDA 21 CFR Part 11 and EU Annex 11 requirements.
• Configurable access control: Administrator-defined user hierarchy supports five distinct accounts with granular permission sets (e.g., “Operator”, “Technician”, “Auditor”, “Calibration Lead”) limiting access to calibration, program editing, data export, or system configuration functions.
• Structural integrity and thermal efficiency: 80 mm thick monolithic polyurethane foam insulation (closed-cell density ≥38 kg/m³) ensures low heat transfer coefficient (<0.25 W/m²·K) and mechanical rigidity; chamber body constructed from SECC steel with epoxy-powder coating.

Sample Compatibility & Compliance

The MTN-460 accommodates standard microbiological sample formats including Petri dishes (up to 150 mm diameter), slant tubes, broth cultures in sealed containers, and environmental swab transport media. Its internal cavity (750 × 1105 × 560 mm) permits flexible rack configuration—two stainless-steel shelves are supplied as standard (EN 10088-1 AISI 304, electropolished), with optional third-tier mounting kits available. The Ø50 mm silicone-sealed port on the right wall allows for continuous monitoring probes (e.g., CO₂, RH, O₂ sensors) or sterile gas line integration without chamber breach. All electrical and thermal safety mechanisms comply with IEC 61010-1:2010 and GB 4793.1–2019. UV lamp output (254 nm, ≥15 µW/cm² at 1 m) meets ISO 15195 requirements for laboratory decontamination.

Software & Data Management

The embedded operating system runs on an ARM Cortex-A9 processor with real-time Linux kernel, enabling deterministic response times for critical control loops. The 4.3-inch capacitive touchscreen displays intuitive icon-driven menus supporting both English and Chinese language modes—switchable without reboot. Data logging captures temperature every 10 seconds during active programs; historical records are retained for ≥180 days in circular buffer mode. Exported files include metadata headers (operator ID, program name, start/end timestamps, firmware version) and adhere to ASTM E2500-13 formatting conventions for raw instrument data. USB export enforces read-only file attributes; RS-485 interface supports Modbus RTU protocol for integration into centralized LIMS or SCADA environments.

Applications

• Fungal growth qualification per ISO 846 (plastic materials) and ASTM D3273 (mold resistance of interior coatings)
• Pharmaceutical environmental monitoring (Grade C/D cleanroom isolator qualification support)
• Microbial challenge studies for preservative efficacy testing (PET) per USP <51>
• Long-term strain preservation of Aspergillus niger, Penicillium spp., Cladosporium herbarum, and other reference molds
• Validation of antifungal agent performance in medical devices and packaging substrates
• Acclimatization protocols for mycological research involving thermotolerant or psychrotolerant isolates

FAQ

What is the recommended ambient operating environment for the MTN-460?
The unit is rated for ambient temperatures between 5°C and 35°C; optimal performance is achieved at 25 ± 2°C with ≤70% RH and adequate ventilation around rear heat dissipation zones.
Does the MTN-460 support external temperature calibration verification?
Yes—users may connect NIST-traceable reference probes via the RS-232 port or through the Ø50 mm access port; internal sensor offset adjustment is permitted only by administrator-level credentials following documented calibration procedure.
Can the UV sterilization cycle be scheduled independently of temperature programs?
Yes—UV activation is fully decoupled from thermal control; duration, intensity, and timing can be configured separately and logged within the same audit trail framework.
Is the firmware upgradeable in the field?
Firmware updates are delivered as signed binary packages via USB; installation requires administrator authentication and generates an immutable update log entry with hash verification.
What documentation is provided for regulatory submissions?
ALISN supplies a Factory Acceptance Test (FAT) report, IQ/OQ protocol templates compliant with ASTM E2500-13, and a Declaration of Conformity referencing IEC 61010-1, RoHS, and CE marking directives.
